Air Brake Components

Air brake systems are critical components in heavy-duty vehicles, such as trucks and buses, ensuring efficient and safe braking. Understanding the key elements of an air brake system is essential for both vehicle operators and technicians. These elements include the air compressor, air reservoirs, brake chambers, and slack adjusters.

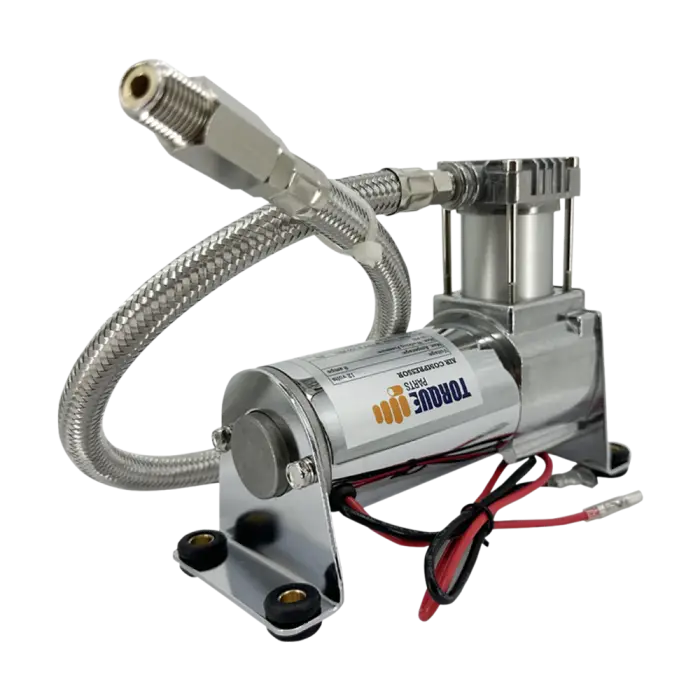

  1. Air Compressor: Often referred to as the heart of the air brake system, the air compressor is responsible for generating the compressed air necessary for system operation. It draws in ambient air and compresses it, storing it in air reservoirs at high pressure. This compressed air is used to power various brake system components.
  2. Air Reservoirs: Air reservoirs, also known as air tanks, store the compressed air produced by the air compressor. These reservoirs ensure a constant supply of compressed air for the brake system. The size and number of air reservoirs may vary depending on the vehicle's specifications.
  3. Brake Chambers: Brake chambers play a critical role in converting compressed air into mechanical force to engage the brakes. Two main types of brake chambers are spring brake chambers, responsible for applying parking brakes when air pressure is released, and service brake chambers, used for regular vehicle braking.
  4. Slack Adjusters: Slack adjusters are essential in maintaining the correct clearance between the brake shoes and the brake drum or rotor. This ensures smooth and efficient braking. Two types of slack adjusters are manual, requiring manual adjustments for proper clearance, and automatic, which self-adjust to maintain the correct slack.

Understanding these components and their functions is crucial for the safe and efficient operation of heavy vehicles. Regular inspection, maintenance, and adjustment of these elements are essential for optimal brake performance. Proper knowledge of these components empowers operators and technicians to contribute to road safety and accident prevention.

The article also emphasizes the importance of the master cylinder and air compressors. The master cylinder, often called the heart of the system, converts mechanical force from the brake pedal into hydraulic pressure for the brake system. This hydraulic pressure activates the air brake chamber and applies the brakes promptly and precisely.

The article underscores the need for regular inspection and maintenance of the master cylinder to ensure optimal braking performance. It also highlights the role of air compressors, which generate compressed air to power various air brake components, including the brake chambers, relay valve, and quick-release valve.

Understanding the key components of air brake systems, such as the air compressor, air reservoirs, brake chambers, slack adjusters, and the master cylinder, is crucial for the safe and efficient operation of heavy vehicles. Regular maintenance and proper adjustment of these components are essential to maintain optimal braking performance and contribute to road safety.
