Brake Chambers

A brake chamber is a vital component of a vehicle's braking system, responsible for converting air pressure into mechanical force to activate the brakes. These devices are essential for ensuring the safe operation of heavy-duty vehicles, such as trucks and buses. Various types of brake chambers are available, each tailored to specific applications and vehicle requirements.

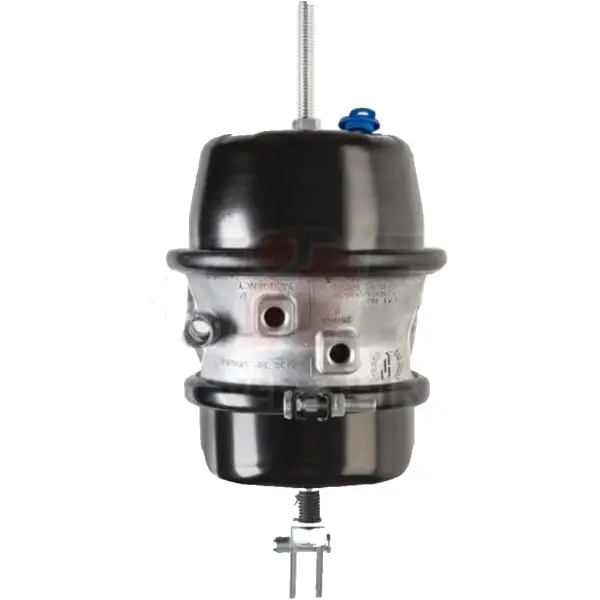

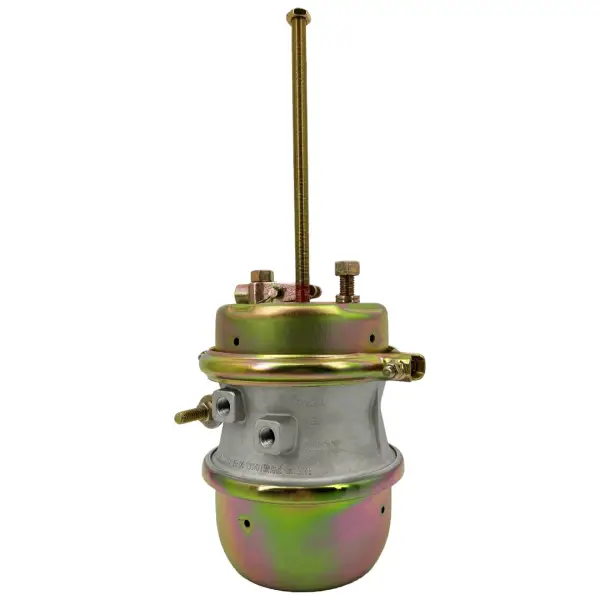

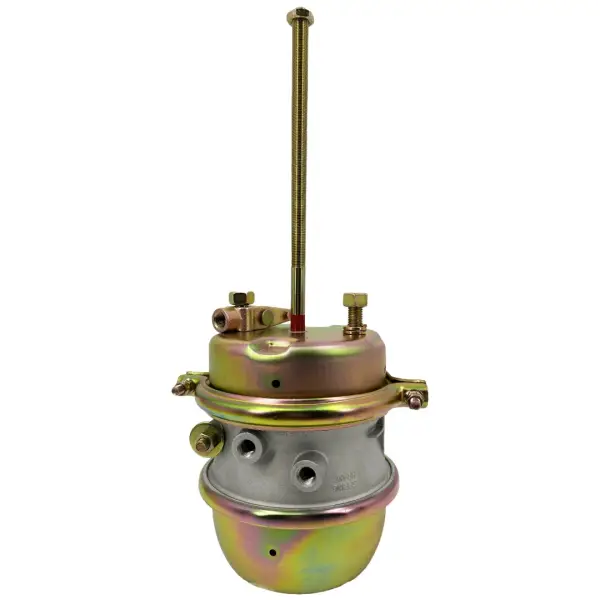

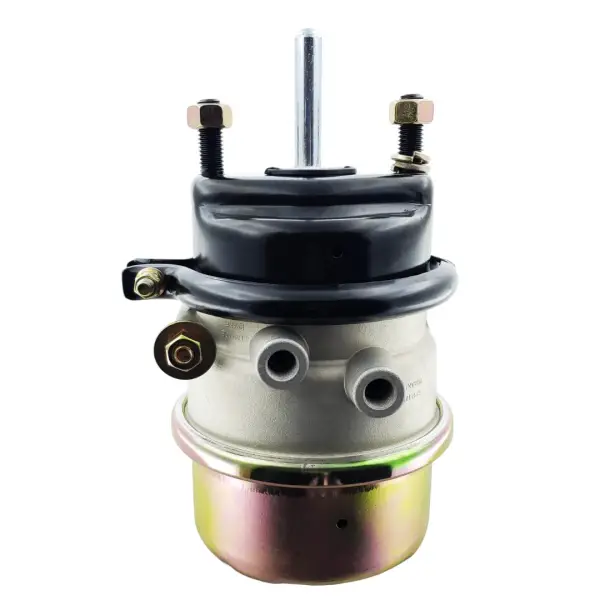

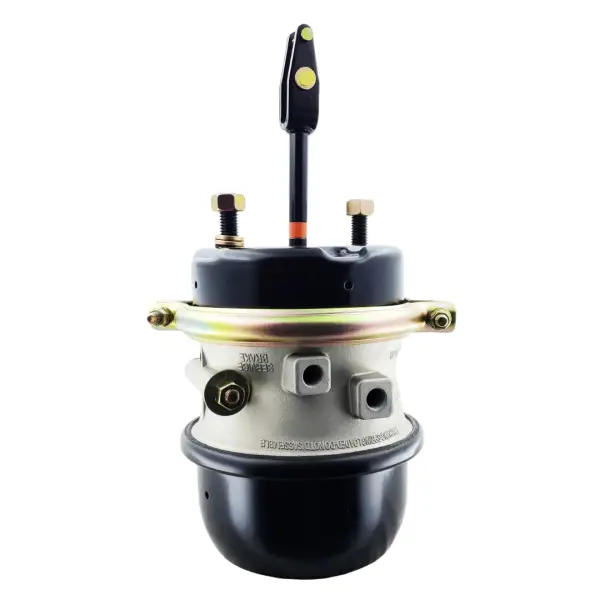

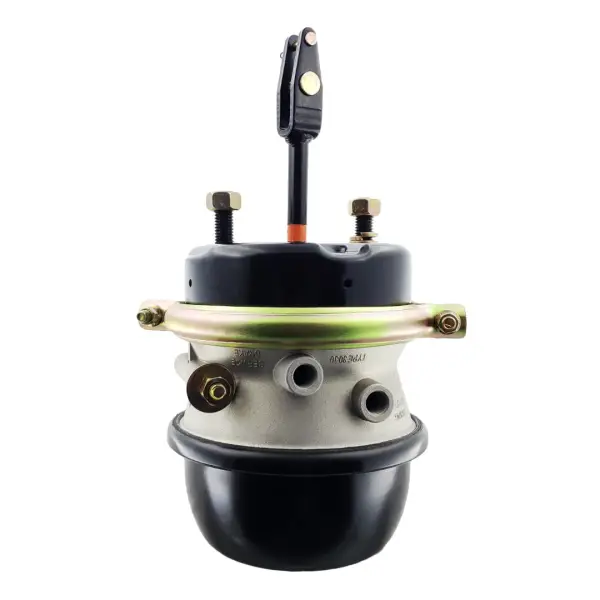

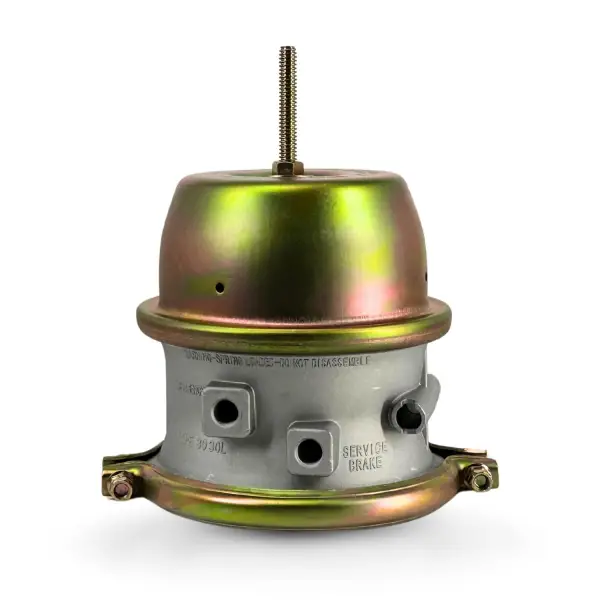

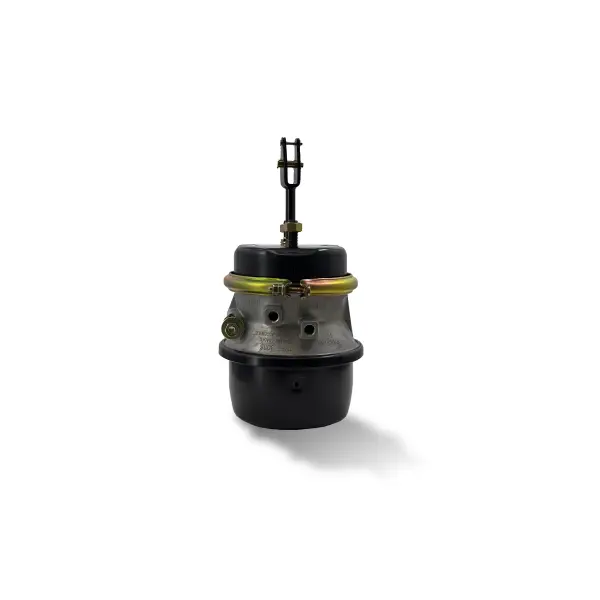

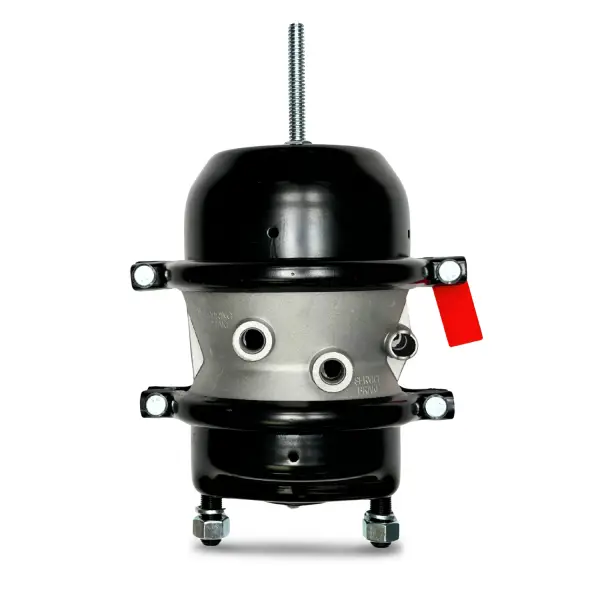

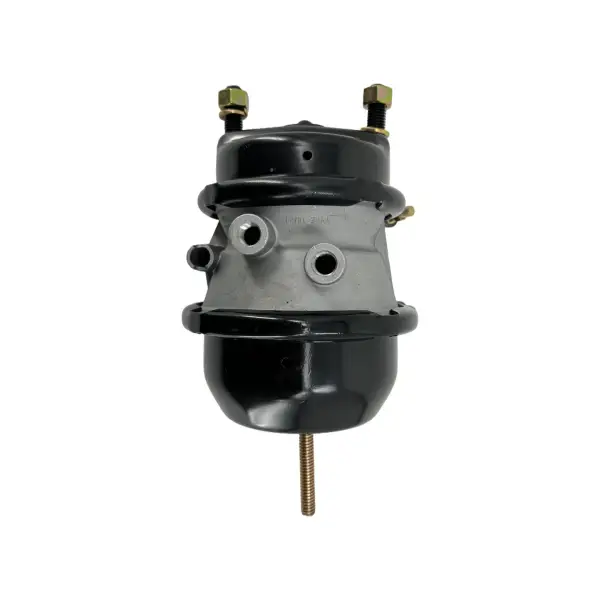

Two common types of brake chambers are the spring brake chamber, utilized in parking and emergency brake systems, and the service brake chamber, employed in the regular braking system of a vehicle. These chambers differ in terms of size, functionality, and operating pressure.

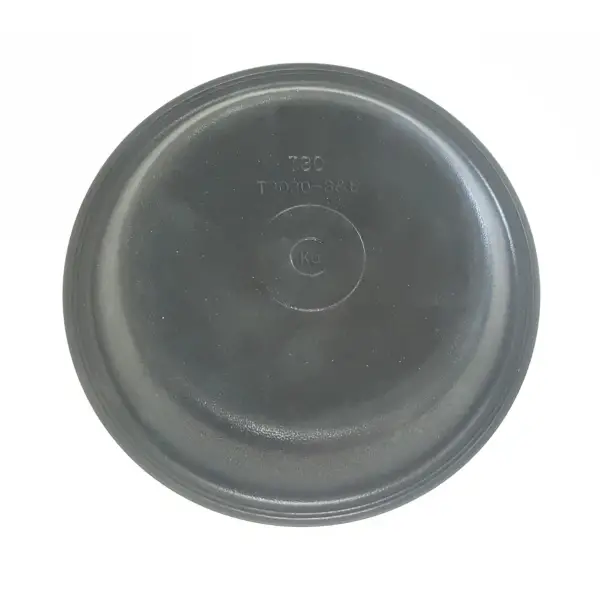

The construction and working principle of a brake chamber involve three key components: the diaphragm, push rod, and return spring. The diaphragm, made of a flexible material, separates the air chambers within the brake chamber. When air pressure is applied, the diaphragm moves, pushing the push rod, which then applies force to the brake mechanism. The return spring's role is to retract the push rod when air pressure is released, subsequently releasing the brakes.

Despite their critical role in vehicle safety, brake chambers can be susceptible to common issues that impact their performance. One prevalent problem is air leakage, often caused by damaged or worn-out seals or diaphragms, leading to reduced braking efficiency or brakes not releasing properly. Another issue can be the accumulation of moisture or contaminants in the brake chamber, potentially causing corrosion or malfunctions. Regular inspection and maintenance are necessary to identify and address these problems promptly.

To maintain brake chambers effectively, several maintenance tips can be followed. These include:

  1. Regular inspection to identify and rectify leaks, corrosion, or damage.
  2. Cleaning to remove dirt, debris, and moisture that can affect performance.
  3. Lubrication of moving parts like the push rod and diaphragm to prevent excessive wear.
  4. Ensuring the integrity of seals by inspecting and promptly replacing worn-out or damaged seals.
  5. Regularly adjusting the push rod stroke according to the manufacturer's specifications to maintain even braking force distribution and prevent brake imbalances.
  6. Professional maintenance and service at regular intervals to perform in-depth checks and address potential issues.



The various types of brake chambers and their construction and working principles is essential for selecting the right braking system for a vehicle and ensuring safe operation. Regular maintenance and adherence to manufacturer guidelines can help prevent common problems and maintain optimal braking performance. Brake chambers play a critical role in vehicle safety, and proper maintenance is key to ensuring efficient and reliable braking performance
