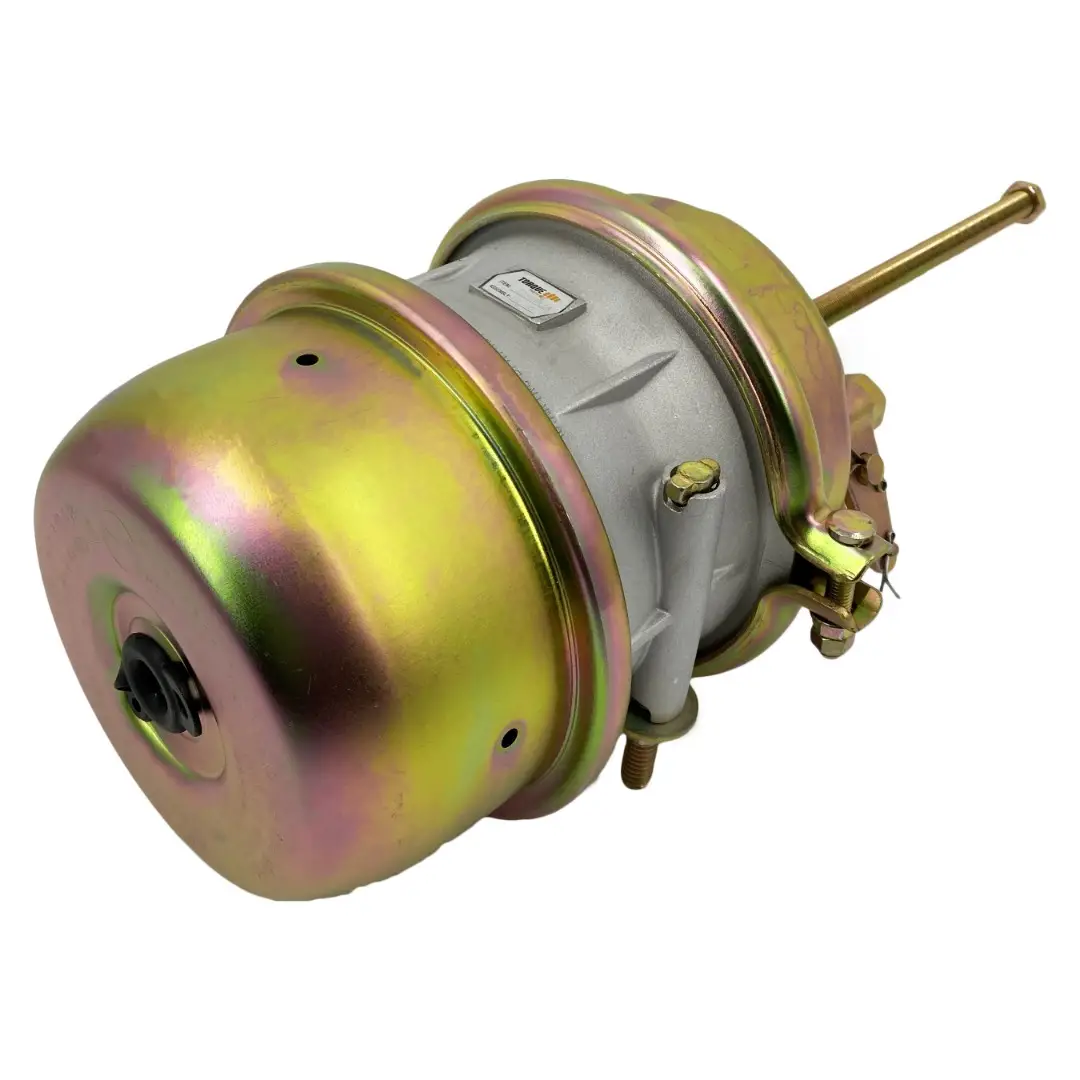

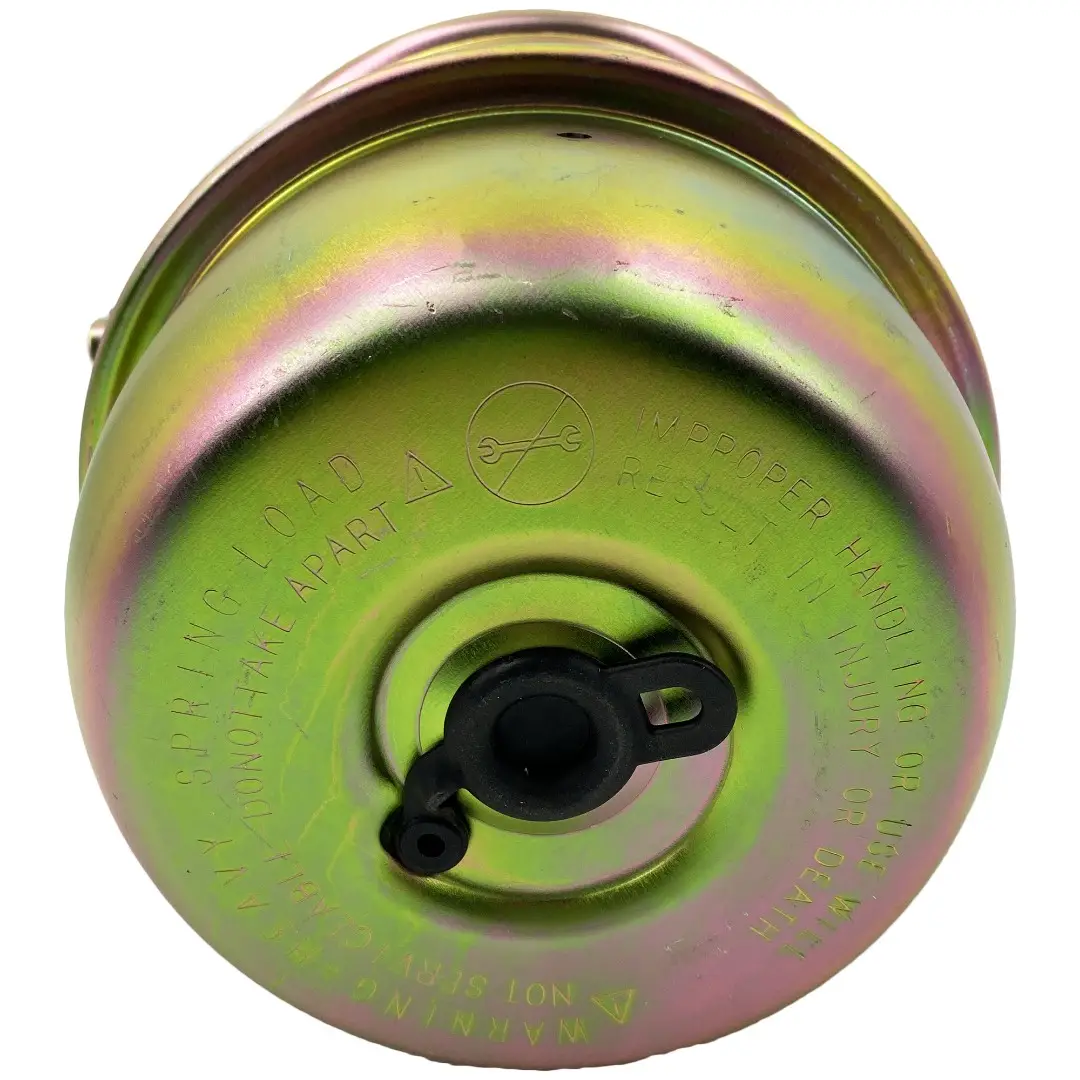

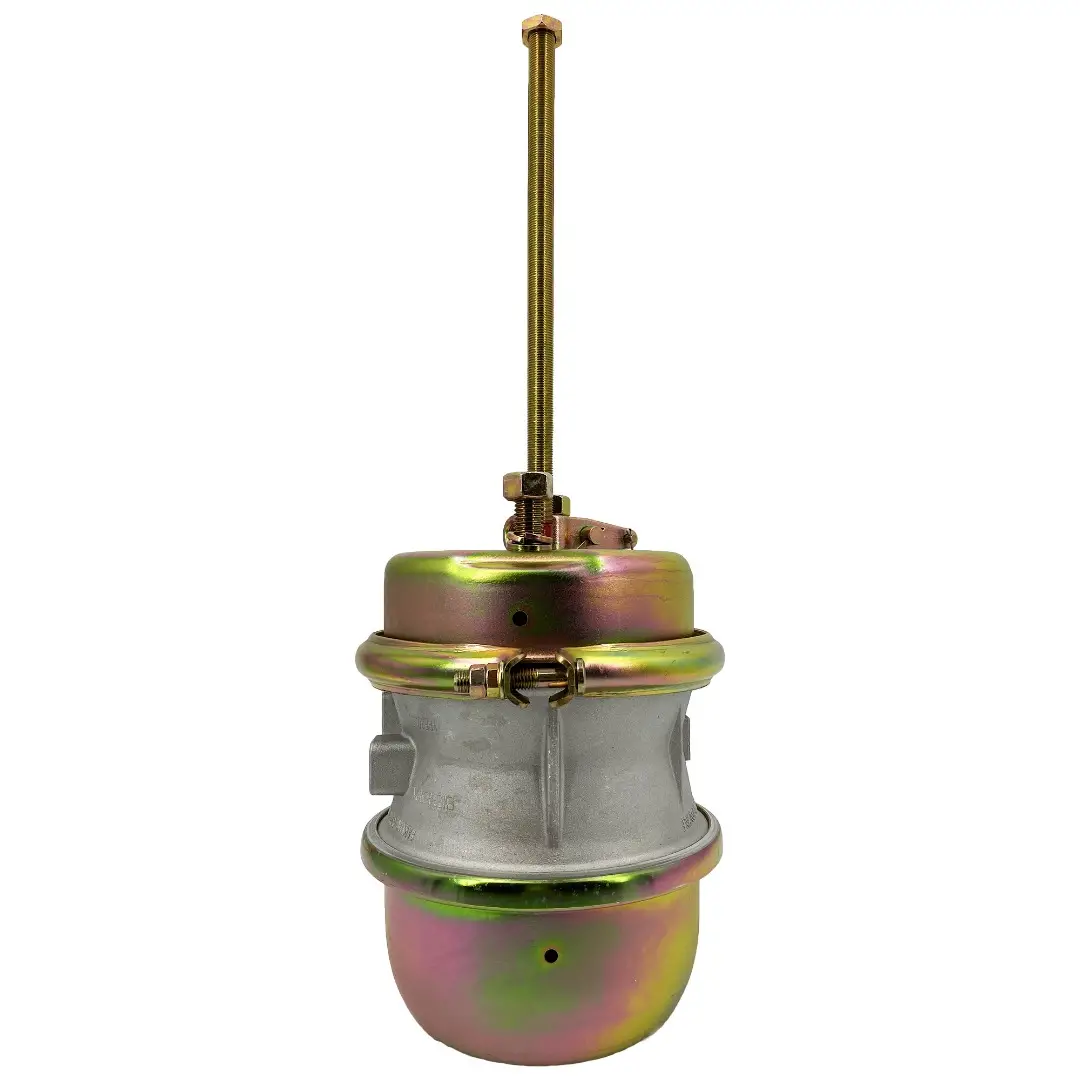

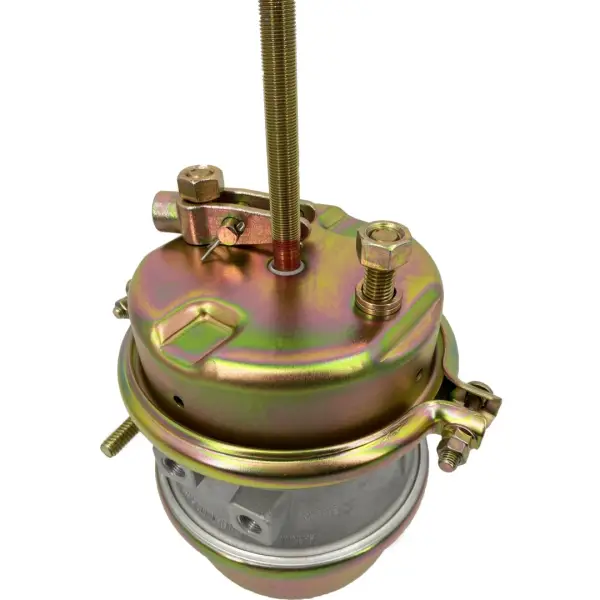

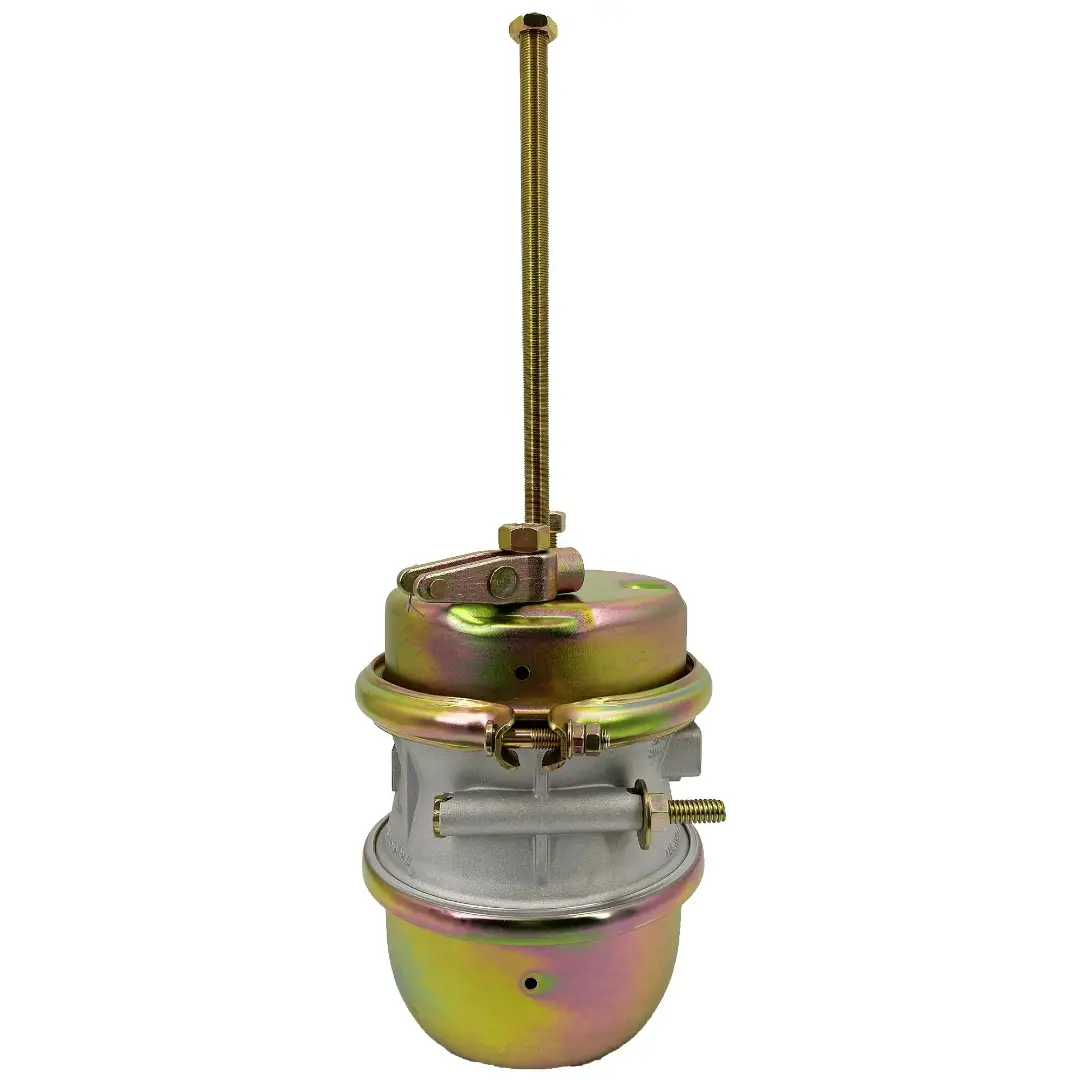

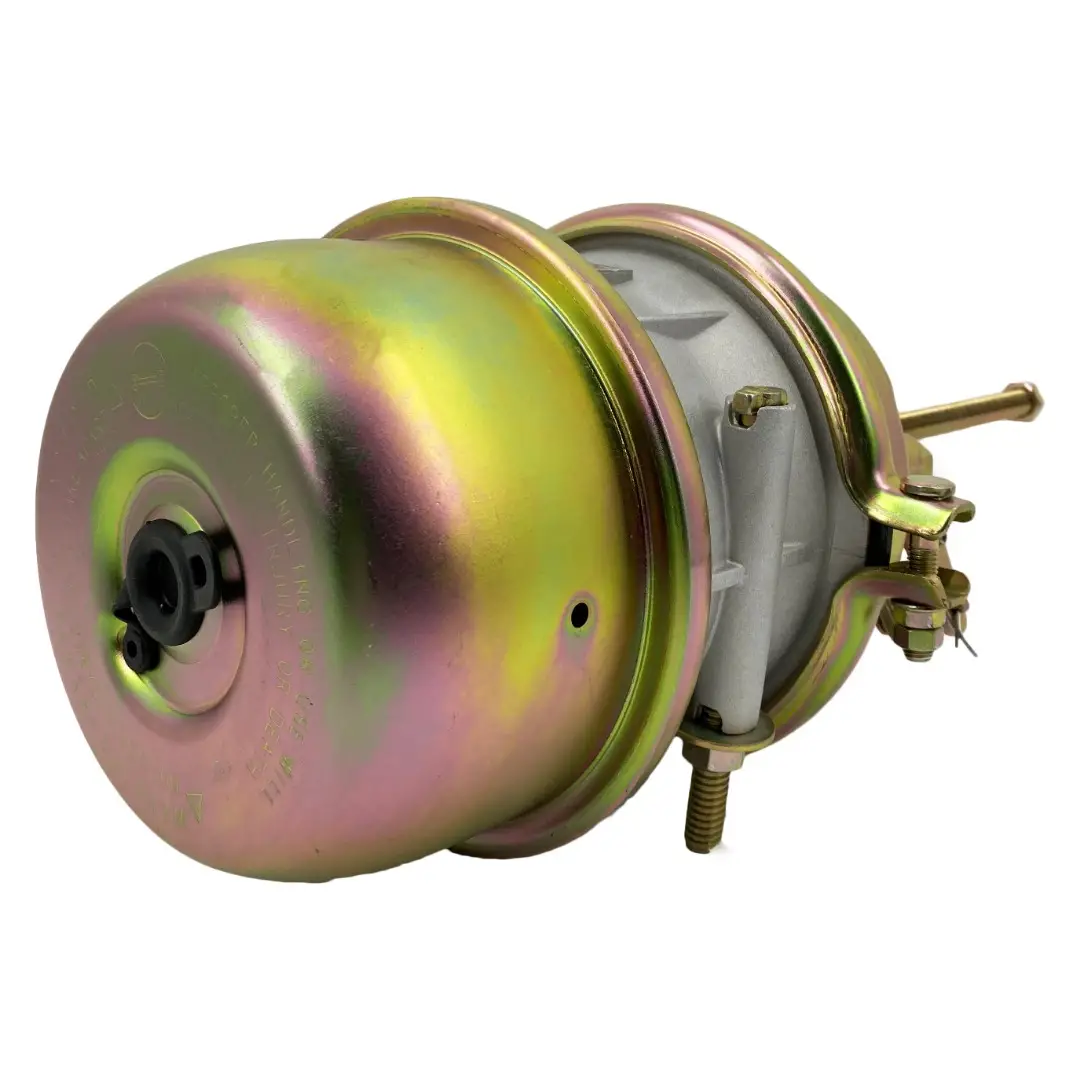

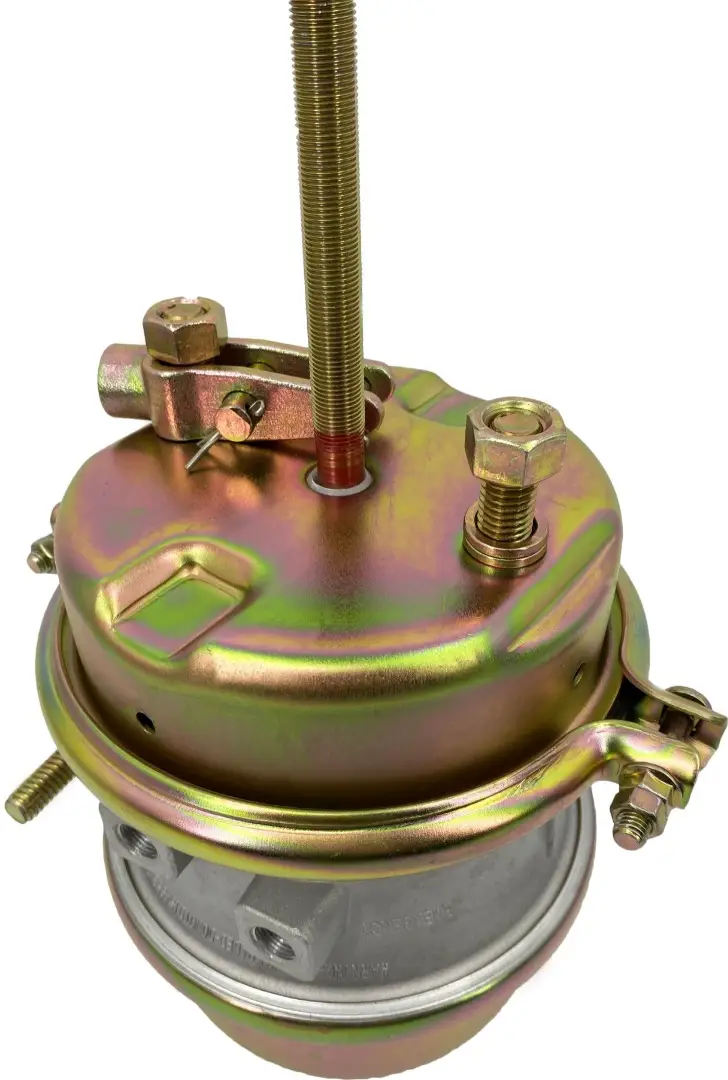

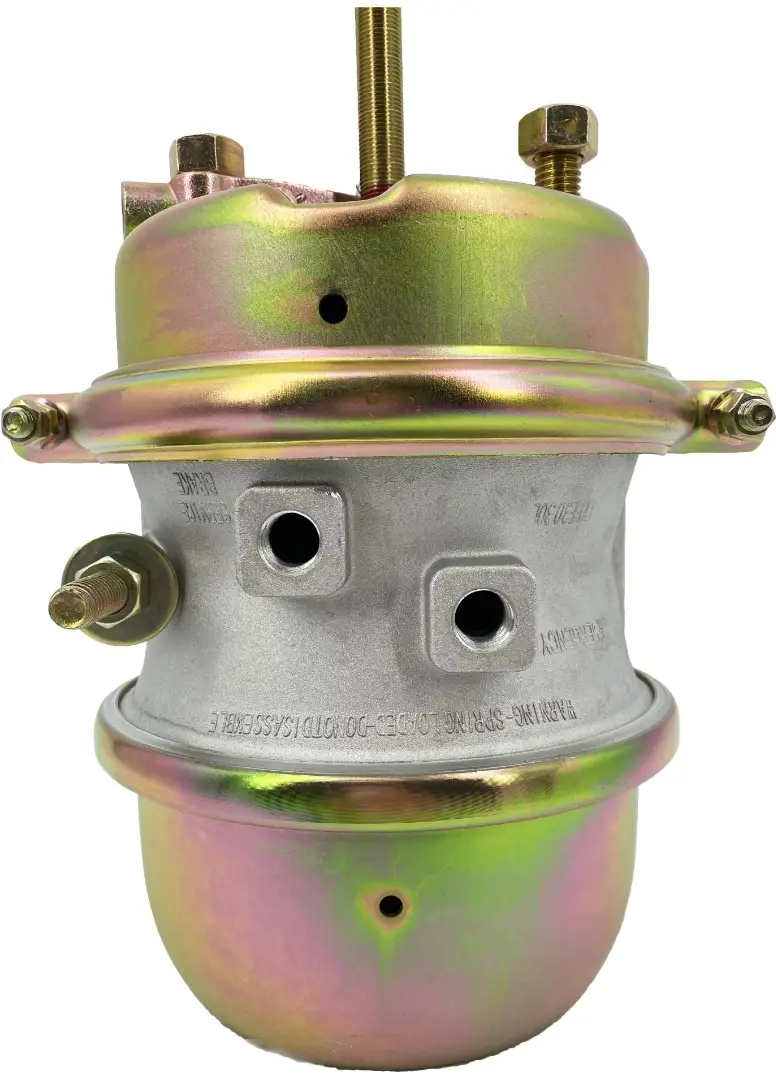

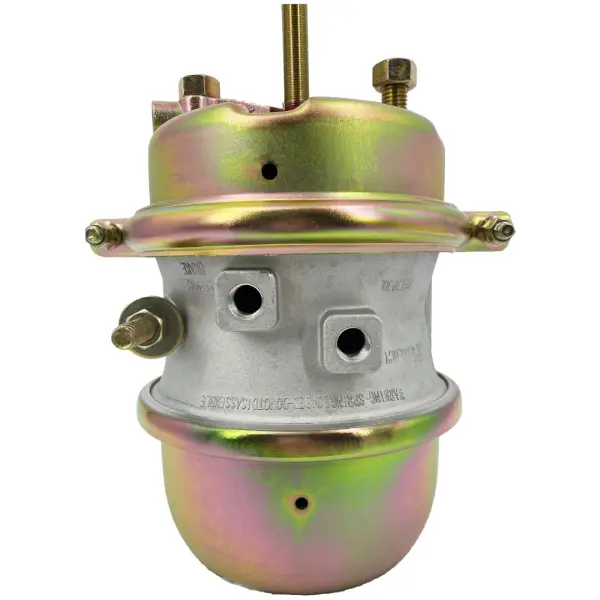

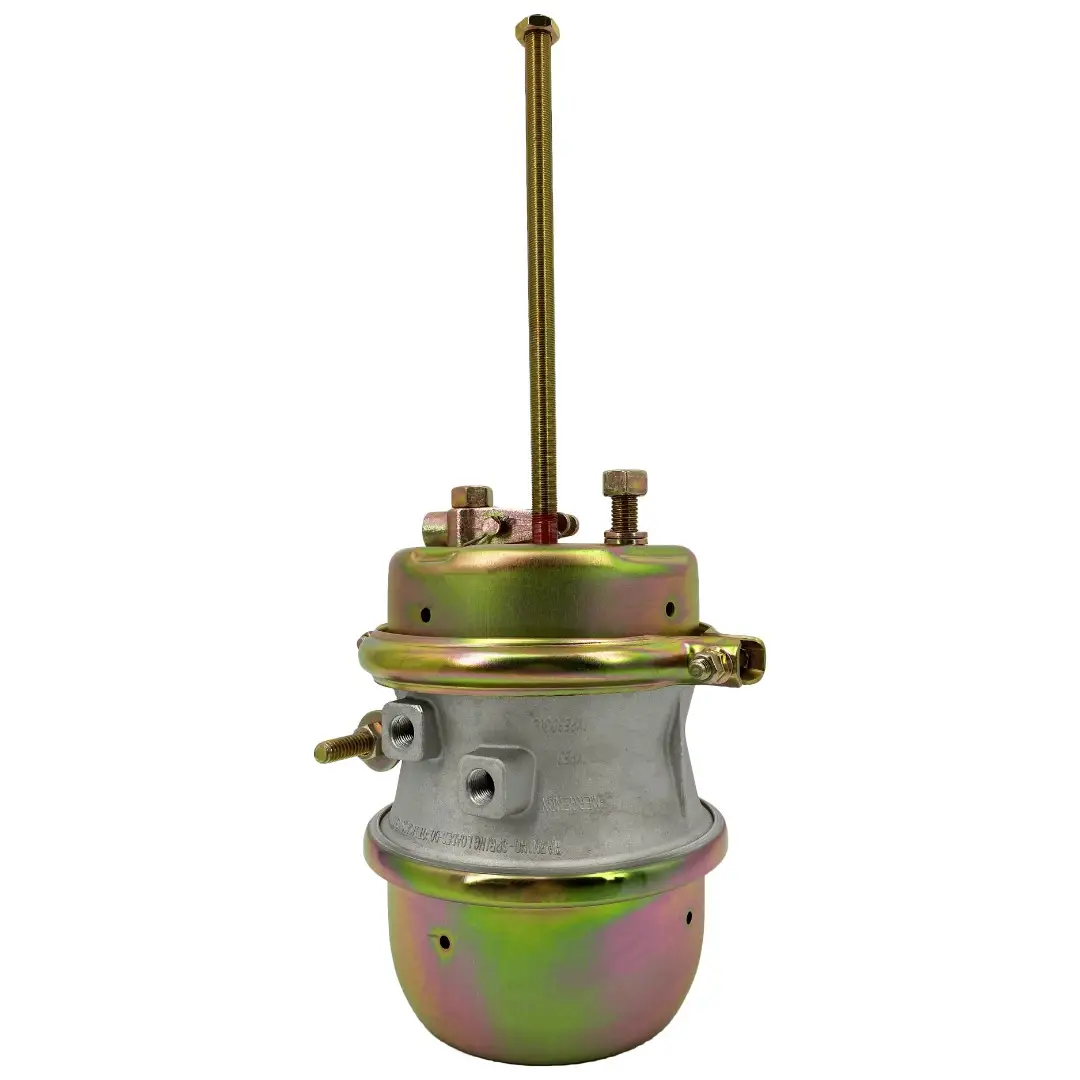

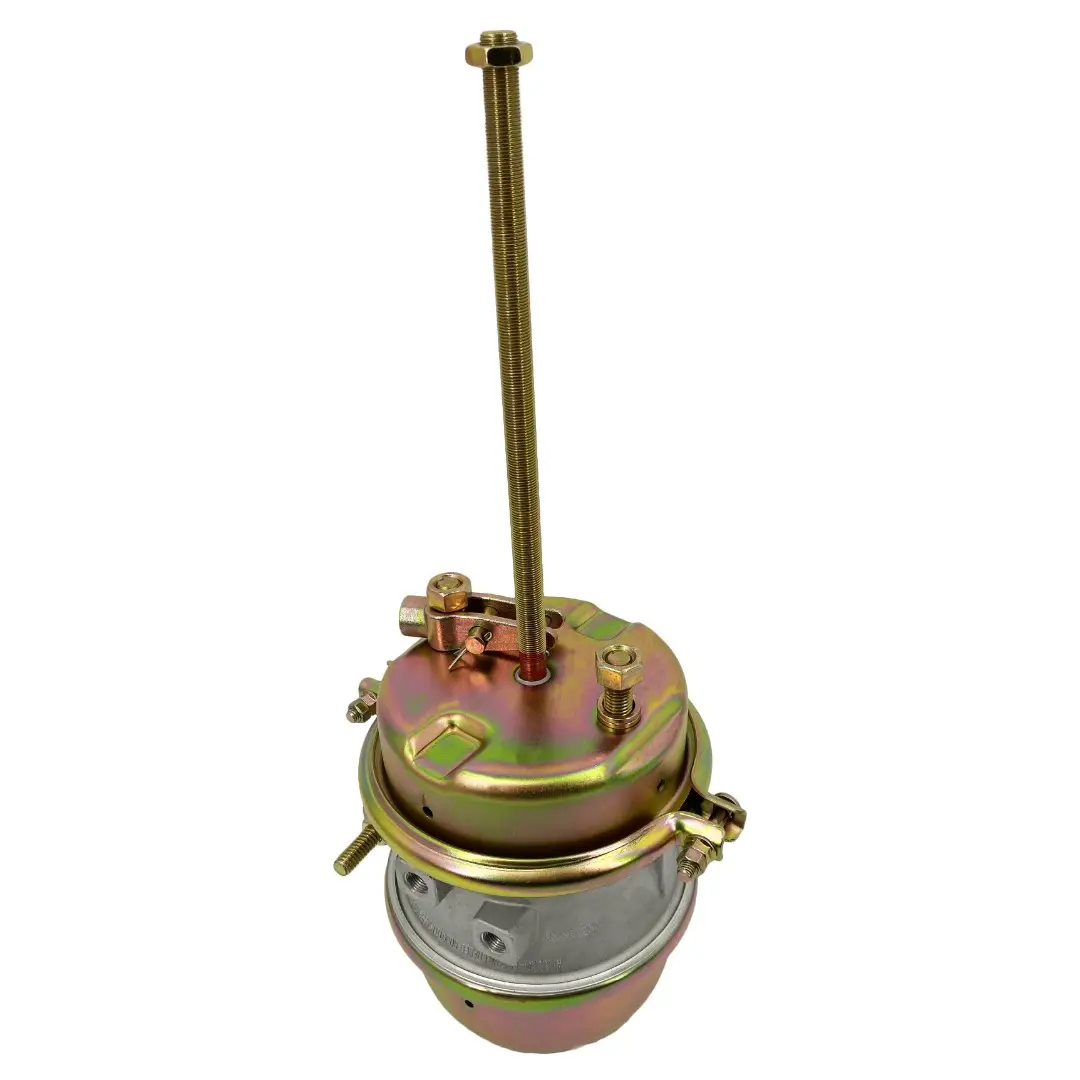

Long Stroke Air Brake Chamber Type 3030

Description : Long Stroke Type 3030 Air Brake Chamber

Part Number : TR3030CLS

Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Long Stroke Air Brake Chamber Type 3030
Click to see price
Long stroke air brake chamber designed for commercial truck and trailer brake systems.
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 179.SB3030SL
Bendix NT3030ELS80, NT3030ELS99
Haldex GC3030L, LC3030L, GC3030LR
Midland 3030054, MBI GC3030LR
Watson and Chalin 12963
Property Value
Actuator Type Size 3030
Stroke Type Long Stroke
Available Stroke 3\", 76mm
Length from mounting bracket to end of Spring Housing 9‑7/8\", 251mm
Length of Piggyback 7‑3/8\", 187mm
Dimension at rolled Spring Housing flange 8‑5/16\", 211mm
Dimension at Service Clampband 10‑3/16\"
Pushrod Length from face of Service Housing 13\"
Weight 21.8 lbs
Chamber Size 3030
Stroke Length 3"
Push Rod Length 13"
Inner Box
Longest Side Median Side Shortest Side Weight
24.02" 9.96" 8.86" 24.05 lbs

No outer box information is available for this product.
