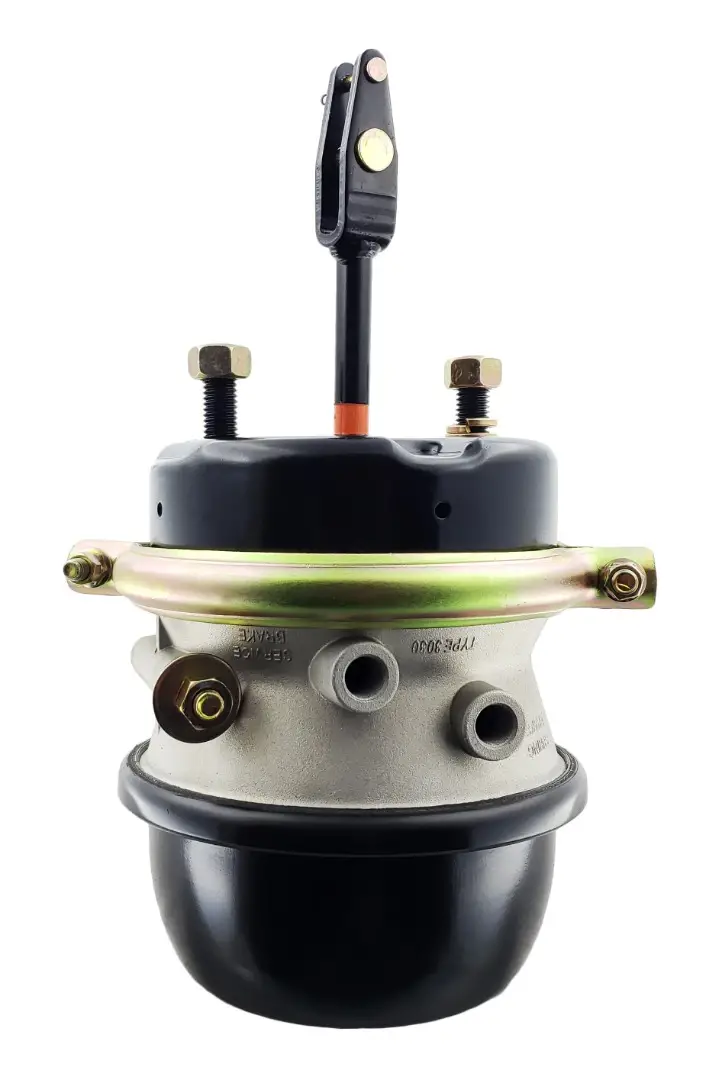

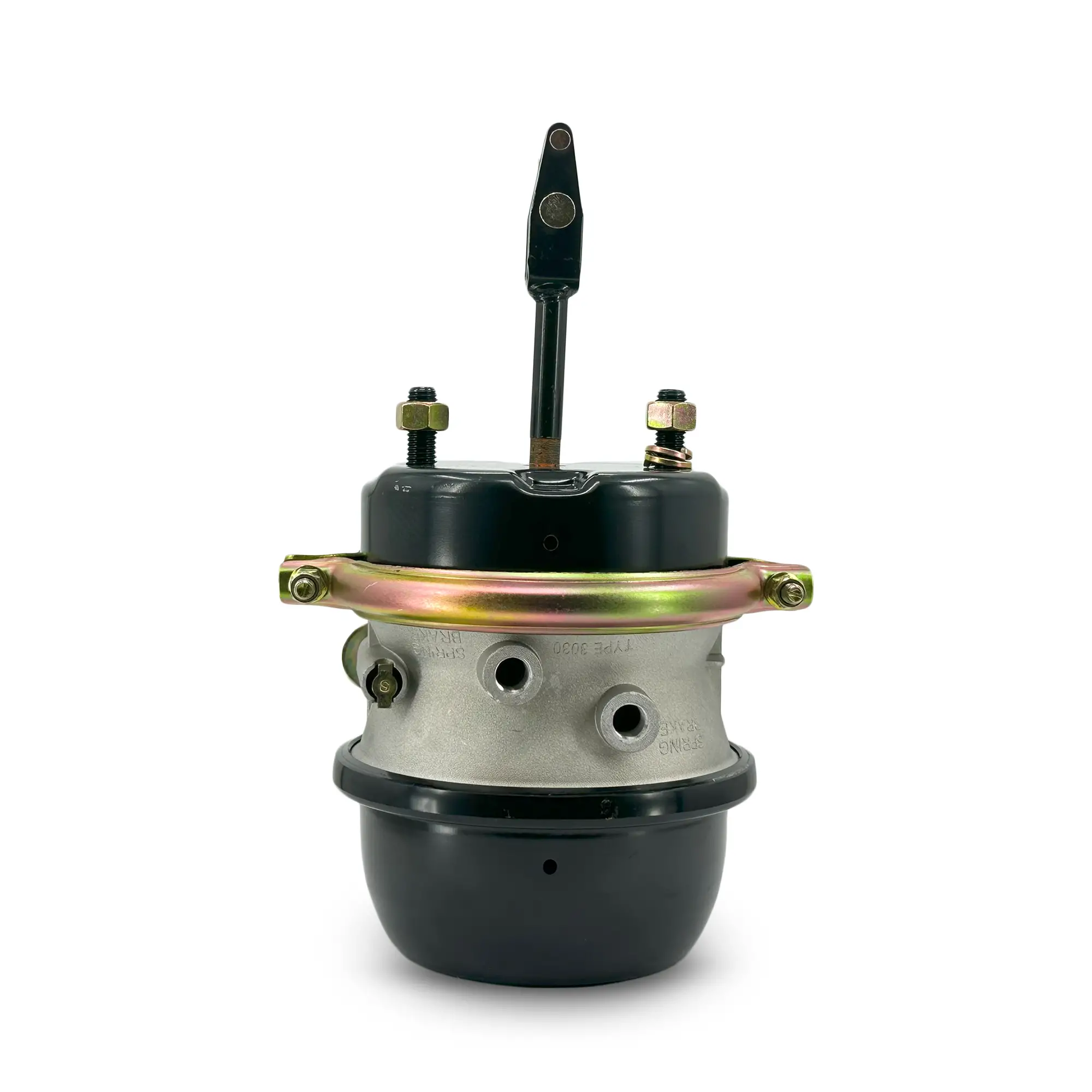

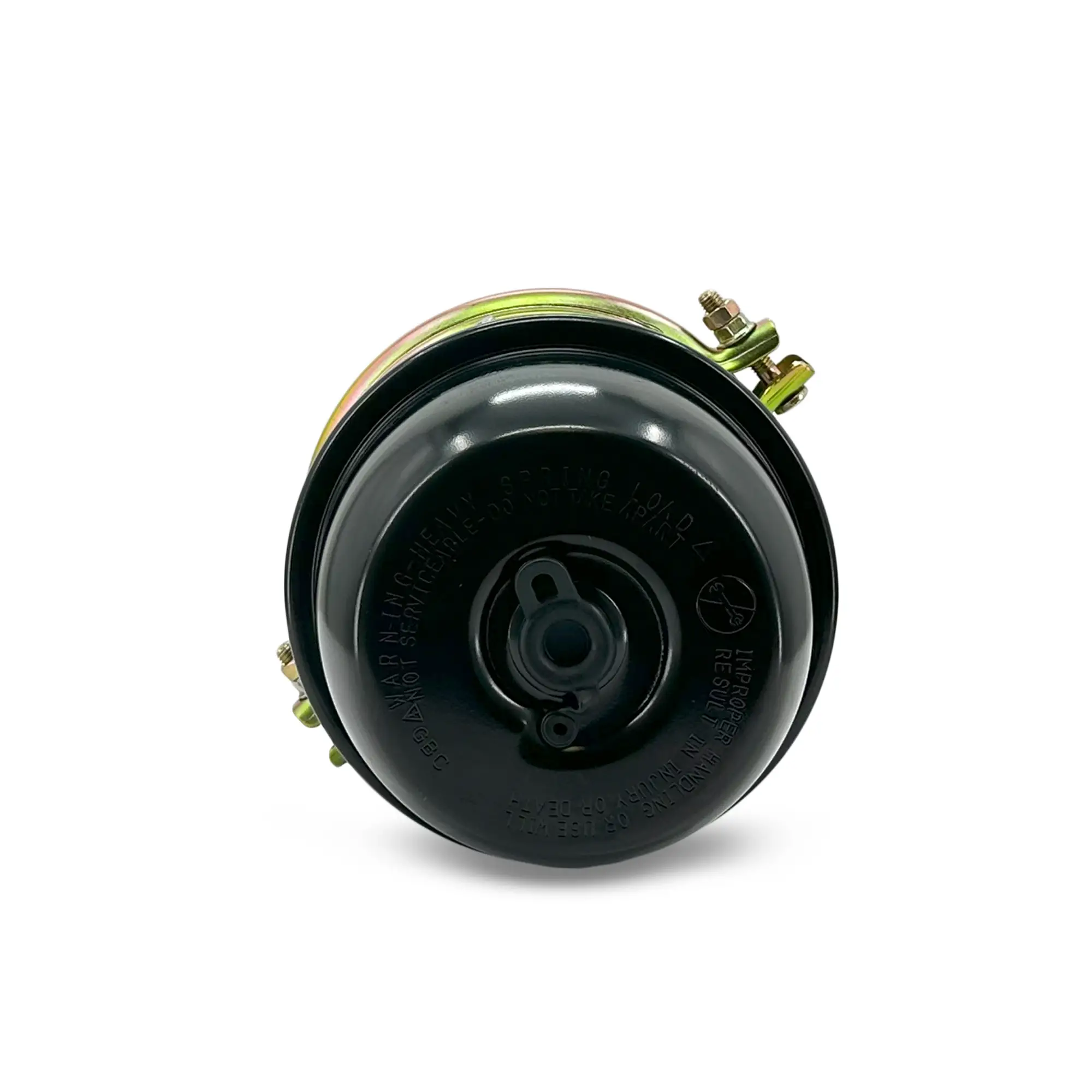

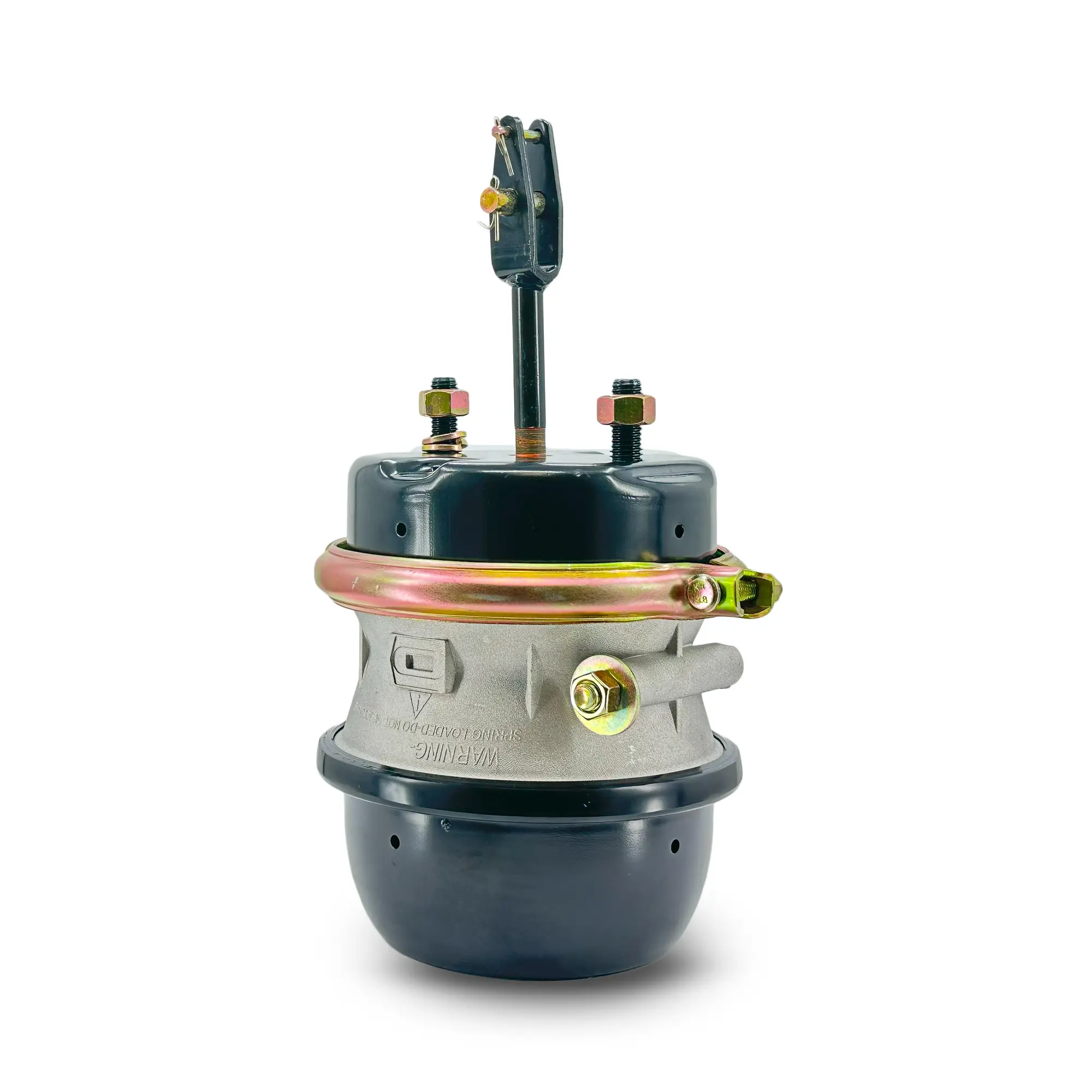

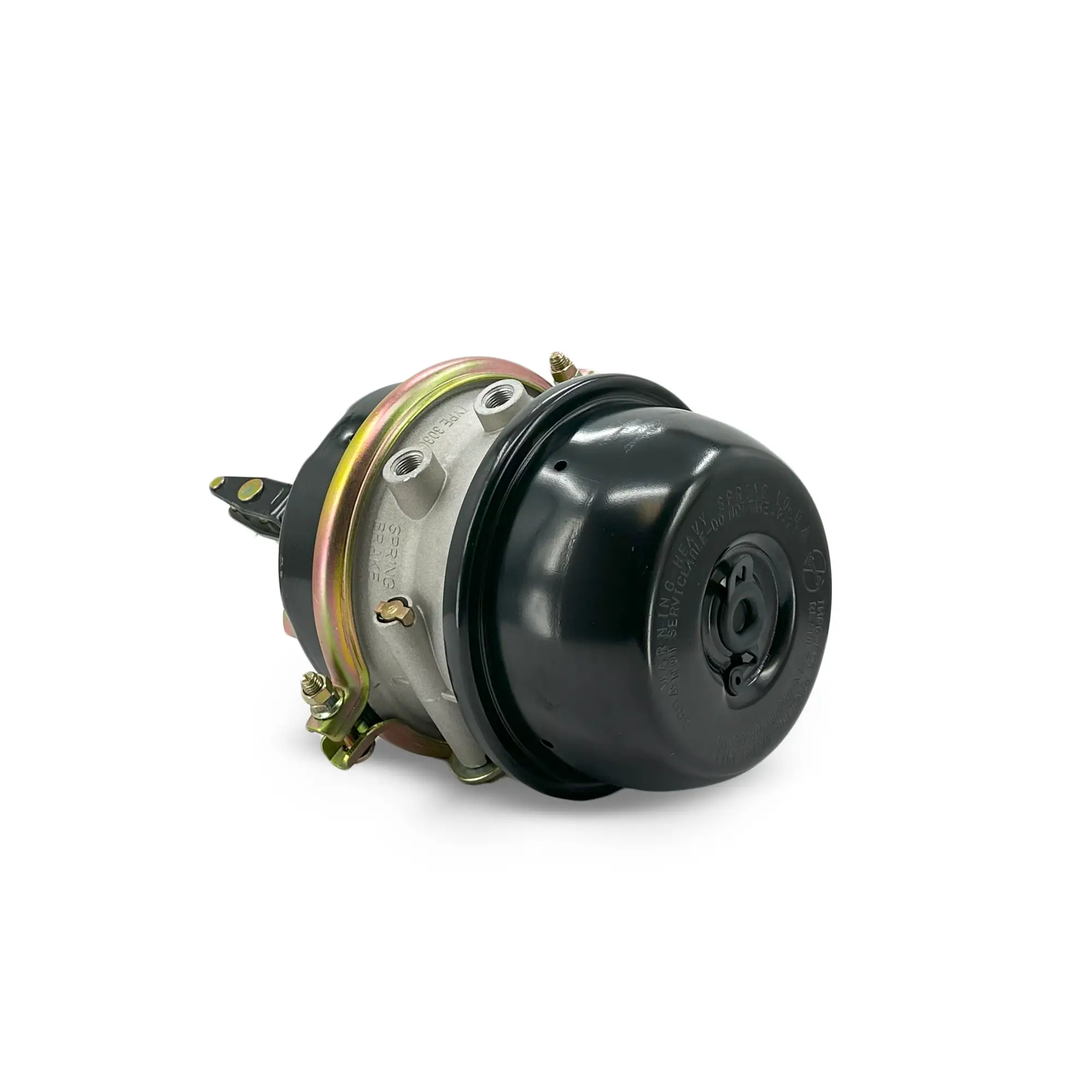

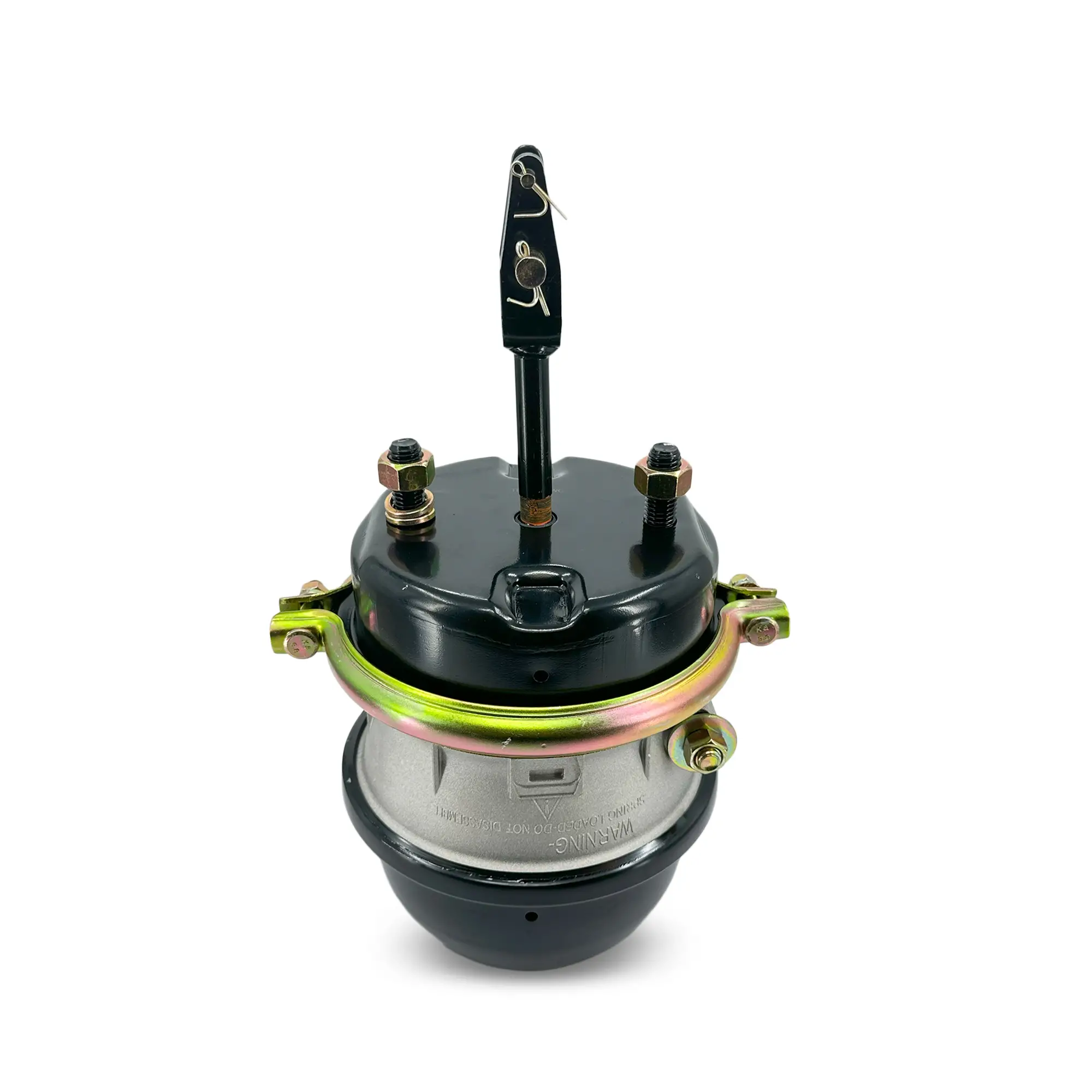

Air Brake Chamber Type 3030 Welded Clevis
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
179.SB3030SW1100
|
|
Bendix
|
K067114, K129605
|
|
Haldex
|
GC3030S4CW, GC3030CW
|
|
Other
|
BTS‑3030‑WCR, GTA‑3030‑WCR
|
| Property |
Value |
|
Actuator Type Size
|
3030
|
|
Stroke Type
|
Standard
|
|
Available Stroke
|
2‑1/2\", 64mm
|
|
Length from mounting bracket to end of Spring Housing
|
9\", 229mm
|
|
Length of Piggyback
|
6‑13/16\", 173mm
|
|
Dimension at rolled Spring Housing flange
|
8‑5/16\", 211mm
|
|
Dimension at Service Clampband
|
10‑3/16\", 259mm
|
|
Pushrod Length from face of Service Housing
|
1\"
|
|
Distance to Clevis Pin centerline from face of Service Housing
|
2‑1/4\"
|
|
Weight
|
21.3 lbs. , 9.7 kg.
|
| Longest Side | 45.28" |
| Median Side | 45.28" |
| Shortest Side | 43.31" |
| Weight | 18.85 lbs |
