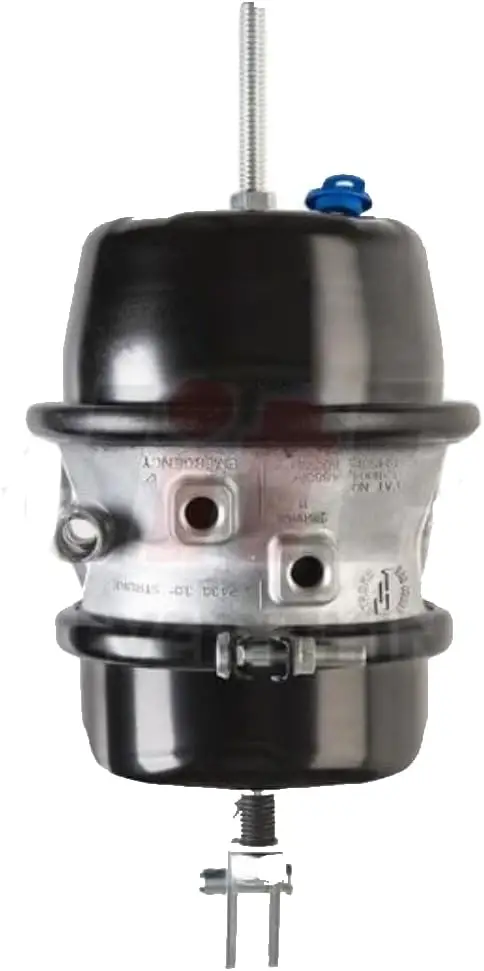

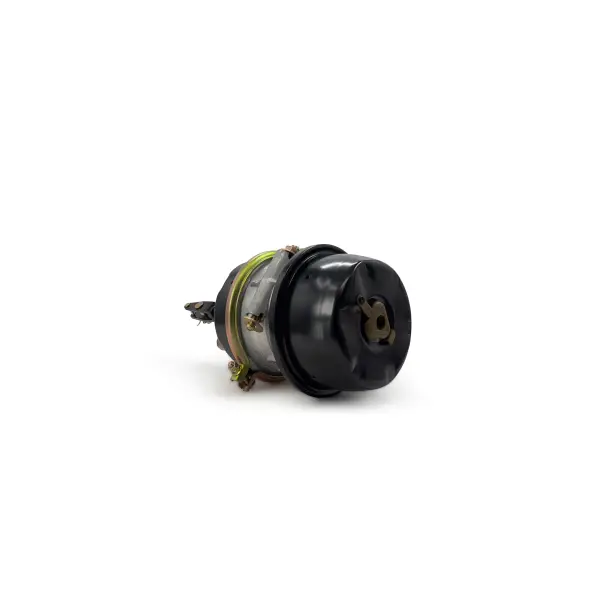

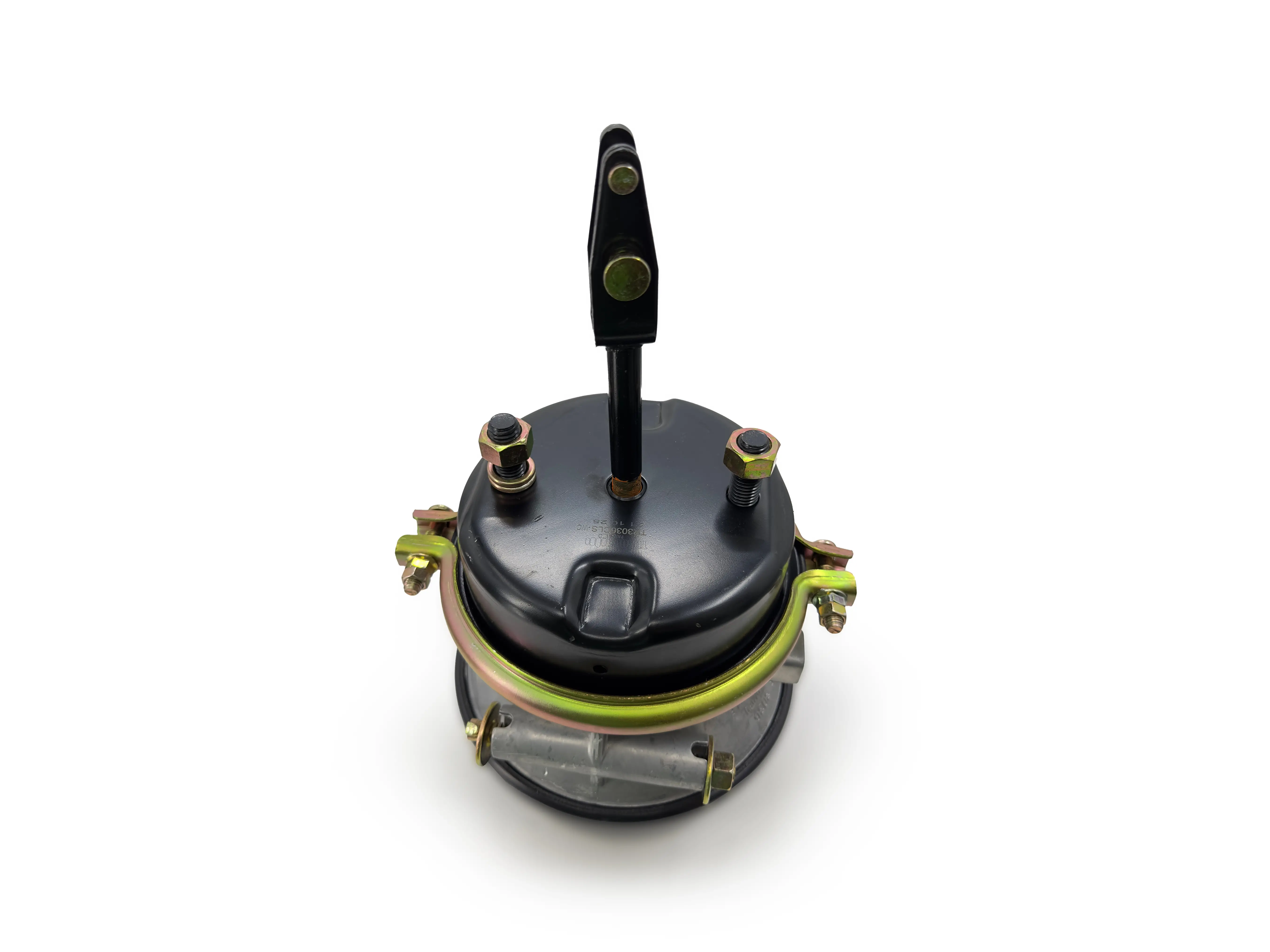

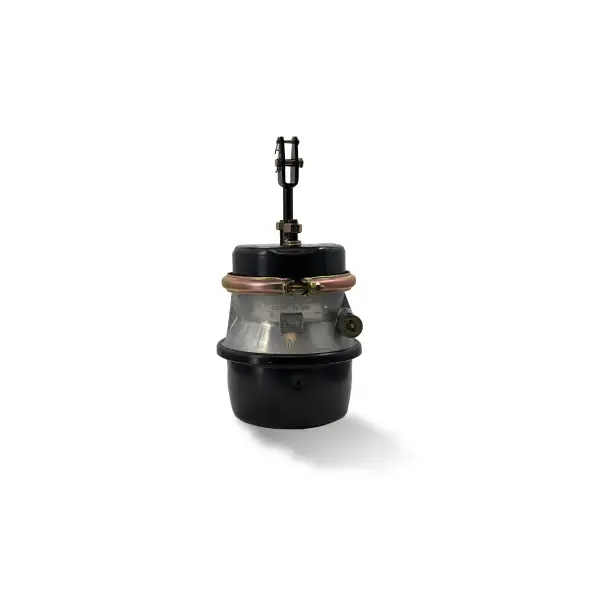

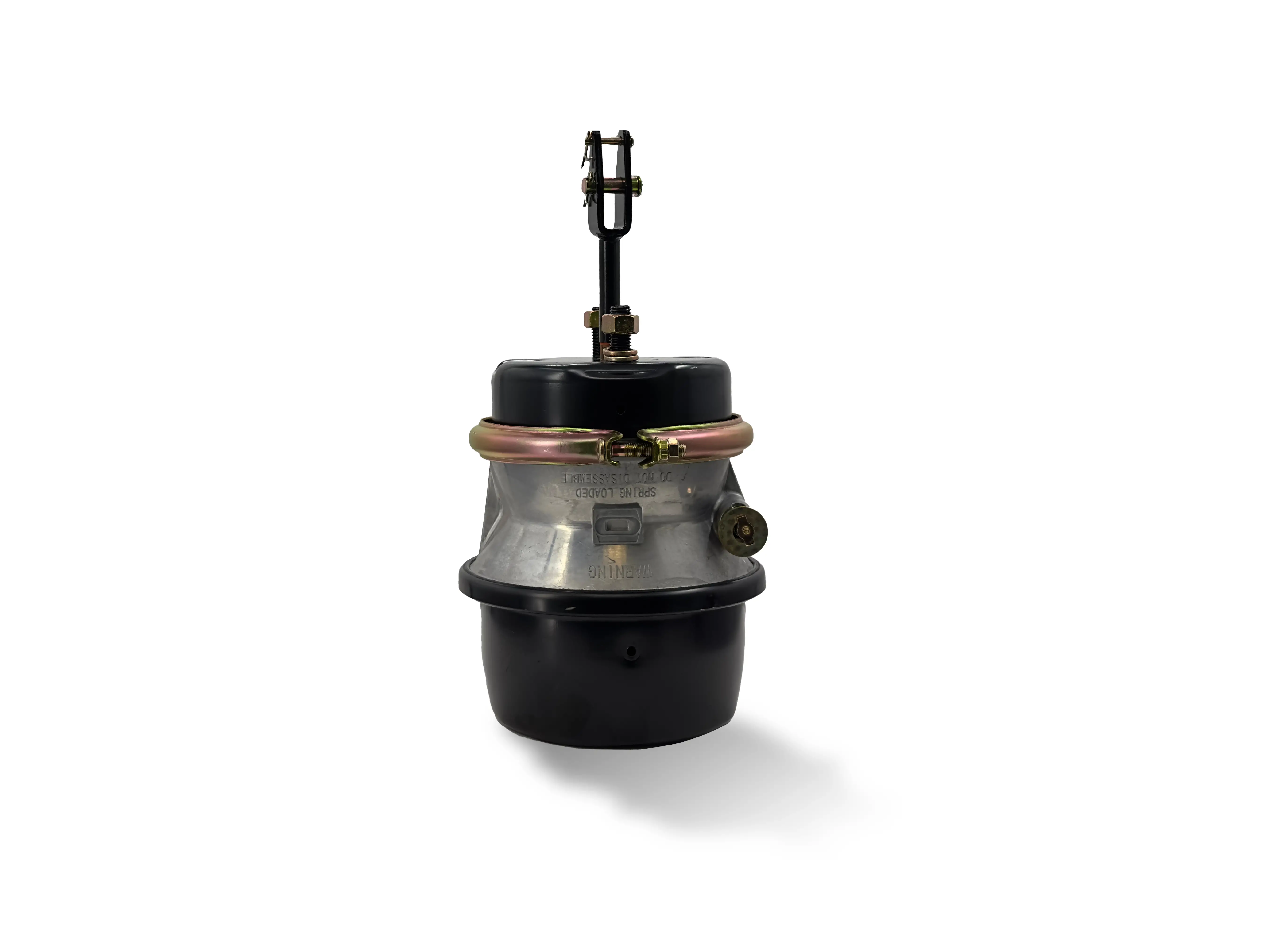

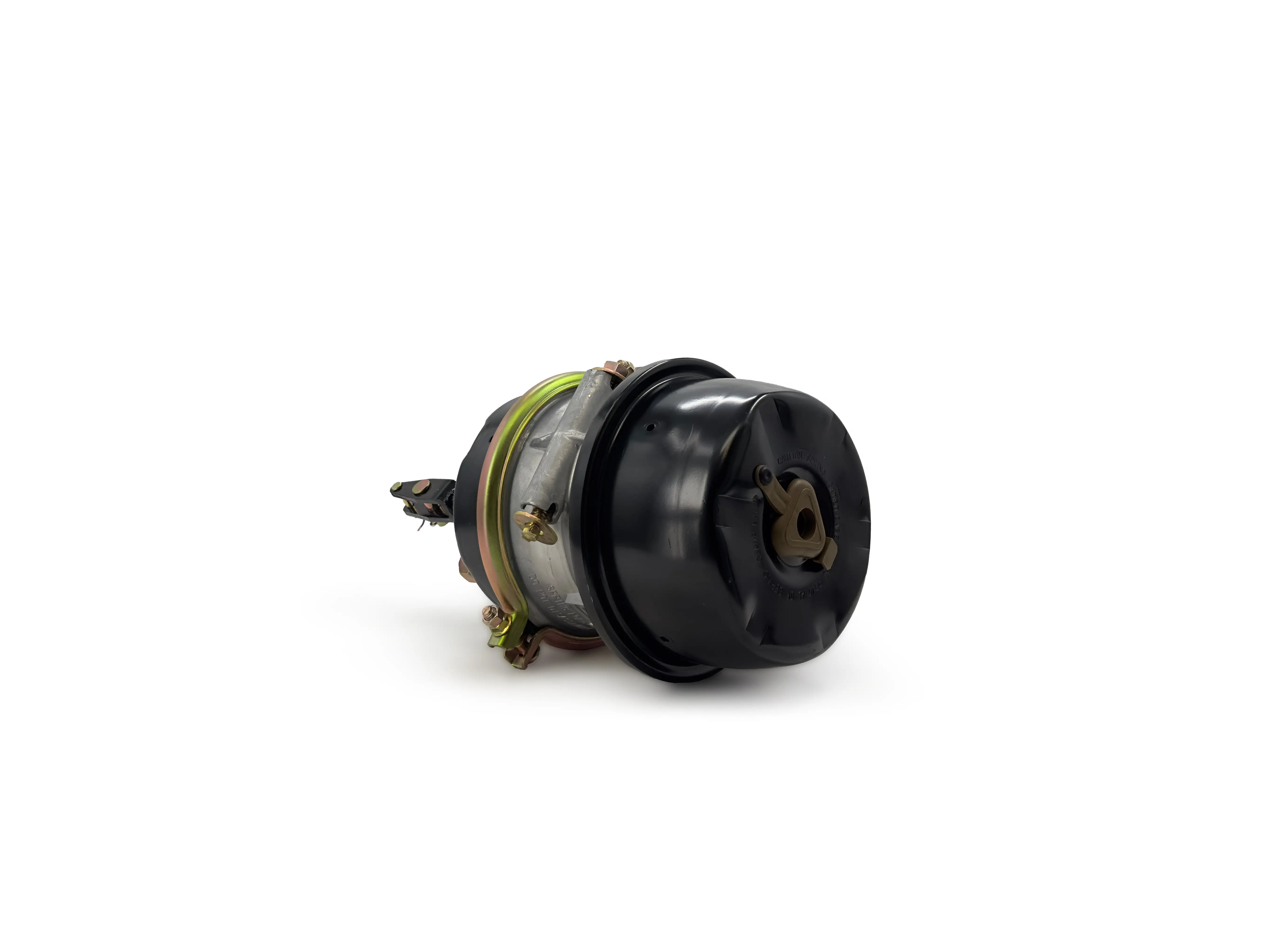

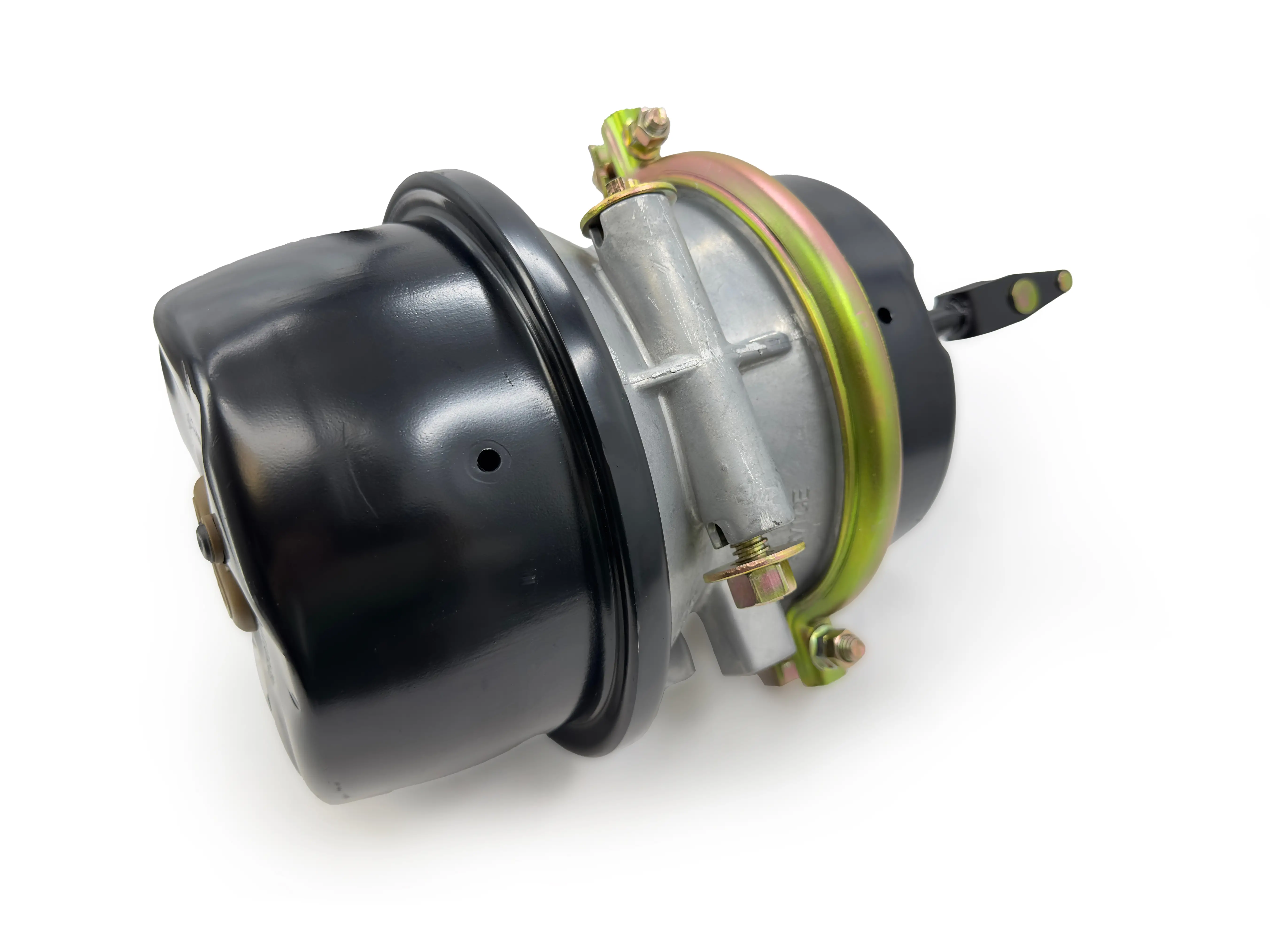

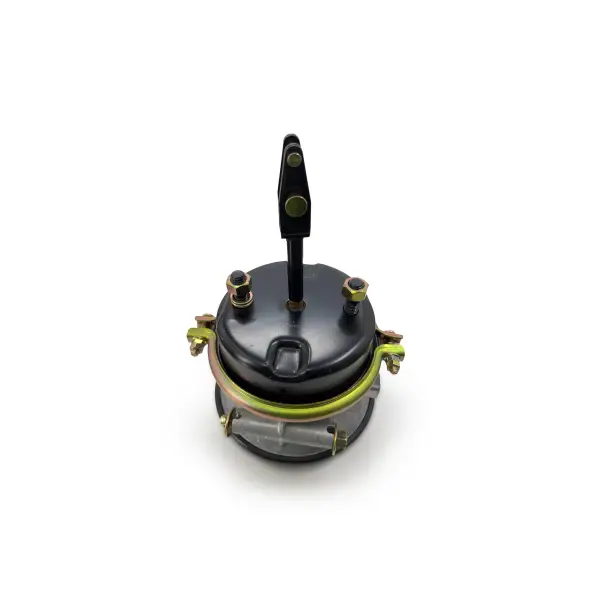

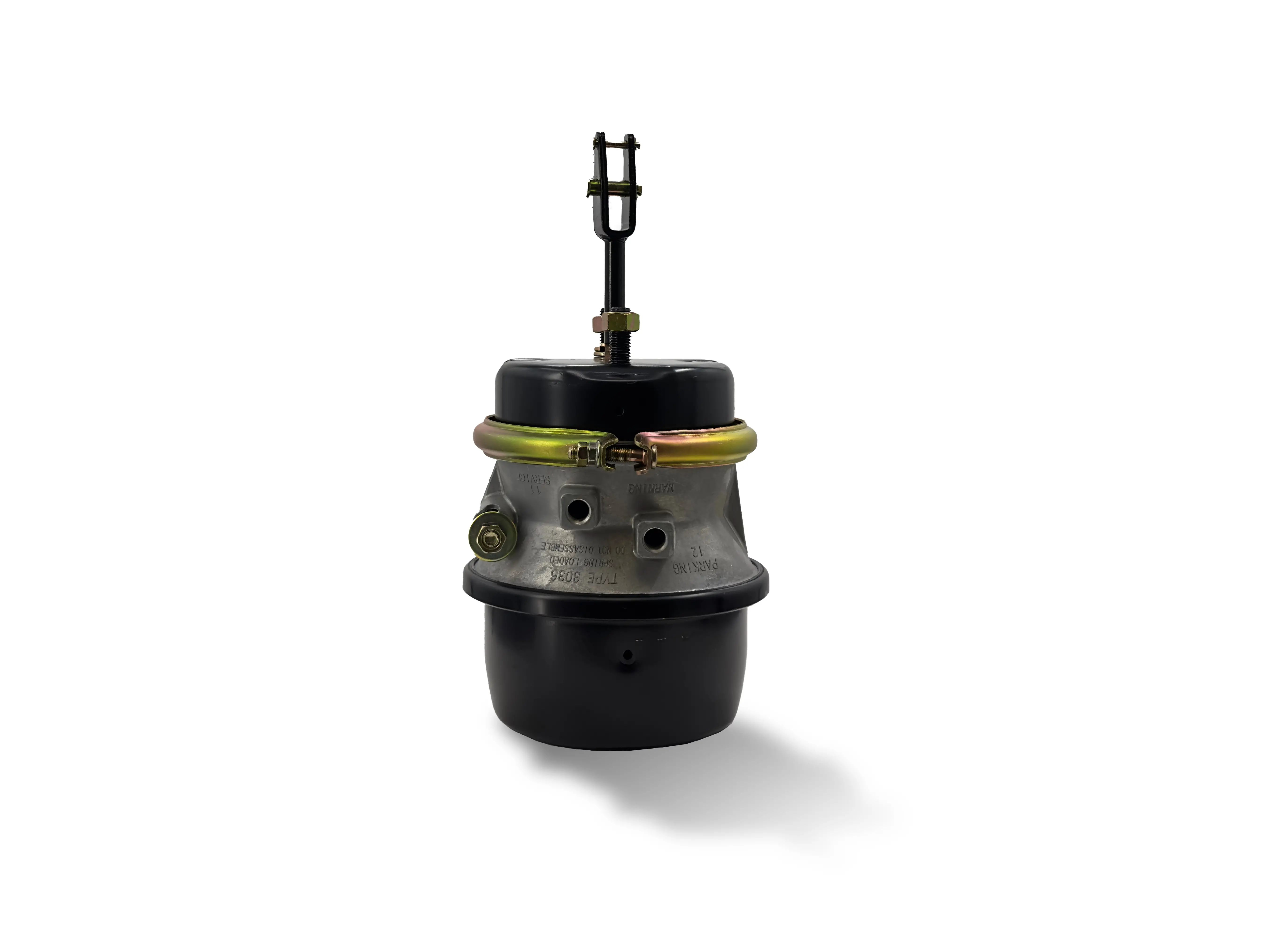

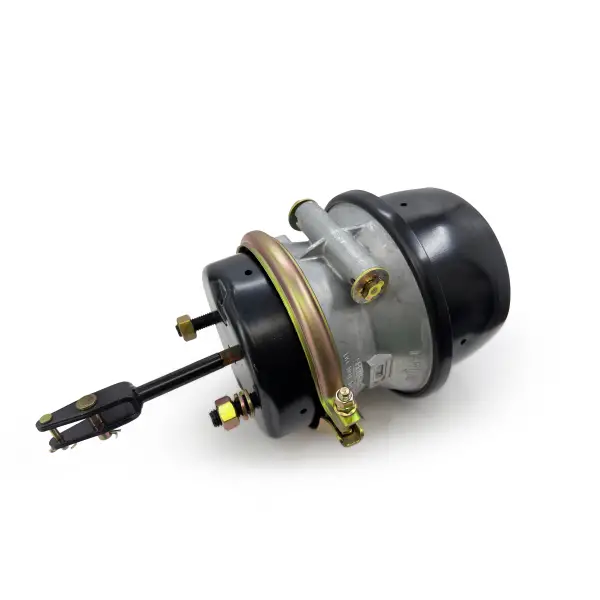

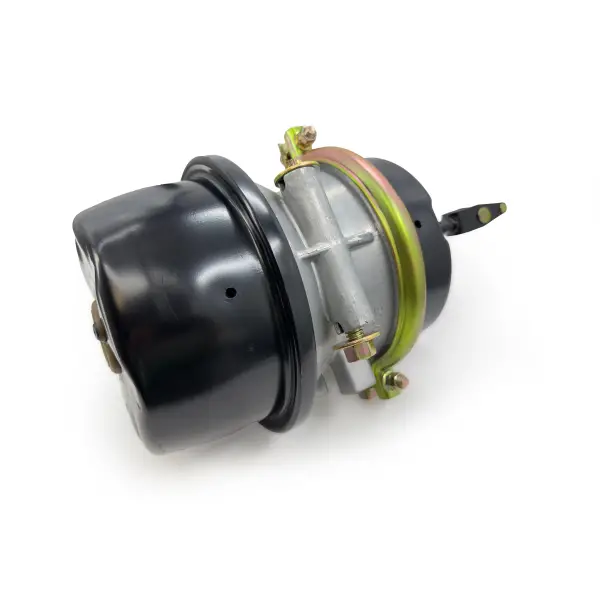

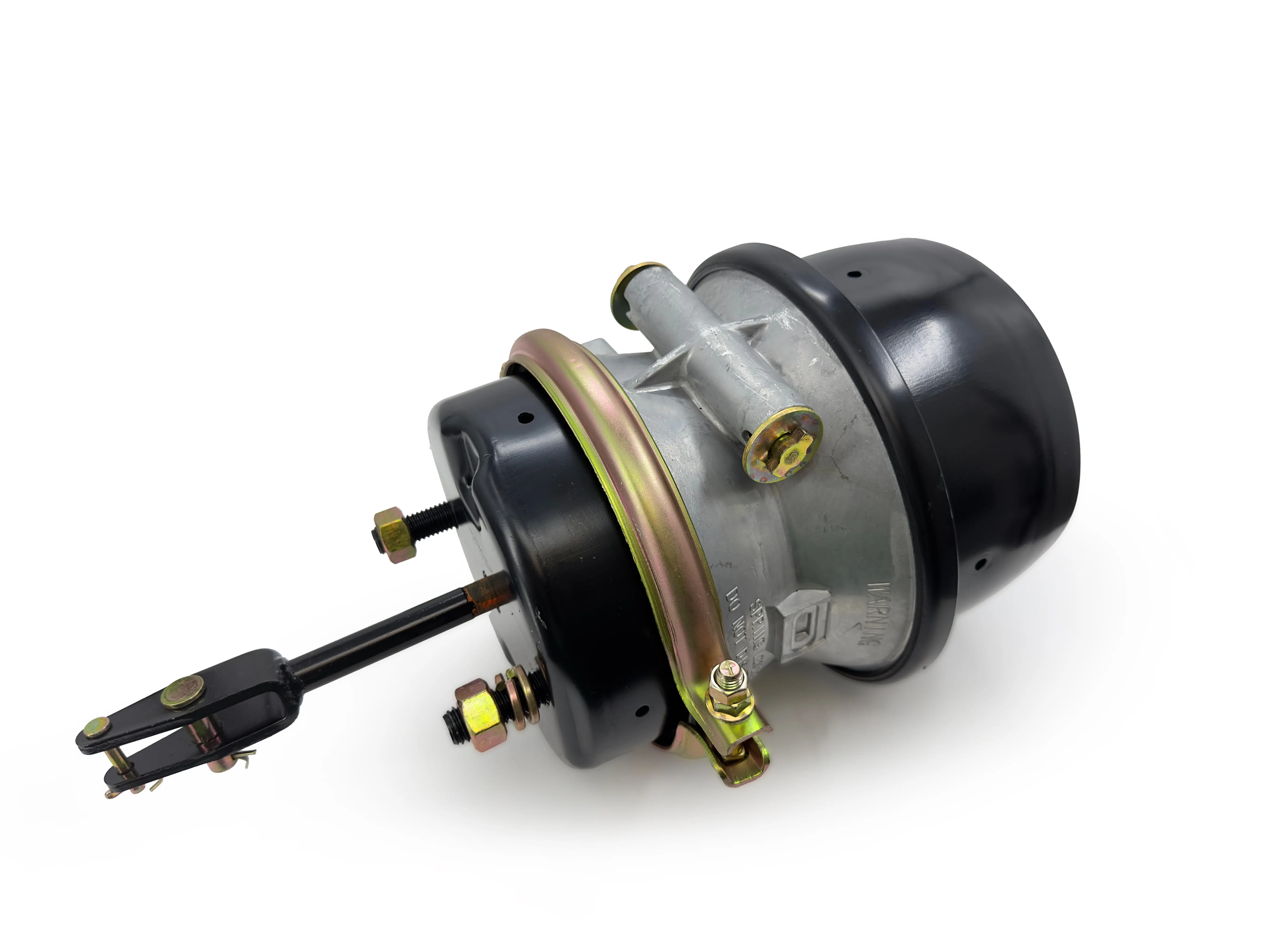

Brake Chamber Type 3036 Replaces Haldex GC3036LCW

Description : Brake Chamber Type 3036

Part Number : TR3036CLS-WC

Brake Chamber Type 3036 Replaces Haldex GC3036LCW

Type 30/36 Air Brake Chamber Welded Clevis 3" Long Stroke 3036

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Haldex	GC3036LCW, 1373036211
Navistar	2602430C91
Freightliner	HDX1373036001

Property	Value
Actuator Type Size	3036Stroke
Type	Long
Available Stroke	3
Length from mounting bracket to end of Spring Housing	10.6
Length of Piggyback	8
Dimension at Service Clampband	10.2
Pushrod Length from face of Service Housing:	1
Distance to Clevis Pin centerline from face of Service Housing:	5
Weight	25.9 lbs
