TYPE

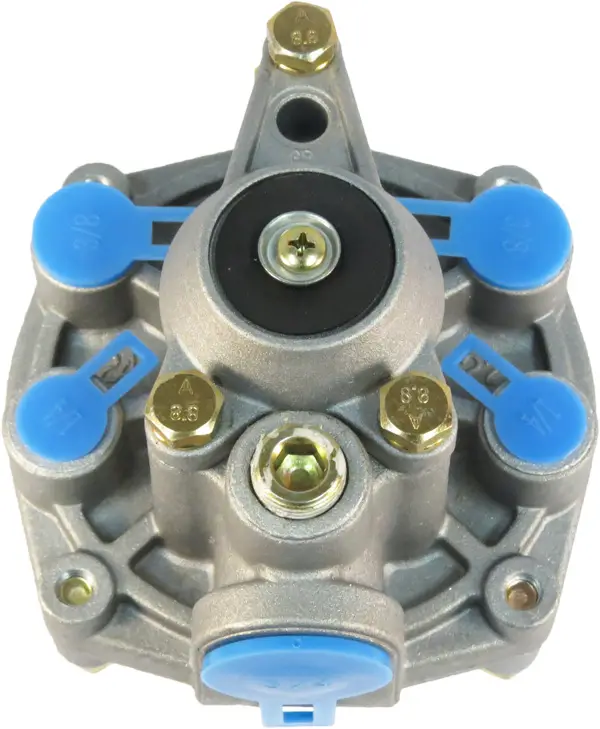

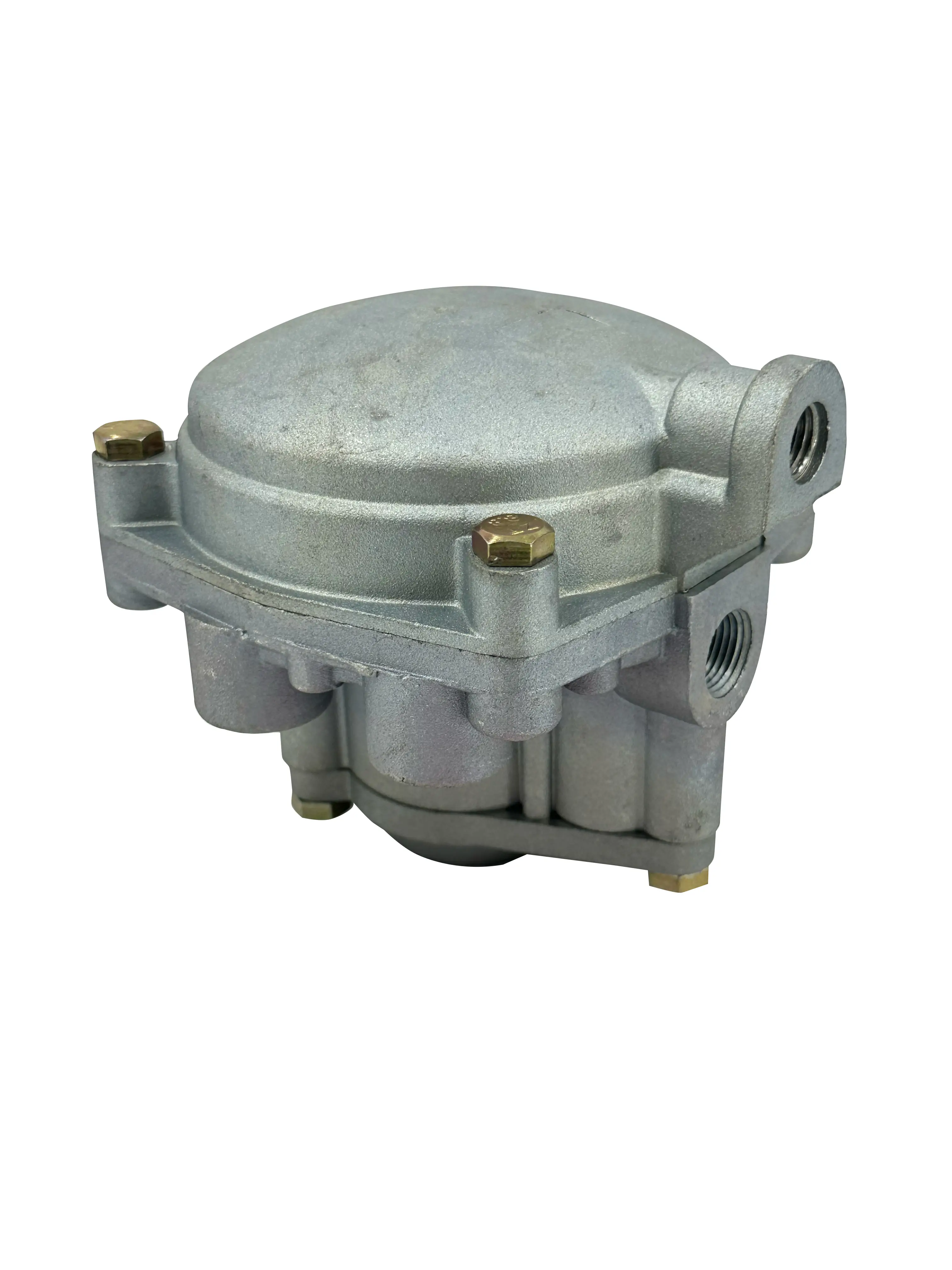

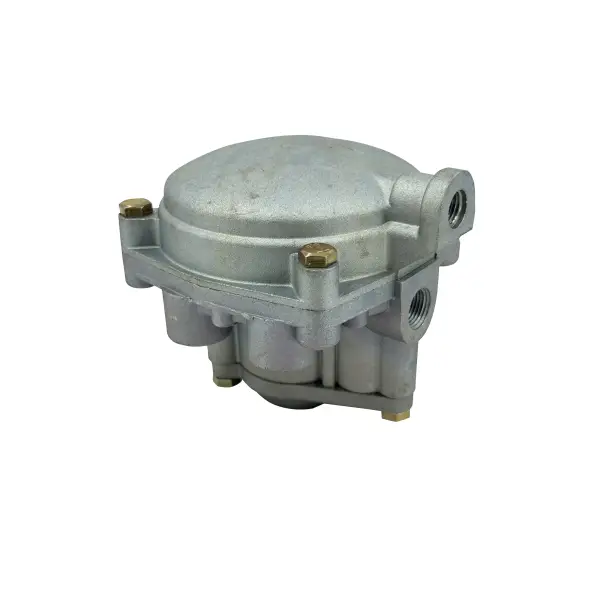

RE-6 emergency relay valve designed as a dual-function valve for trailer air brake systems, providing fast emergency brake response and reliable service brake operation.
REPLACEMENT
Replaces Bendix 281860, 281865, 281865X, and 281865RX; Euclid EBN281865N; Mack 745281865; Meritor R955281865N; and Velvac 34029.
SPECIFICATIONS
Supply ports: 1 × 3/8" and 1 × 3/4". Delivery ports: 2 × 1/4" and 2 × 3/8". Service port: 1 × 1/4". Emergency port: 1 × 1/4". Approximate weight: 3.3 lbs.
FITMENT
Please contact your dealer to confirm the correct part number for your application. Verify that this valve replaces your original component before purchasing.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Bendix
|
281860, 281865, 281865X, 281865RX
|
|
Euclid
|
EBN281865N
|
|
Mack
|
745281865
|
|
Meritor
|
R955281865N
|
|
Velvac
|
34029
|
|
Automann
|
170.28186
|
| Property |
Value |
|
Supply Ports
|
3/8", 3/4"
|
|
Delivery Ports
|
2 x 1/4", 2 x 3/8"
|
|
Service Port
|
1/4"
|
|
Emergency Port
|
1/4"
|
|
Approx. Weight:
|
3.3 lbs.
|
|
Initial Emergency Application Pressure
|
50 ±5 PSI
|
|
Maximum Emergency Release Pressure
|
95 PSI
|
|
Weight
|
3.3 lbs
|
| Longest Side | 5.43" |
| Median Side | 4.72" |
| Shortest Side | 4.41" |
| Weight | 2.81 lbs |
