INCLUDES

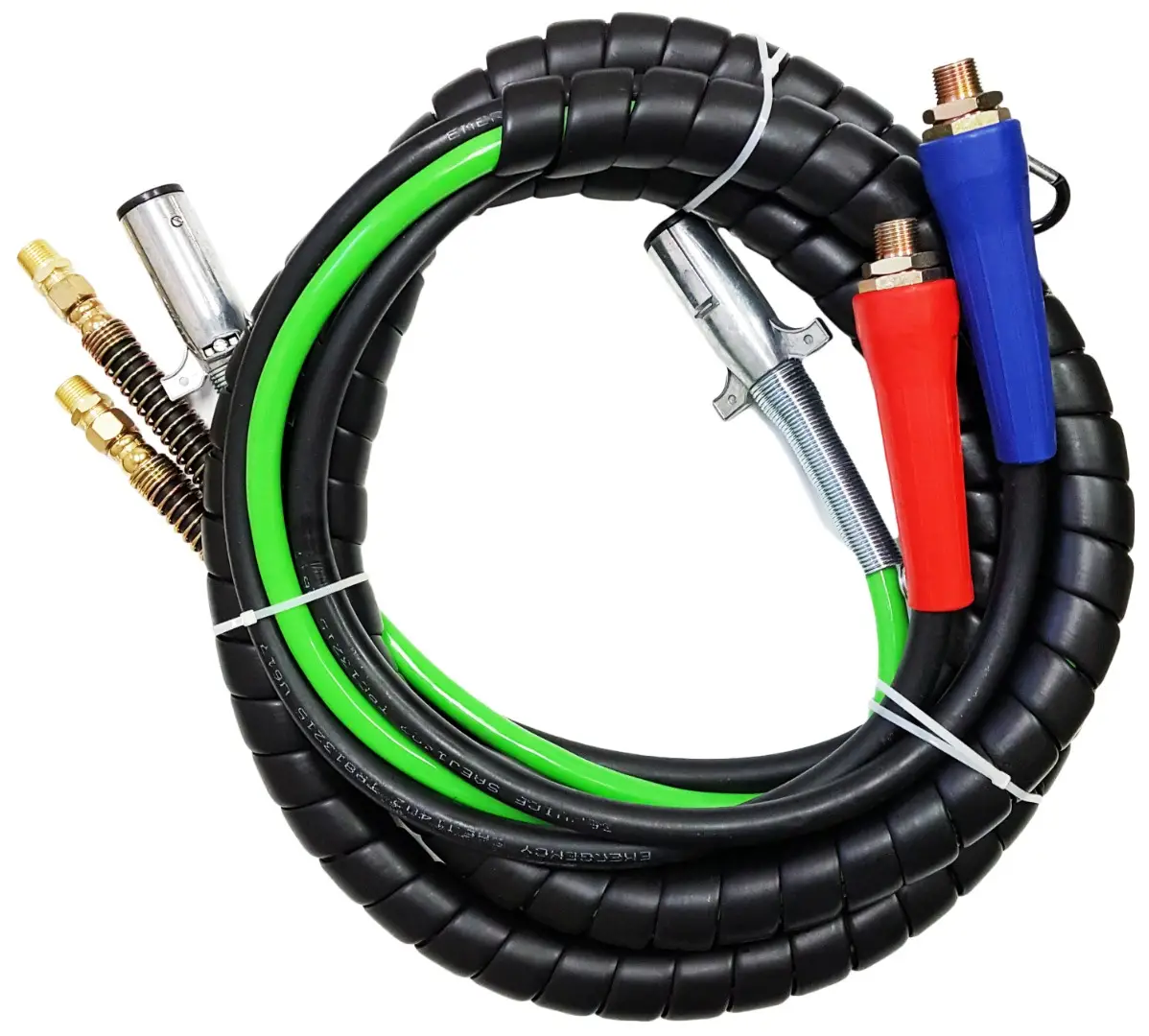

Includes 2 black air lines and 1 green ABS-rated power line. All cables are spiral wrapped to provide a clean, organized, and tangle-free installation.
REPLACEMENT
Replaces Philips 30-2151, Philips 302151, Tectran 169127, Peterbilt PE13000, Tremec Sloan 451097, and OTR6814. These are cross-reference numbers.
INSTALLATION
3-in-1 hose design offers excellent kink and abrasion resistance. Includes a hanging clamp for easy installation and large grips for effortless coupling and uncoupling. The all-in-one assembly prevents lines from snagging during turns, tangling, or being damaged by abrasion or impact, and installs in minutes.
QUALITY
Trailer leads feature handles with all-brass fittings to protect during gladhand connections. Reinforced, thicker tail profile improves tear and kink resistance. Heavy-duty beveled-edge spiral wrap keeps all lines bundled, while spoon-cut ends eliminate sharp edges that could damage hoses or electrical cables.
CERTIFICATION
ABS cable (green) meets SAE J2394 (4/12-2/10-1/8) rated to -65°C / -85°F. Air hoses (black) meet DOT SAE J1402 A for 10 mm (3/8") hoses. Electrical plug meets SAE J560 standards.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Philips
|
30‑2151
|
|
Tectran
|
169127
|
|
Peterbilt
|
PE13000
|
|
Tremec Sloan
|
451097
|
|
OTR
|
OTR6814
|
|
Automann
|
179.3012.12NB
|
| Property |
Value |
|
Length
|
12 ft
|
|
Weight
|
14.4 lbs
|
|
Applications
|
Universal
|
|
Type
|
Airpower 3 in 1 Line 12 Feet
|
|
Assembly Length
|
12 ft
|
|
Air Line Color
|
Black
|
|
Gladhand Grip
|
Hard Plastic
|
|
Gladhand
|
No
|
|
7‑Way ABS Cable Plug
|
7‑Way Metal w/Spring
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 17.91" |
17.91" |
5.51" |
31.77 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 50 |
48.43" |
40.94" |
39.76" |
739.65 lbs |
