INCLUDES

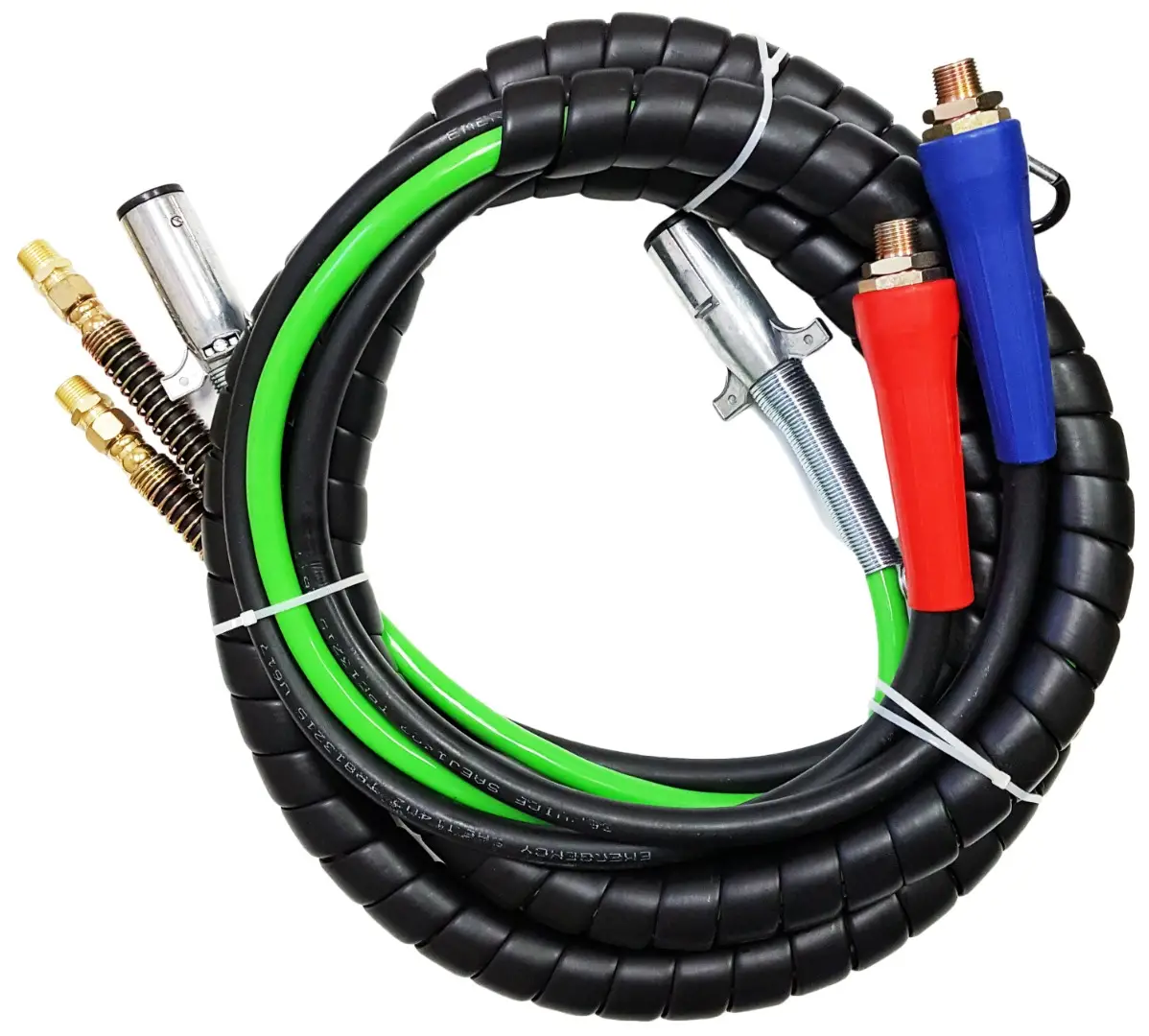

Includes 2 black air lines and 1 green ABS-rated 7-way electrical power cord. All cables are spiral wrapped for a clean, organized installation. Includes 2 gladhands with gladhand extension handle grips.
REPLACEMENT
Replaces Philips 30-2151, Philips 302151, Tectran 169127, Peterbilt PE13000, Tremec Sloan 451097, and OTR6814. These are cross-reference numbers.
INSTALLATION
3-in-1 truck air hose design provides outstanding kink and abrasion resistance. Includes a hanging clamp for easy installation and large grips for effortless coupling and uncoupling. The all-in-one assembly prevents semi-trailer air hoses from snagging during turns, tangling, or being damaged by abrasion and impact.
QUALITY
Trailer leads feature handles with all-brass fittings for added protection during gladhand connections. Reinforced, thicker tail profile improves tear resistance and kink durability. Heavy-duty beveled-edge spiral wrap keeps all lines bundled, while spoon-cut ends eliminate sharp edges that could damage hoses or electrical cables. Organizes tractor-trailer air lines into a clean, easy-to-use assembly that installs in minutes.
CERTIFICATION
ABS cable (green) meets SAE J2394 (4/12-2/10-1/8) rated to -65°C / -85°F. Air hoses (black) meet DOT SAE J1402 A for 10 mm (3/8") hoses. Electrical plug meets SAE J560 standards.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Philips
|
30‑2171, 302170
|
|
Tectran
|
169157
|
|
Peterbilt
|
PE13050
|
|
Tremec Sloan
|
451098
|
|
OTR
|
OTR6818
|
|
Automann
|
179.3012.15NB
|
|
Haldex
|
MCP315S
|
|
Sloan
|
451098
|
| Property |
Value |
|
Length
|
15 ft
|
|
Weight
|
18 lbs
|
|
Applications
|
Universal
|
|
Type
|
Airpower 3 in 1 Line 15 Feet
|
|
Assembly Length
|
15 ft
|
|
Air Line Color
|
Black
|
|
Gladhand Grip
|
Hard Plastic
|
|
Gladhand
|
No
|
|
7‑Way ABS Cable Plug
|
7‑Way Metal w/Spring
|
| Longest Side | 15.75" |
| Median Side | 14.76" |
| Shortest Side | 5.51" |
| Weight | 15.83 lbs |
