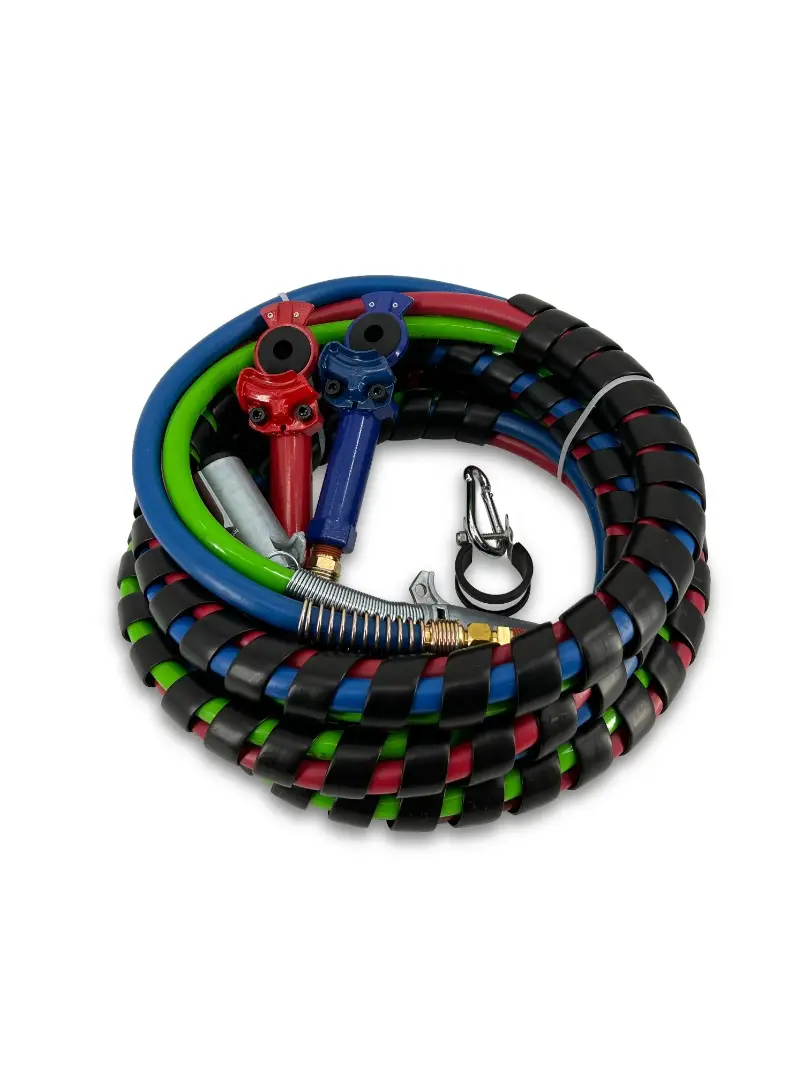

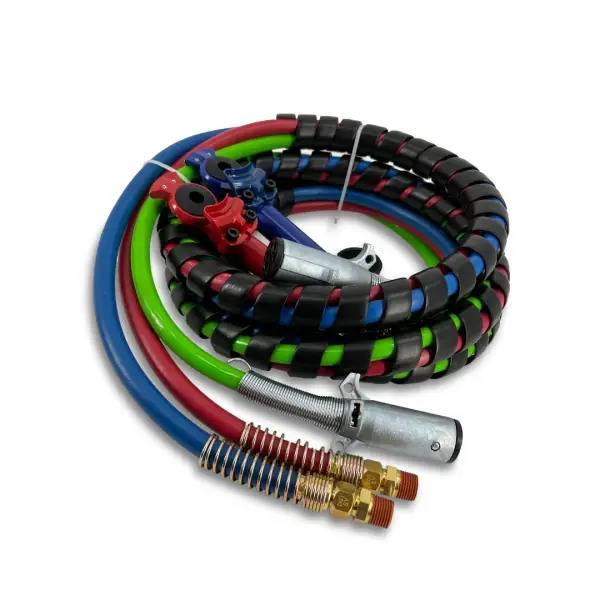

INCLUDES
2 black air lines and 1 green ABS-rated 7-way electrical power cord
Spiral-wrapped cables for a clean, organized appearance

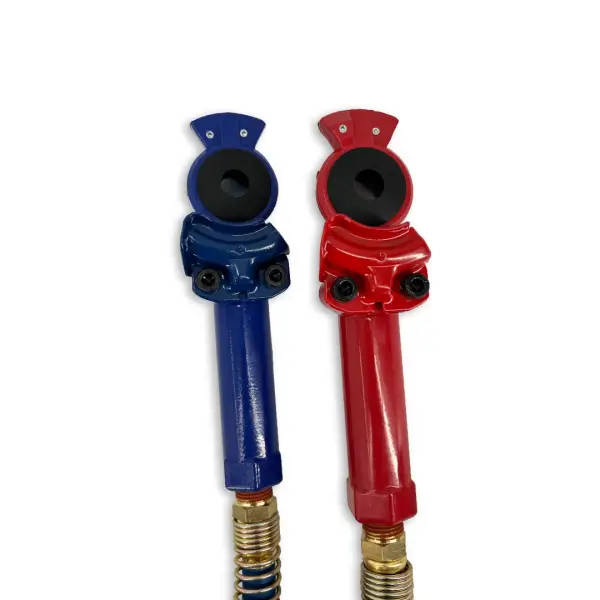

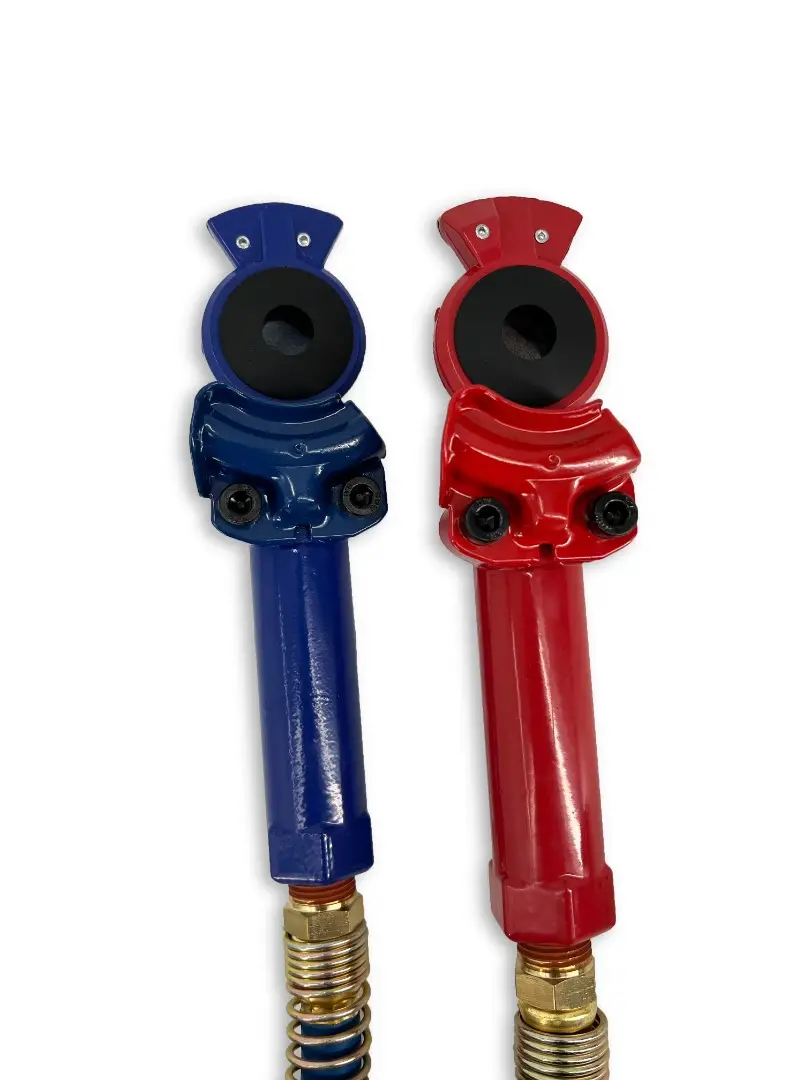

2 gladhands with extension handle grips for easy coupling and uncoupling
REPLACES (Cross-Reference Numbers)
Philips 30-2151
Philips 302151
Tectran 169127
Peterbilt PE13000
Tremec Sloan 451097
OTR 6814
INSTALLATION

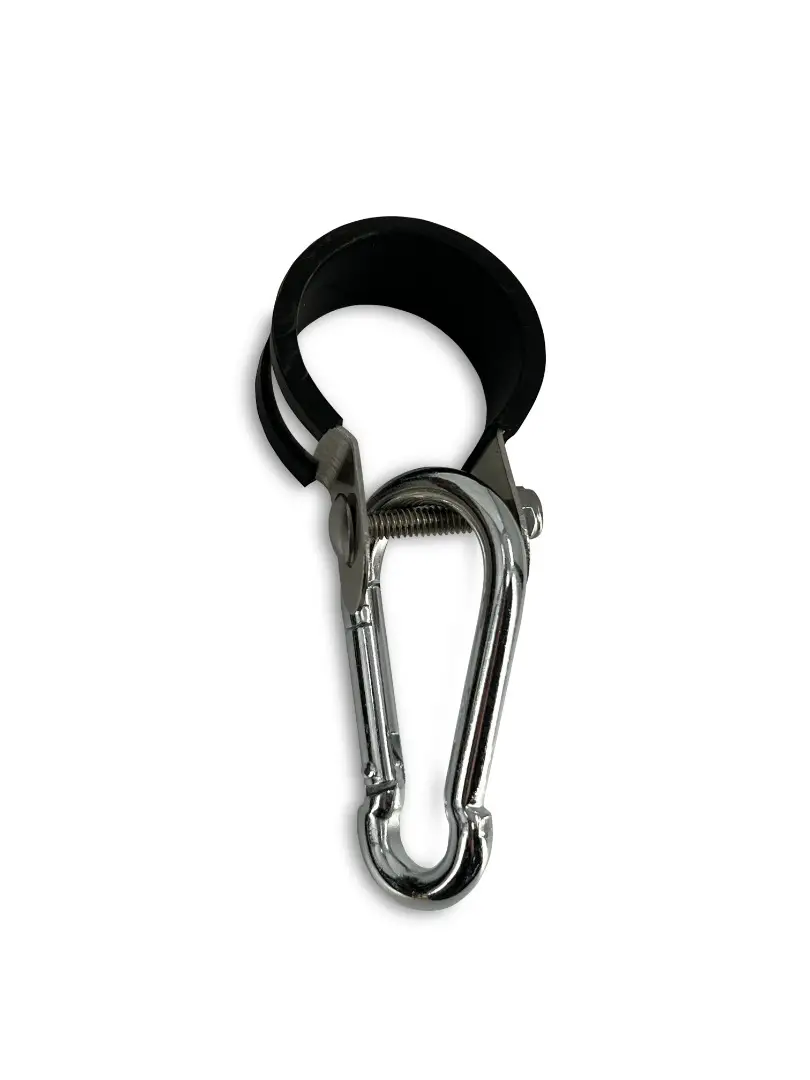

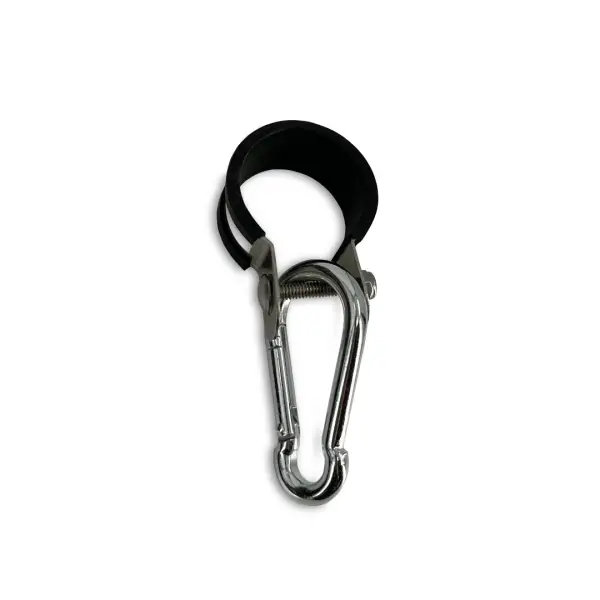

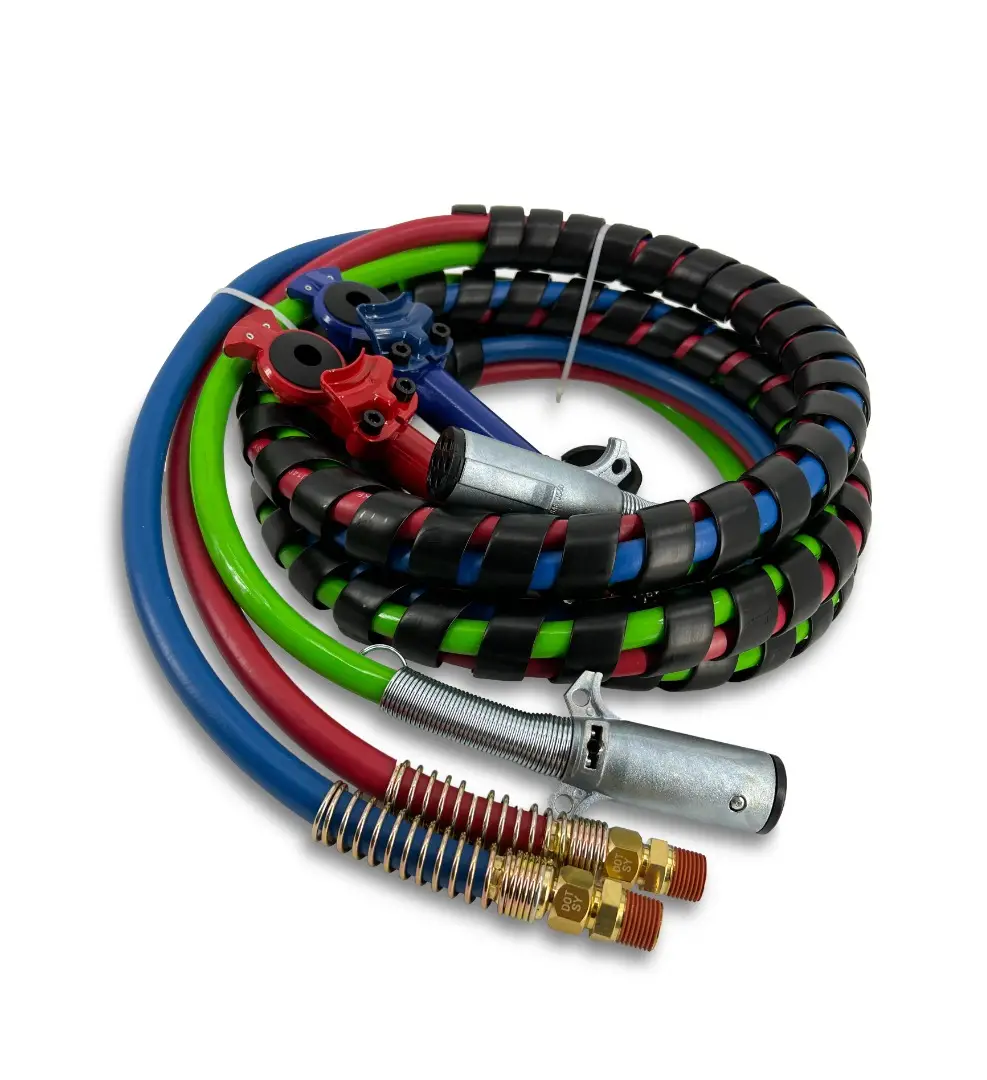

Our 3-in-1 truck air hose assembly offers outstanding kink and abrasion resistance. This semi-truck air line kit includes a hanging clamp for quick installation, large ergonomic grips for easy coupling and uncoupling, and integrated hose support.
The all-in-one design optimizes straight tractor-trailer connection lines and prevents hoses from snagging during turns, tangling, and damage caused by abrasion or impact.
QUALITY & DURABILITY

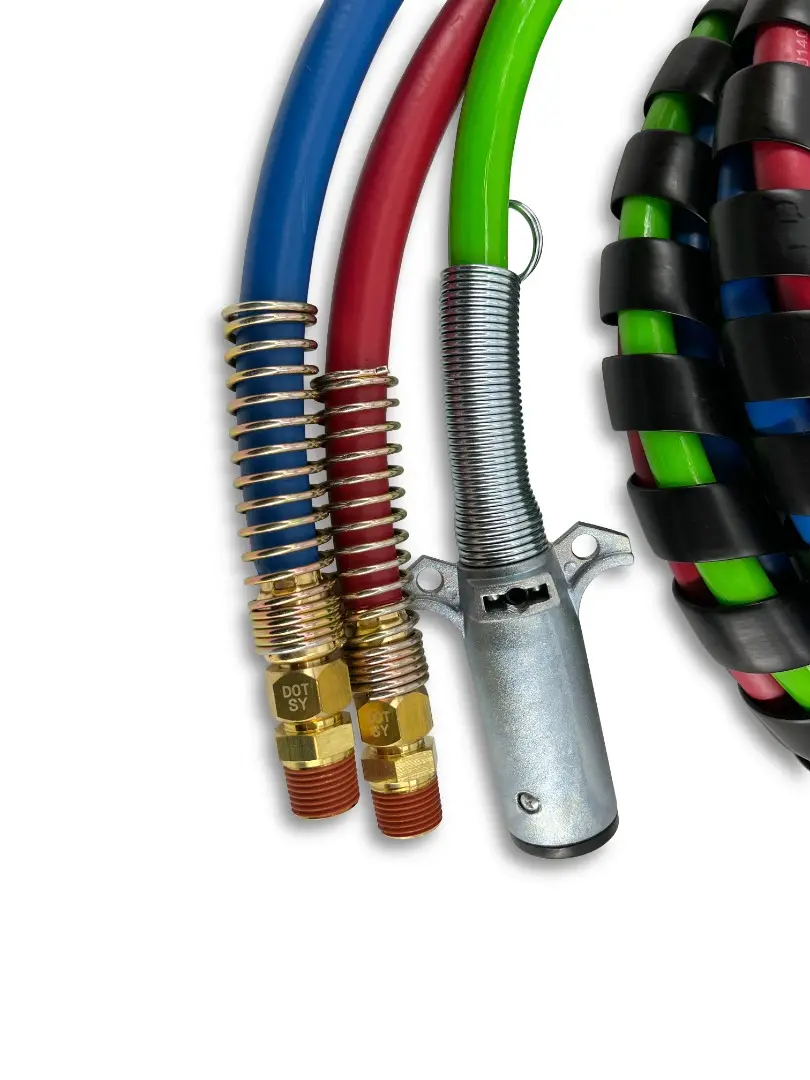

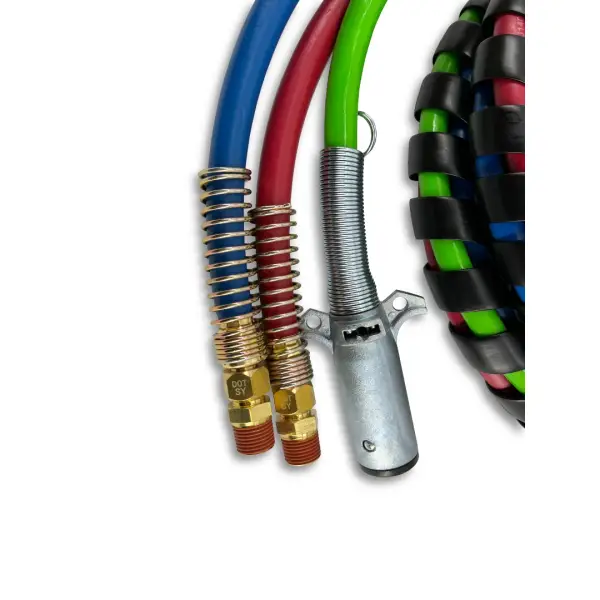

All-brass fittings on trailer leads for added protection during gladhand connections
Reinforced, thicker tail profile to prevent tearing and improve kink resistance
Heavy-duty beveled-edge spiral wrap keeps all lines in a secure, tangle-free bundle
Spoon-cut spiral wrap eliminates sharp edges that could damage hoses or electrical cables
This all-in-one assembly keeps tractor-trailer air lines clean, organized, and easy to use—and installs in minutes.
CERTIFICATIONS
ABS Cable (Green): SAE J2394 – 4/12-2/10-1/8, rated to -65°C / -85°F
Air Hoses (Black): DOT SAE J1402 A, 10mm (3/8")
Electrical Plug: SAE J560
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Philips
|
30‑2171
|
|
Tectran
|
169157, 12‑600, 1011TG
|
|
Peterbilt
|
PE13050
|
|
Tremec Sloan
|
451098
|
|
Otr
|
OTR6818
|
|
Velvac
|
035042, 035045, 035178
|
|
Bendix
|
278850, 278524
|
|
Bwp
|
M313C, M313B
|
|
Eulid
|
E‑9108, E‑9107
|
|
Globetech
|
GT‑5331, GT‑5332
|
|
Hebco
|
441016, 441015
|
|
Midland‑Grau
|
N1202BD, 11451, N1202BC, 11452
|
|
Tramec
|
36201, 56201, 36101, 56101
|
|
Vipar
|
079851, 079850
|
|
Tectran
|
12‑600, 1011TG
|
|
Velvac
|
035178
|
|
Sloan
|
441788
|
|
Euclid
|
E‑9108, E‑9107
|
|
Phillips
|
30‑2171
|
|
Automann
|
179.3029.15
|
| Property |
Value |
|
Applications
|
Universal
|
|
Type 1
|
Airpower Assemblies
|
|
Type
|
Airpower 3 in 1 Line w/Ext Gladhands 15ft
|
|
Assembly Length
|
15 ft
|
|
Air Line Color
|
Blue & Red
|
|
Gladhand
|
E‑Coated Aluminum
|
|
7‑Way ABS Cable Plug
|
7‑Way Metal w/Rubber Sealed Pistol/Straight
|
| Longest Side | 17.72" |
| Median Side | 17.72" |
| Shortest Side | 5.31" |
| Weight | 19.29 lbs |
