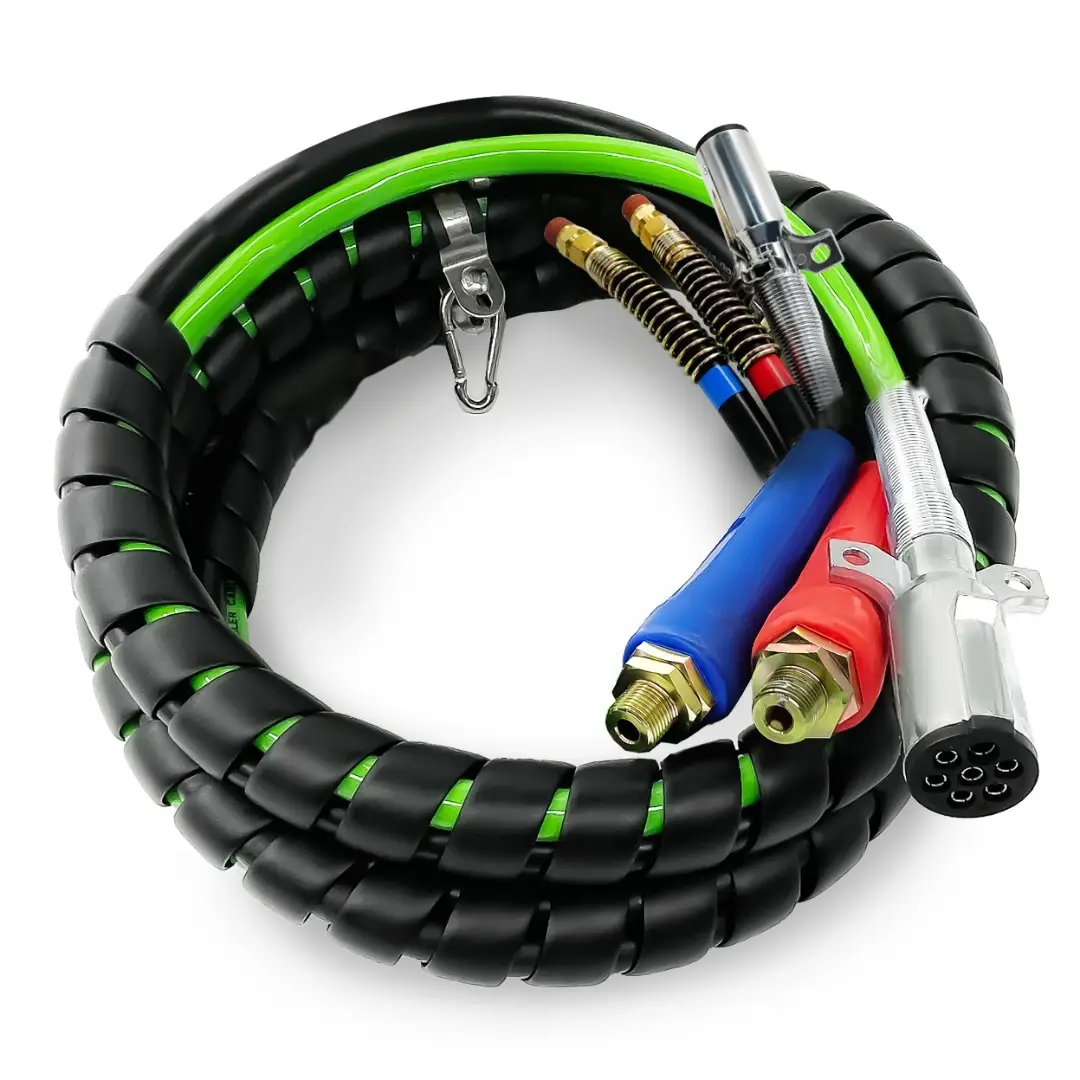

ALL-IN-ONE 3-IN-1 TRACTOR-TRAILER AIR LINE KIT
Complete 3-in-1 assembly featuring two black air brake hoses and one green ABS 7-way electrical cable, spiral-wrapped to keep all lines organized, protected, and tangle-free. Engineered for reliable performance in demanding commercial truck and trailer applications.
INCLUDES
- Two black air brake hoses
- One green ABS-rated 7-way electrical power cable
- Heavy-duty spiral wrap
- Hanging clamp for quick and easy installation
CROSS REFERENCES
Replaces Philips 30-2151, 302151; Tectran 169127; Peterbilt PE13000; Tremec Sloan 451097; OTR 6814.
INSTALLATION
Designed for fast and hassle-free installation. The integrated spiral wrap keeps the air hoses and electrical cable bundled together, reducing snagging, twisting, and abrasion while maintaining a clean tractor-to-trailer connection. Large grips provide easier coupling and uncoupling while supporting the hoses during operation.
HEAVY-DUTY CONSTRUCTION
Manufactured with corrosion-resistant solid brass fittings for secure, leak-free connections. Reinforced hose ends improve durability and kink resistance, while the heavy-duty beveled-edge spiral wrap protects the hoses and electrical cable from abrasion and impact. The spoon-cut spiral wrap eliminates sharp edges that could damage the cable or hoses.
CERTIFICATIONS
- ABS Cable: SAE J2394 (4/12-2/10-1/8), Rated to -65°C (-85°F)
- Air Hoses: DOT SAE J1402 Type A, 10 mm (3/8")
- Electrical Plug: SAE J560
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Philips
|
30‑2191
|
|
Tectran
|
13A2001S
|
|
Automann
|
179.3025.20
|
|
Tremec Sloan
|
451099
|
| Property |
Value |
|
Applications
|
Universal
|
|
Type 1
|
Airpower Assemblies
|
|
Type
|
Airpower 3 in 1 Line 20 Feet
|
|
Assembly Length
|
20 ft
|
|
Air Line Color
|
Blue & Red
|
|
Gladhand Grip
|
Flexible
|
|
Gladhand
|
No
|
|
7‑Way ABS Cable Plug
|
7‑Way Metal w/Rubber Sealed
|
International ProStar (No Year)
Kenworth T660 (No Year)
Peterbilt 379 (No Year)
Volvo/White VNL 670 Gen 2 (2003-2019) (No Year)
| Longest Side | 5.31" |
| Median Side | 4.47" |
| Shortest Side | 0.00" |
| Weight | 0.00 lbs |
