PRODUCT TYPE
High Quality Heavy Duty ABS Wheel Speed Sensor Kit with 90-degree connector, designed for reliable performance in commercial braking systems.
FUNCTION
Installed at wheel ends to measure the motion of a sensed wheel in ABS applications, ensuring accurate wheel speed data for safe and effective braking.
SPECIFICATIONS
Cable Length: 3.3 ft (1 m)
Cable Diameter: 4.4 mm
Connector Type: 2-Pin Female
Sensor Style: 90 Degree
REPLACEMENT FOR
Meritor: R955336
Sensor Part: S441 032 809 0
Other OEM Numbers: 577.A5336, S4410328090, 8235-R955336, R955336, S4410325790, TDAR955336, W8000045, W8000125, W8001709, W8001710, W8003676, W8006759
QUALITY & DESIGN
Manufactured from high-quality materials to ensure dependable signal transmission, resistance to road debris, moisture, and vibration, and long-term service life in heavy-duty applications.

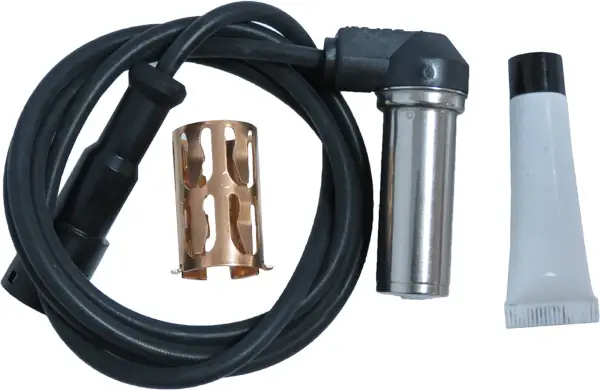

INCLUDES
ABS Sensor with Cable Leads
Sensor Spring Clip
Installation Grease
APPLICATION
Suitable for use on semi trucks, trailers, buses, and other commercial vehicles equipped with ABS braking systems.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Meritor\\Wabco:
|
R955336
|
|
Meritor/Wabco
|
R955336
|
| Property |
Value |
|
Weight
|
0.21 lbs
|
|
Length
|
3.28 ft (1m)
|
|
Cable Diameter
|
6.2mm
|
|
Length (Metric):
|
1m
|
Suitable for use on semi trucks, trailers, buses, and other commercial vehicles equipped with ABS braking systems.
| Longest Side | 4.13" |
| Median Side | 4.13" |
| Shortest Side | 2.76" |
| Weight | 0.26 lbs |
