Description

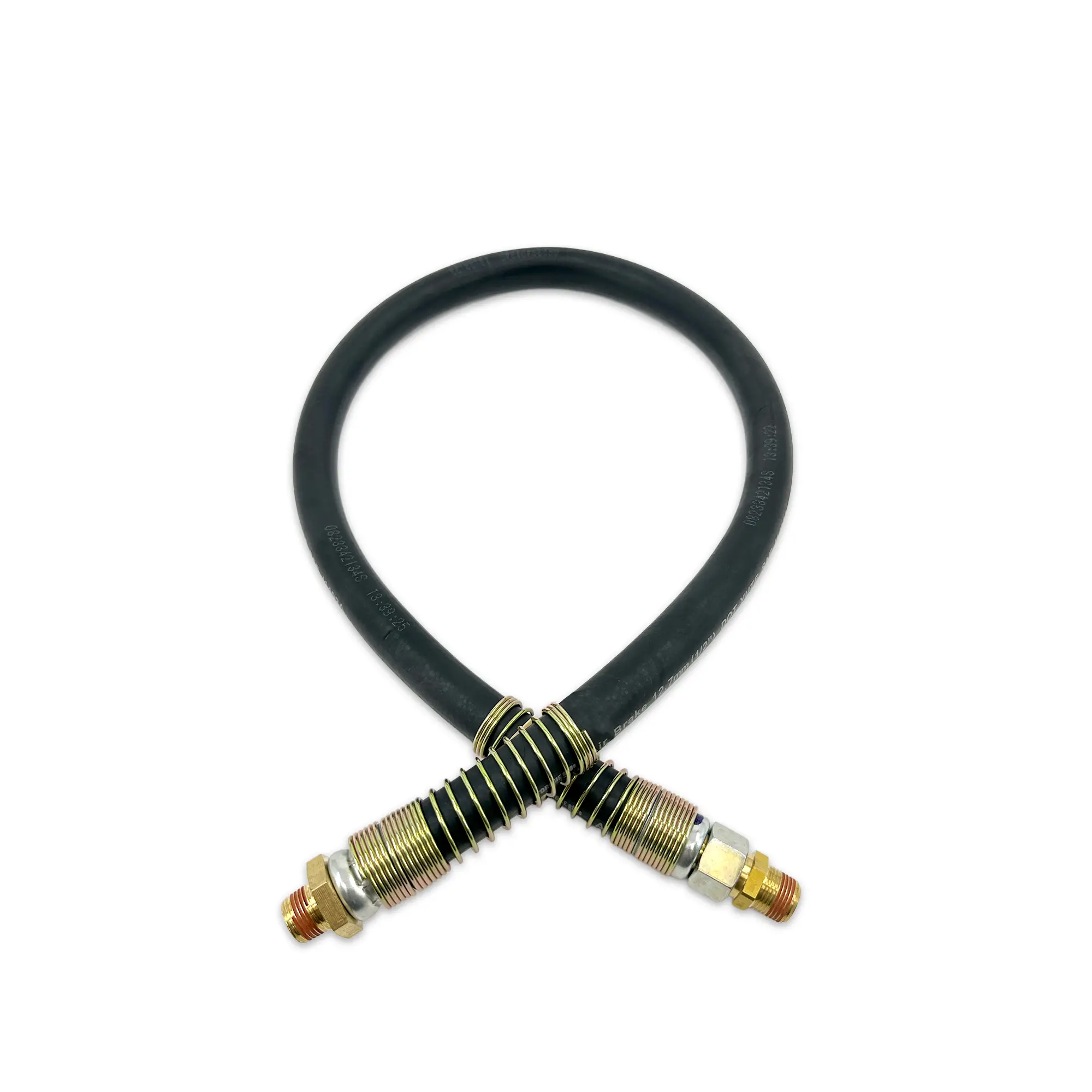

Built for dependable performance in demanding commercial trucking applications, this heavy-duty air brake hose is designed to provide reliable air delivery, secure connections, and long service life.
Features
- Durable Construction – Heavy-duty air brake hose designed to withstand heat, abrasion, and high-pressure operating conditions.

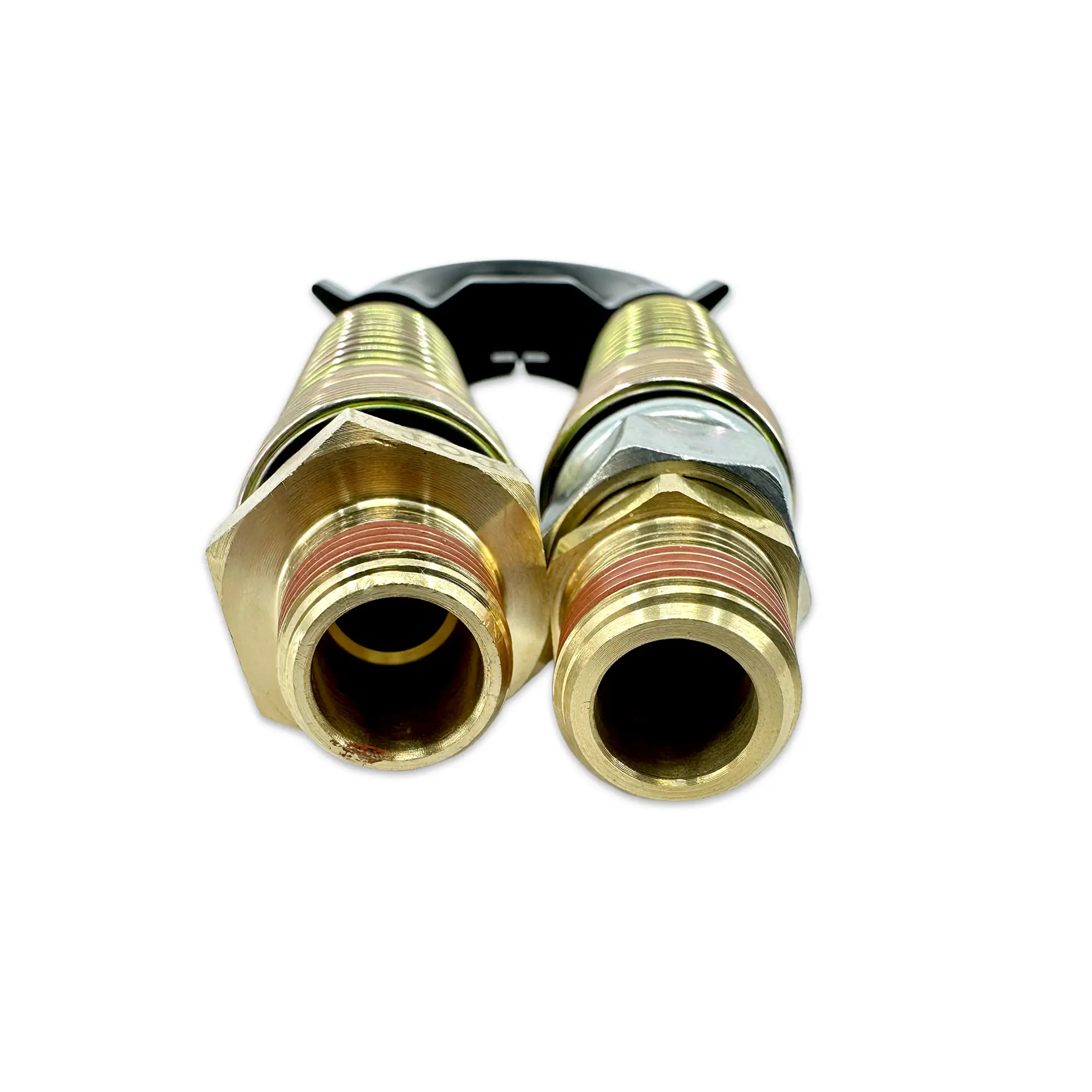

- Secure Connections – Equipped with 3/8" NPT brass fittings (one fixed and one swivel) for a secure, leak-resistant connection and easy installation.
- Organized Hose Routing – Includes an integrated hose separator to prevent tangling, rubbing, and premature wear.
- Wide Compatibility – Suitable for tractors, trailers, and other heavy-duty air brake systems. Ideal for replacement, maintenance, and repair applications.
- Available Lengths – 18", 20", 22", 24", 26", 28", 30", 32", 34", 36", 38", 40", 42", 44", 48", 54", 60", and 72".
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann:
|
1777061, 177.7860
|
|
Bendix
|
5005977
|
|
Dayton Parts:
|
1238160
|
|
Delco‑Remy:
|
91336
|
|
Euclid:
|
E858260BKE858360BK, E858260BK
|
|
Gates:
|
21334
|
|
Haldex:
|
16360
|
|
New Life:
|
16328P16348P16360P
|
|
Power Products:
|
RH16360
|
|
Tmc:
|
18336660452160
|
|
Velvac:
|
148060
|
|
Walker Exhaust:
|
18160
|
|
Others:
|
18145SW60
|
| Property |
Value |
|
Length:
|
60"
|
|
Hose I.D:
|
1/2"
|
|
Fittings:
|
3/8" NPT with/ 1 Fixed, 1 Swivel & Hose Separator
|
|
Applications
|
Universal
|
|
Hose Assembly Type
|
1/2" Hose 3/8" NPT Fixed x 3/8" NPT Swivel
|
|
Fitting Type
|
Male NPT ‑ 1 Fixed, 1 Swivel
|
|
Fitting End A
|
3/8" Male NPT Fixed
|
|
Fitting End B
|
3/8" Male NPT Swivel
|
|
Hose ID
|
1/2"
|
| Longest Side | 13.39" |
| Median Side | 10.63" |
| Shortest Side | 0.00" |
| Weight | 0.00 lbs |
