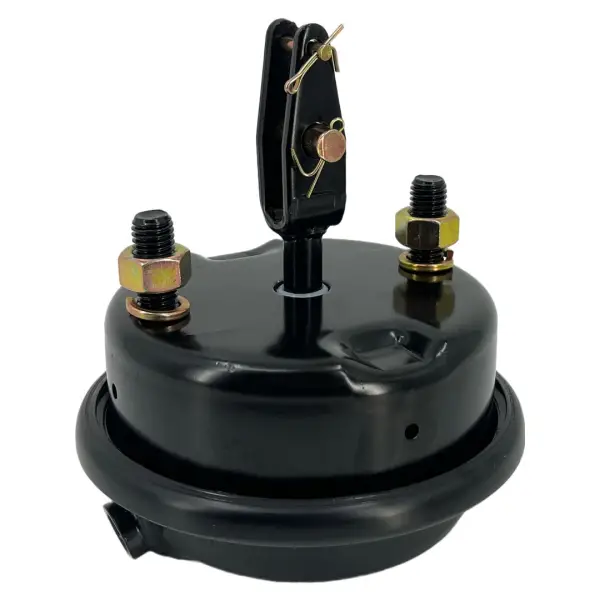

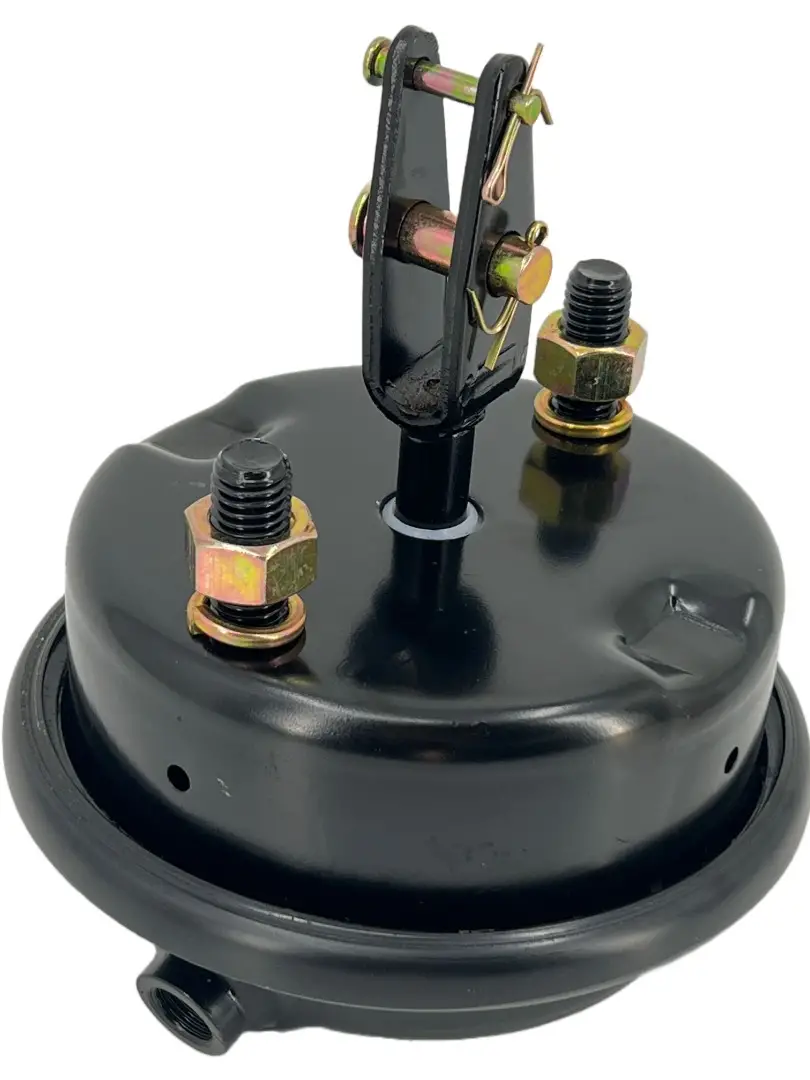

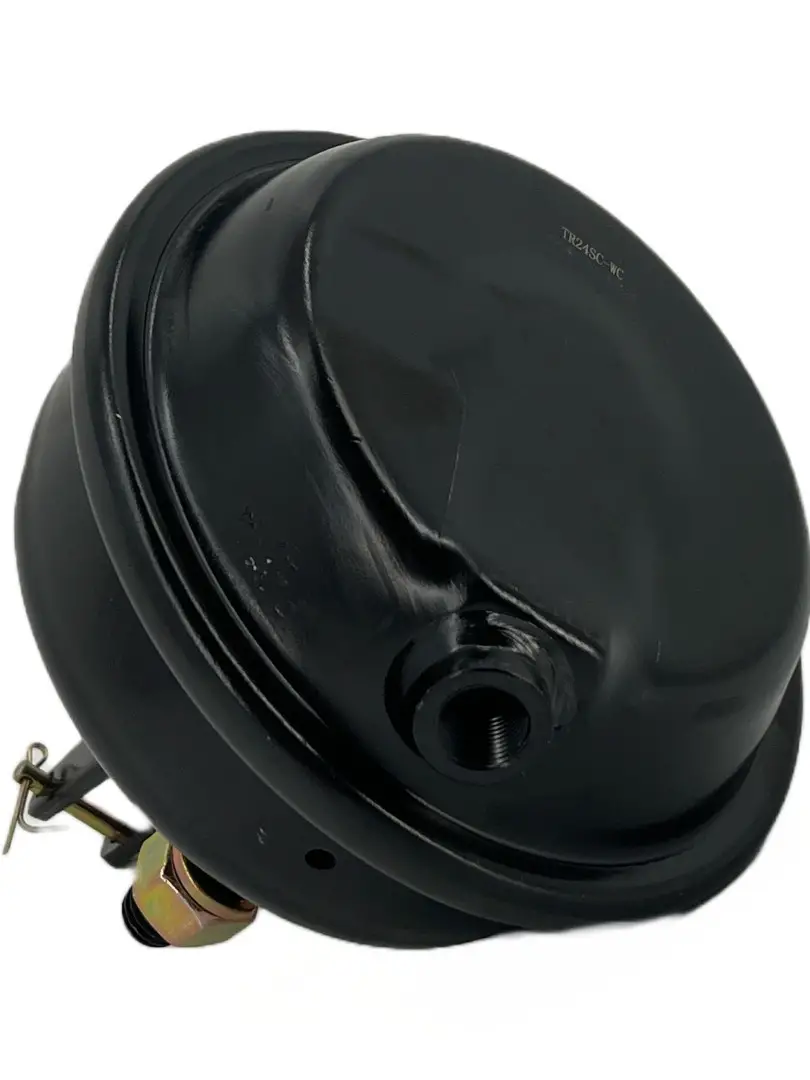

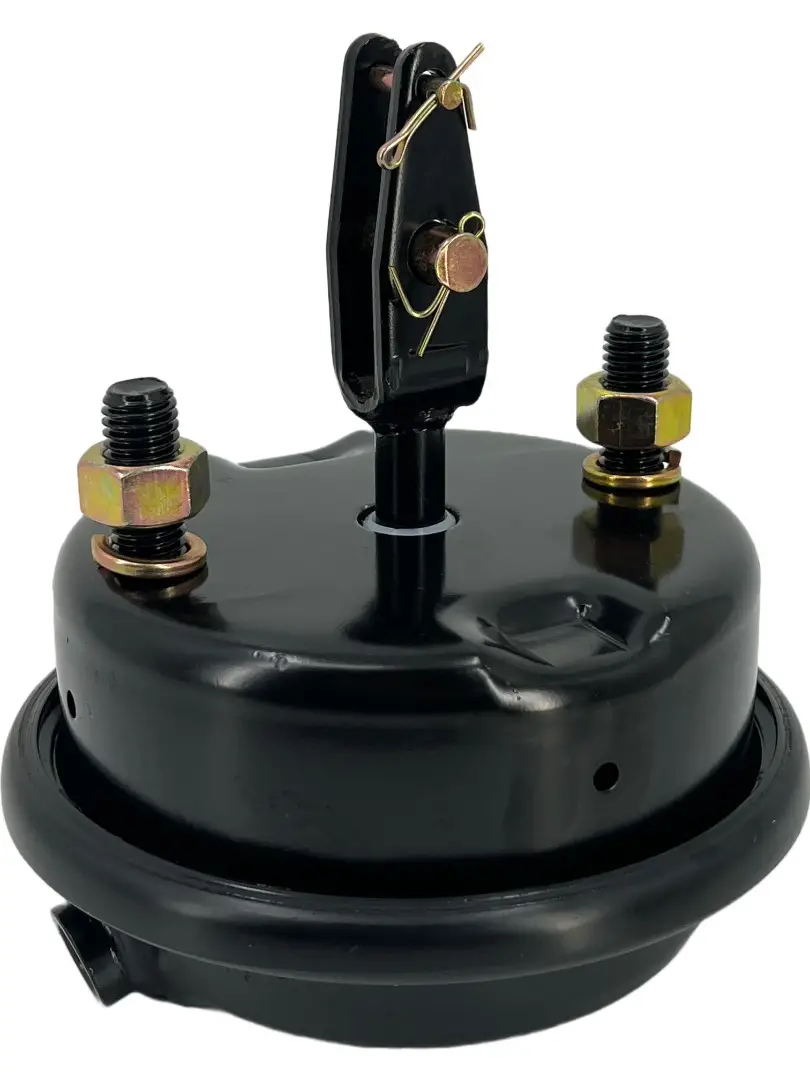

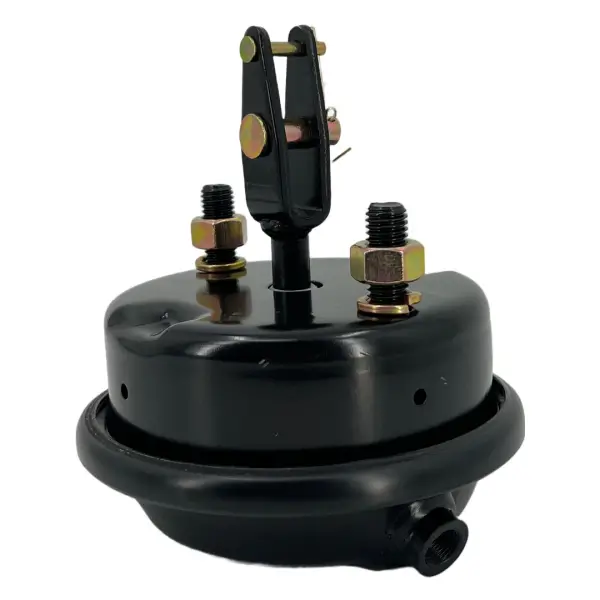

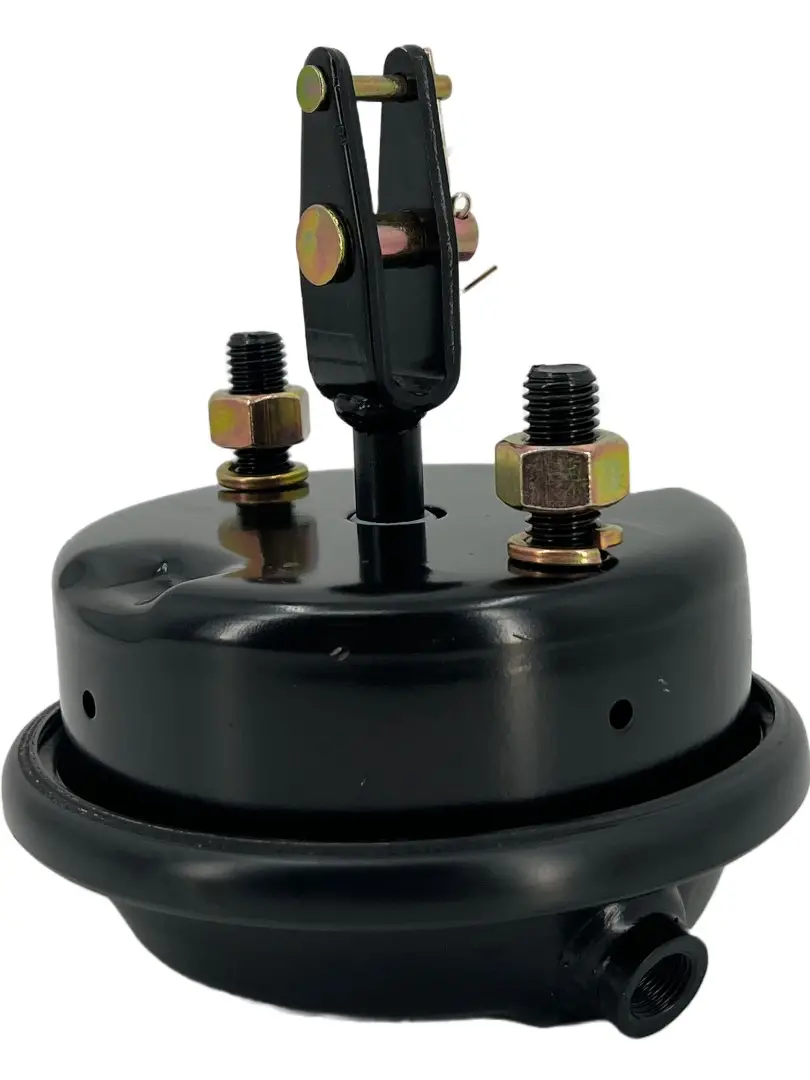

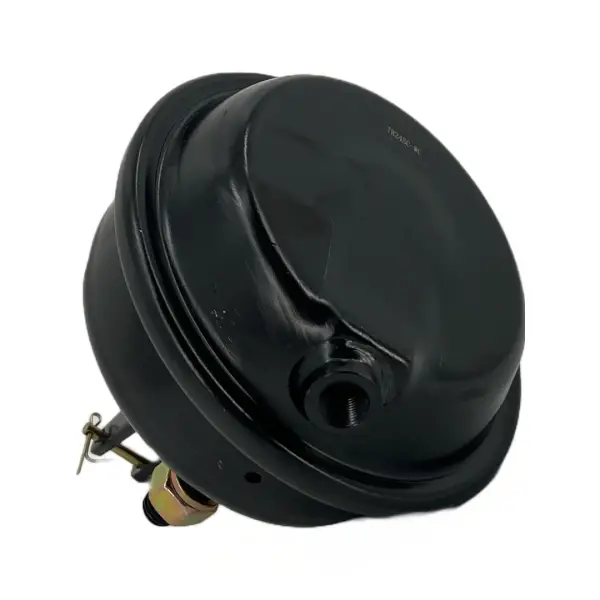

Long Stroke Air Brake Chamber Service Type 24 with Welded Clevis
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
Brand |
Reference Numbers |
Bendix
|
K058691
|
MGM
|
1427901, 1427902
|
Automann
|
179.M1427901 , 179.SC24XLW225
|
Property |
Value |
Chamber Type / Size
|
24
|
Service Chamber Joint Type
|
Double Clamp Band
|
Stud Thread Size
|
5/8‑11 UNC‑2A
|
Mounting Stud Length
|
1.50 IN (38.1 MM)
|
Stud Spacing
|
4.75 IN (120.7 MM)
|
Stroke
|
2.50 IN (63.5 MM)
|
Push Rod Length (to Yoke Pin Center when Applicable)
|
3.90 in
|
Service Port ‑ Side
|
3/8‑18 NPT
|
Service Port ‑ Center
|
3/8‑18 NPT (Plugged)
|
Port Angle
|
0°
|
Clamp Angle
|
0°
|
Clevis / Yoke Style
|
Welded
|
Clevis / Yoke Arm Bushing Pin Diameter
|
0.50 IN ( 12.7 MM)
|
Clevis / Yoke Arm Link Pin Diameter
|
0.25 IN ( 6.35 MM)
|
Clevis / Yoke Pin Spacing
|
1.30 IN (33 MM)
|
Maximum Operating Temperature
|
175 °F (79 °C)
|
Minimum Operating Temperature
|
‑45 °F (‑43 °C)
|
