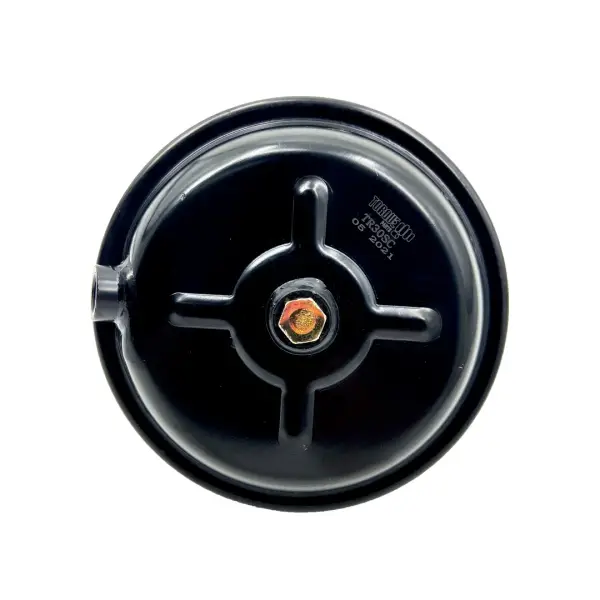

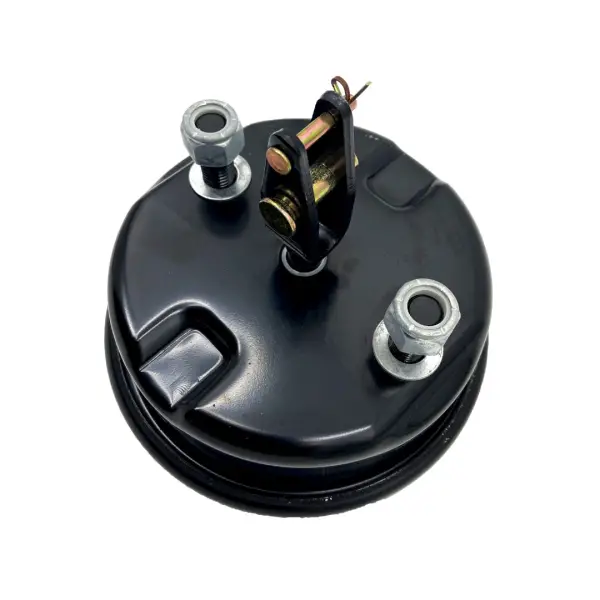

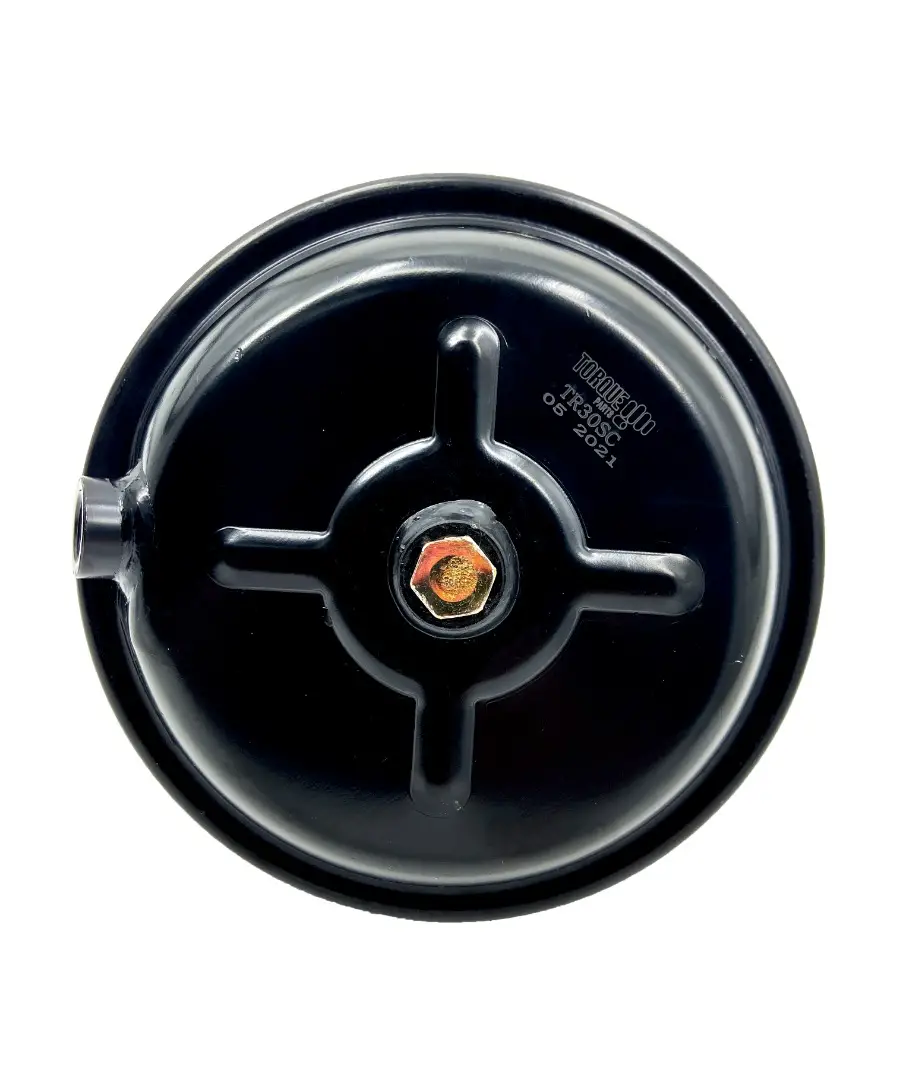

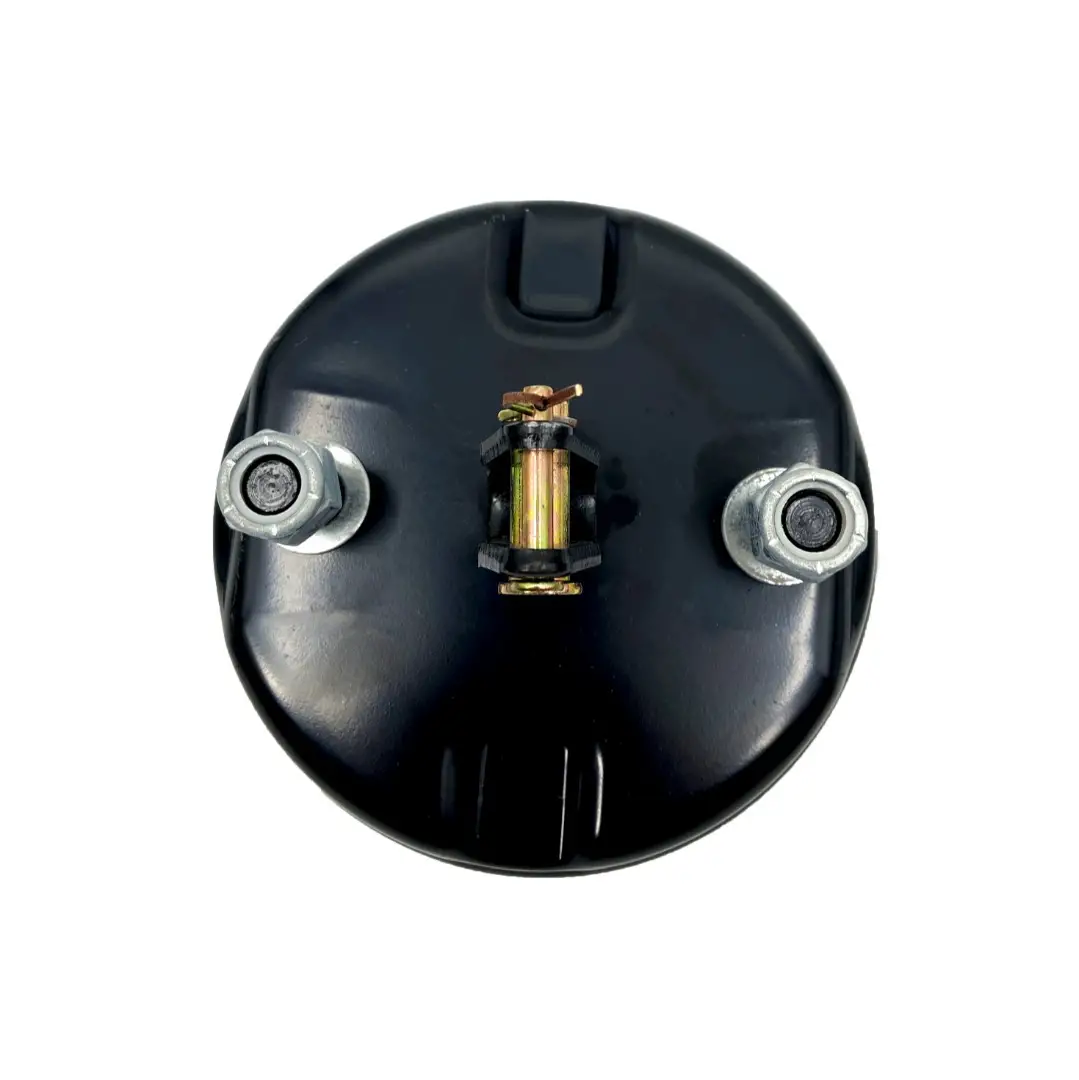

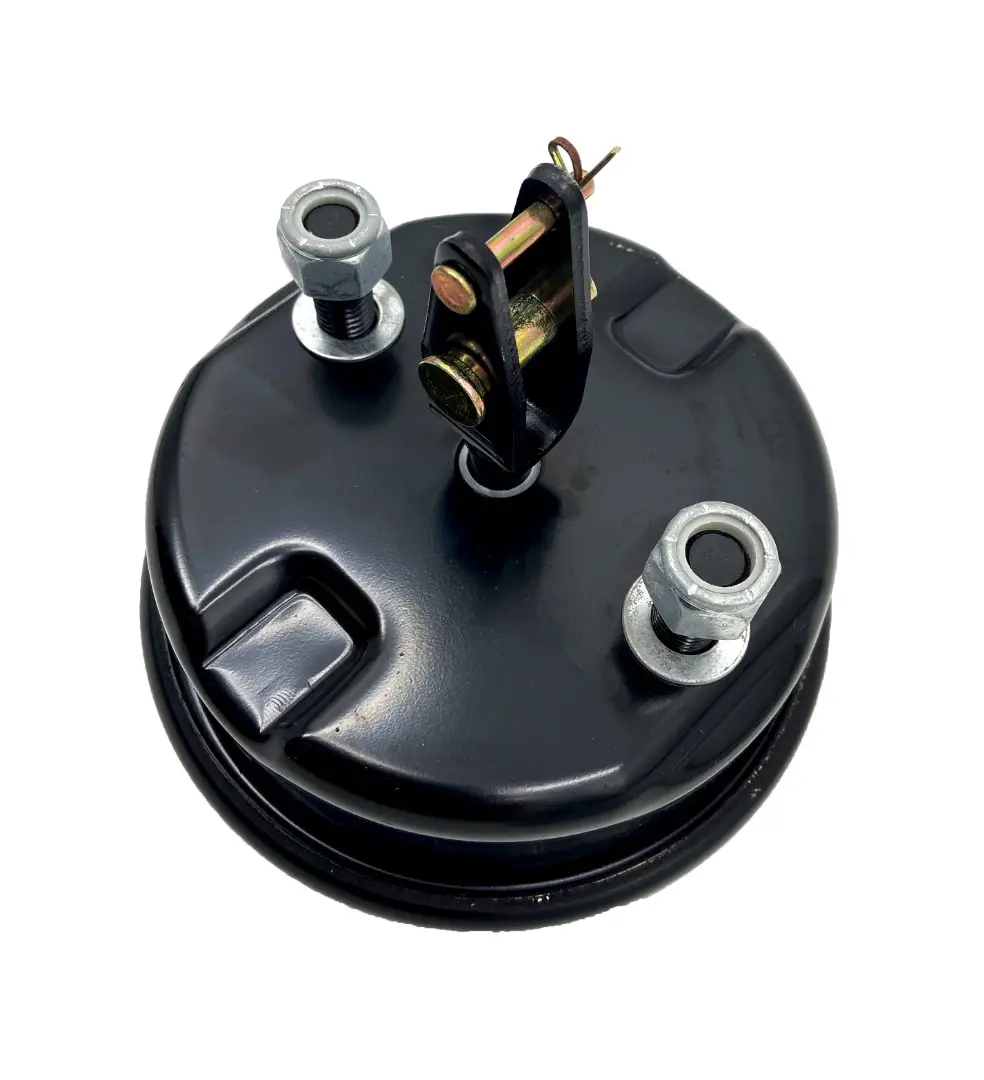

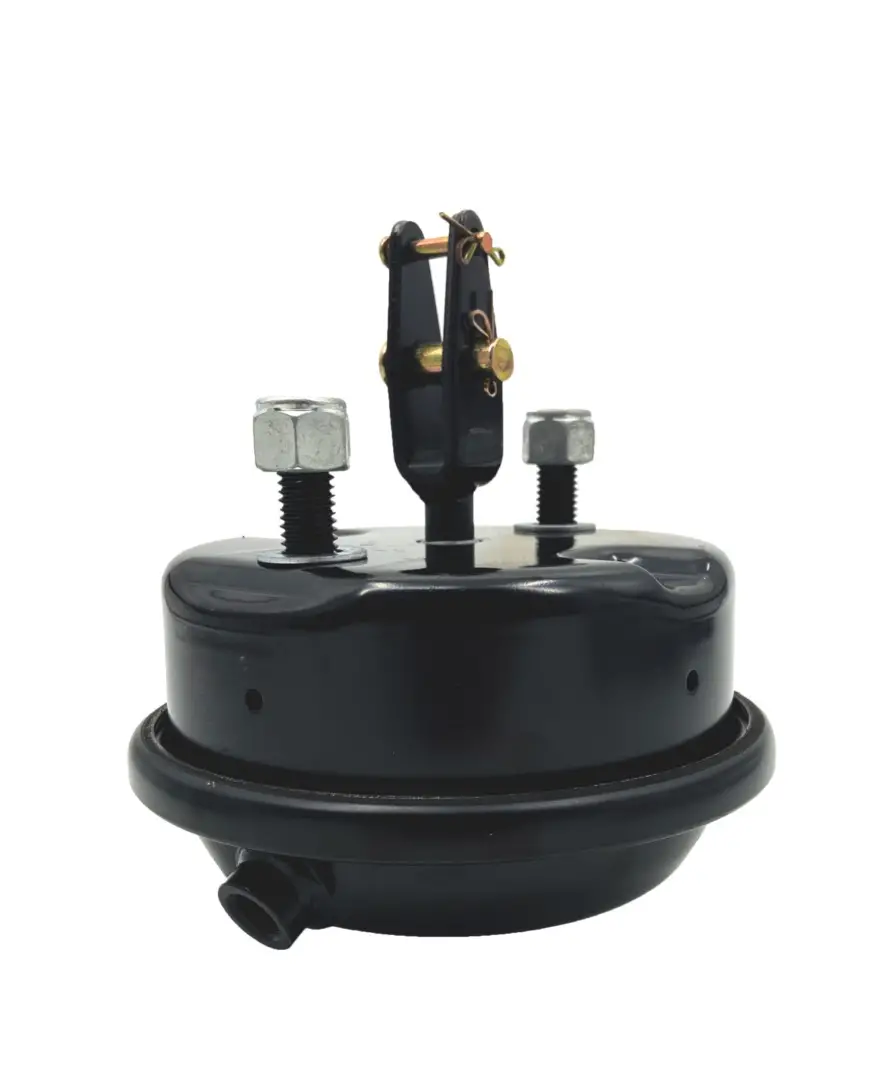

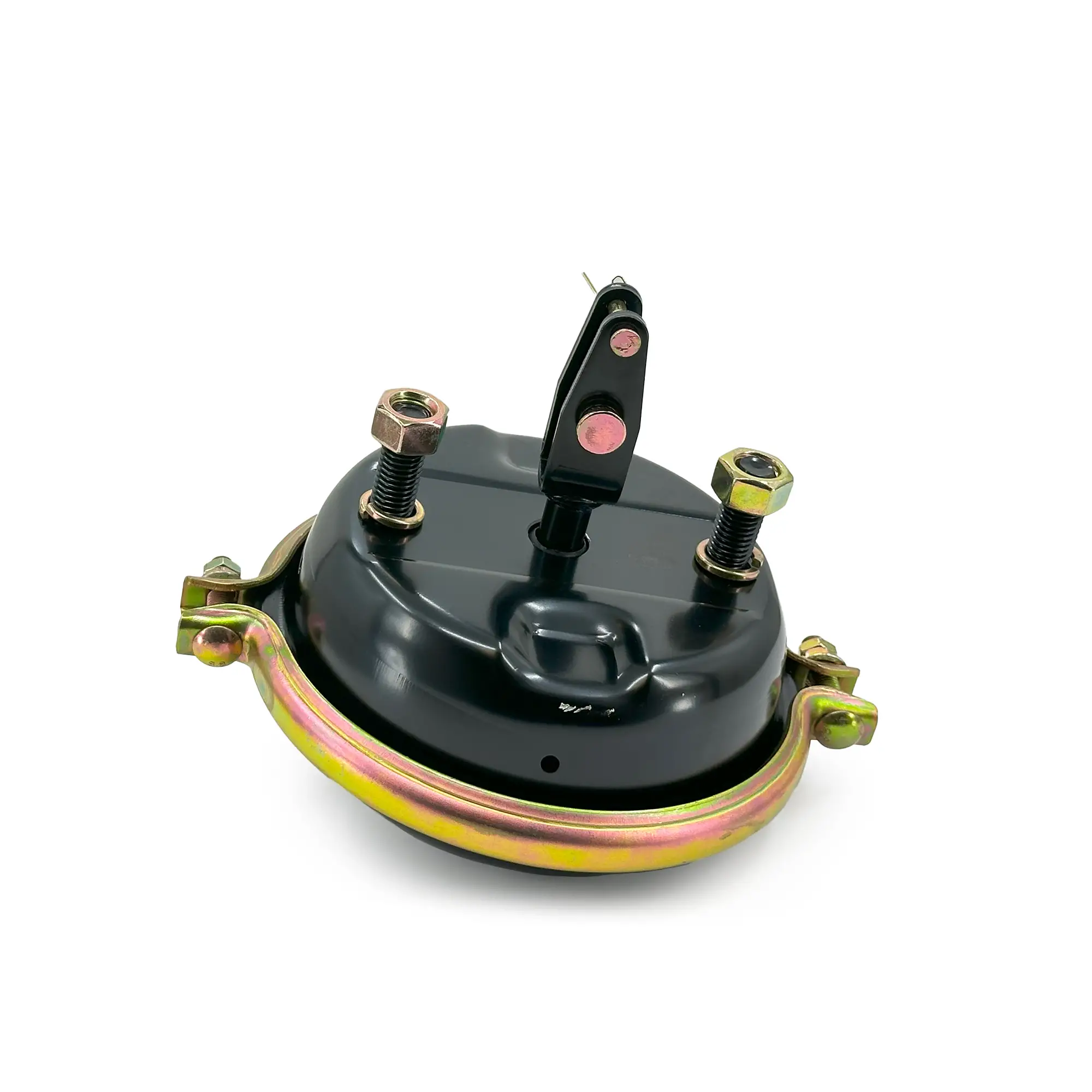

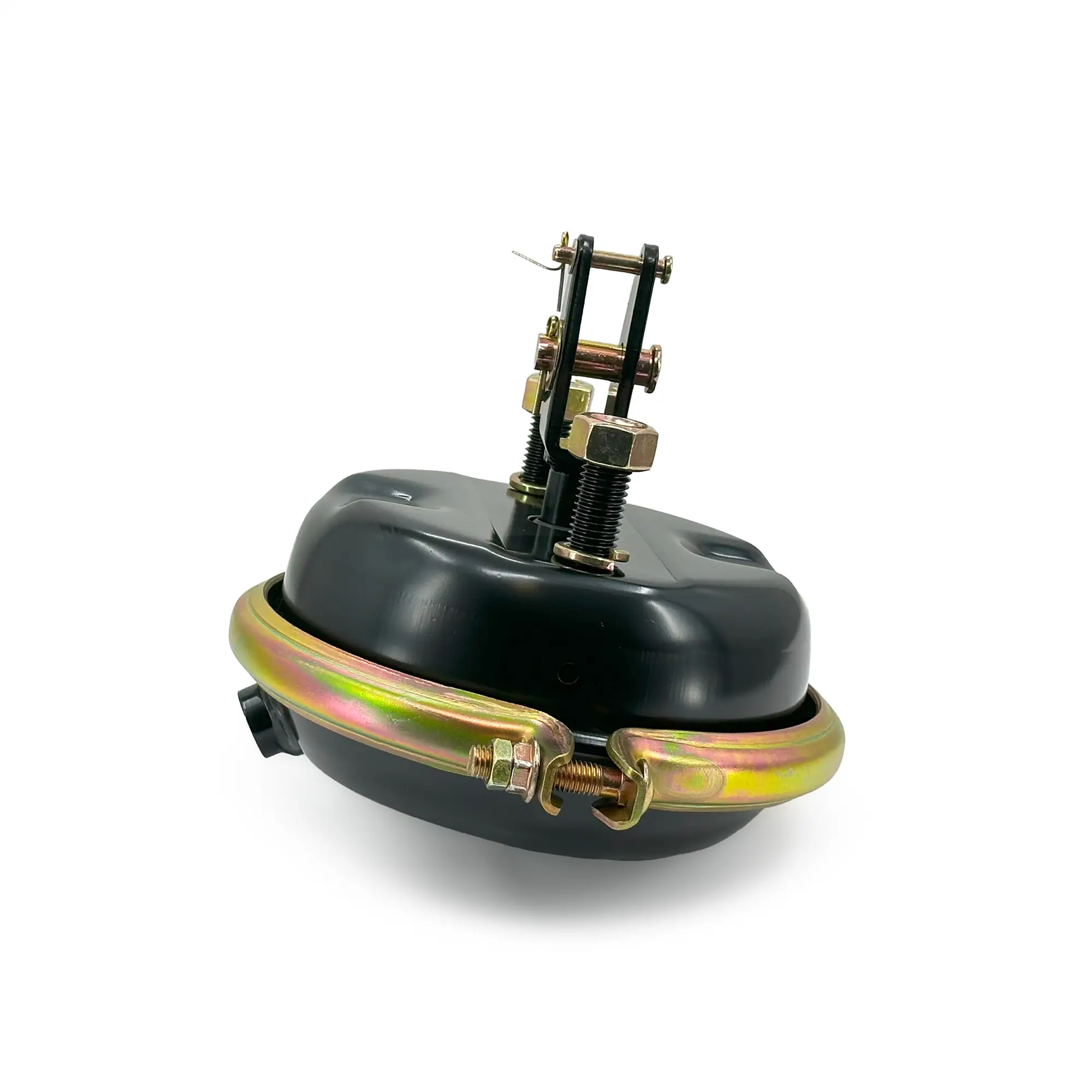

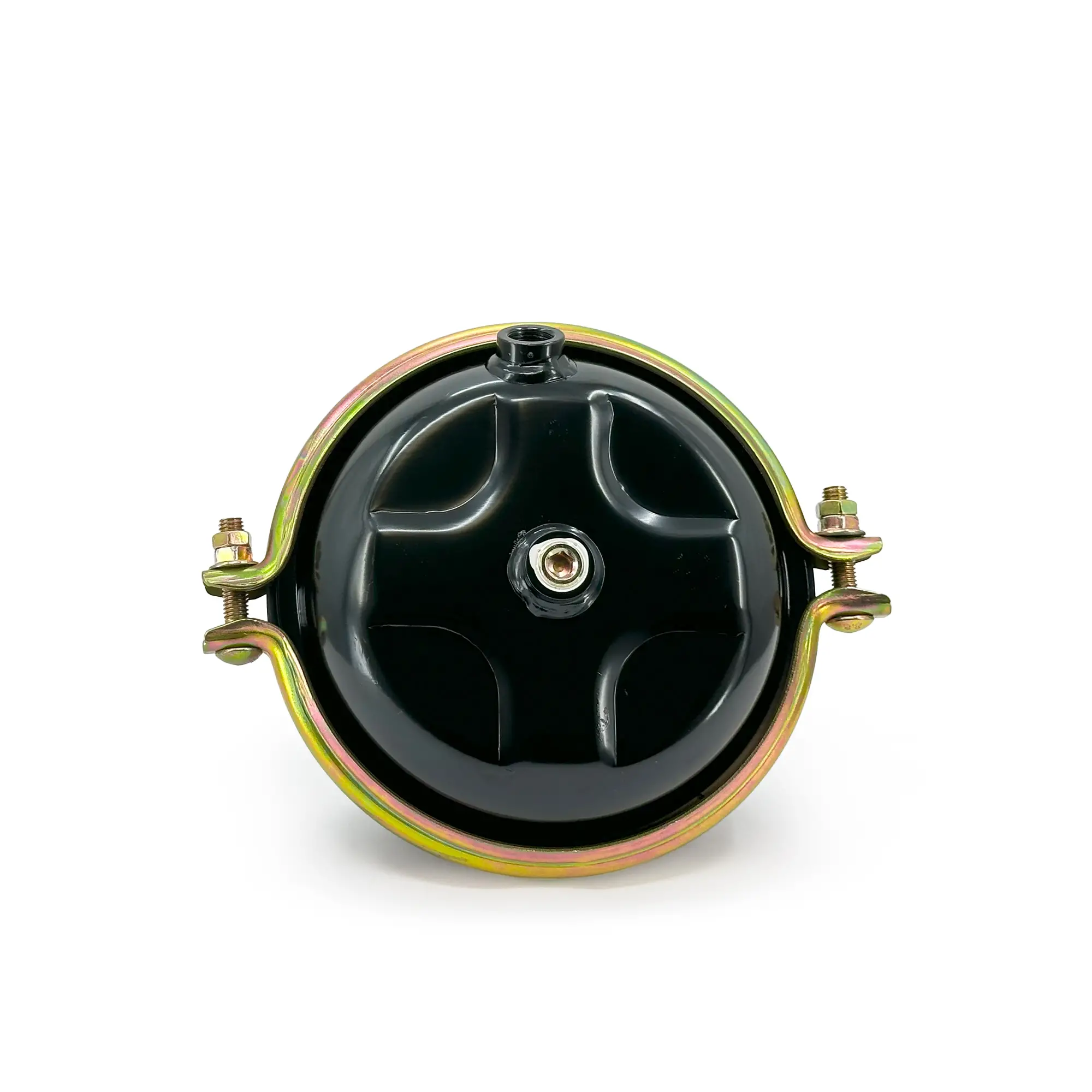

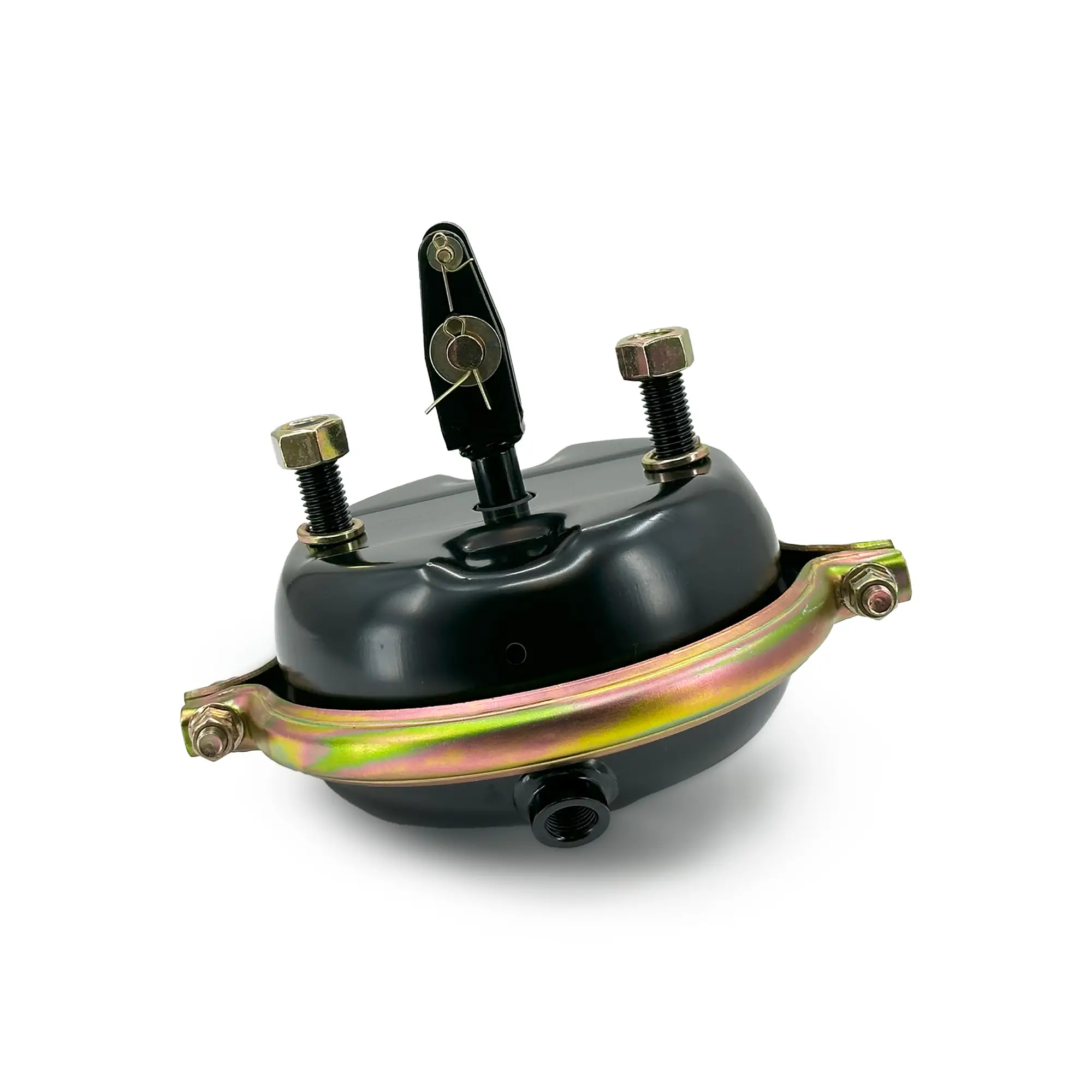

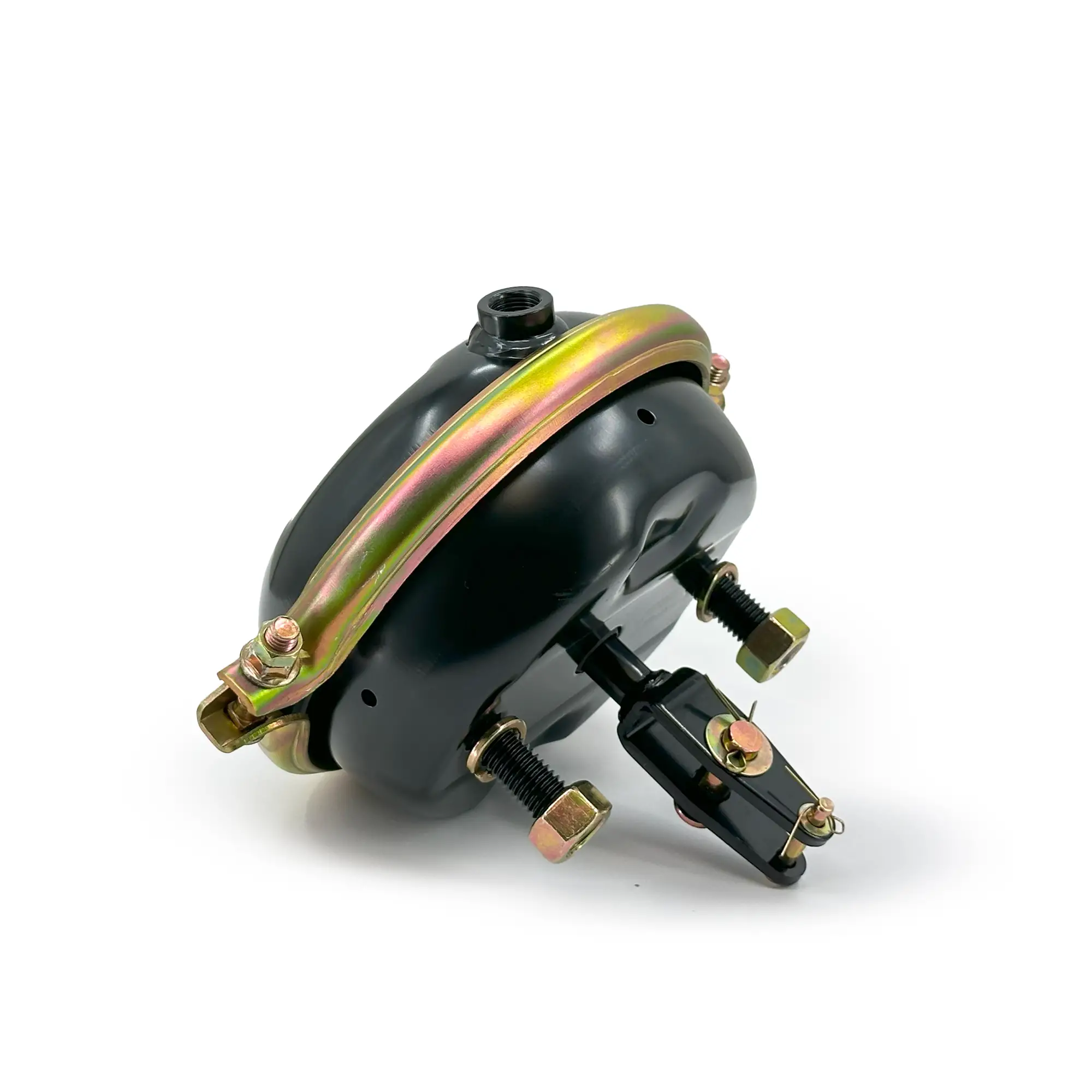

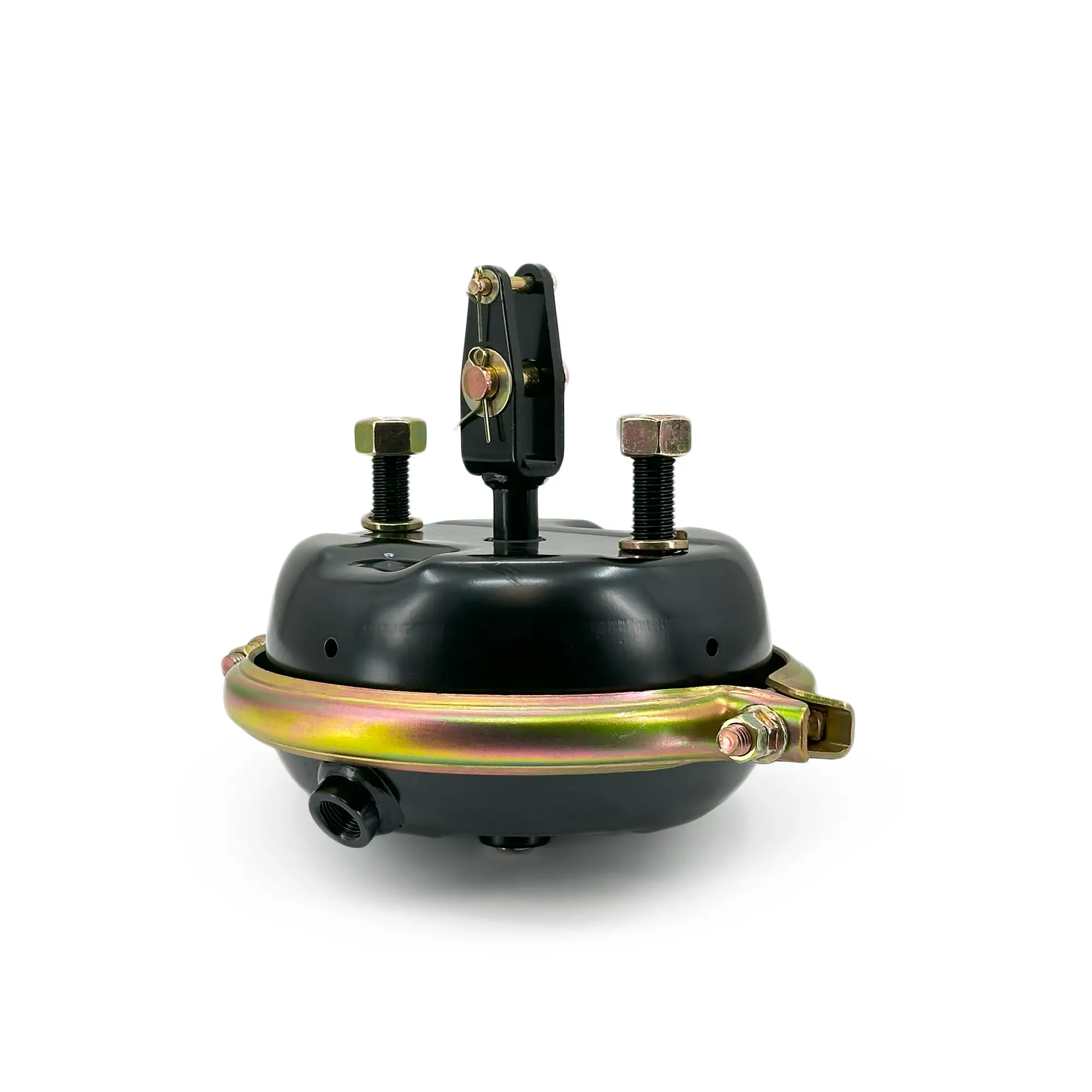

Air Brake Chamber Service Type 30
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
179.SC30
|
|
Bendix
|
5007121N, 800826
|
|
Euclid
|
E30S, EBC30S
|
|
Haldex
|
SC30, 3000001, 53000001, MA36300
|
|
MGM
|
1430001
|
|
Midland
|
KN36300
|
| Property |
Value |
|
Actuator Type Size
|
30
|
|
Stroke Type
|
Standard
|
|
Available Stroke
|
2‑1/2\", 64mm
|
|
Air Port Threads
|
3/8\"‑18 NPTF
|
|
Length from mounting bracket to end of Spring Housing
|
3‑11/16\", 94mm
|
|
Dimension at Service Clampband
|
10‑3/16\", 259mm
|
|
Stud Spacing with 5/8‑11 UNC studs
|
4‑3/4\", 120.7mm
|
|
Pushrod Length from face of Service Housing:
|
10\"
|
|
Pushrod threads
|
5/8\"‑18 UNF
|
|
Air Port position
|
90°
|
|
Service Clampband position
|
0°
|
|
Maximum Air Pressure
|
150 psi
|
|
Weight
|
10.3 lbs. , 4.7 kg.
|
| Longest Side | 45.28" |
| Median Side | 45.28" |
| Shortest Side | 43.31" |
| Weight | 9.19 lbs |
