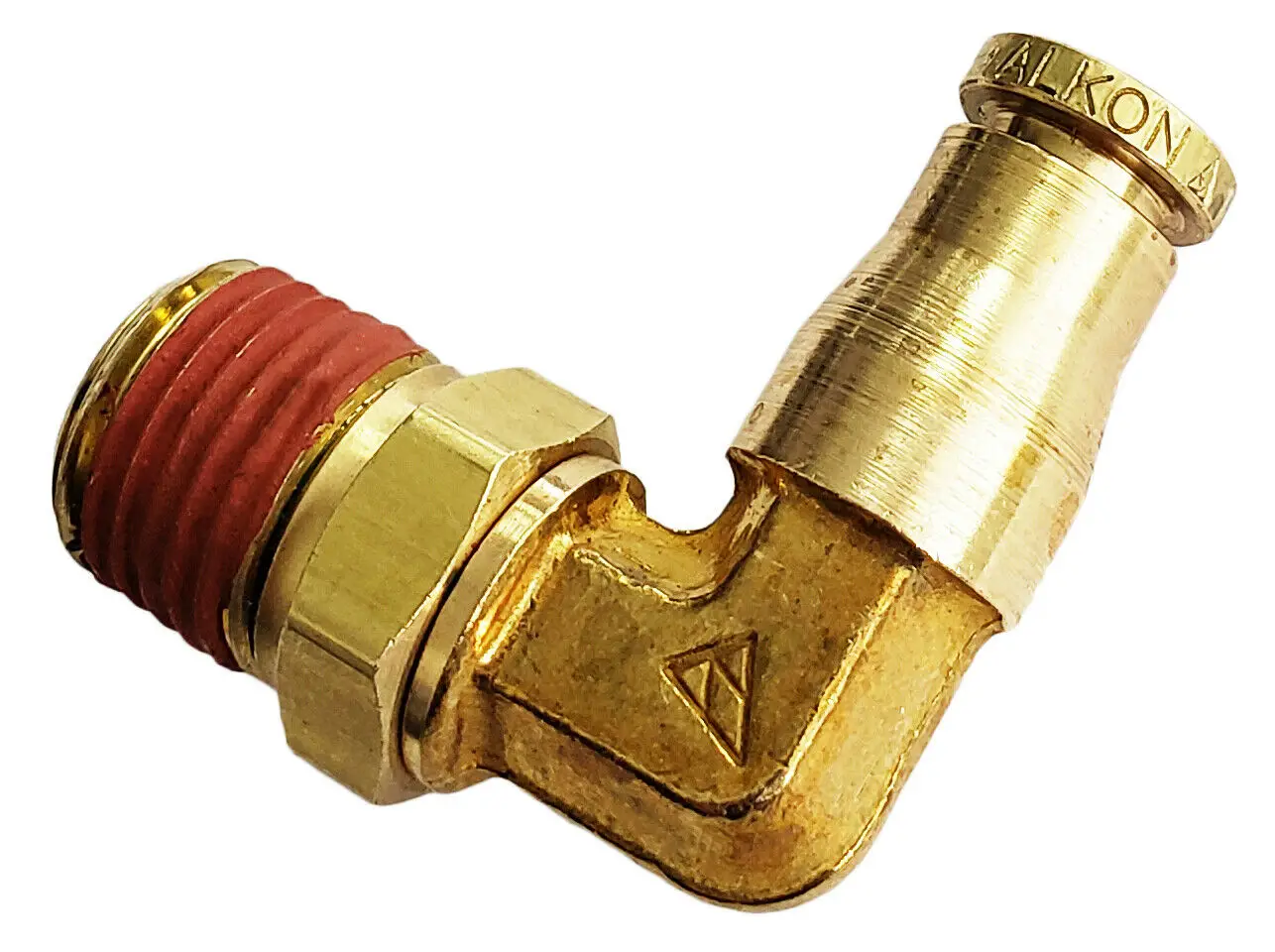

Push To Connect Brass Male Fitting Elbow 1/4" O.D. 1/4" I.D.

Description : Push To Connect Brass Male Fitting Elbow 1/4" O.D. 1/4" I.D.

Part Number : TR14SEF14

Push To Connect Brass Male Fitting Elbow 1/4\" O.D. 1/4\" I.D.
Click to see price

Push To Connect Brass Male Fitting Elbow 1/4" O.D. 1/4" I.D.

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Property Value
Type Swivel Male Elbow
Tube O.D. 1/4 in.
Pipe 1/4 in.
A 1.05 in.
B 0.84 in.
C 3/8 in.
D 1.07 in.
Temperature Range ‑40 to 225 ∫F
Threads NPTF Standard
Recommended Tubing J844 Air Brake Tubing
Working Pressure The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
Note Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494‑1 and SAE J2494‑3.
Note Pre‑applied thread sealant (Loctite 516) on male pipe threads.
Note DOT approved so air tubing won\'t loosen.
