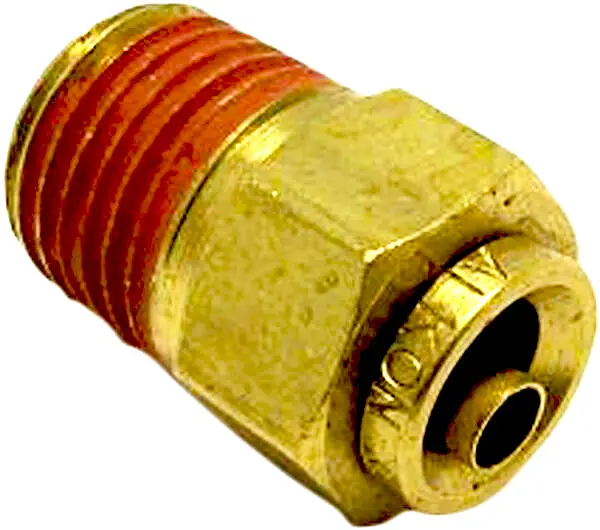

Push To Connect Brass Male Fitting Straight 1/4" O.D. 1/4" I.D.

Description : Push in To Connect Brass Air Male Fitting Straight Connector

Part Number : TR14SF14

Push To Connect Brass Male Fitting Straight 1/4\" O.D. 1/4\" I.D.
Click to see price

Push in To Connect Brass Air Male Fitting Straight Connector

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Property Value
Type Male Connector
Tube O.D. 1/4 in.
Pipe 1/4 in.
Temperature Range ‑40 to 225 ∫F
Threads NPTF Standard
Recommended Tubing J844 Air Brake Tubing
Working Pressure The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
Note Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494‑1 and SAE J2494‑3.
Note Pre‑applied thread sealant (Loctite 516) on male pipe threads.
Note DOT approved so air tubing won\'t loosen.
