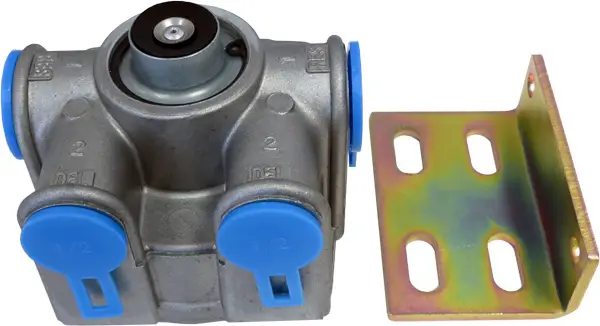

R-12 Relay Valve with Horizontal Delivery Ports Replaces 103009

Description : R-12 Relay Valve with Horizontal Ports

Part Number : TR103009

Final Sale

R-12 Relay Valve with Horizontal Delivery Ports Replaces 103009

Click to see price

Heavy-duty R-12 relay valve designed for truck and trailer air brake systems. Provides fast brake application and release by supplying air directly from the reservoir to brake chambers.

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Bendix	103009, 103009X, 103009RX
Euclid	EBN103009N
Haldex	KN28140X
IHC	1677541C91
Mack	745103009
Meritor	R955103009N
Midland	KN28140
Velvac	34026
International	1677541C91

Property	Value
Supply Port (2)	3/4\"
Delivery Ports (2)	1/2"
Control Port (1)	1/4\"
Crack Pressure	4 PSI
Approximate Weight	2 lbs
Supply Ports (2)	3/4"
Control Port	1/4"

Longest Side	23.62"
Median Side	9.06"
Shortest Side	9.84"
Weight	2.09 lbs
