Air Brake Components Valves

RG-2 Trailer Relay Valve Replaces EMDKN28510N

Description : RG-2 Trailer Relay Valve

Part Number : TRKN28510

Final Sale

RG-2 Trailer Relay Valve Replaces EMDKN28510N

Click to see price

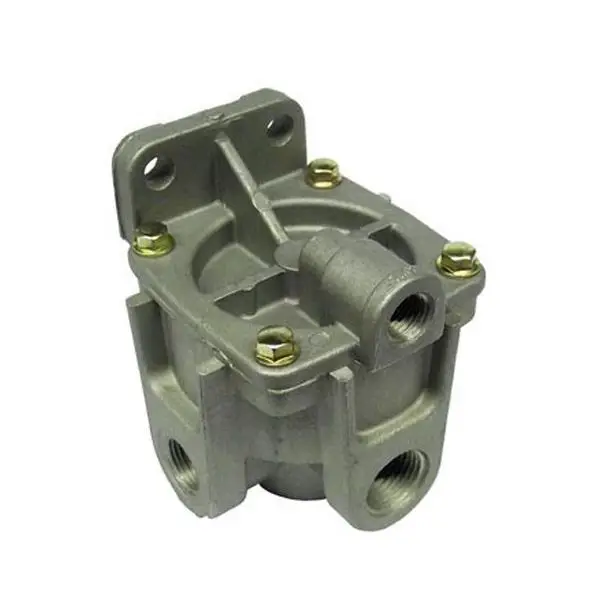

RG-2 Trailer Relay Valve

- A fast relay used to apply and release service brakes on tractor or trailer.
- Compact size.

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Euclid	EMDKN28510N
Haldex	KN28510X, KN28510, N30108AK
Mack	5396KN28510
Midland	KN28510, N30108BL
Velvac	034057, 34057

Property	Value
Supply Port‑A	3/8"
Supply Port‑B	1/2"
Delivery Port‑C	3/8"
Delivery Port‑D	3/8"
Control Position	90°
Plugs Included	1 @ 1/2", 1 @ 3/8"
Width	3‑1/2"
Length	3‑1/2"
Height	3‑5/8"
Contol Port	1/4"
Cracking Pressure	5.6 ± 1.0 PSI
Mounting Holes (2)	.34" diameter on 1.50" centers
Approximate Weight:	1.5 lbs.
