OEM STANDARD
Manufactured in accordance with OEM (Original Equipment Manufacturer) standards to ensure excellent sealing performance and precise compatibility. Features a flawless surface finish with no internal imperfections.
SPECIFICATIONS
Bolt hole spacing: 5-1/2". Bolt size: 5/16". Height: 2-11/16". Inside depth: 1-15/16". Flange outer diameter: 6-1/4". Flange inner diameter: 4-3/8".
INCLUDES

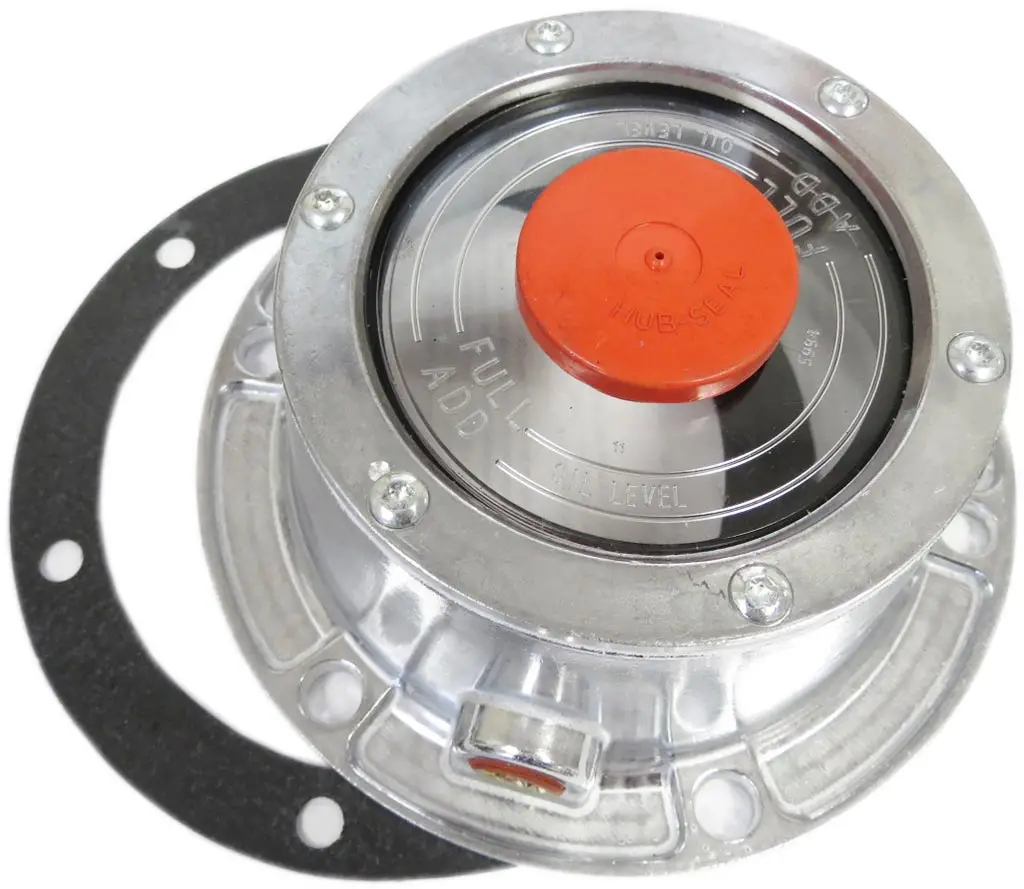

1 × aluminum hub cap. 1 × hub cap gasket.
REPLACEMENT
Replaces Stemco 343-4009, 3434009; GMC / Volvo 921010009, 862500; Euclid E04009; and Automann 180.10619.
LEAK PROOF
Designed specifically for trailer axles, this hub cap provides a secure, leak-proof seal and allows convenient gear oil refilling.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
180.10619
|
|
Chicago Rawhide
|
C43‑4009
|
|
Dexter
|
2103802
|
|
Dual Dynamics
|
DG‑6PS
|
|
Euclid
|
E04009
|
|
GMC/Volvo
|
921010009
|
|
IHC
|
2500700C1
|
|
Mechanex/Barrier
|
P411601
|
|
National
|
343009, 343‑009
|
|
Spicer
|
8302
|
|
Spicer‑Dana
|
M10HK124, M10HK182
|
|
Stemco
|
343‑4009, 3434009
|
|
Strick
|
R20148201, R20148227
|
|
Timpte
|
2009913
|
|
Trailmobile
|
8668
|
|
Watson&Chalin
|
17222
|
| Property |
Value |
|
Bolt Circle
|
5‑1/2
|
|
Bolt Size
|
5/16
|
|
Number of Bolts
|
6
|
|
Overall Depth
|
2‑11/16
|
|
Inside Depth
|
1‑15/16
|
|
Flange Inner Diameter
|
4‑3/8
|
|
Flange Outer Diameter
|
6‑1/4
|
|
Gasket Part Number
|
330‑3009
|
|
Replacement Window Kit
|
359‑5995
|
|
Weight
|
1.5lbs
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 6.50" |
6.38" |
3.35" |
0.97 lbs |
No outer box information is available for this product.
