PERFORMANCE
Replace damaged hub caps without effort. Torque hub caps are designed to meet and surpass OEM standards, ensuring reliable performance and protection for your vehicle.
PREMIUM QUALITY
Made of high-quality aluminum alloy for exceptional strength, waterproofing, and resistance to corrosion and cracking, providing long-lasting durability in all weather conditions.
REPLACEMENT FOR
Stemco: 343-4249, 3434249
Automann: 180.10623
Mack: 19QJ319
SKF: 1703, 1753, 1788, 1890, C43-4249
SPECIFICATIONS
Bolt Circle: 5-1/2"
Bolt Size: 5/16"
Number of Bolts: 6
Height: 1-13/16"
Inside Depth: 1-1/16"
Flange OD: 6-3/16"
Flange ID: 4-7/16"
LEAK PROOF

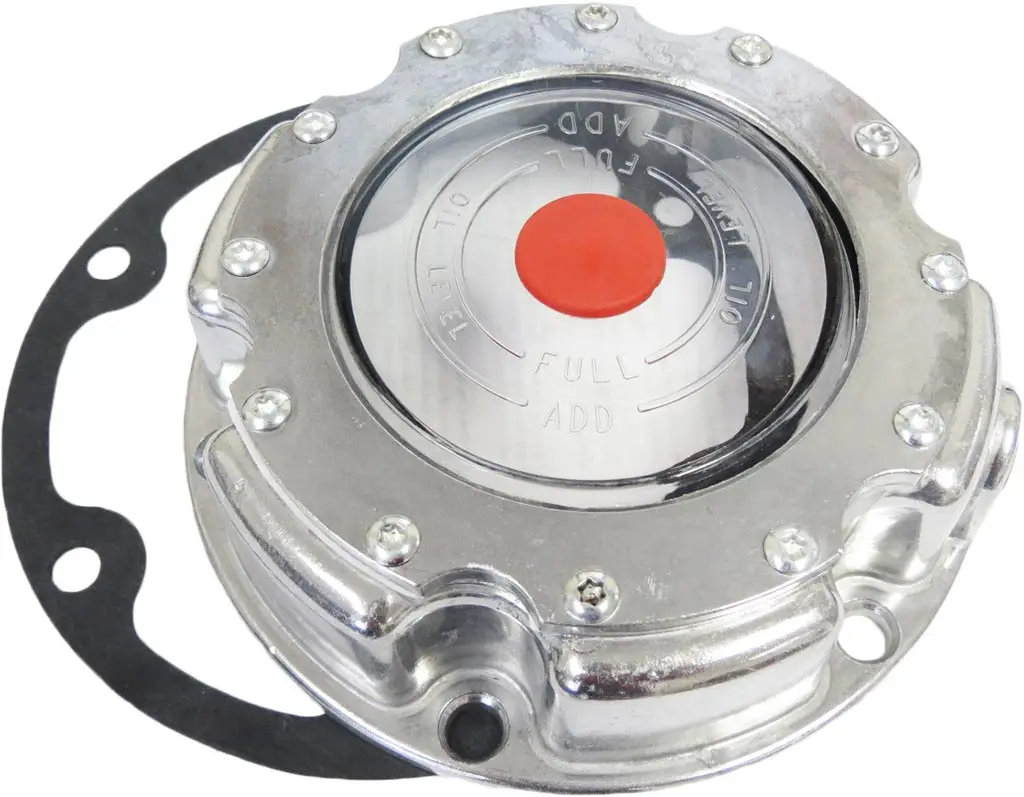

Specifically designed for steer axles, this hub cap provides a secure seal to prevent leaks while allowing convenient gear oil refilling.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
180.10623
|
|
Dual Dynamics
|
DG‑PSC
|
|
Eaton
|
506089
|
|
Mack
|
19QJ319
|
|
Mechanex/Barrier
|
P411605, HS1643
|
|
National
|
343249, HU011A
|
|
SKF
|
1703, 1753, 1788, 1890, C43‑4249
|
|
Stemco
|
343‑4249
|
|
TriSeal
|
64046, 64249
|
| Property |
Value |
|
Bolt Circle
|
5.5
|
|
Bolt Size
|
5/16
|
|
Number of Bolts
|
6
|
|
Overall Depth
|
1‑13/16
|
|
Inside Depth
|
1‑11/16
|
|
Flange Inner Diameter
|
4‑7/16
|
|
Flange Outer Diameter
|
6‑3/16
|
|
Gasket Part Number
|
330‑3122
|
|
Replacement Window Kit
|
359‑5912
|
|
Weight
|
2lbs
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 6.30" |
6.30" |
2.05" |
- |
Note: Weight information is not available for the inner box.
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 36 |
19.49" |
13.19" |
13.39" |
36.38 lbs |
