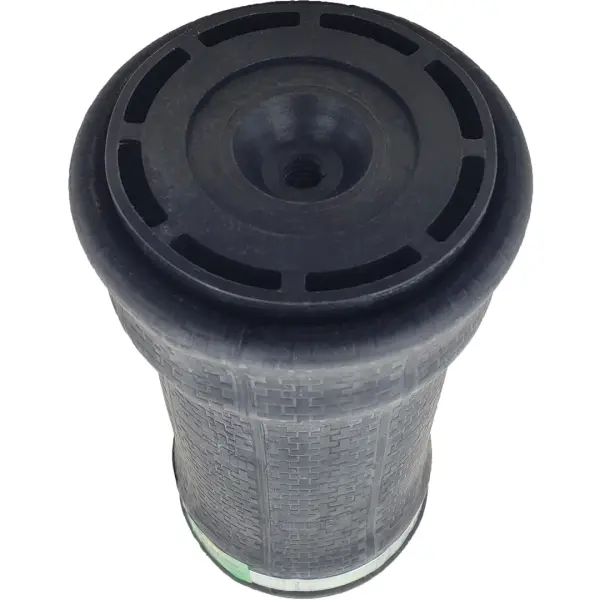

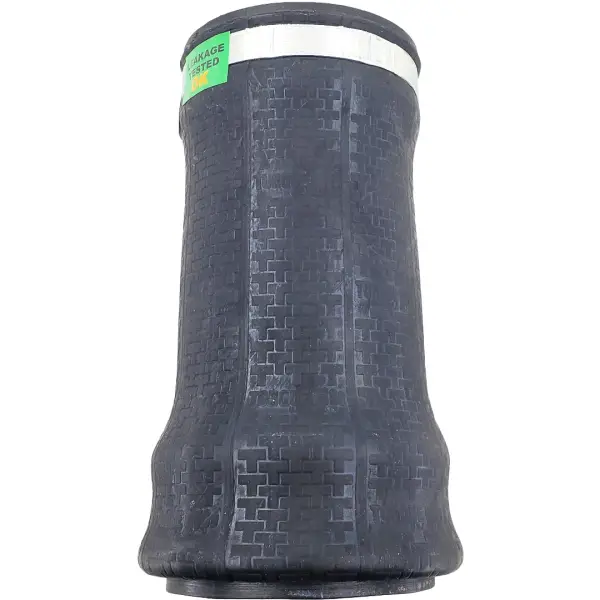

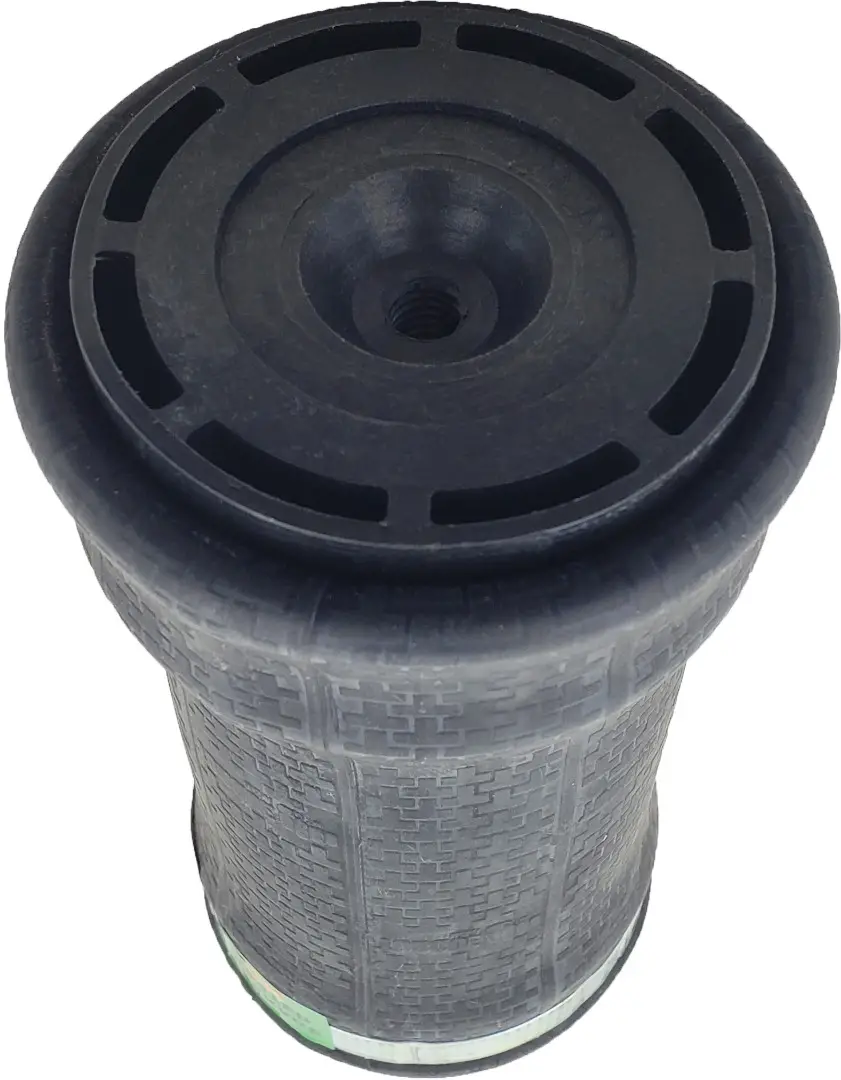

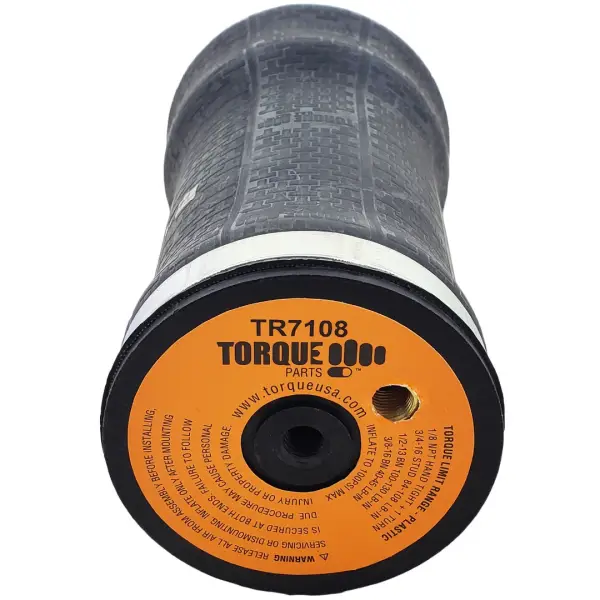

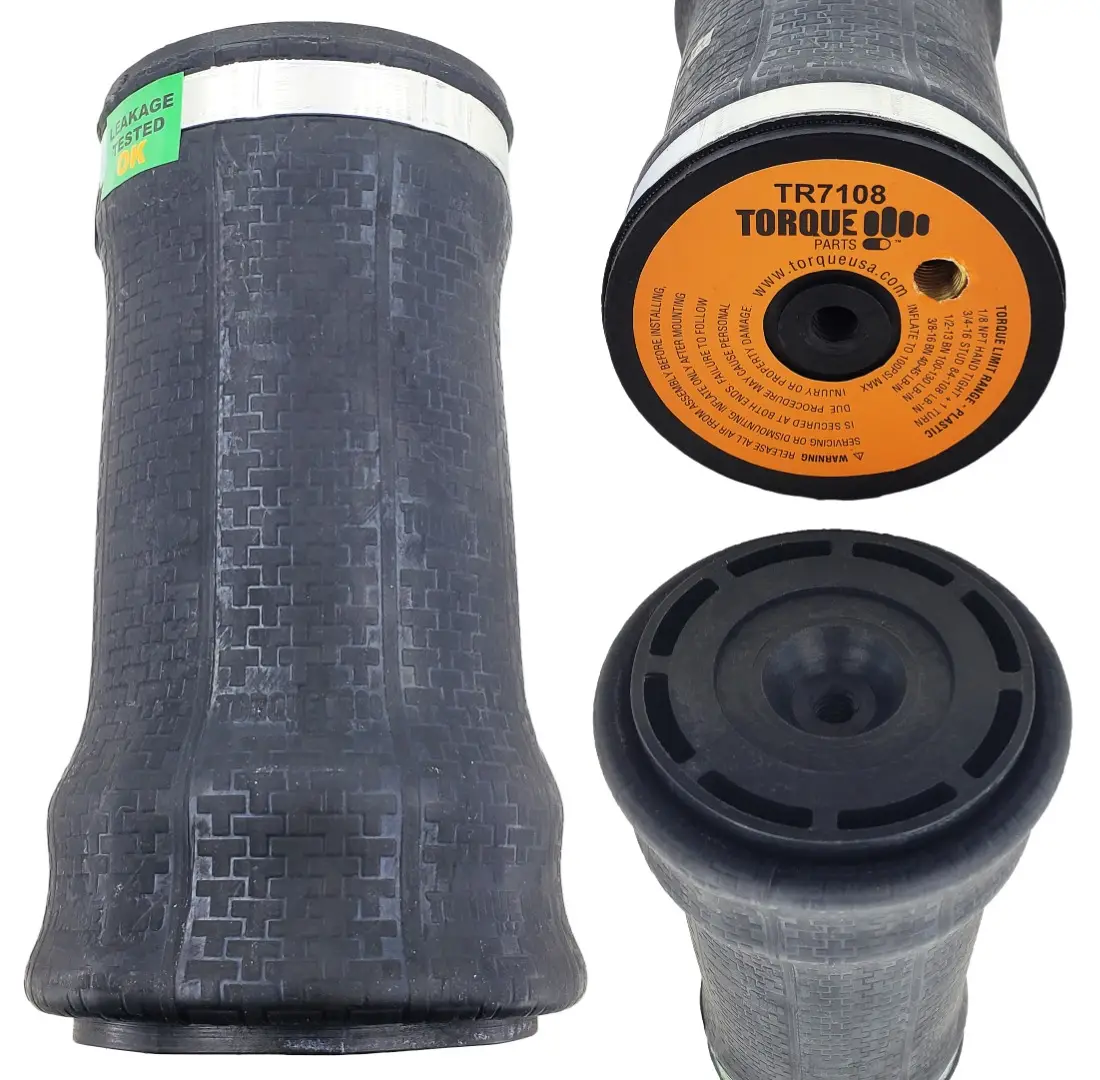

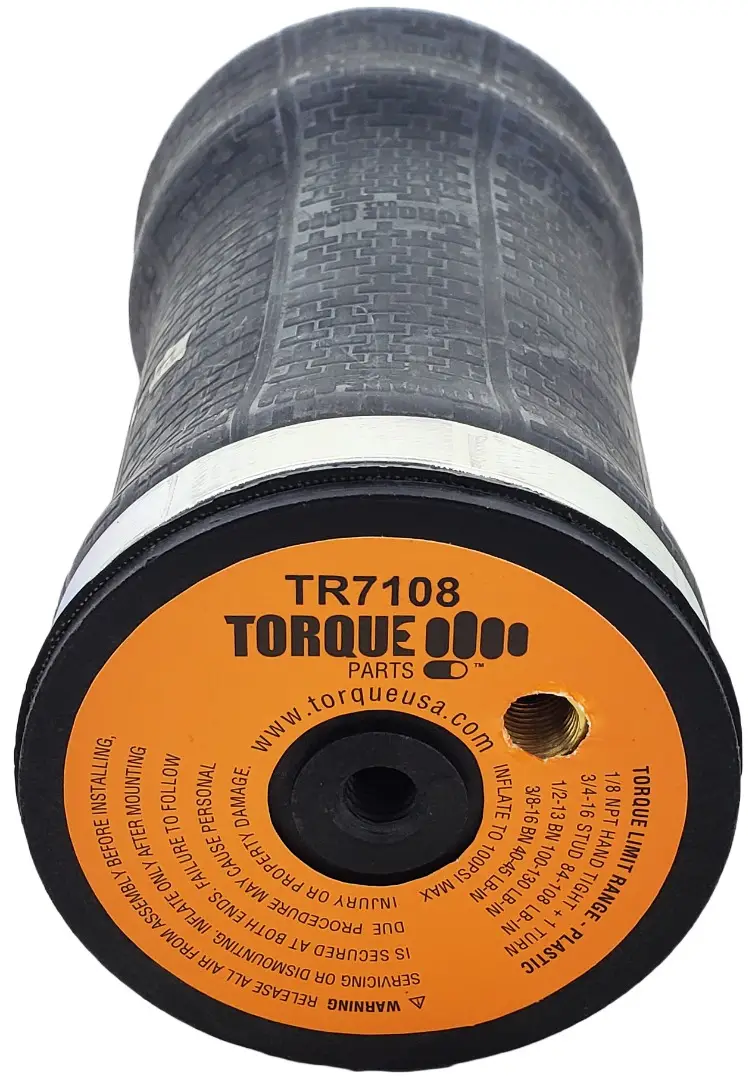

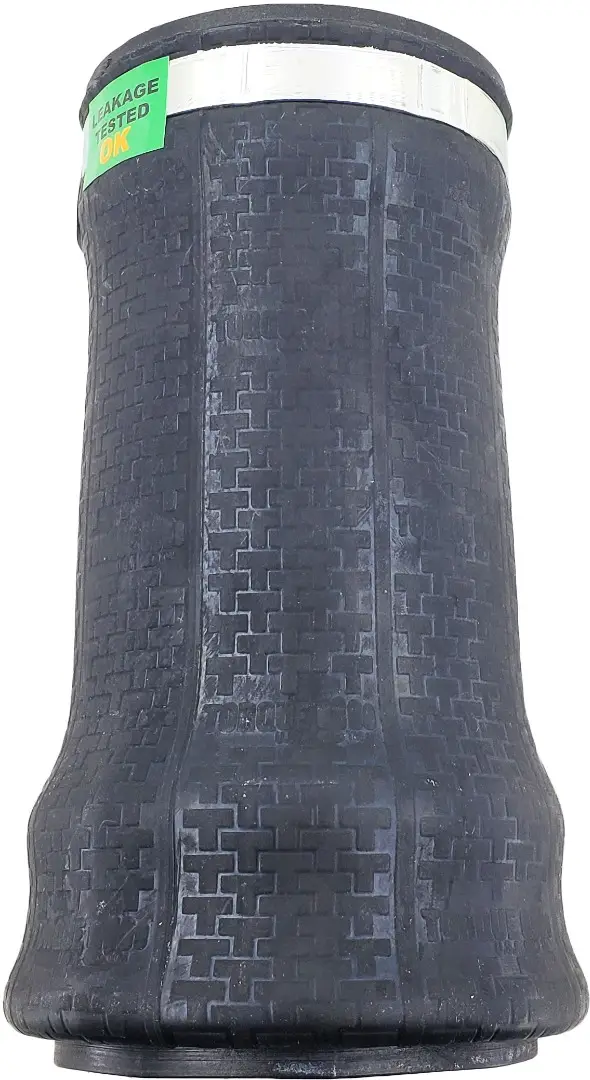

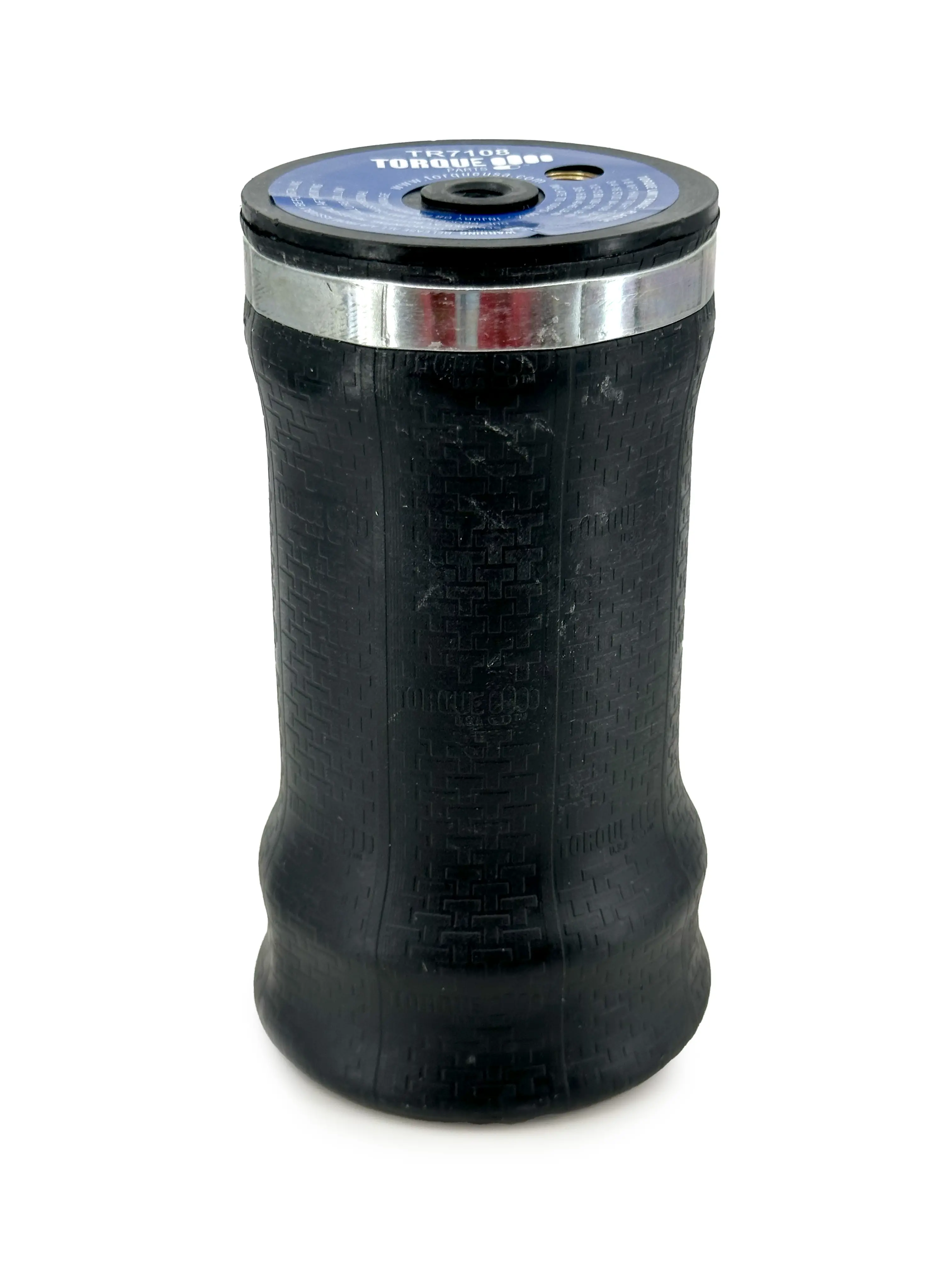

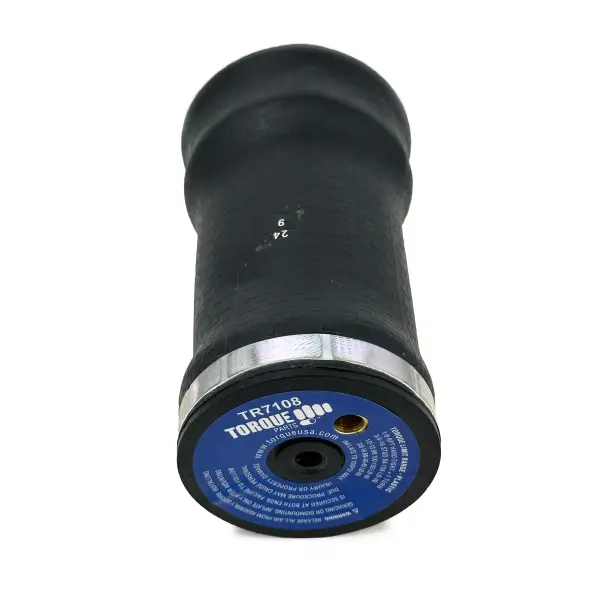

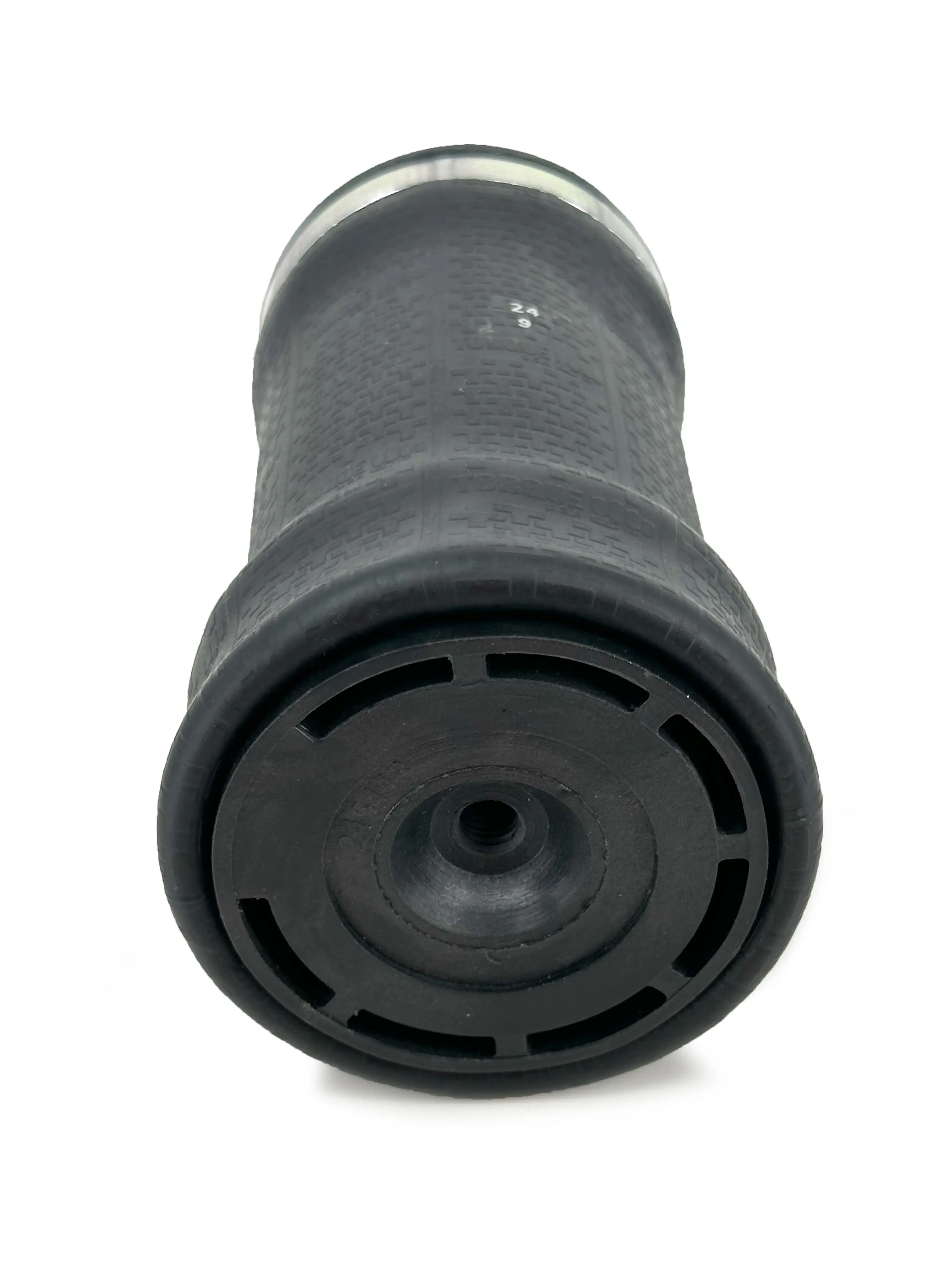

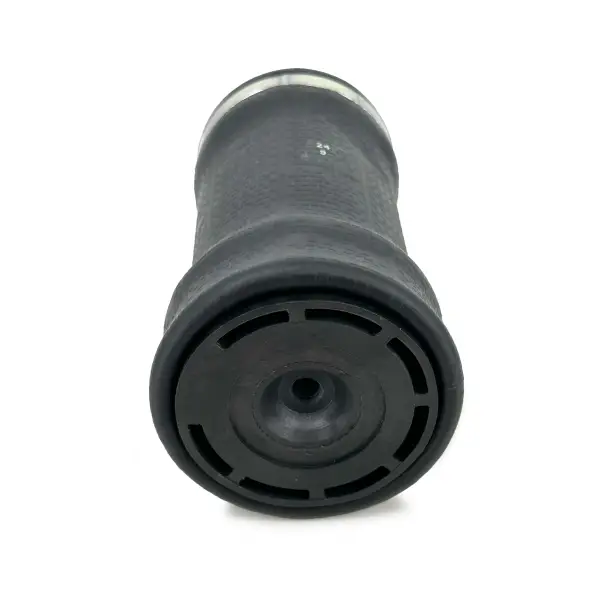

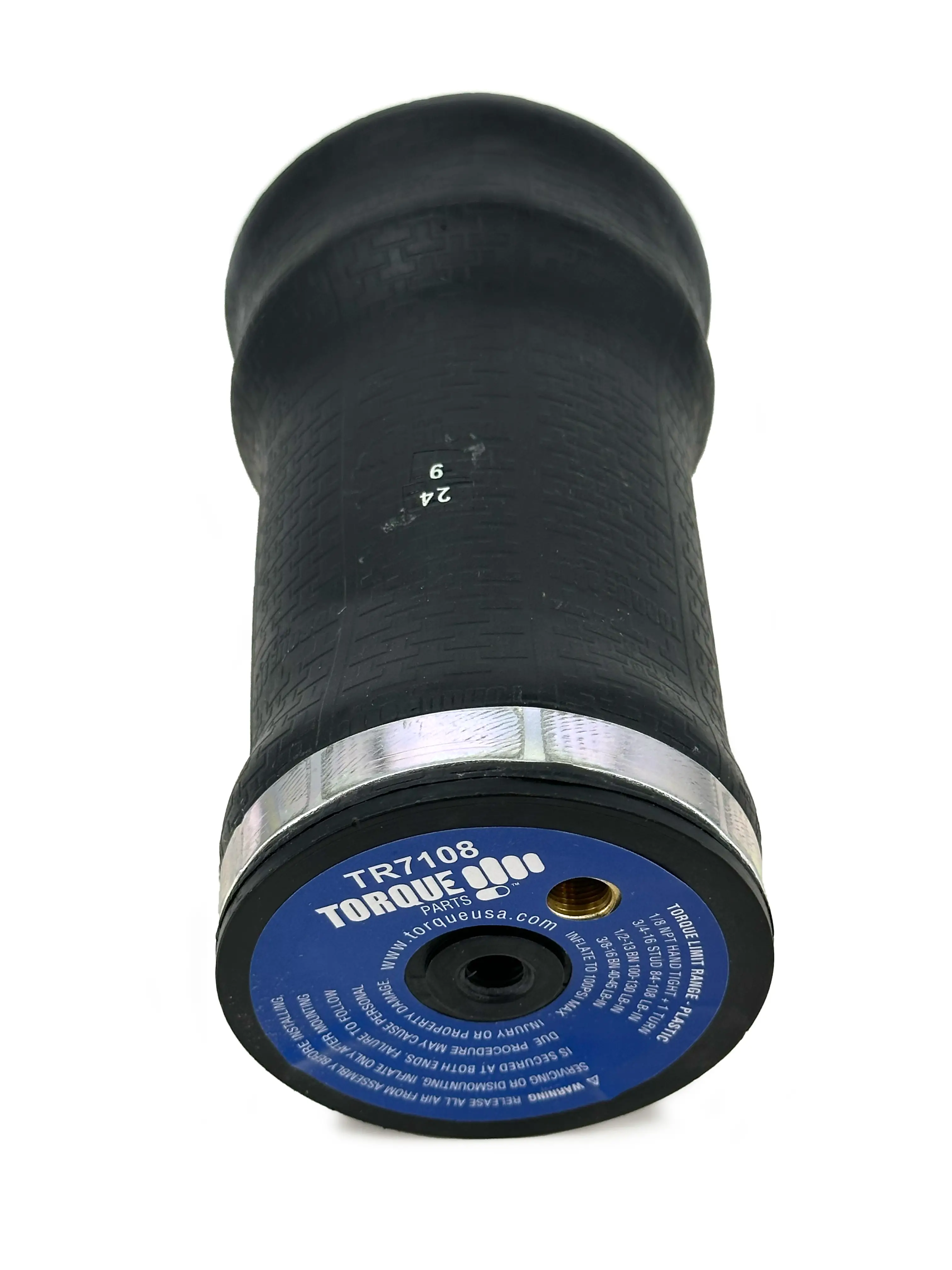

Cabin Air Spring for Navistar/International Replaces 2500012C1

Description : Cabin Air Spring for Navistar/International Trucks

Part Number : TR7108

Cabin Air Spring for Navistar/International Replaces 2500012C1

Click to see price

Cabin Air Spring for Navistar/International Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70‑7108
Sampa	501.146‑01
Contitech	67852, SC29‑Y108
Firestone	7108, W023587108, W02‑358‑7108, W026007108, W02‑600‑7108
Goodyear	1S5057, 1S5‑057
IHC	2500012C1, 2507756C1
Link	11020075, 1102‑0075
Milsco	07067A
SZ	708077P02

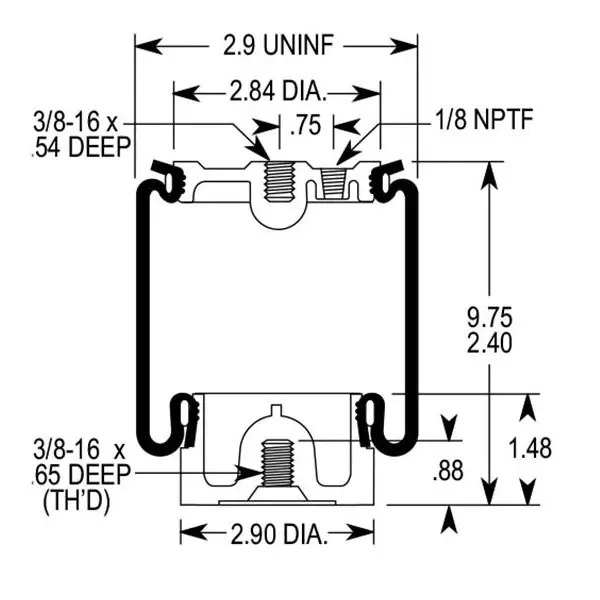

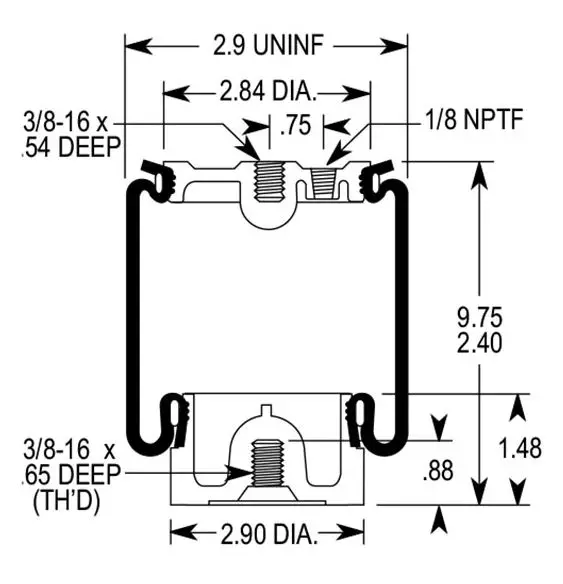

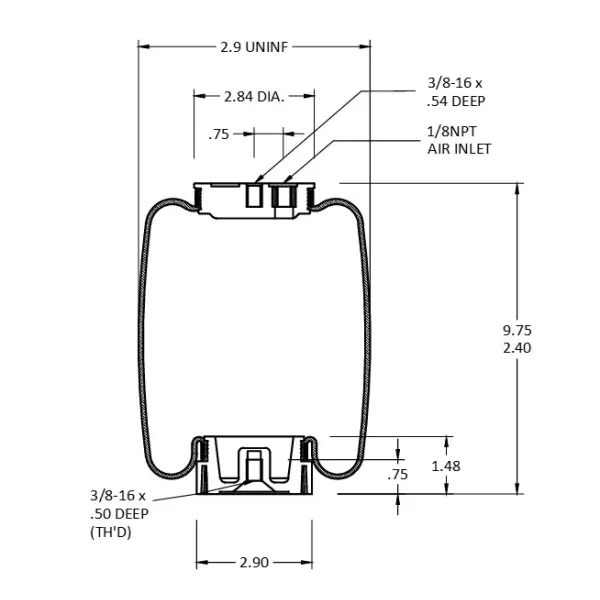

Property	Value
Locating Pin Diameter	3/8"‑16
Locating Pin Height	0.54" deep
Air Inlet	1/8" NPT
Design Height	8.5‑10.2"
Piston Diameter	2.90"
Extended Height	9.75"
Compressed Height	2.40"
Weight	1.8 lbs
