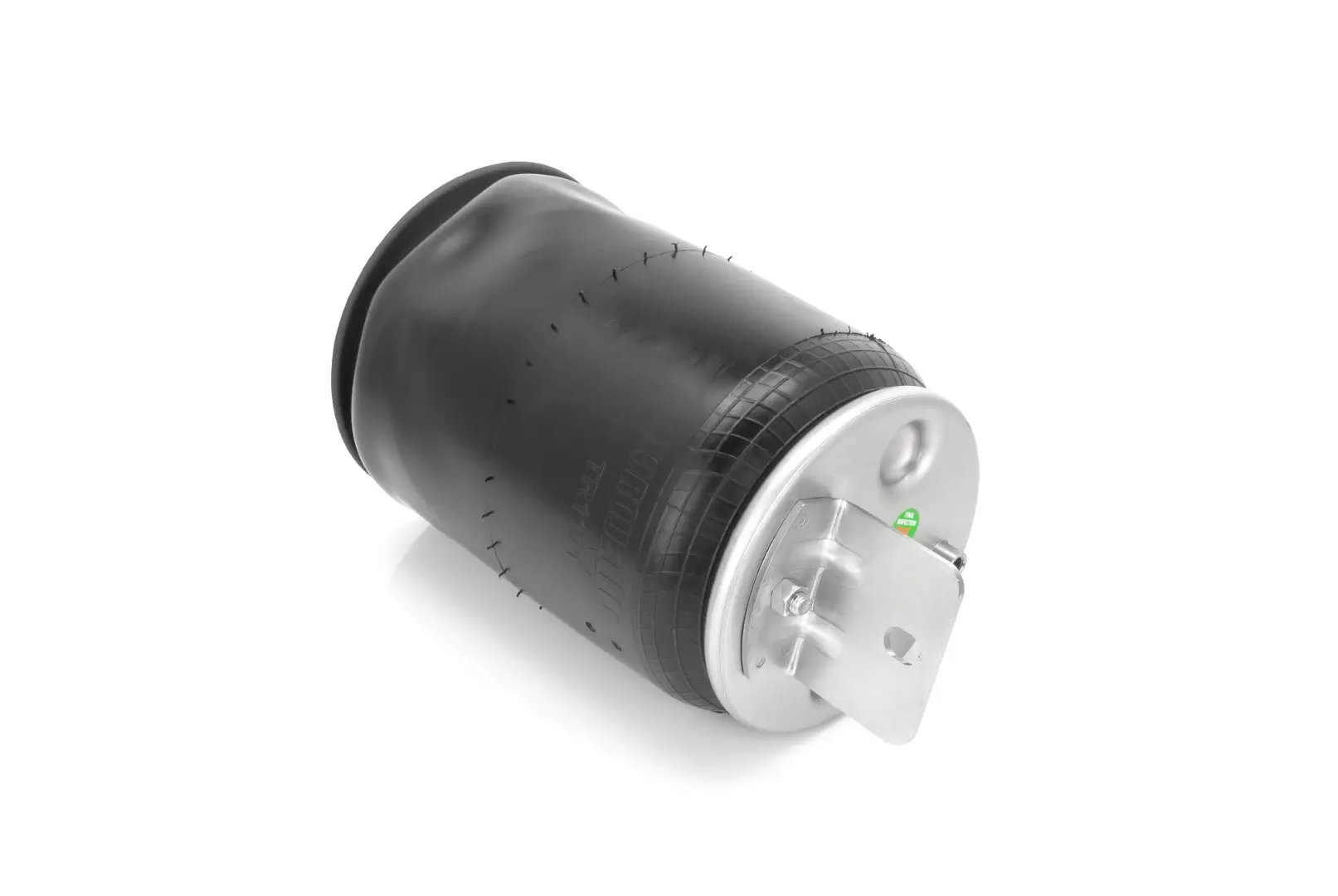

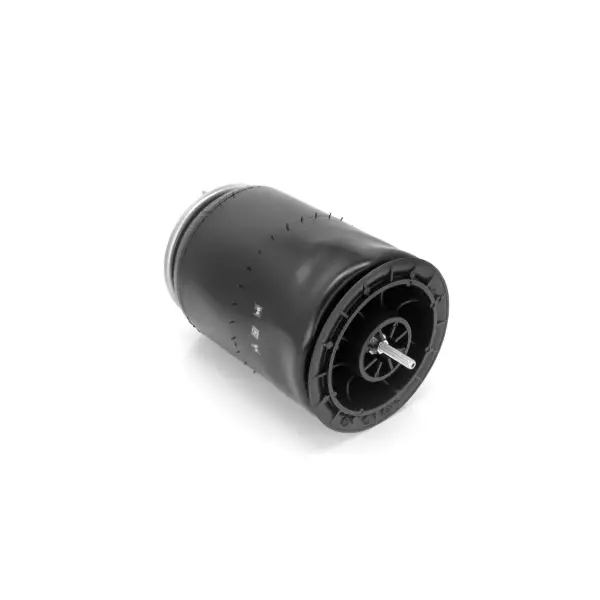

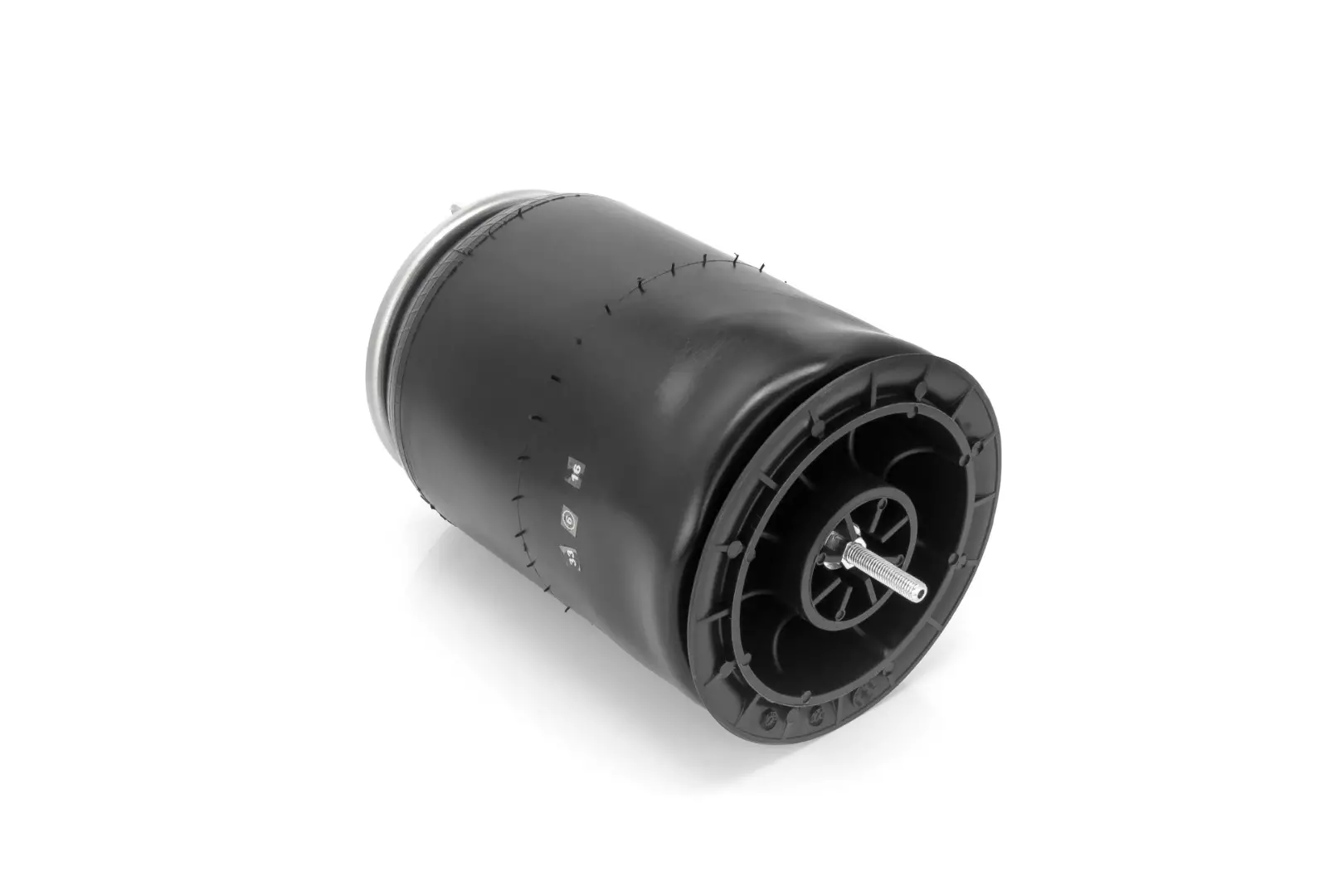

The Ultimate Air Spring Bag for Navistar International Trucks!
Ensure optimal performance and durability for your Navistar International truck’s suspension system with the TORQUE Air Spring Bag. Designed as a direct replacement for Firestone 1191, Navistar FLTA1R12432, 3541731C1, Goodyear 1R12-432, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with 4.5-5.00 mm thick rubber, 25% stronger 4140 grade steel studs, and reinforced composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by a 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Key Features:
Durable Construction: Made with 4.5-5.00 mm thick rubber, 4140 grade steel studs, and reinforced composite pistons for superior strength and longevity.
Direct Replacement: Replaces Firestone 1191, W01-358-1191, Navistar FLTA1R12432, 3541731C1, Goodyear 1R12-432, and other compatible models.
Leak-Free Performance: Rigorously tested to ensure the highest leak test ratio after final assembly.
3-Year Warranty: Backed by an industry-leading 3-year unlimited mile warranty for peace of mind.
Precise Fitment: Designed to match OEM specifications for Navistar International trucks.
Why Choose TORQUE Air Spring Bag?
Superior Quality: Exceeds OEM requirements for durability and performance.
Reliable Performance: Built to withstand heavy loads and harsh conditions, ensuring long-lasting operation.
Cost-Effective: Reduces downtime and maintenance costs with its durable design.
Warranty Protection: Enjoy the confidence of a 3-year unlimited mile warranty.

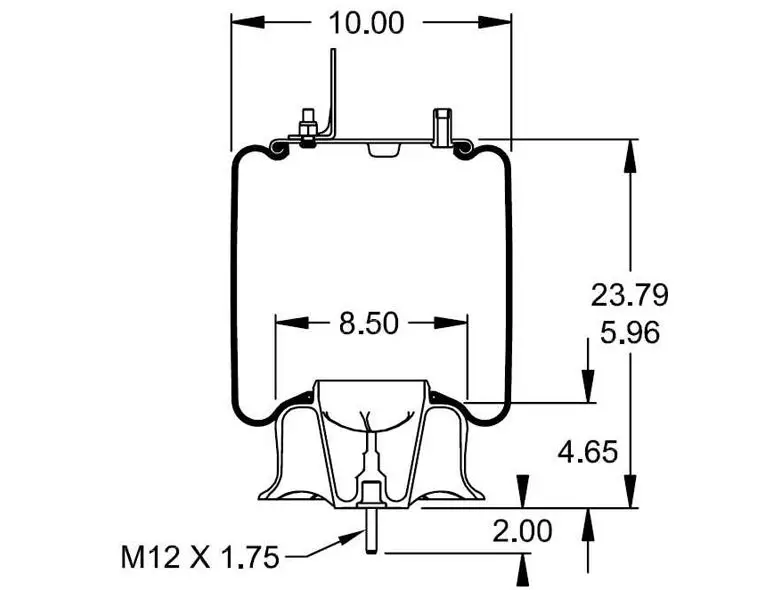

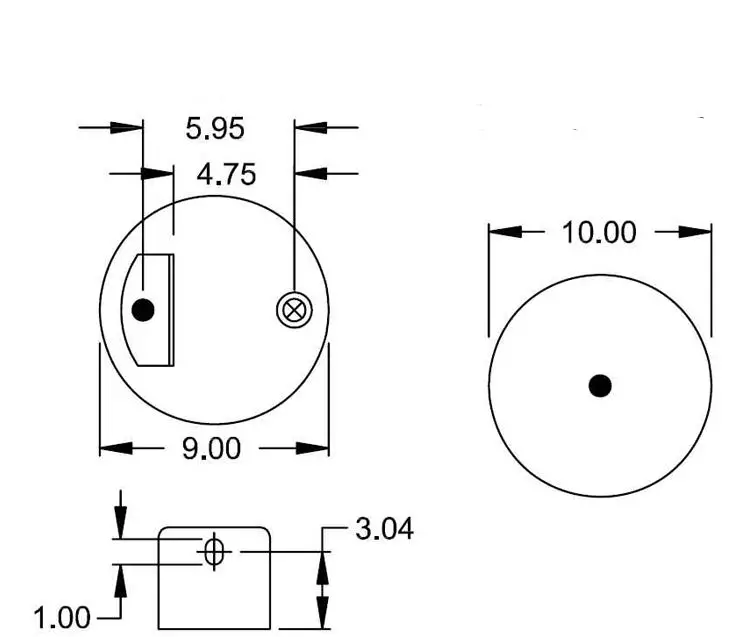

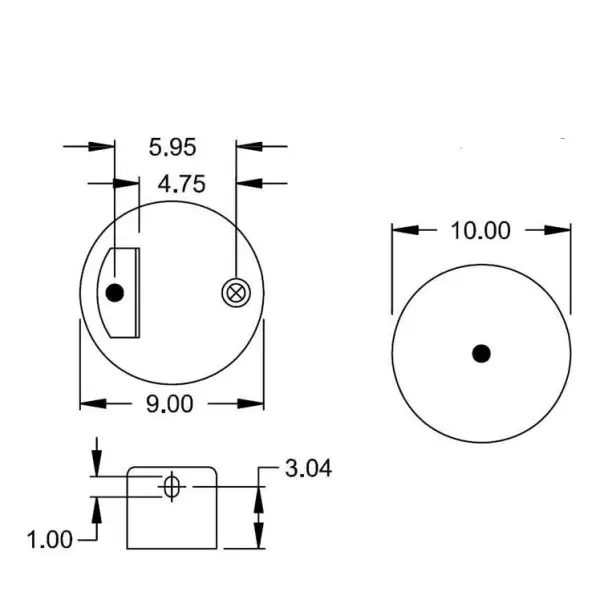

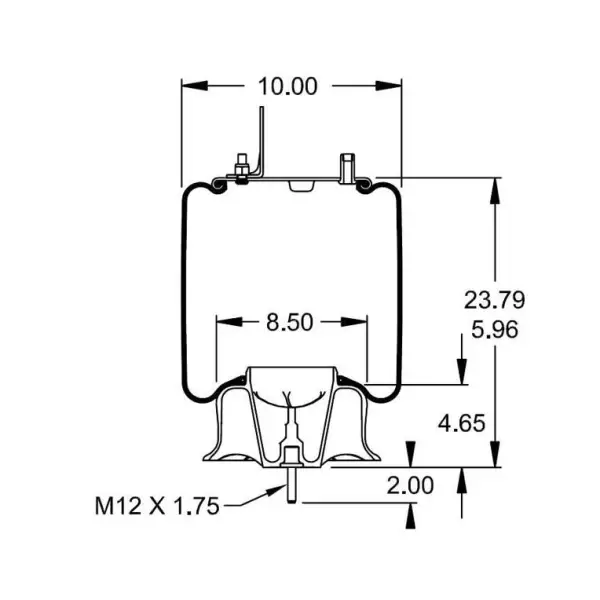

Specifications:
Product Name: TORQUE Air Spring Bag
Model Number: TR1191
Extended Height: 23.79”
Compressed Height: 5.96”
Top Plate Width: 9.00”
Piston Width: 10.00”
Weight: 14.90 lbs
Replaces: Firestone W01-358-1191, W01-358-9875, Navistar FLTA1R12432, 3541731C1, Goodyear 1R12-432, 1R12-689, Contitech 9 10B-195P 889, Triangle AS-81067, Automann 566.ER9875, AS1191, HDV1191, HD1191, Sampa SP551191-K
Perfect For:
Navistar International truck owners seeking reliable suspension system replacements.
Fleet operators looking to reduce downtime and maintenance costs.
Anyone needing a durable, high-performance air spring bag for heavy-duty applications.
Upgrade your Navistar International truck’s suspension system with the TORQUE Air Spring Bag – the ultimate combination of durability, performance, and warranty protection!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
73746, 9 10S‑18 P 1067, 9 10B‑195P 889
|
|
Firestone
|
1191, W013581191, W01‑358‑1191, W013589875, W01‑358‑9875, W01‑358‑1192
|
|
Goodyear
|
1R12432, 1R12‑432, 1R12‑689
|
|
IHC
|
2514460C1, 350243C94, 3541731C1
|
|
Navistar
|
3541731C1, FLTA1R12432
|
|
Sampa
|
SP551191‑KP, SP 551191‑KP
|
|
Torque
|
TR9875 (Replaced by TR1191)
|
| Property |
Value |
|
Extended Height
|
23.79"
|
|
Compressed Height
|
5.96"
|
|
Top Plate Width
|
9.00"
|
|
Piston Width
|
10.00"
|
|
Weight
|
14.9 lbs
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 19.69" |
10.43" |
10.43" |
15.28 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 24 |
83.07" |
83.07" |
201.18" |
249.12 lbs |
| 42 |
44.09" |
44.09" |
45.28" |
685.64 lbs |
