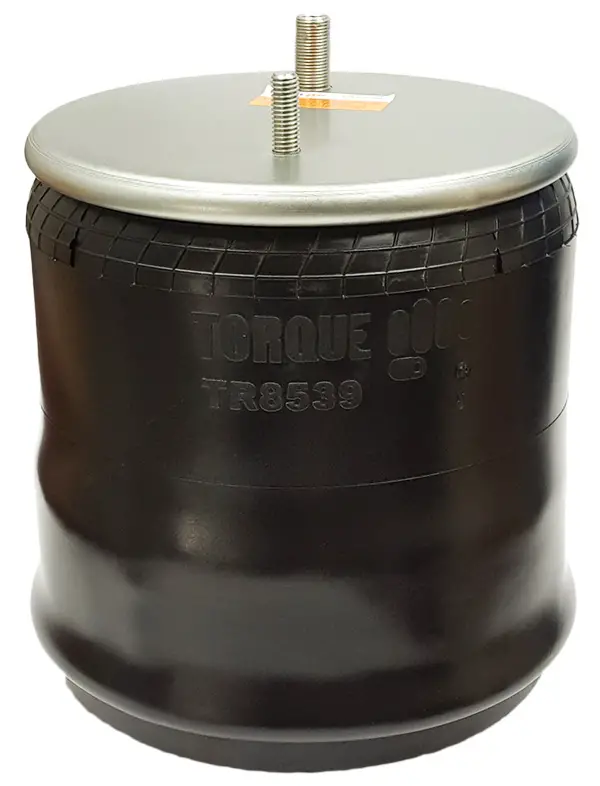

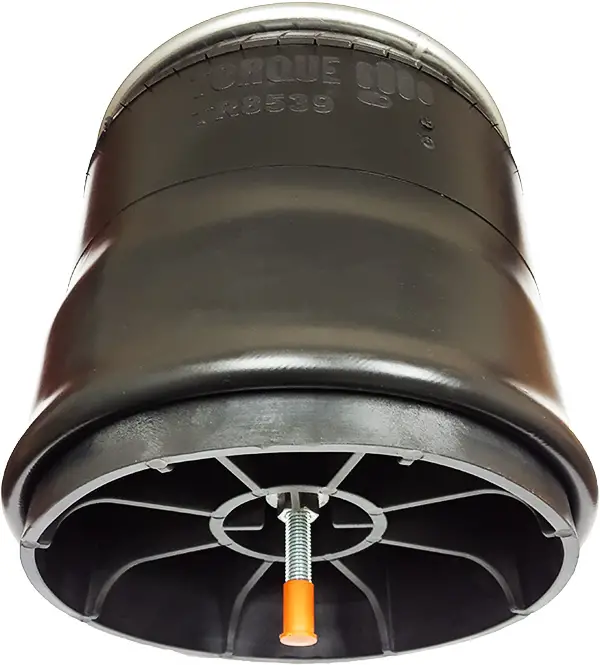

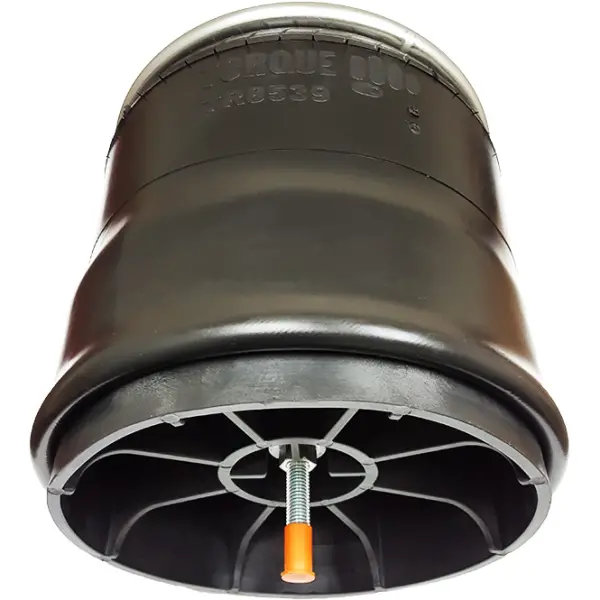

Trailer Air Spring Replaces S-29892, W01-358-8539, 1R13-188

Description : Trailer Air Spring

Part Number : TR8539

Trailer Air Spring Replaces S-29892, W01-358-8539, 1R13-188

Click to see price

Trailer Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Dana	SR1V1011, SR1V101‑1, SR1VA105, SR1VA101
Firestone	W01‑358‑8539, W013588539
Goodyear	1R13188, 1R13‑188
Hendrickson	S‑29892
Triangle	8320
Sampa	SP558539‑KP, SP 558539‑KP, SP558539KP

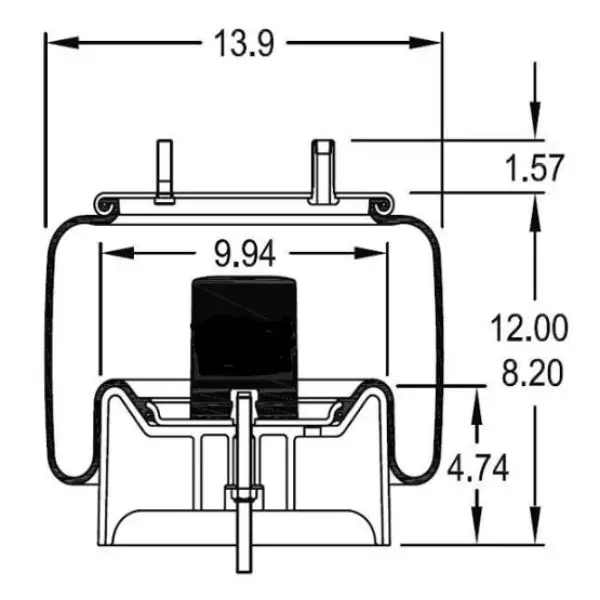

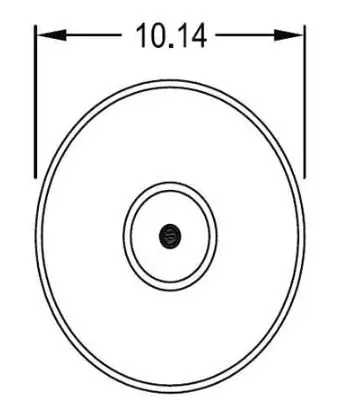

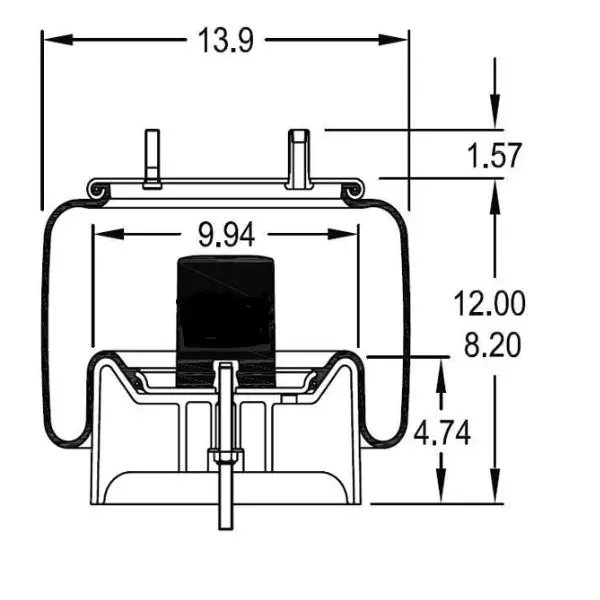

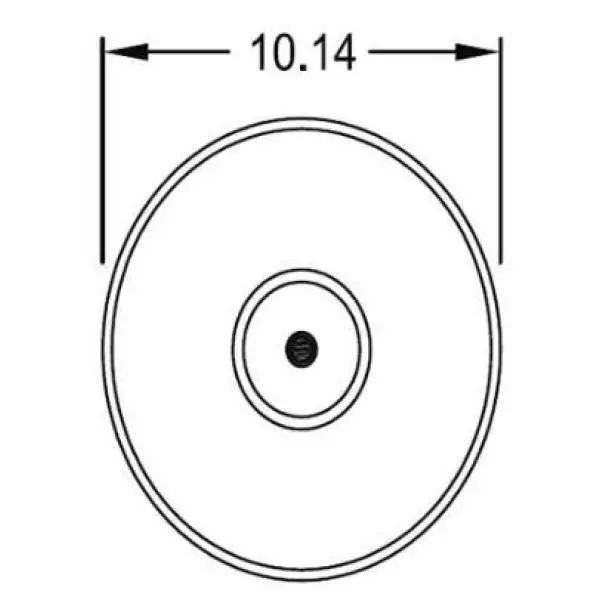

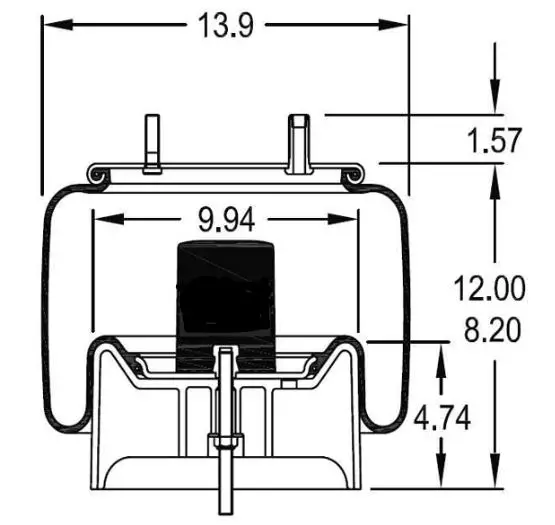

Property	Value
Extended Height	12.00"
Compressed Height	8.20"

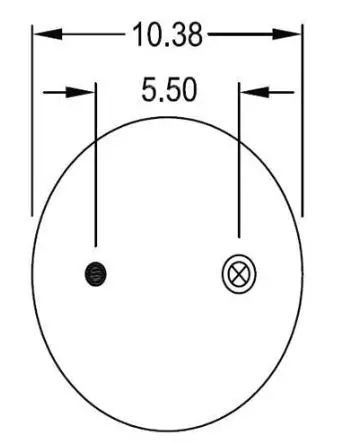

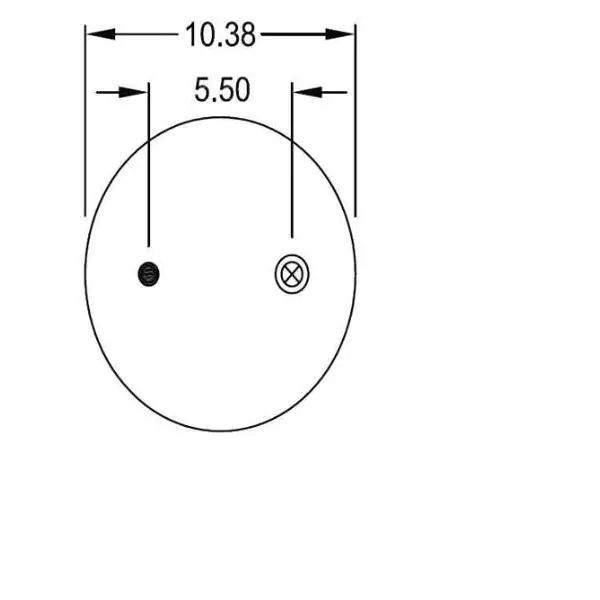

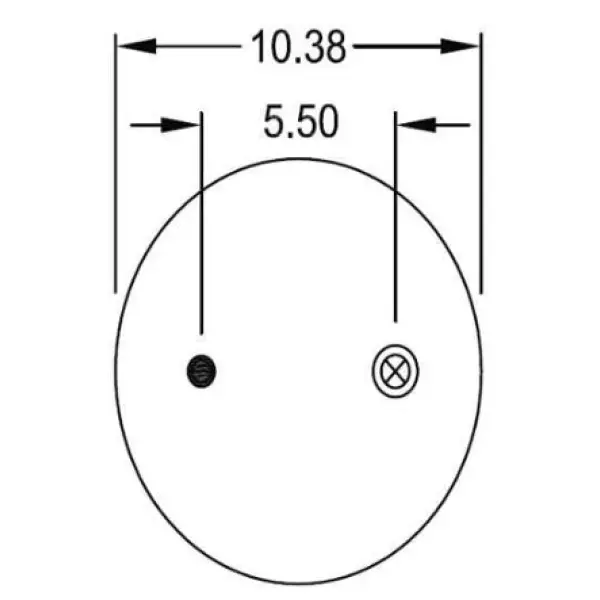

Top Plate Width	10.38"

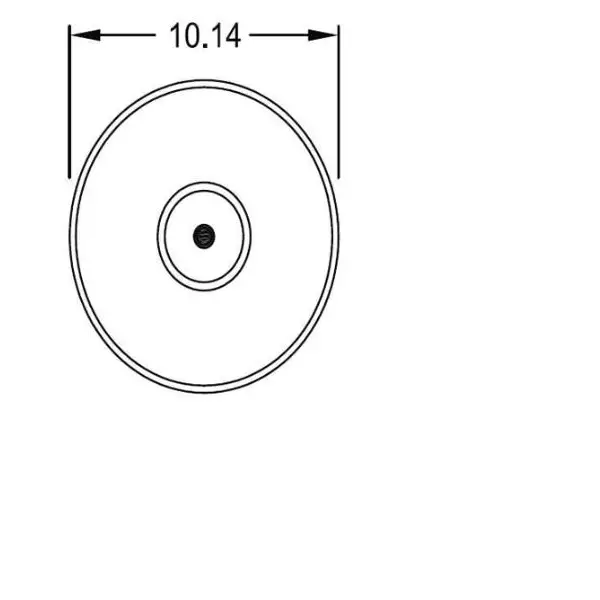

Piston Width	10.1"
Weight	17 lbs

Longest Side	44.09"
Median Side	44.09"
Shortest Side	44.09"
Weight	18.97 lbs
