Trailer Air Spring Replaces S-20901, W01-358-8091, 1R14-093

Description : Trailer Air Spring for Hendrickson

Part Number : TR8091

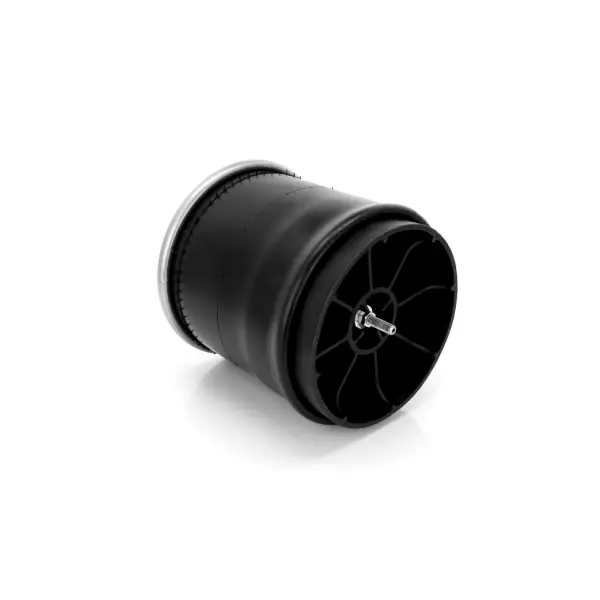

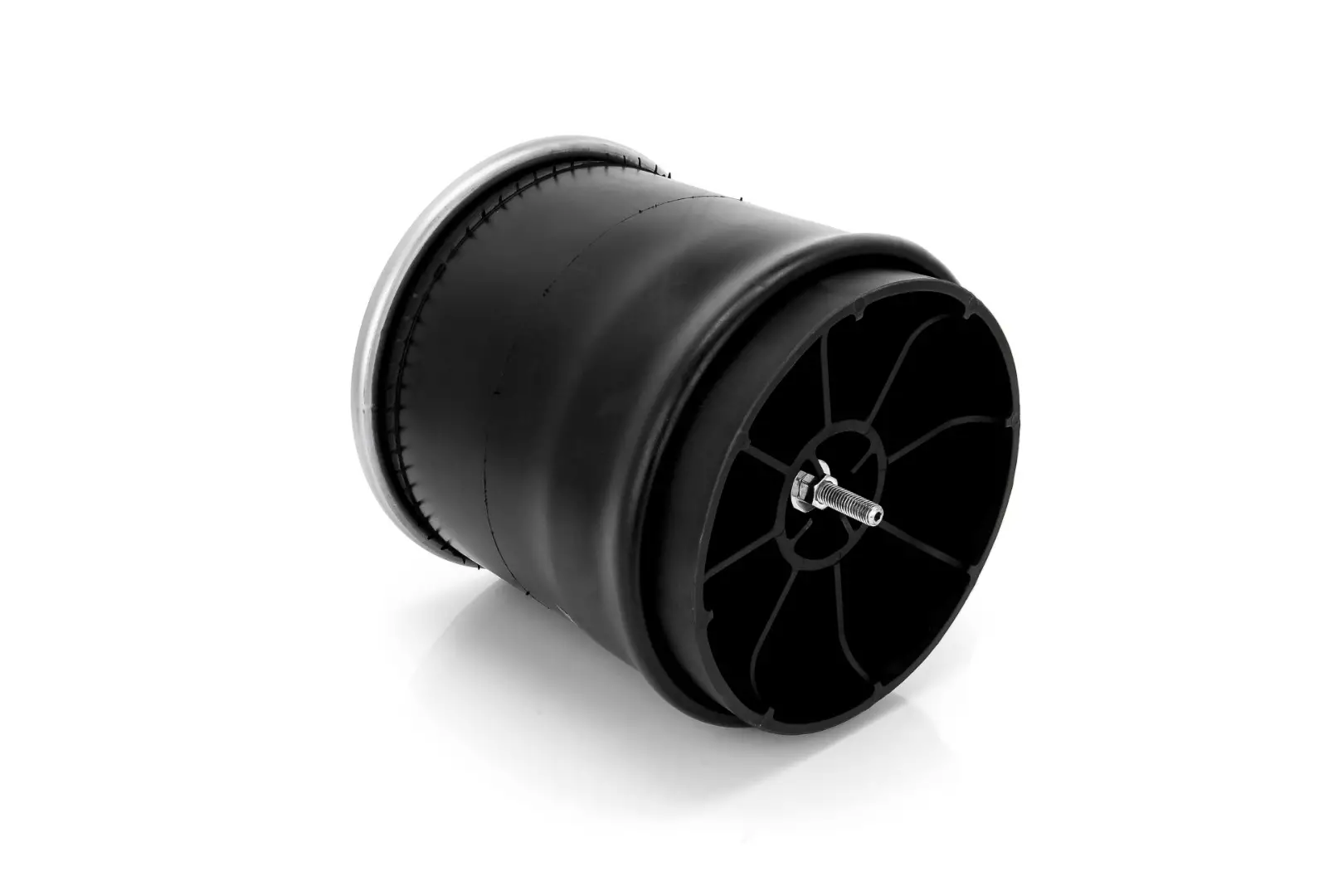

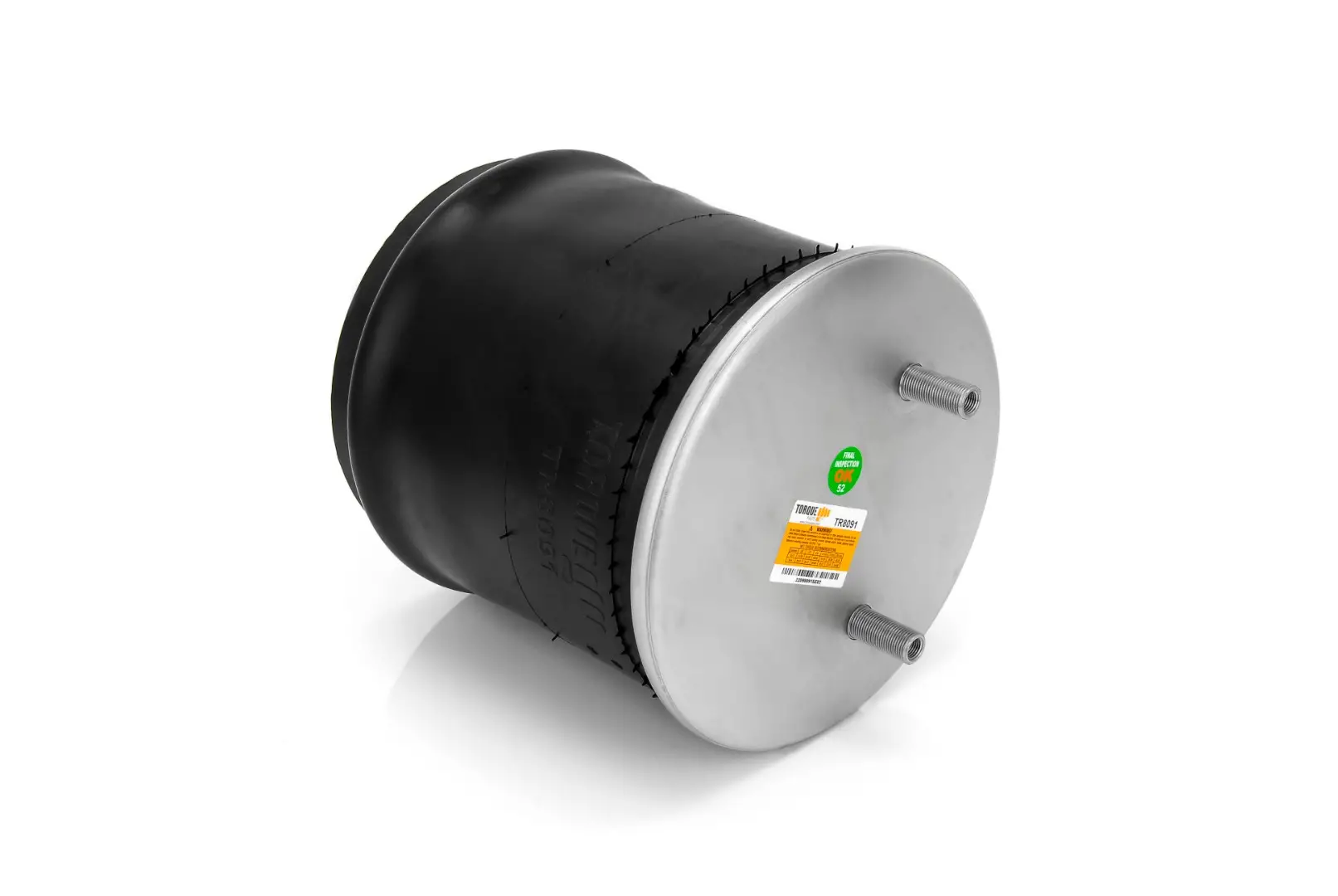

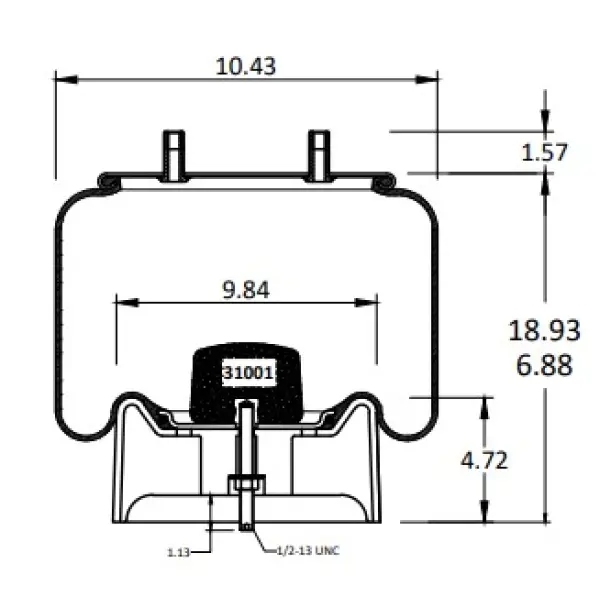

Trailer Air Spring Replaces S-20901, W01-358-8091, 1R14-093

Click to see price

Trailer Air Spring for Hendrickson AAT 25K Models

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Contitech	1110.5A‑16P523, 64421
Firestone	8091, W013588091, W01‑358‑8091
Goodyear	1R14093, 1R14‑093, 1R14171, 1R14‑171
Hendrickson	S20901, S‑20901, S21784, S‑21784
Hendrickson Trailer	C20901, C‑20901, S‑20901, S‑21784
IHC	1R14242, 1R14‑242
Intraax	# AA250T (reuse metal disk) / Van Traax # HKA‑250 (reuse metal disk)
Ridewell	1000156
Sampa	SP558091‑KP, SP 558091‑KP, SP558091KP, SP558091‑KP01, SP 558091‑KP01, SP558091KP01

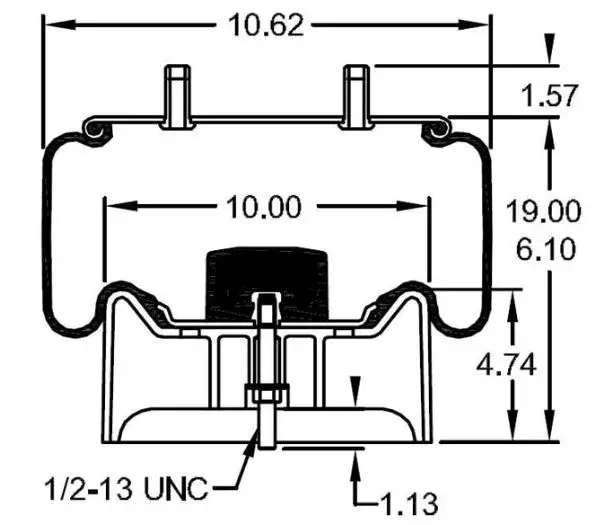

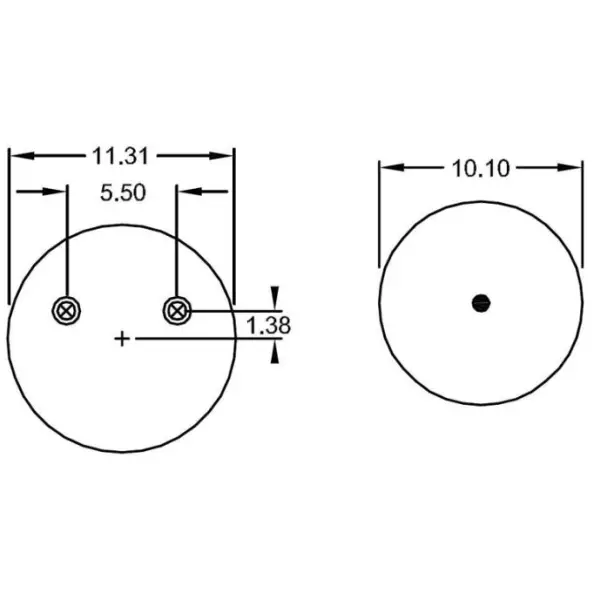

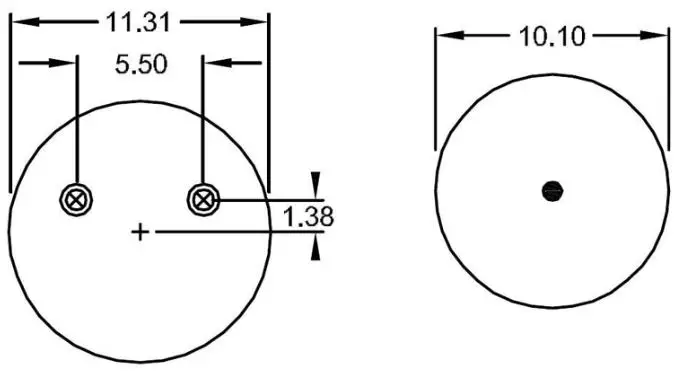

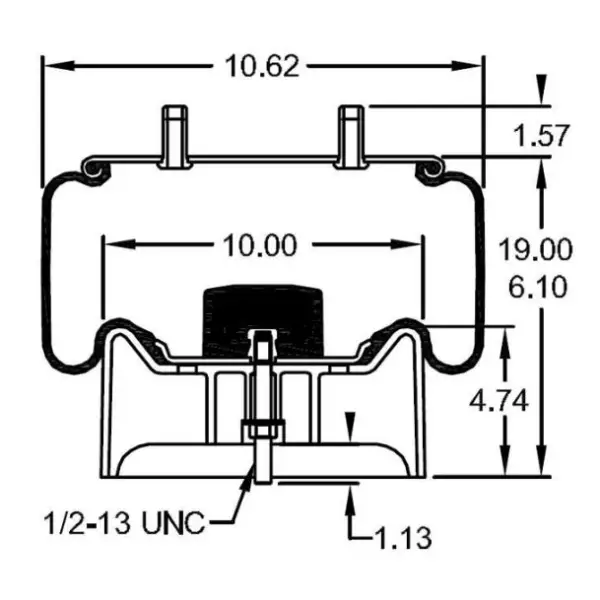

Property	Value
Extended Height	19.00"
Compressed Height	6.10"
Top Plate Width	11.31"
Piston Width	10.1
Weight	17.9
