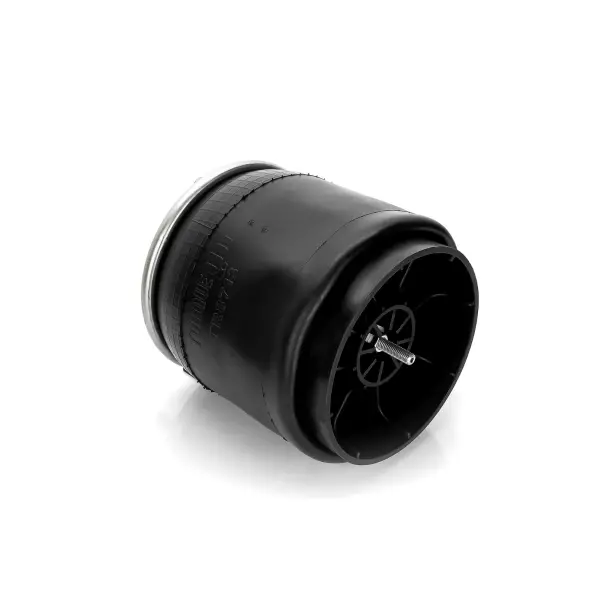

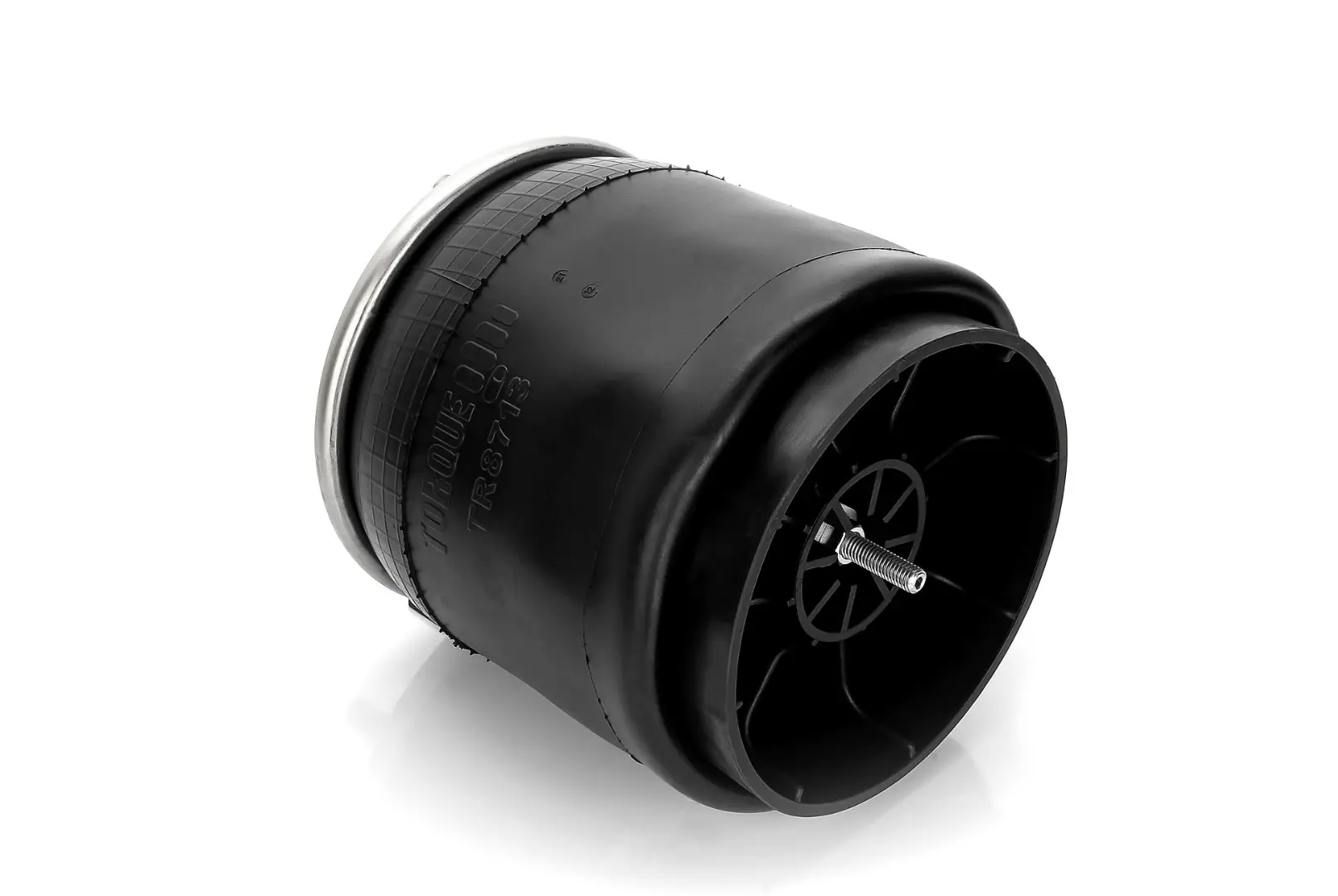

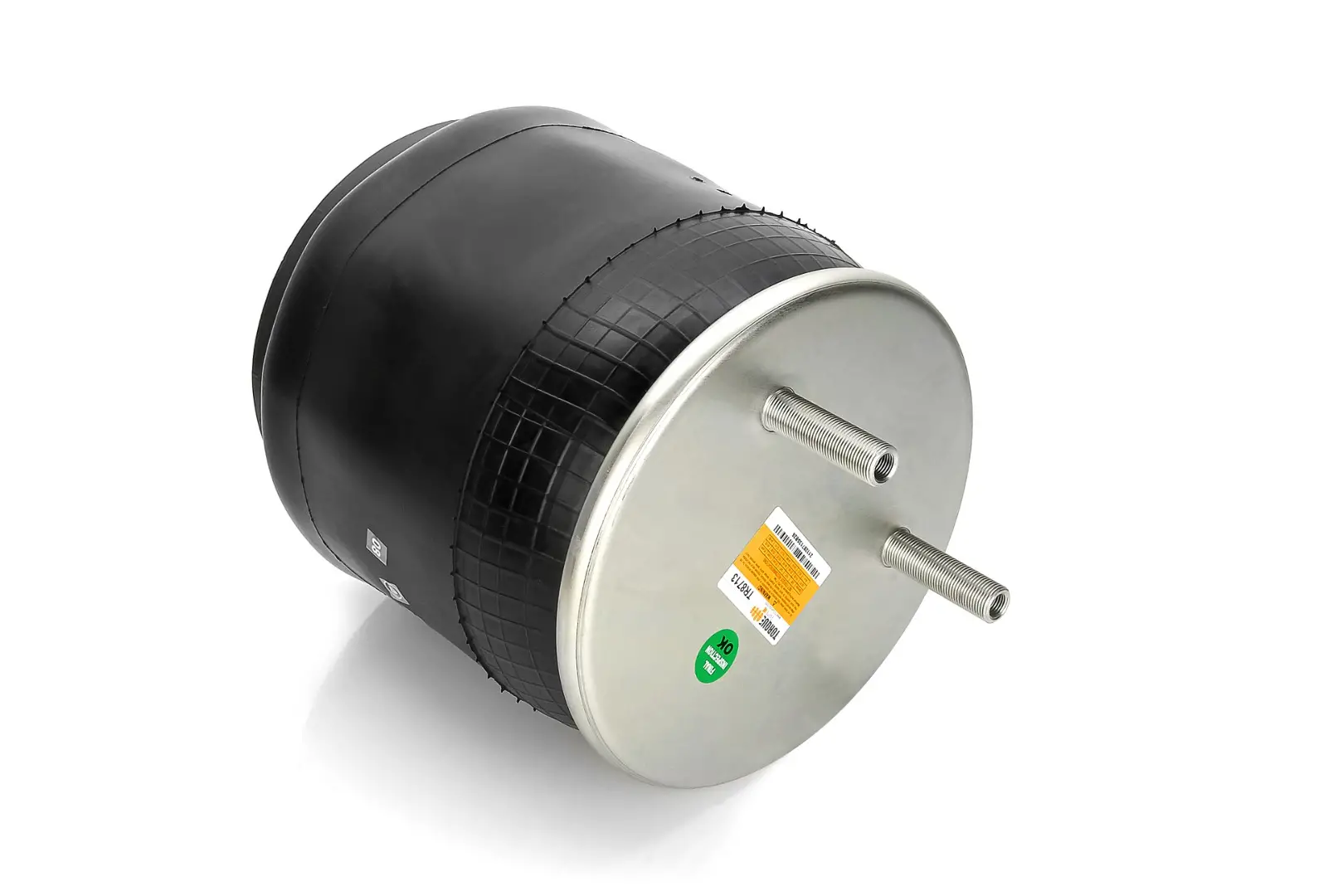

The Ultimate Air Spring Bag for Hendrickson Suspension Systems!
Ensure optimal performance and durability for your vehicle’s suspension with the TORQUE Air Spring Bag. Designed as a direct replacement for Firestone 8713, W01-358-8713, Goodyear 1R13-176, Hendrickson S-22948, C-22948, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with premium materials, including 4.5-5.00 mm thick rubber, 25% stronger 4140-grade steel studs, and stronger composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by an industry-leading 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Quality Assurance:
Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.
Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.
Easy Identification: Part number permanently engraved on the rubber for easy reference.
Leak-Free Performance: Highest leak test ratio after final assembly.
Product Specifications:
Extended Height: 21.50"
Compressed Height: 8.00"
Top Plate Width: 10.38"
Piston Width: 9.22"
Weight: 15.60 lbs
Compatibility:
This air spring bag is a direct replacement for the following part numbers:
Fitment Guide:
To ensure the correct fit for your vehicle, please:
Contact your dealer and obtain the part number.
Verify that this air spring bag replaces your current part number.

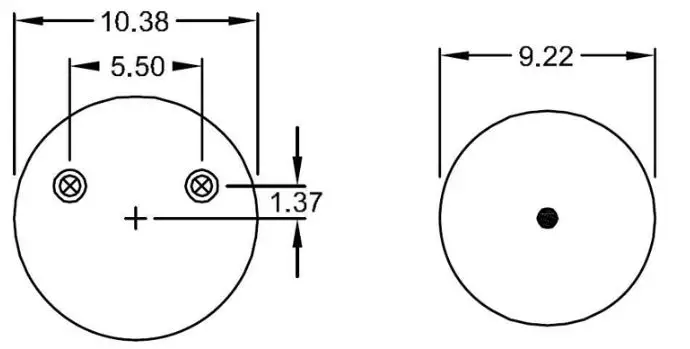

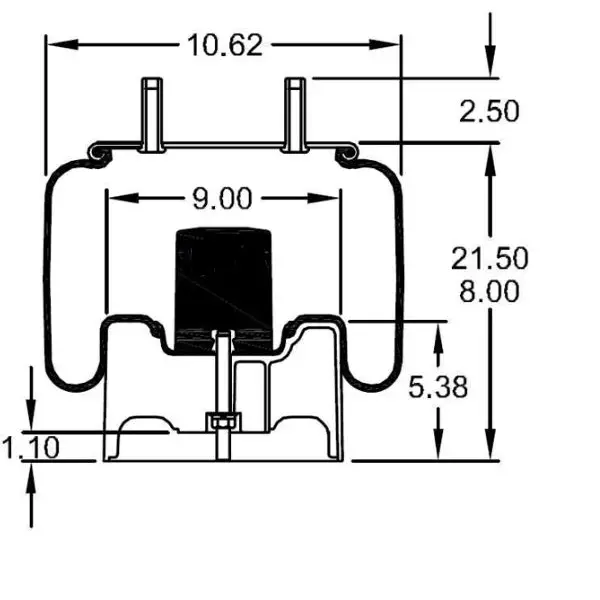

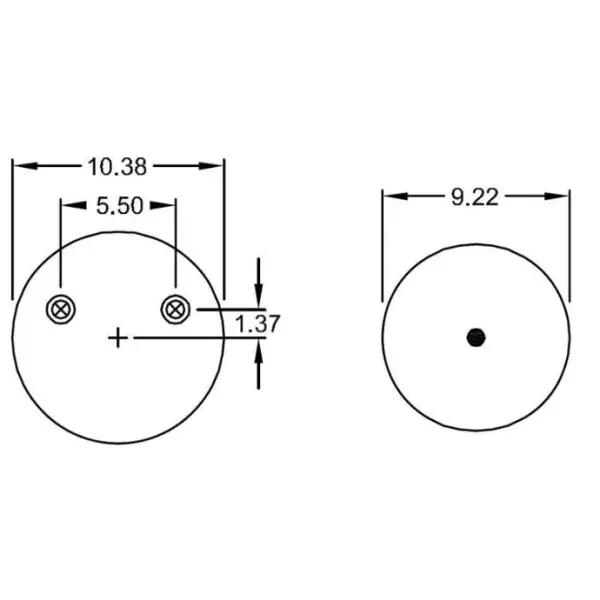

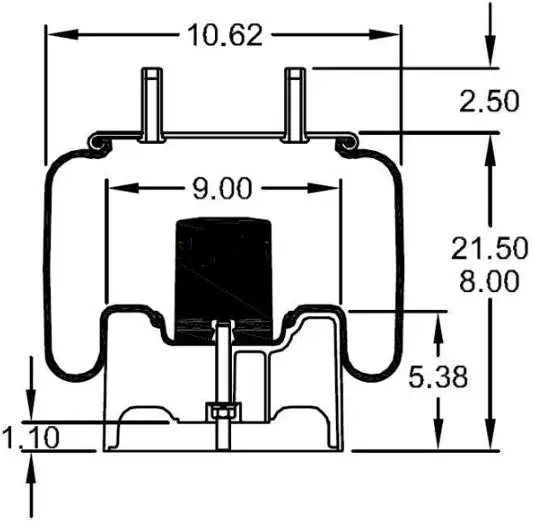

Refer to the diagram picture and confirm that all specifications match your existing air bag.
Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.
Why Choose TORQUE?
Superior Quality: Exceeds OEM standards with premium materials and construction.
Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.
Extensive Compatibility: Replaces multiple part numbers for various brands.
Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.
Expert Support: Contact us for any fitment or warranty queries.
Upgrade your vehicle’s suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
566.ER8713
|
|
Contitech
|
10 10‑16 P 533, 64636, 10 10‑16 S 533
|
|
Firestone
|
8713, 8727, W013588713, W01‑358‑8713, W014558713, W01‑455‑8713, W014558727, W01‑455‑8727
|
|
Goodyear
|
1R13140, 1R13‑140, 1R13176, 1R13‑176, 1R13263, 1R13‑263, 1R13323, 1R13‑323
|
|
Hendrickson
|
C22948, C‑22948, S22948, S‑22948
|
|
Triangle
|
AS‑8533
|
|
Sampa
|
SP558713‑KP, SP 558713‑KP, SP558713KP
|
| Property |
Value |
|
Extended Height
|
21.50"
|
|
Compressed Height
|
8.00"
|
|
Top Plate Width
|
10.38"
|
|
Piston Width
|
9.22"
|
|
Weight
|
15.6 lbs
|
Hendrickson Turner Trailer INTRAAX®; AAT23K, 25K, 30K, AANT23K, AAEDT30K VANTRAAX®; HKANT40K, 46K, 50K, HKA180-200-250, AAZNT23K, 46K, 69K
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 14.37" |
10.43" |
10.43" |
15.52 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 60 |
44.09" |
44.09" |
45.28" |
1,018.53 lbs |
