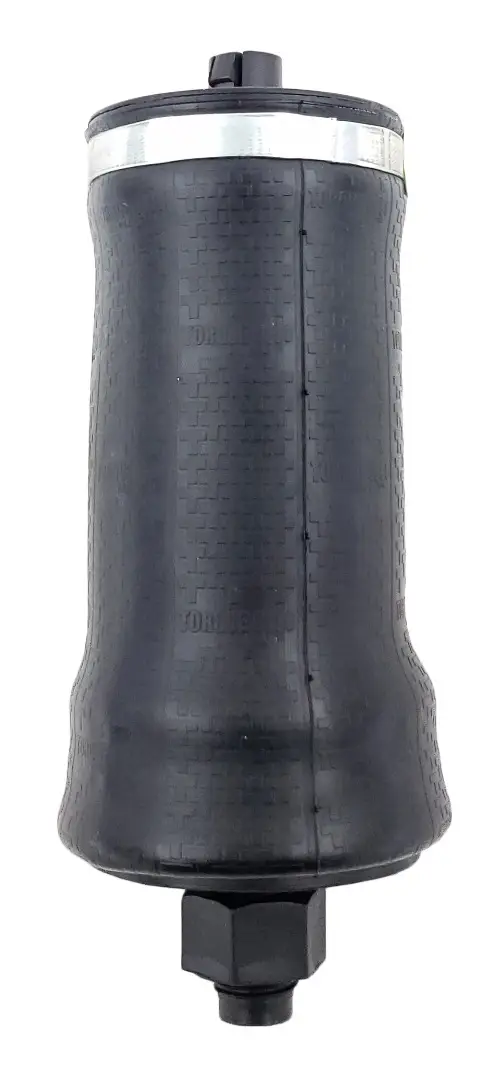

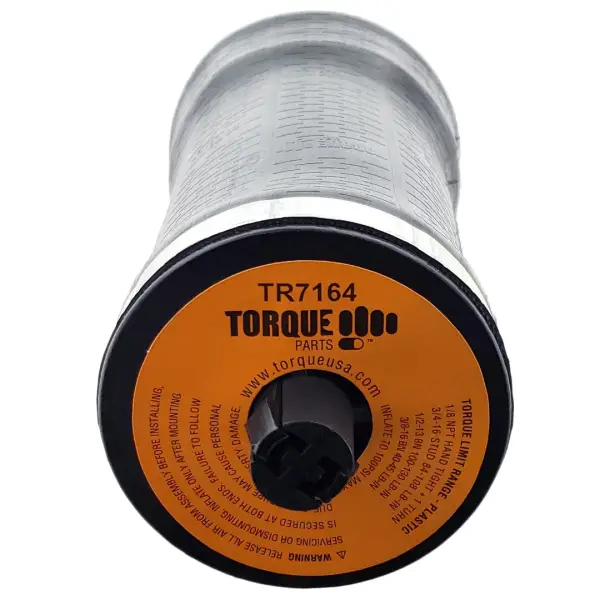

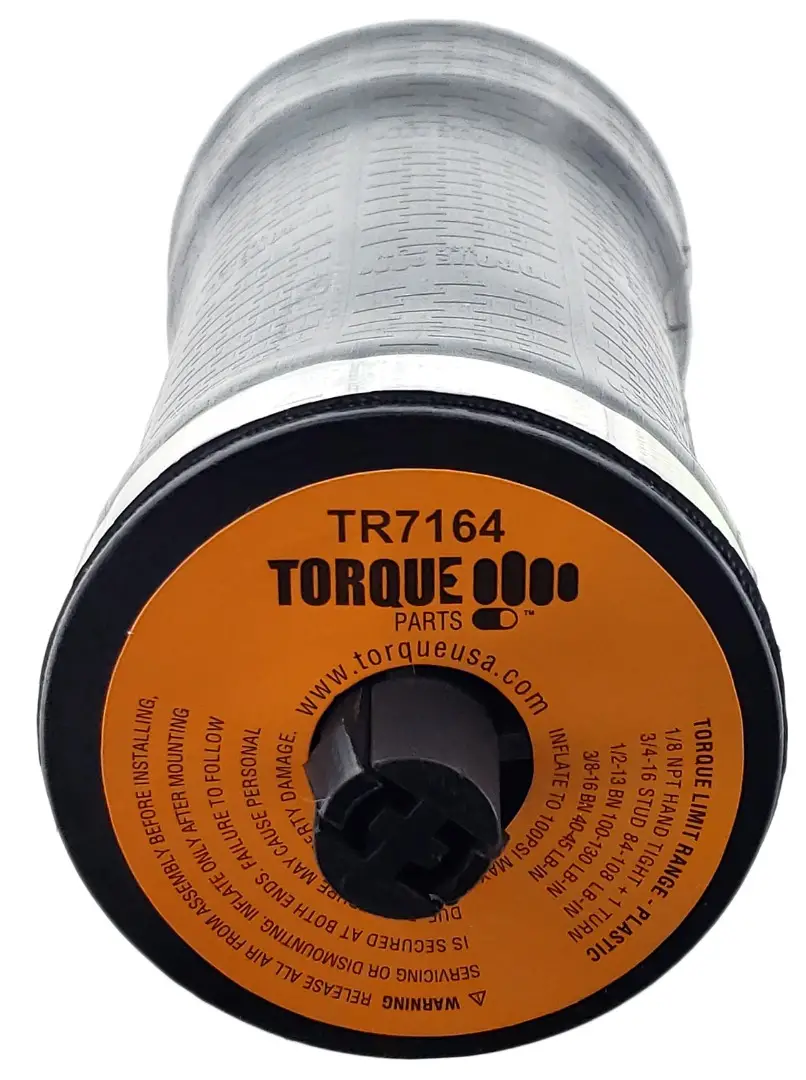

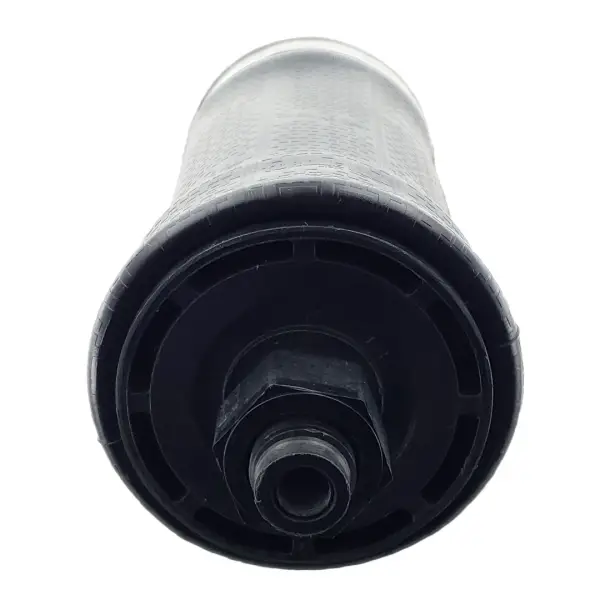

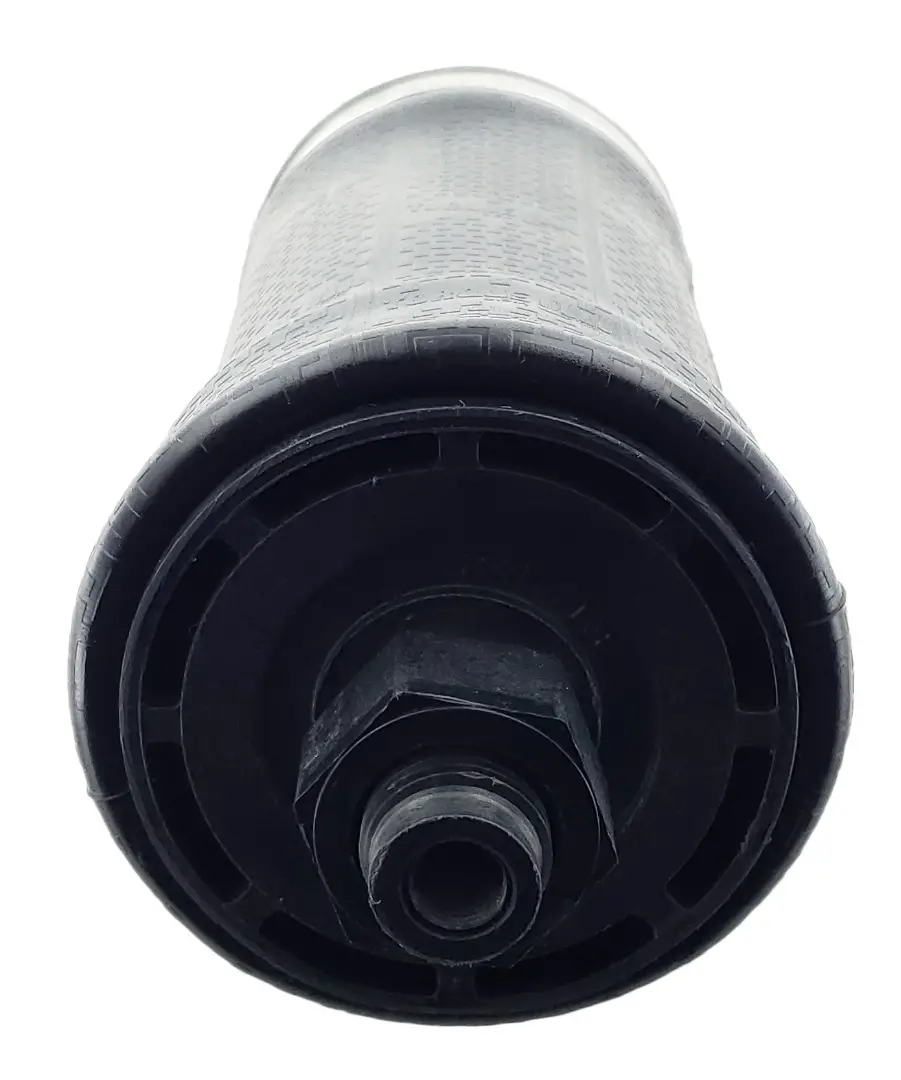

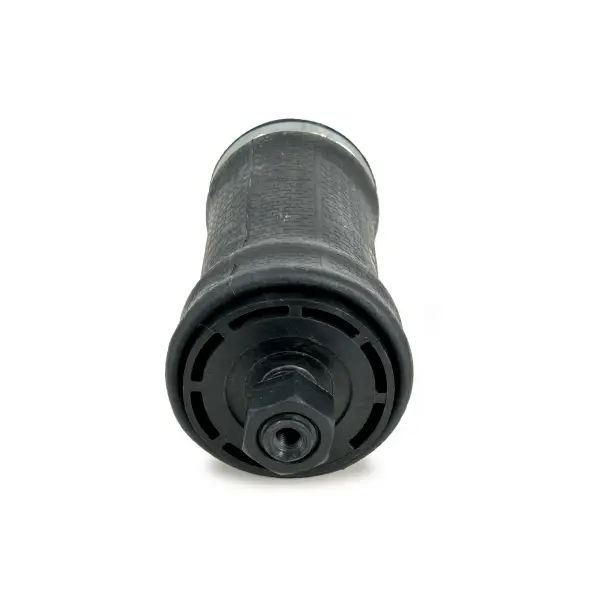

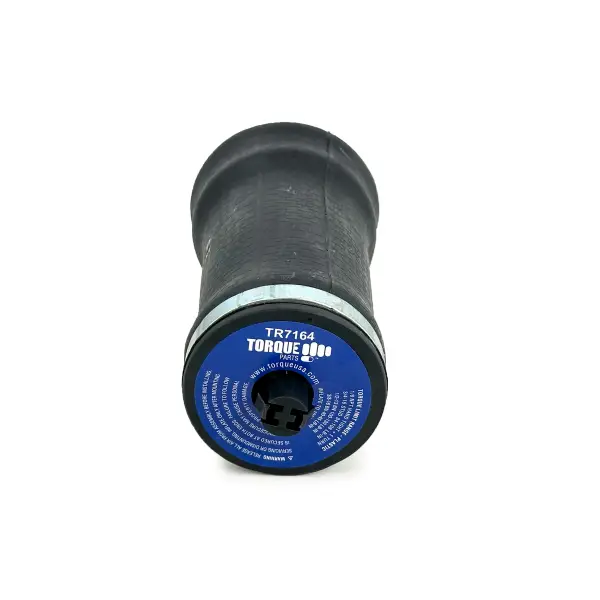

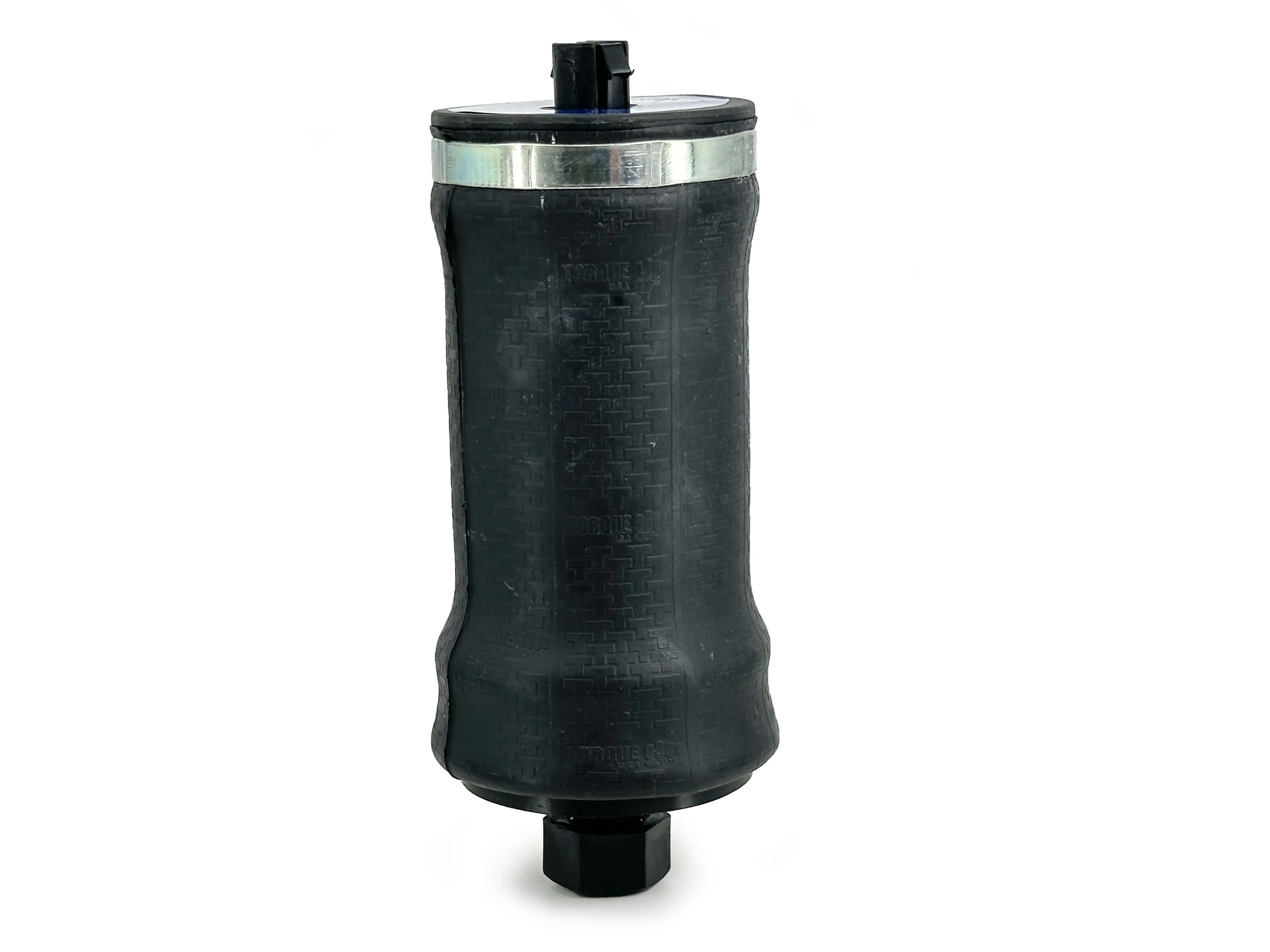

Cabin Air Spring for Peterbilt Trucks
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
Brand |
Reference Numbers |
Automann
|
ABSZ70‑7164
|
Contitech
|
75314, SC29‑O132
|
Dynacraft
|
D50002253, D5000‑2253
|
Firestone
|
7155, 7164, W023587155, W02‑358‑7155, W027037163, W02‑703‑7163, W027037164, W02‑703‑7164, W027037165, W02‑703‑7165
|
Goodyear
|
1S4235, 1S4‑235
|
Kenworth
|
R816002, R81‑6002
|
Paccar
|
W027037153, W02‑703‑7153
|
Peterbilt
|
2019036, 20‑19036
|

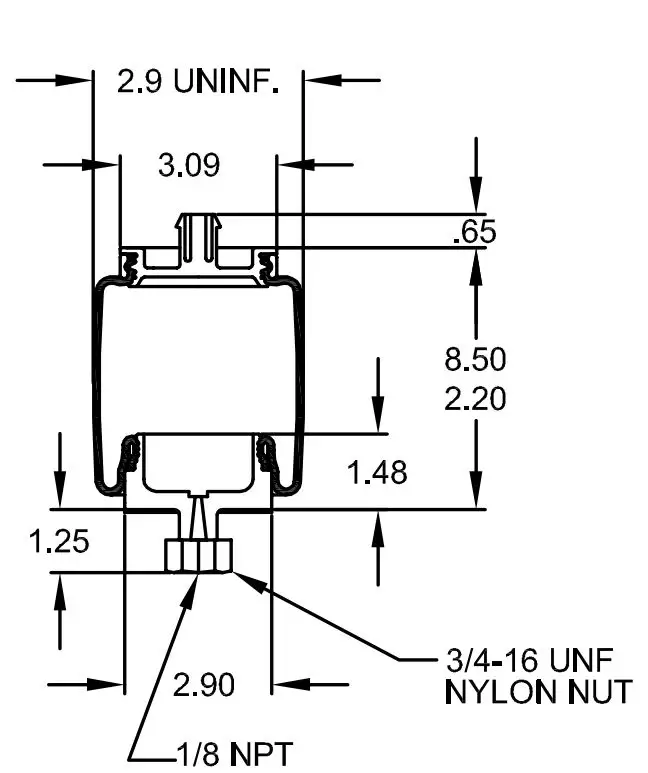

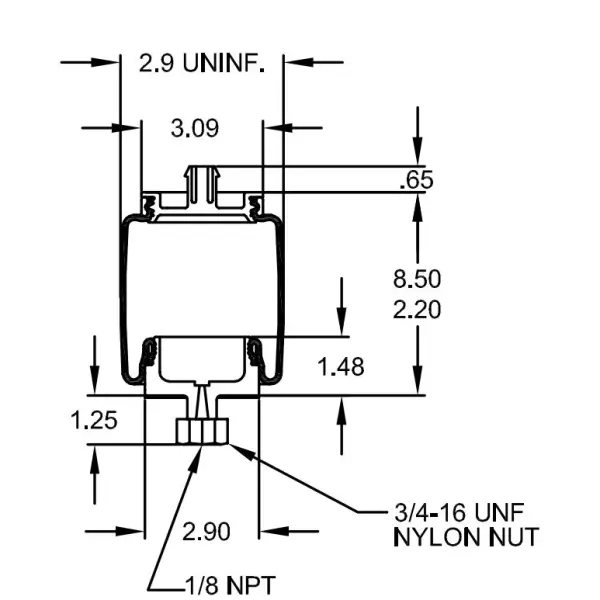

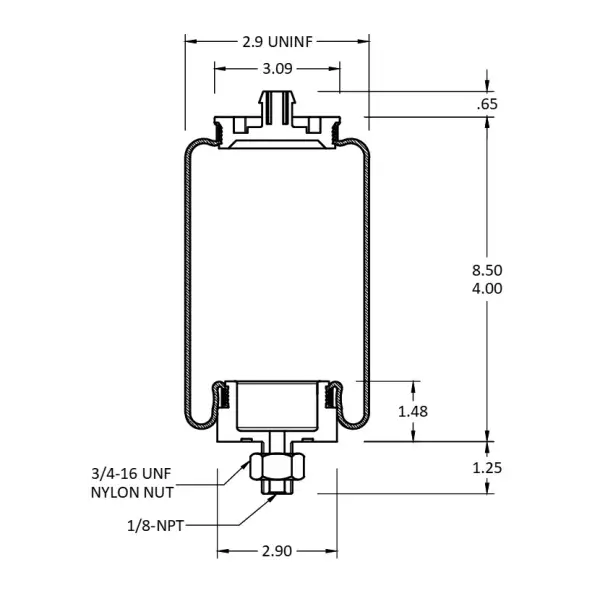

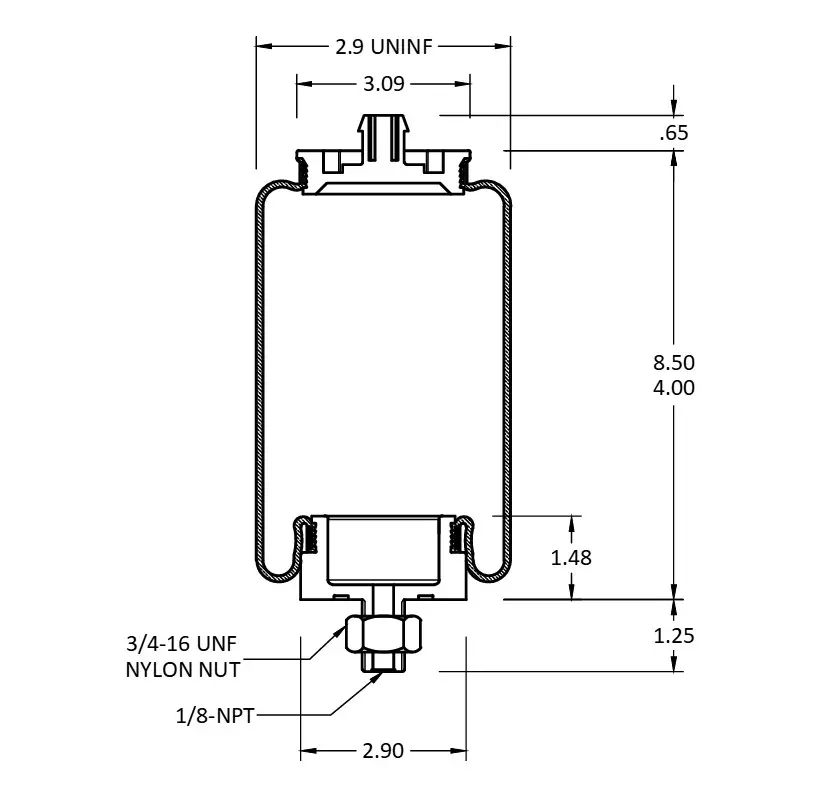

Property |
Value |
Locating Pin Diameter
|
3/4‑16
|
Locating Pin Height
|
0.65
|
Air Inlet
|
1/8 NPT
|
Design Height
|
8.5‑10.2
|
Piston Diameter
|
2.90
|
Minimum Jounce Height
|
6.05
|
Extended Height
|
8.50
|
Compressed Height
|
4.00
|
Weight
|
1.8 lbs
|
