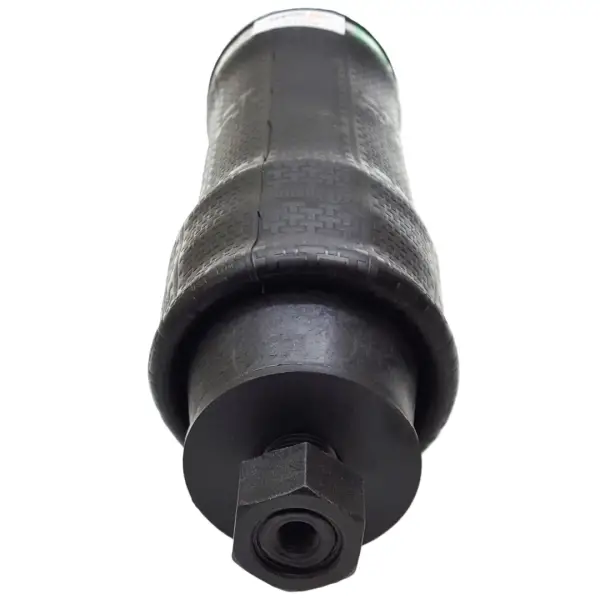

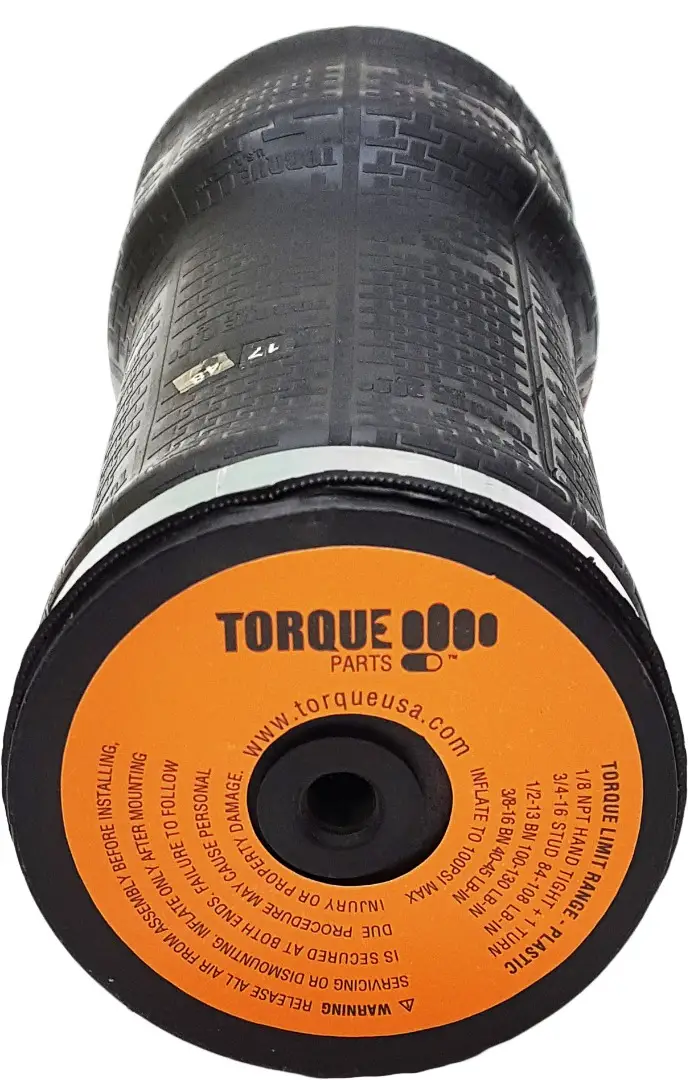

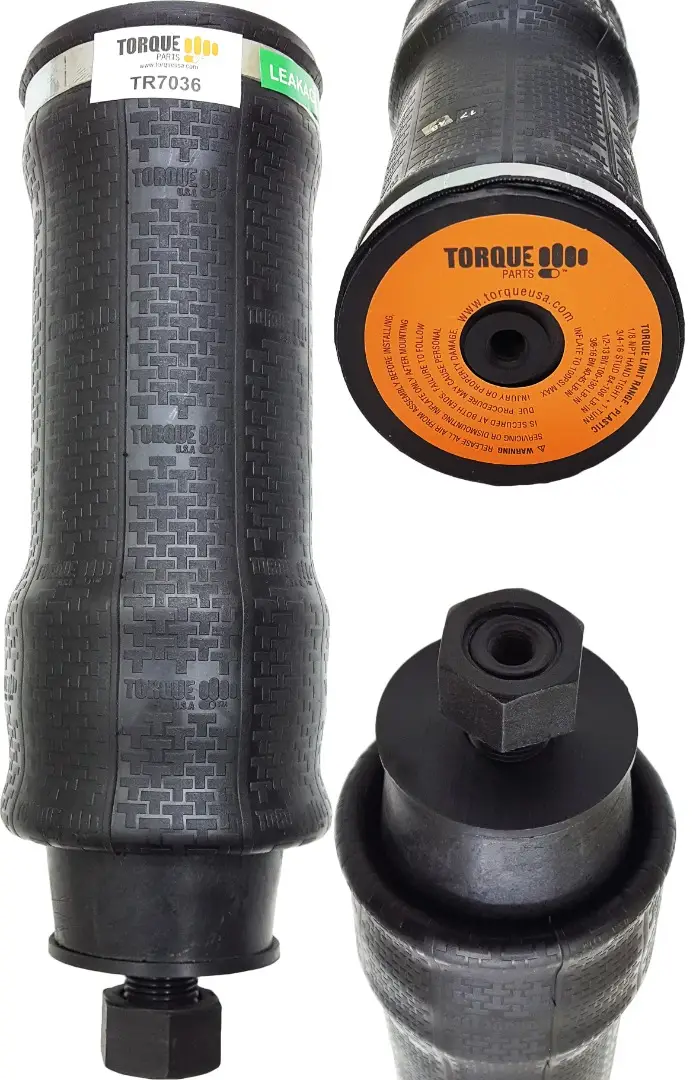

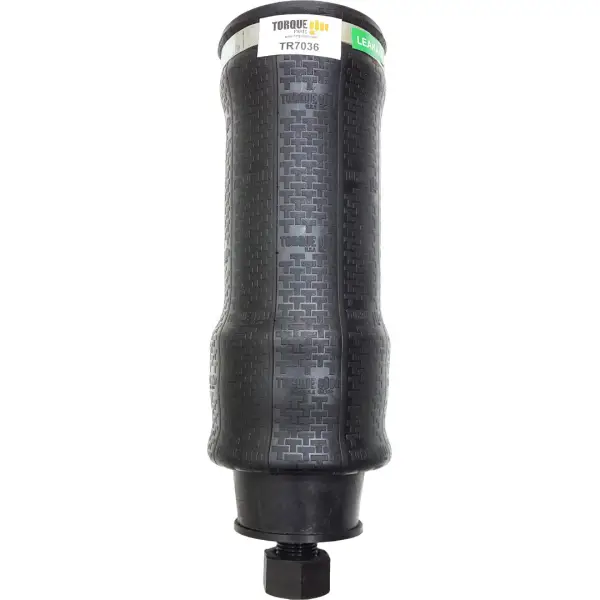

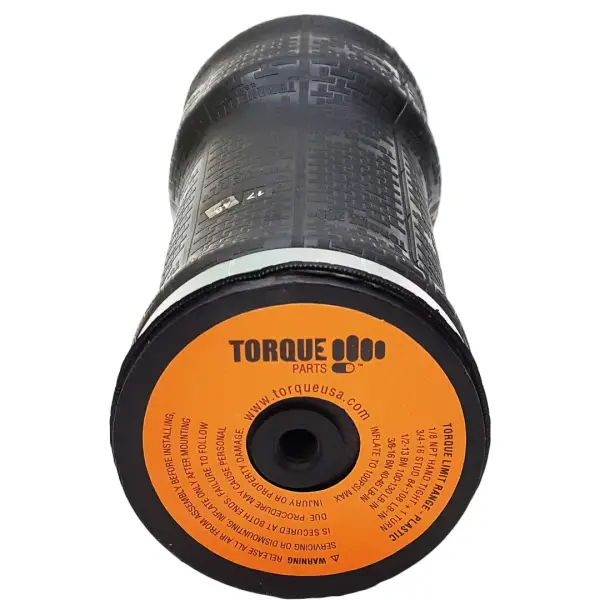

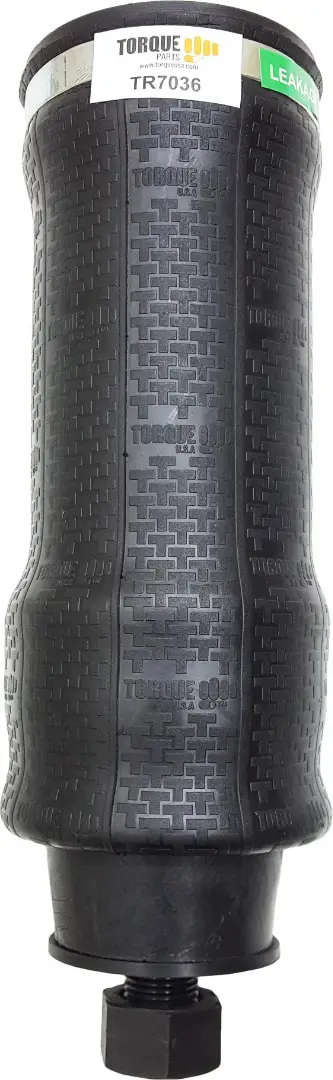

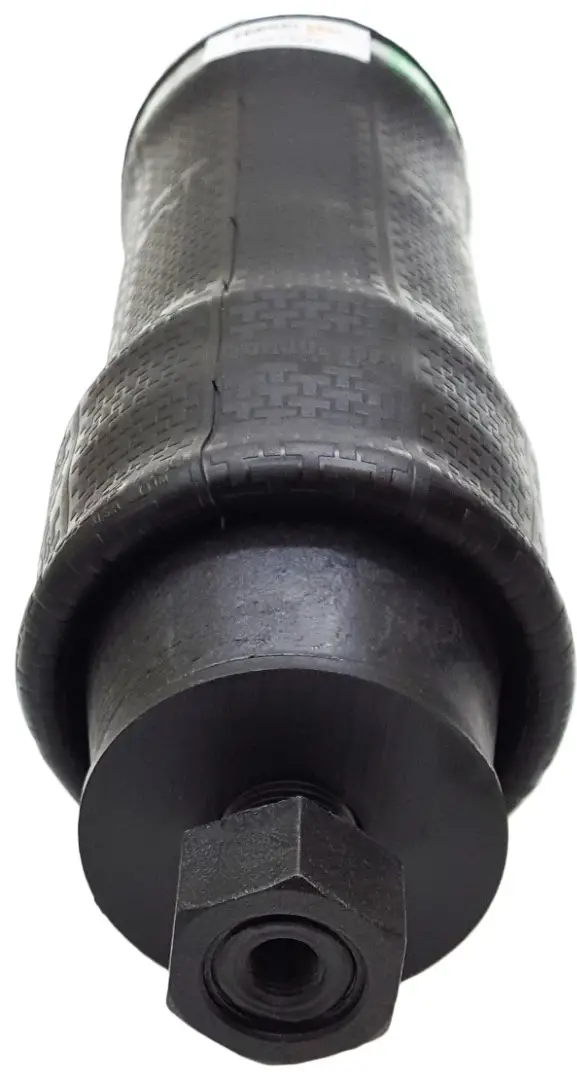

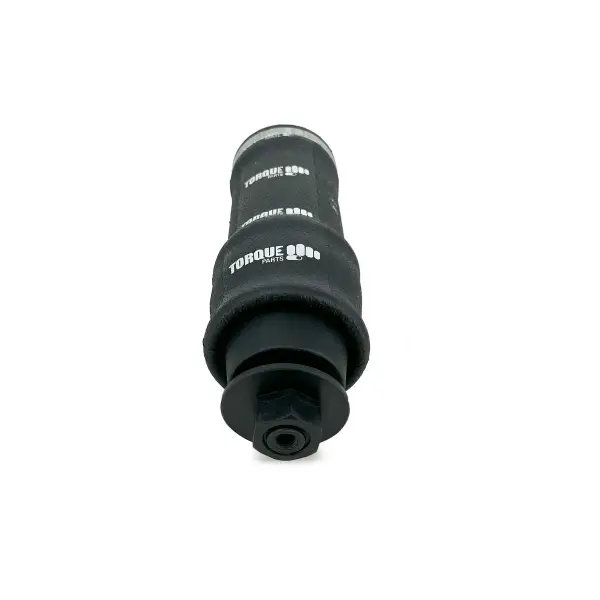

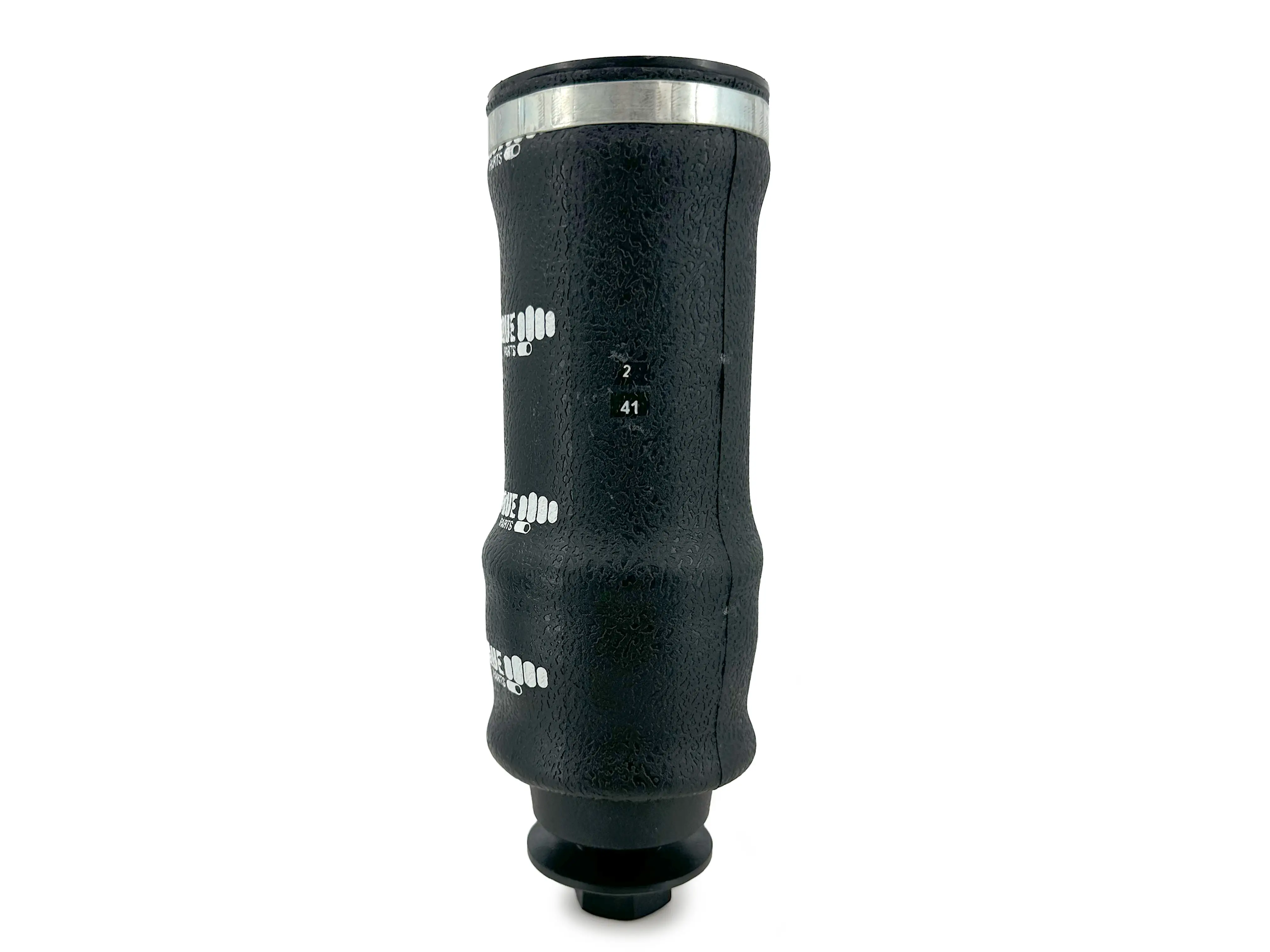

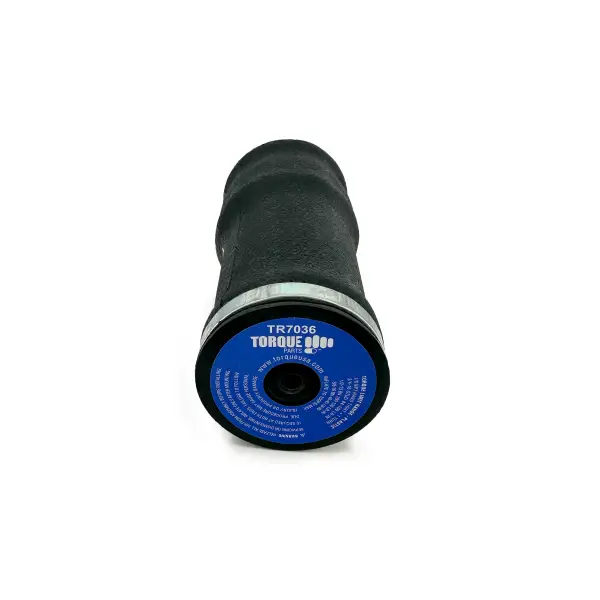

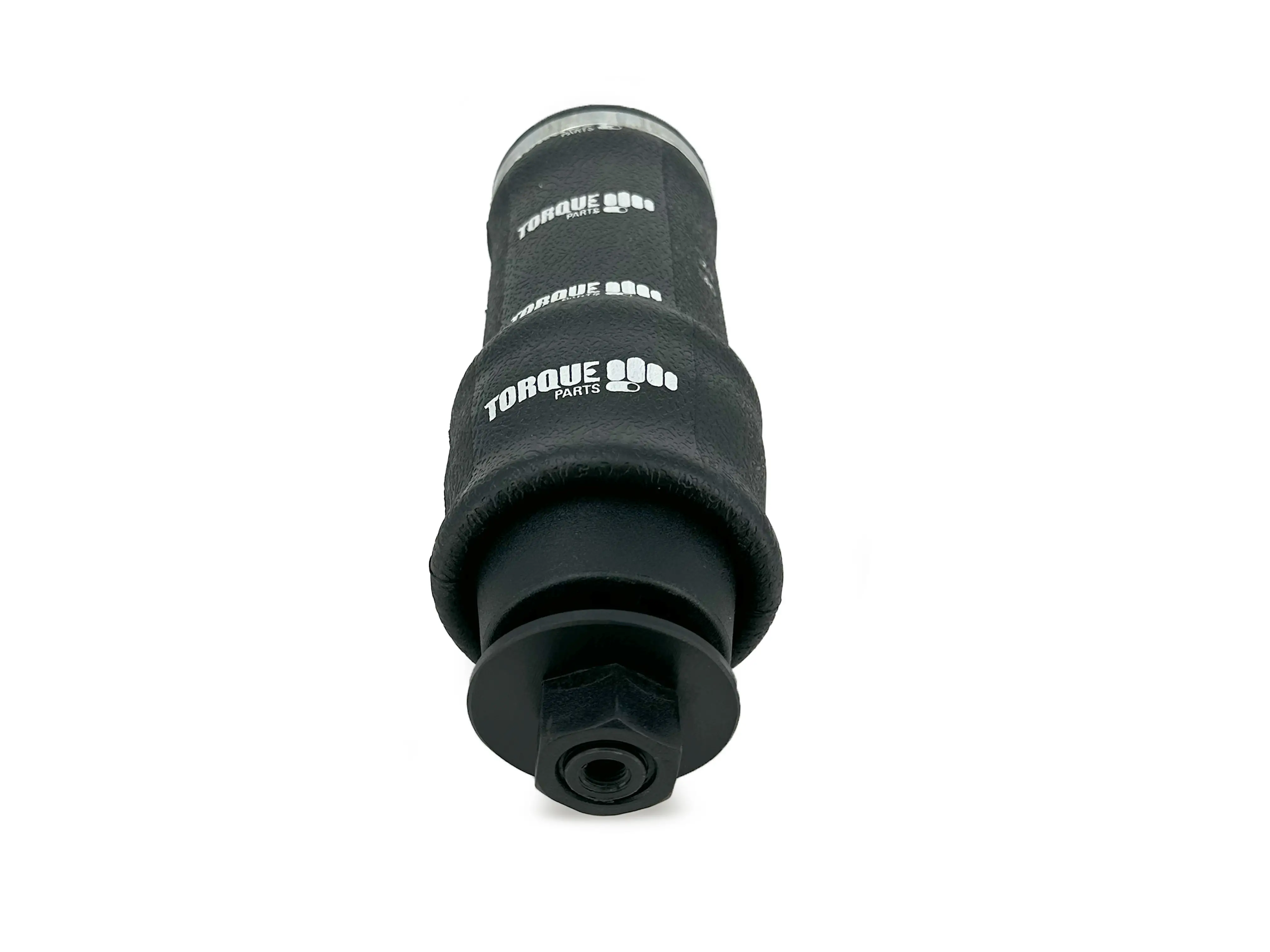

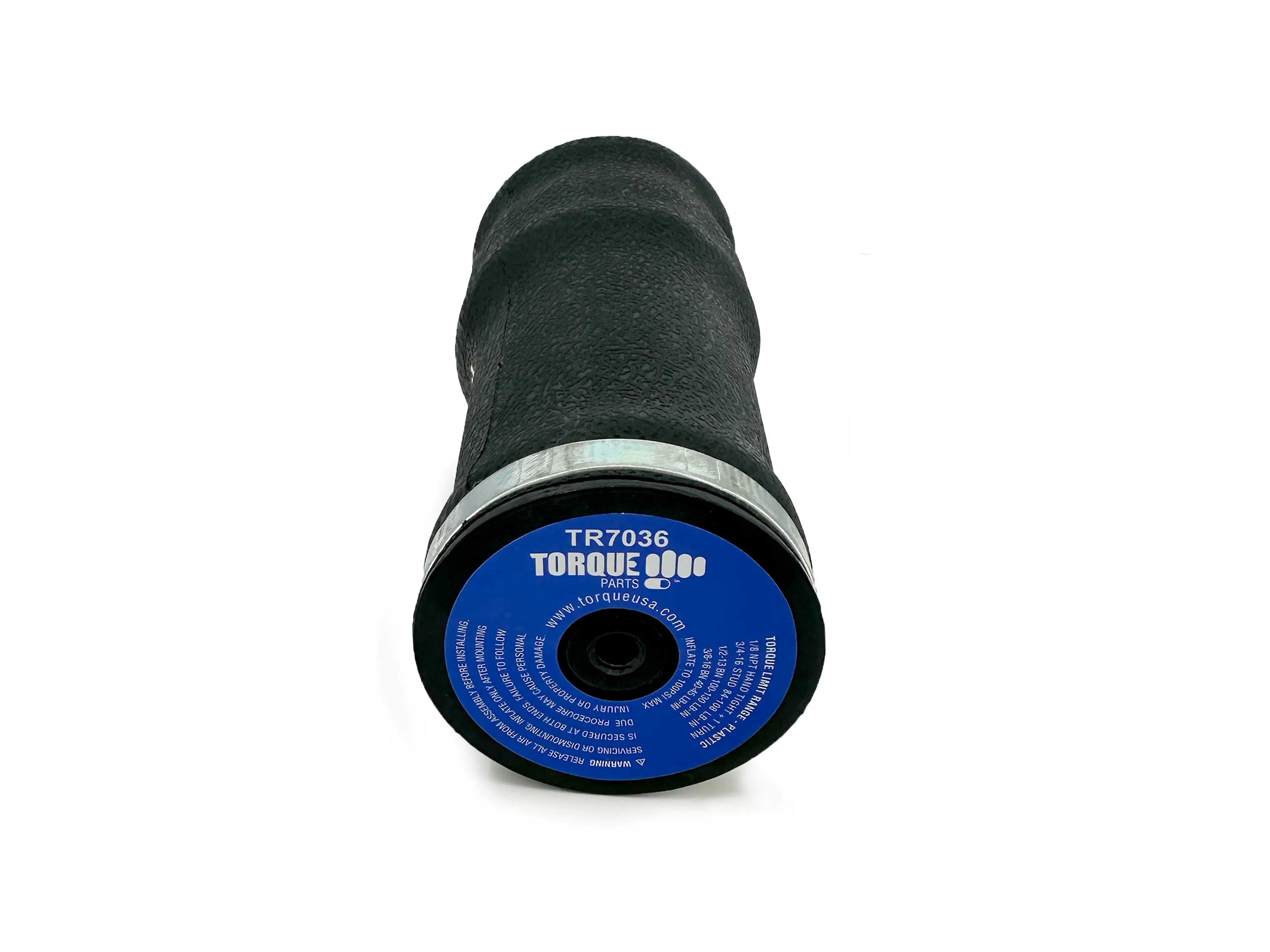

Cabin Air Spring for Peterbilt Replaces W02-358-7036, T81-6002

Description : Cabin Air Spring for Peterbilt Trucks

Part Number : TR7036

Cabin Air Spring for Peterbilt Replaces W02-358-7036, T81-6002

Click to see price

Cabin Air Spring for Peterbilt Trucks
(UNI-BUILTHIGHWAY CAB/SLEEPER 1993 & LATER, UNI-BUILT FT SUPPORT SPRING 7155)

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Paccar	T81‑6002, T816002
Peterbilt	06527CA, 29‑02454, 29‑03200, 2902454, 2903200, W02‑703‑7066
Triangle	AS‑5036, AS503
Automann	ABSZ70‑7036I
Sampa:	500.903‑01
Alliance	ABP N32 027036
Contitech	68162, SC29Y036, SC29‑Y036
Firestone	7036, 7066, W02‑703‑7162, W023587036, W027037036, W027037066, W027037091, W027037094, W027037162, W02‑358‑ 7036
Goodyear	1S5‑186, 1S5186
Link	1102A030

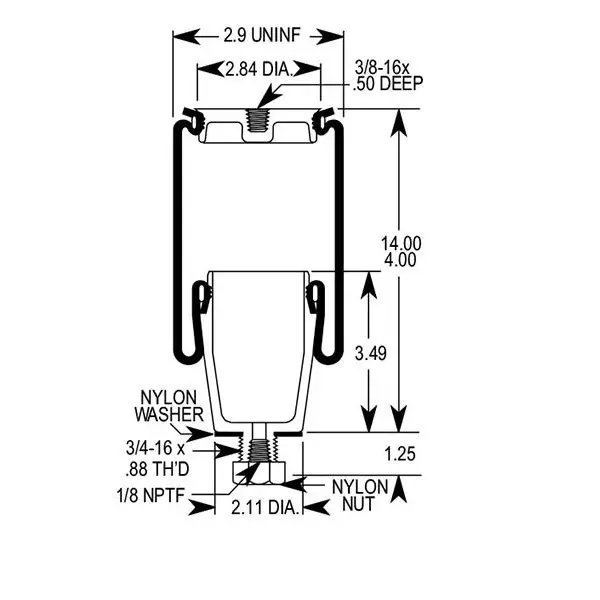

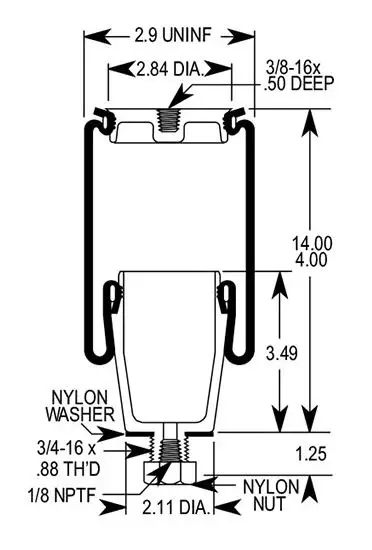

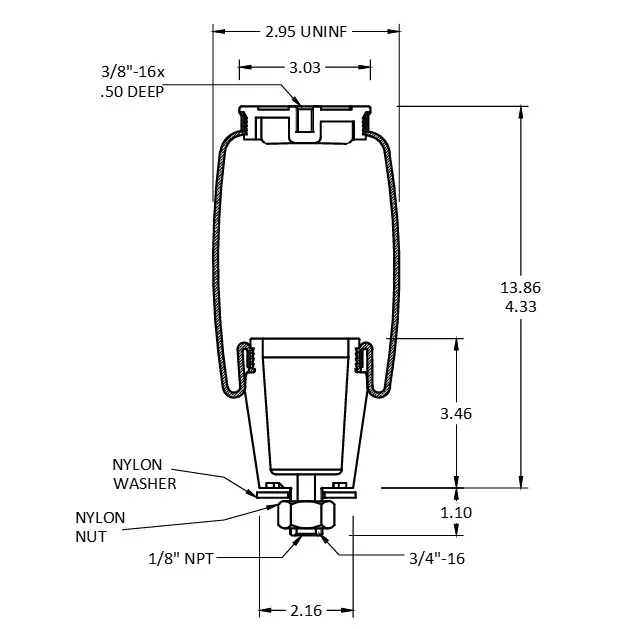

Property	Value
Locating Pin Diameter	3/8"‑16
Locating Pin Height	0.50" deep
Air Inlet	1/8" NPT
Design Height	8.66"
Piston Diameter	2.16"
Extended Height	13.86"
Compressed Height	4.33"
Weight	1.2 lbs
