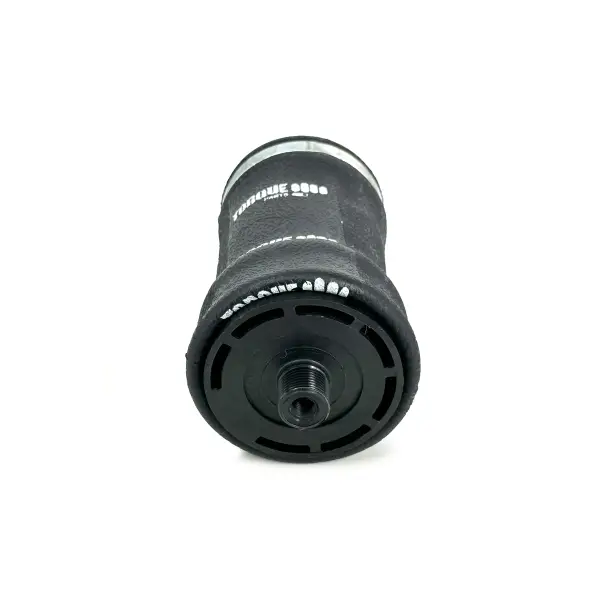

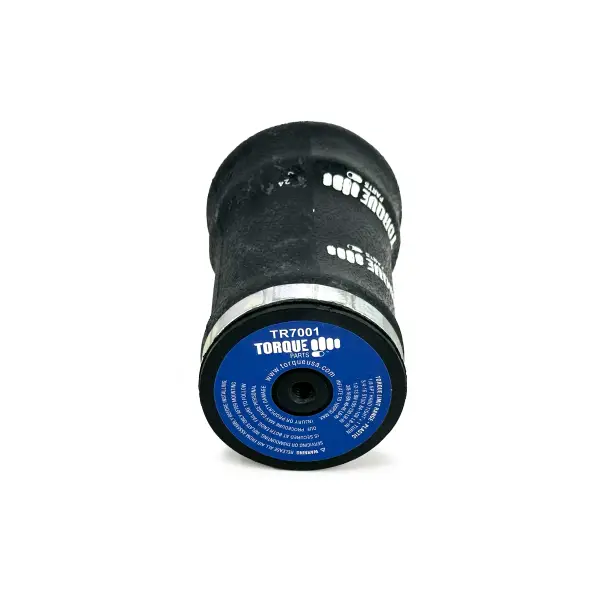

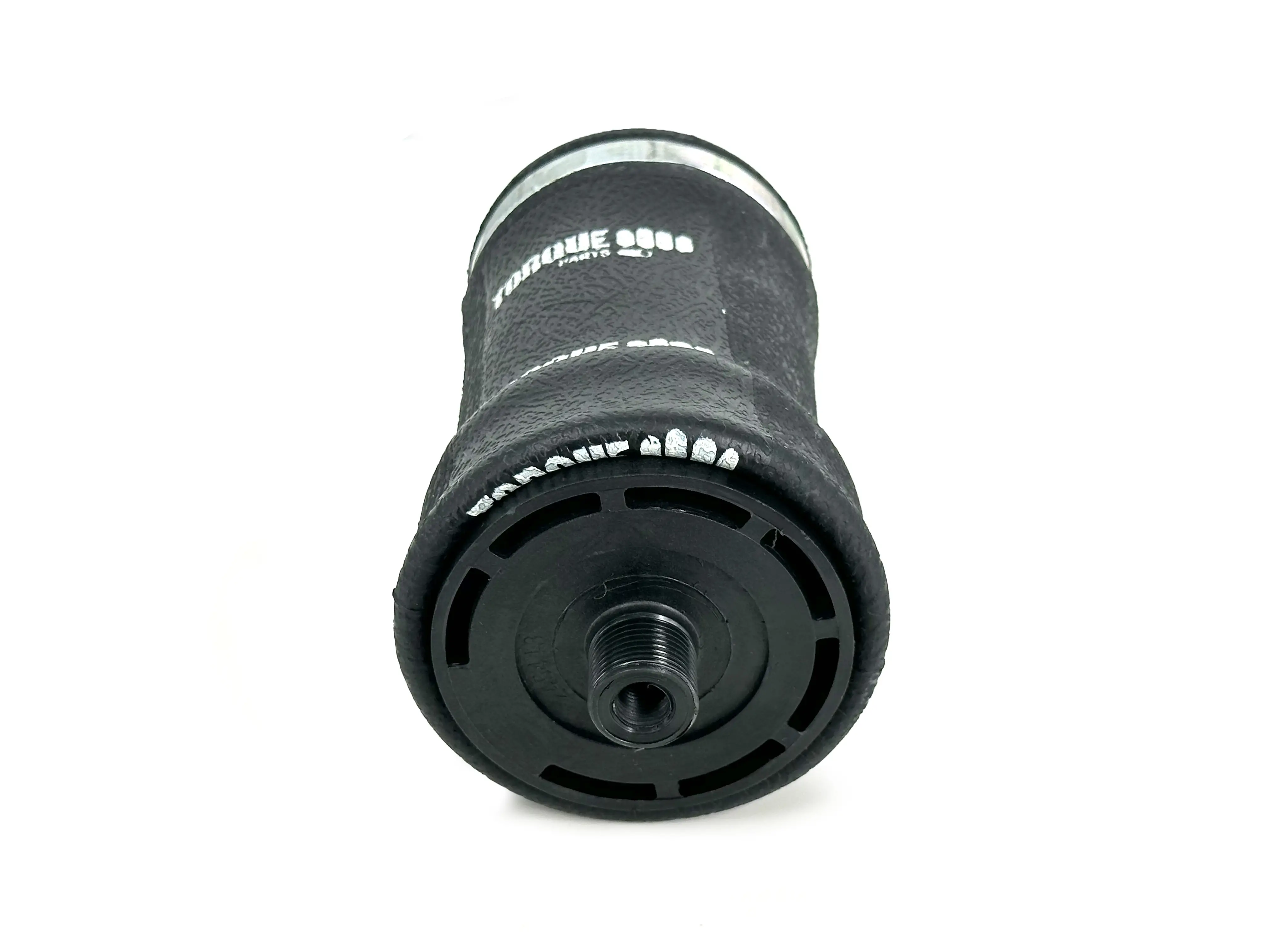

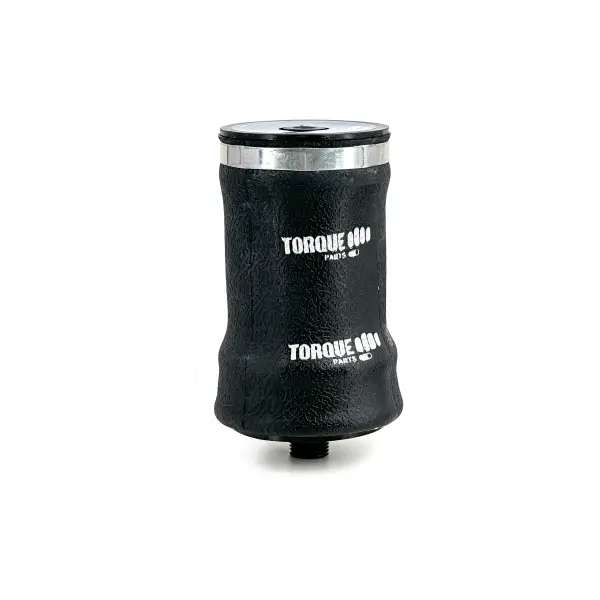

Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33

Description : Cabin Air Spring for Kenworth and Mack Trucks

Part Number : TR7001

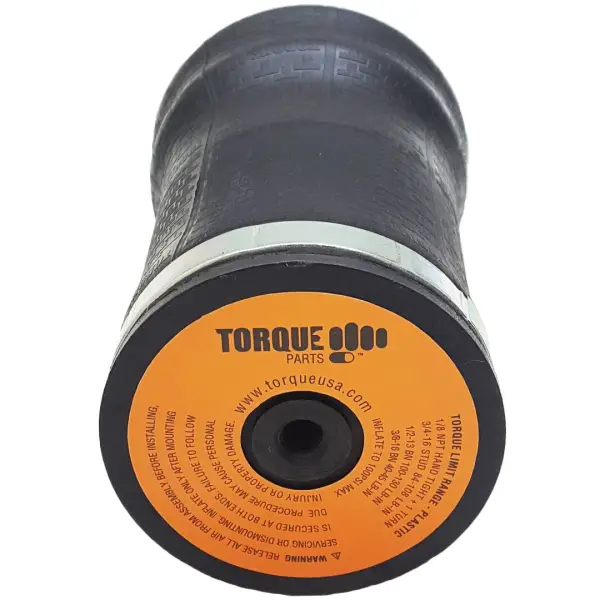

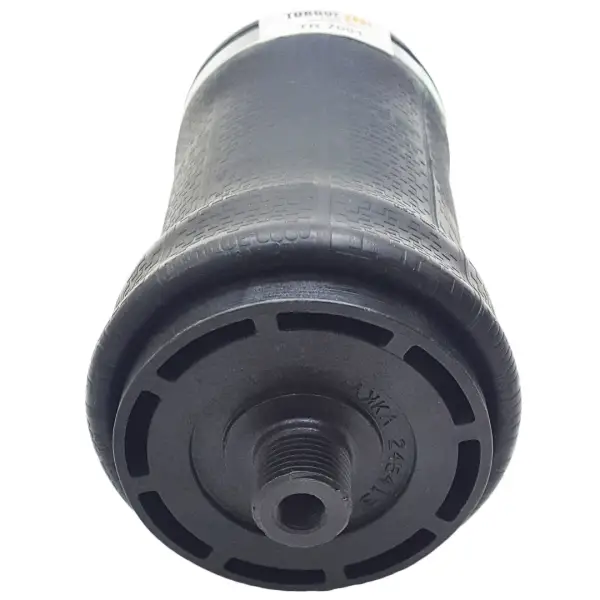

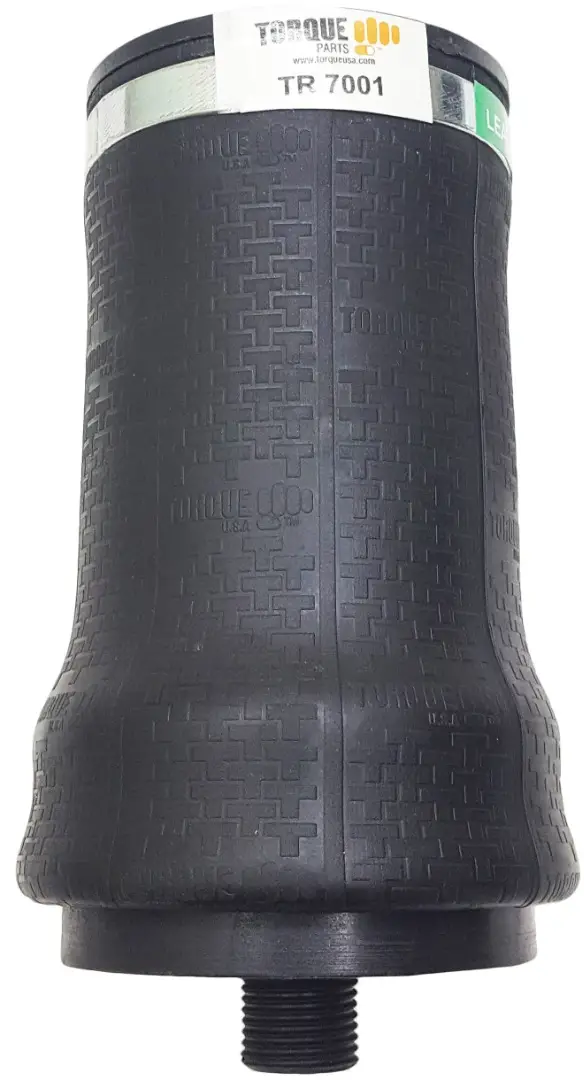

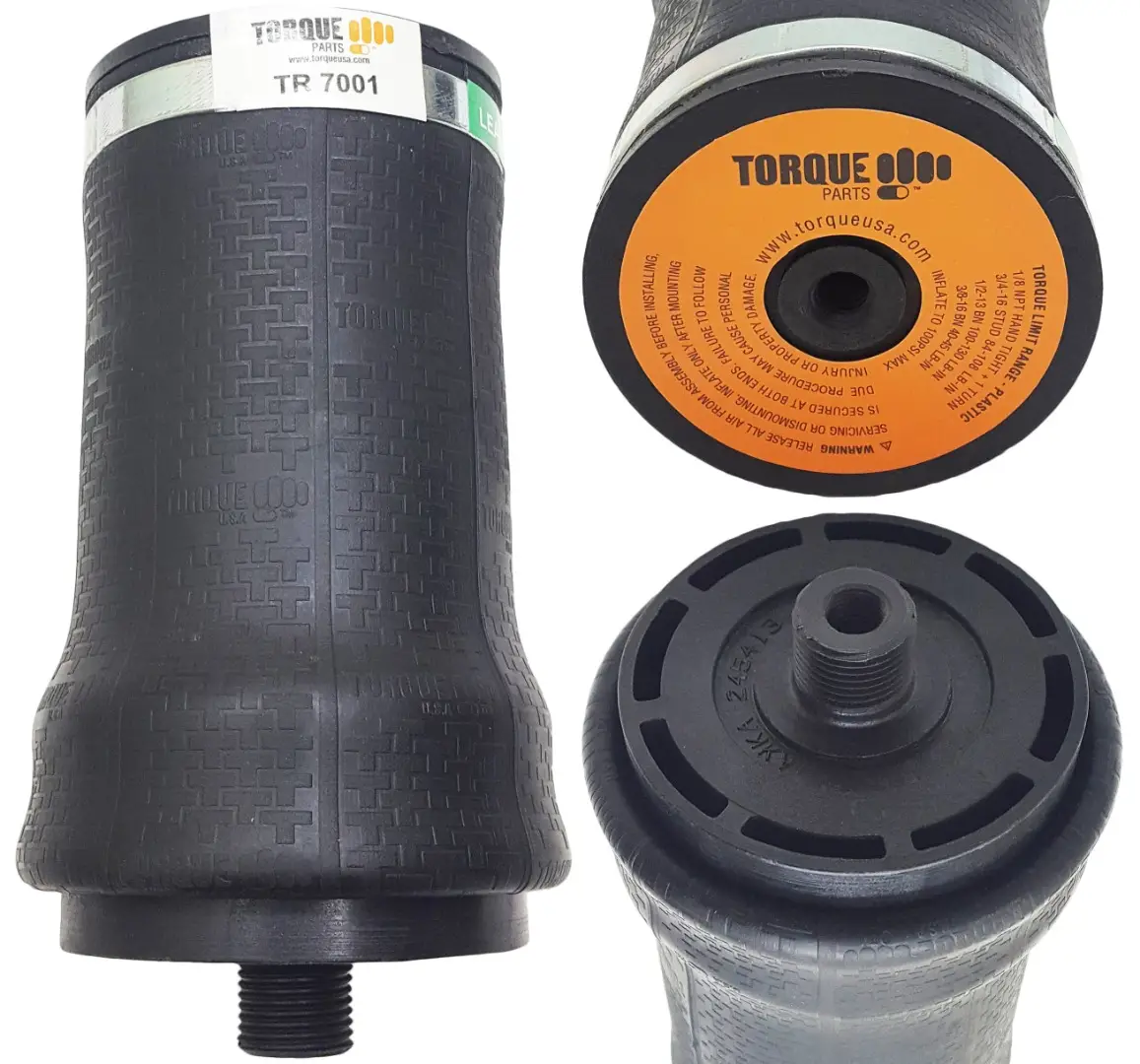

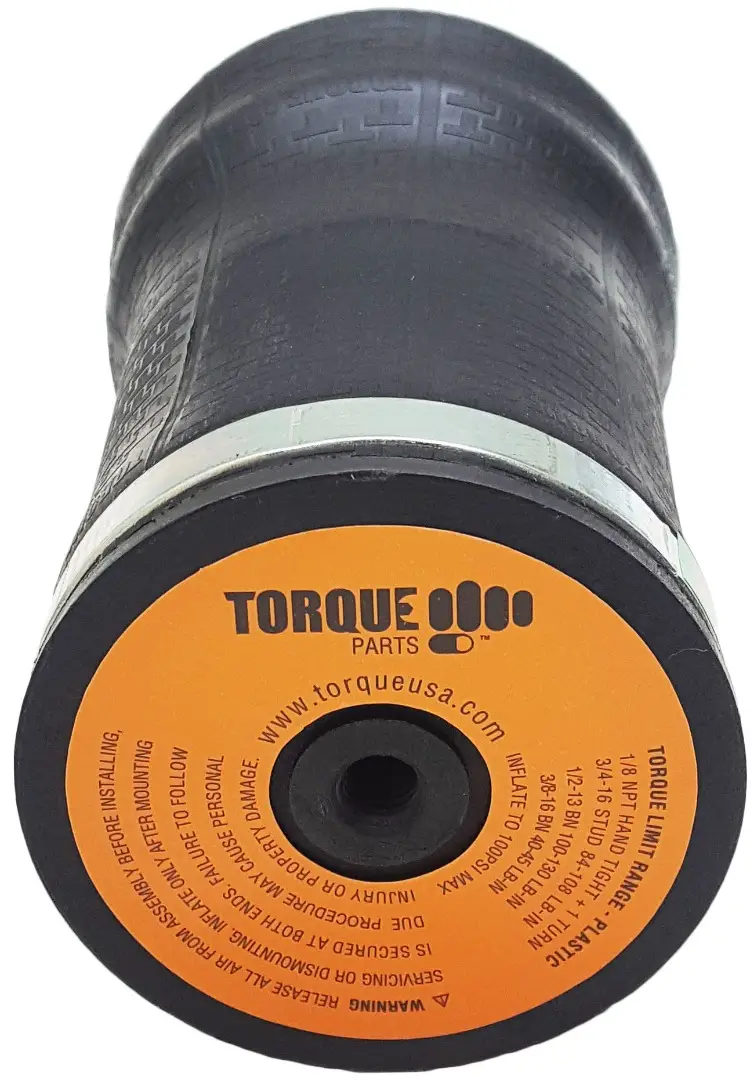

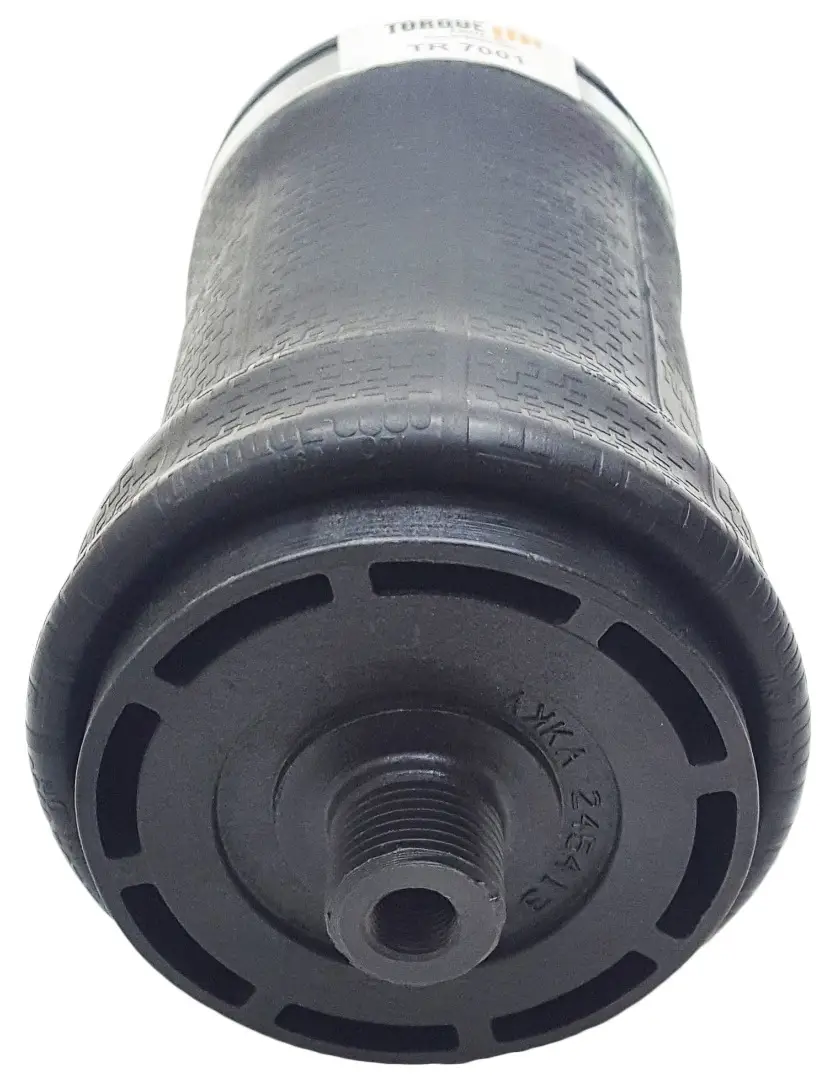

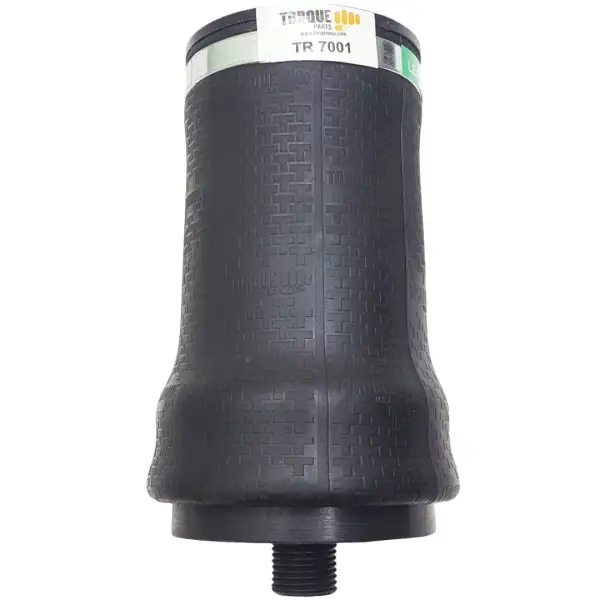

Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33
Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33
Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33
Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33
360° view of Cabin Air Spring for Kenworth and Mack Replaces T81-1001, 227QS33
Click to see price

Cabin Air Spring for Kenworth and Mack Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  ABSZ70‑7001
 Sampa  500.900‑01
 Contitech  67770, SC29‑O001, SZ70‑5067
 Firestone  7001, W023587001, W02‑358‑7001, W023587002, W02‑358‑7002, W023587031, W02‑358‑7031
 IHC  2501293C1
 Kenworth  R811001, R81‑1001
 Mack  227QS33
 SZ  705067
 Triangle  AS‑5001
 RoadLeveler  AS70010, RL70010
 Link  11010023, 1101A023, 11020020, 11020023, 1102A023, 1102K023

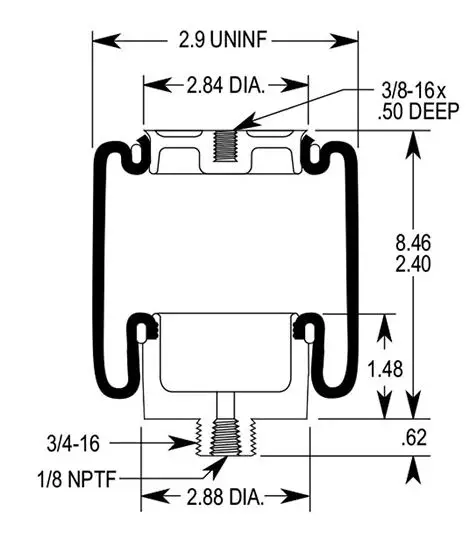

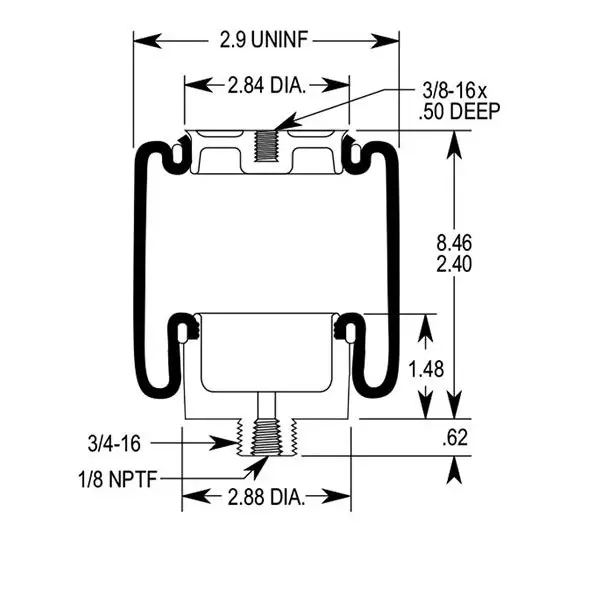

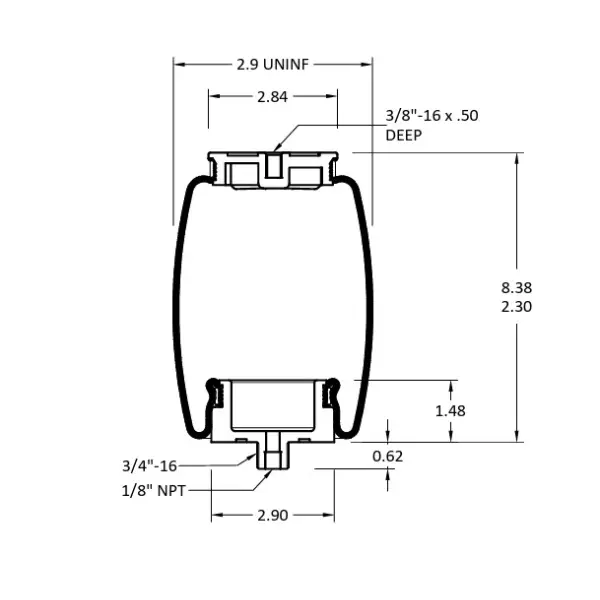

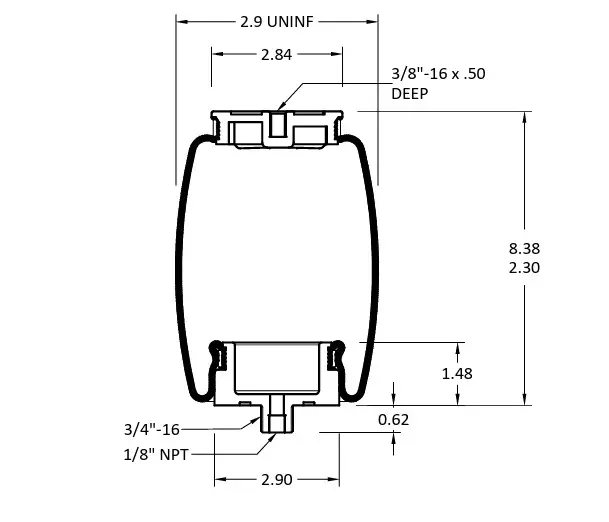

Property Value
 Locating Pin Diameter  3/8"‑16
 Locating Pin Height  0.50" deep
 Air Inlet  1/8" NPT
 Design Height  8.5‑10.2"
 Piston Diameter  2.9"
 Extended Height  8.38"
 Compressed Height  2.30"
 Weight  1.8 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
6.30" 3.54" 3.54" 0.82 lbs

No outer box information is available for this product.

Related Products

Air Spring for Kenworth Replaces 1R11-028
Air Spring for Kenworth Replaces 1R11-028
TR9422
Shop Now
Air Spring for Kenworth Replaces 1R11-242
Air Spring for Kenworth Replaces 1R11-242
TR9616
Shop Now
Air Spring for Kenworth Replaces W01-358-9617
Air Spring for Kenworth Replaces W01-358-9617
TR9617
Shop Now
Air Spring for Kenworth Replaces 1R11-221, W01-544-9622
Air Spring for Kenworth Replaces 1R11-221, W01-544-9622
TR9622
Shop Now
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
TR7007
Shop Now

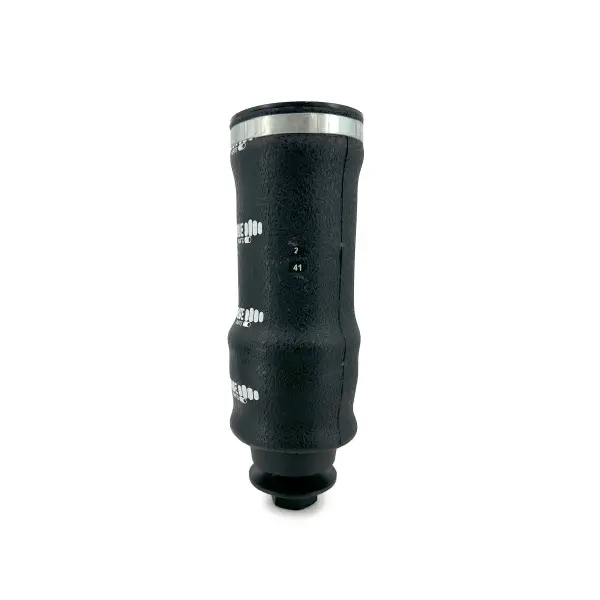

Cabin Air Spring for Peterbilt Replaces W02-358-7036, T81-6002
Cabin Air Spring for Peterbilt Replaces W02-358-7036, T81-6002
TR7036
Shop Now

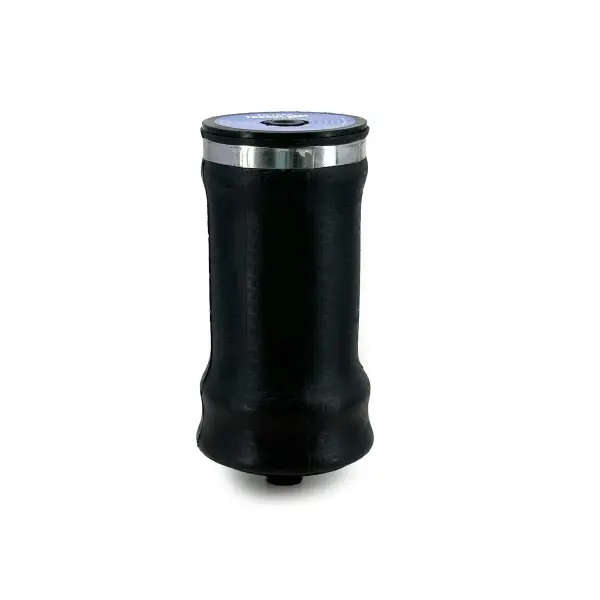

Cabin Air Spring for Kenworth Replaces 1102-0074, W02-358-7064
