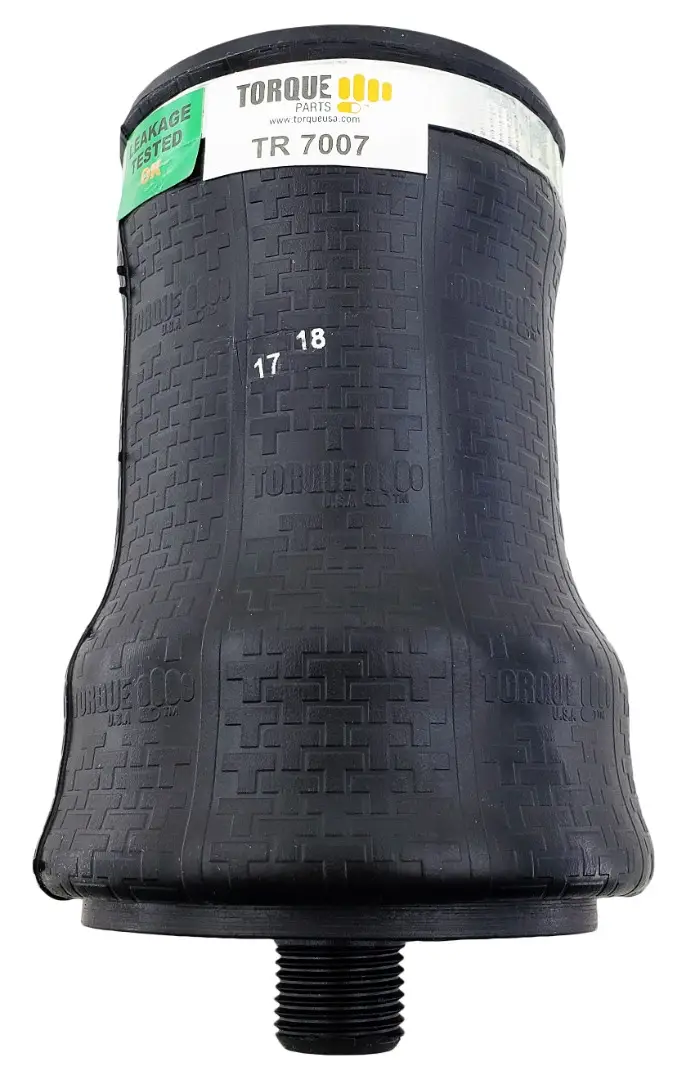

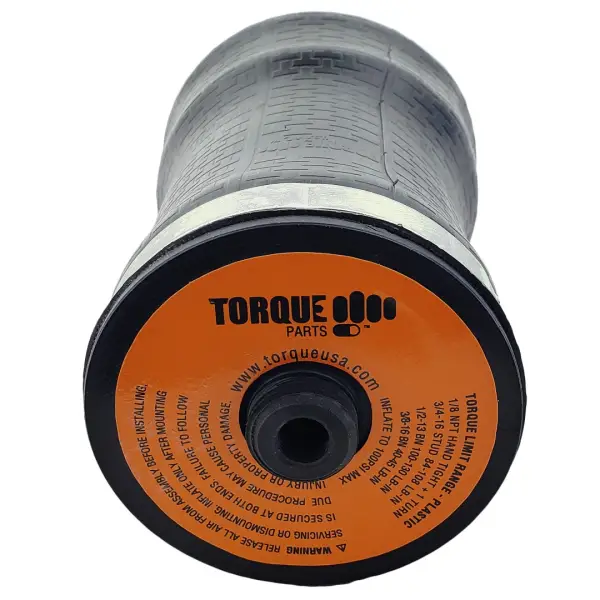

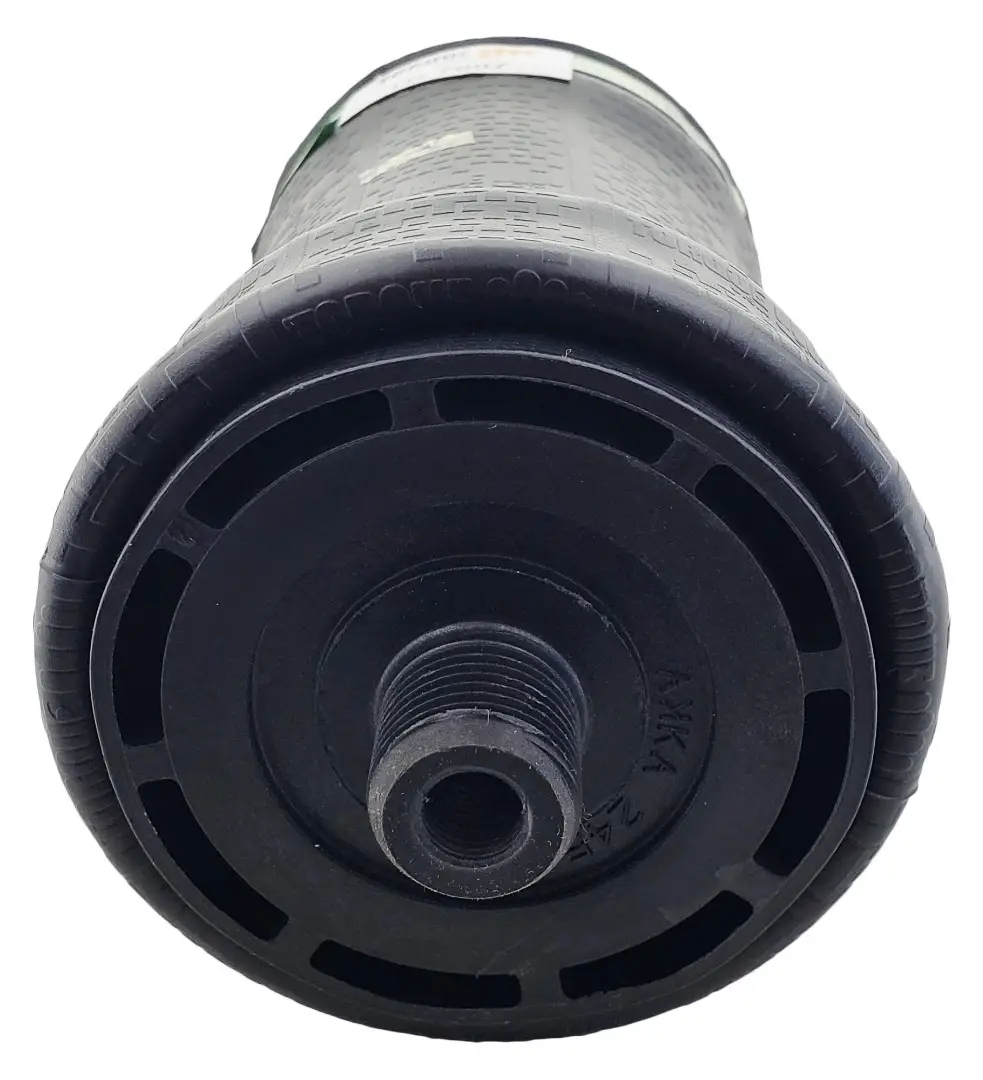

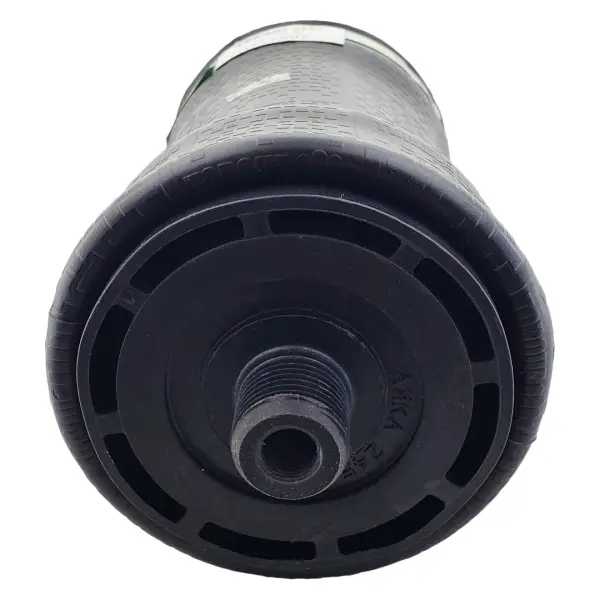

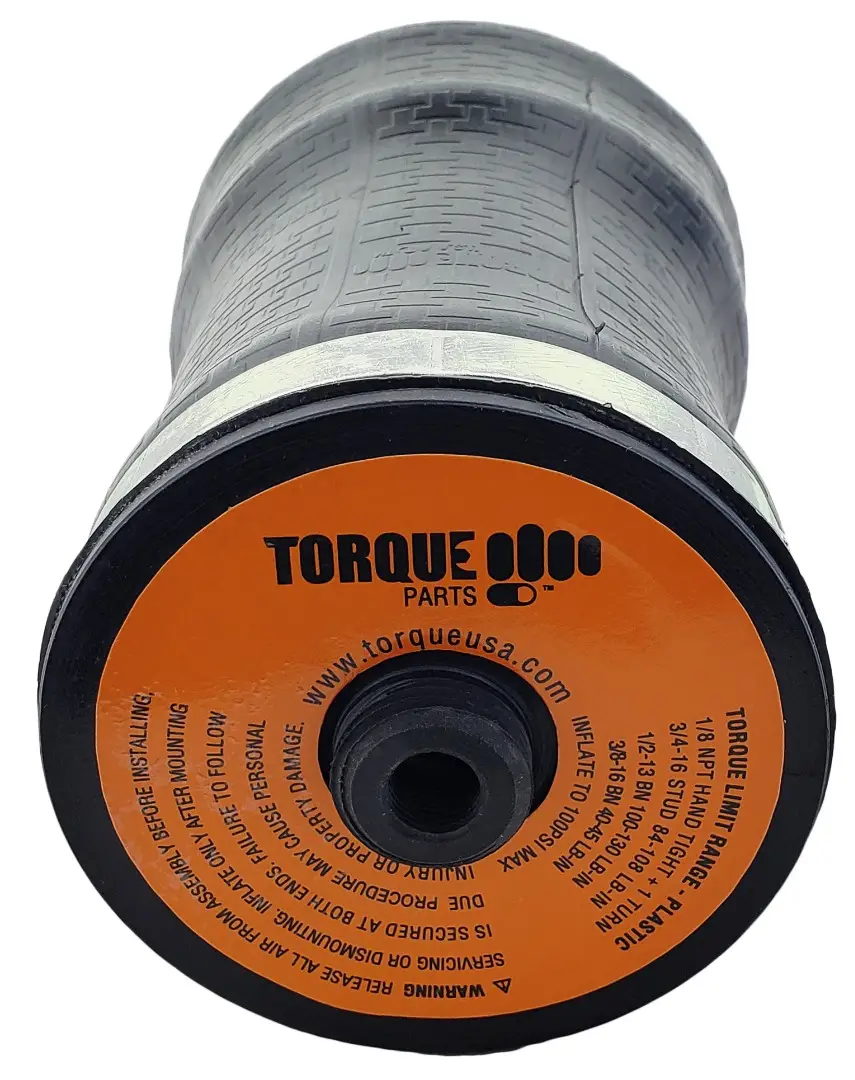

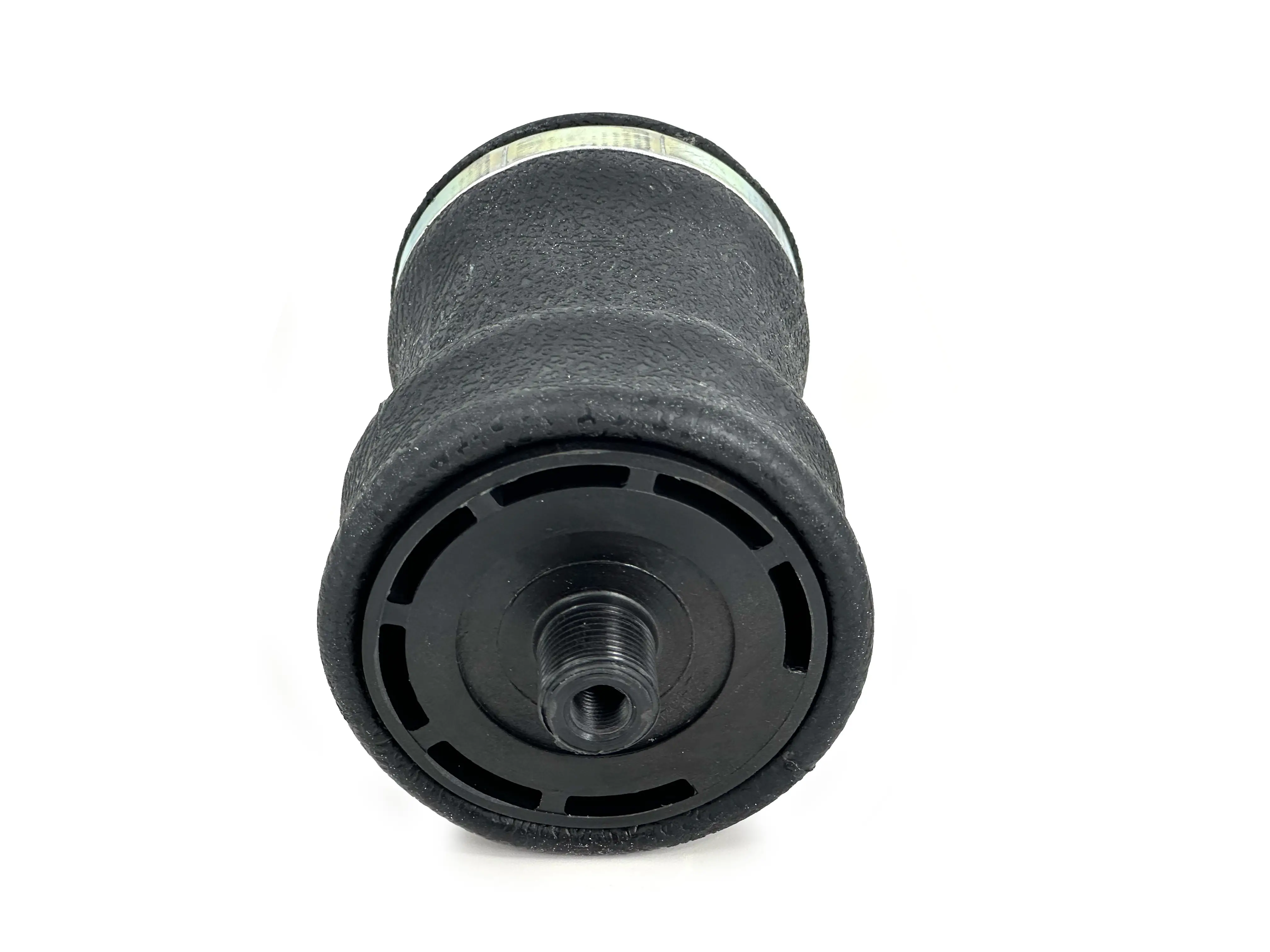

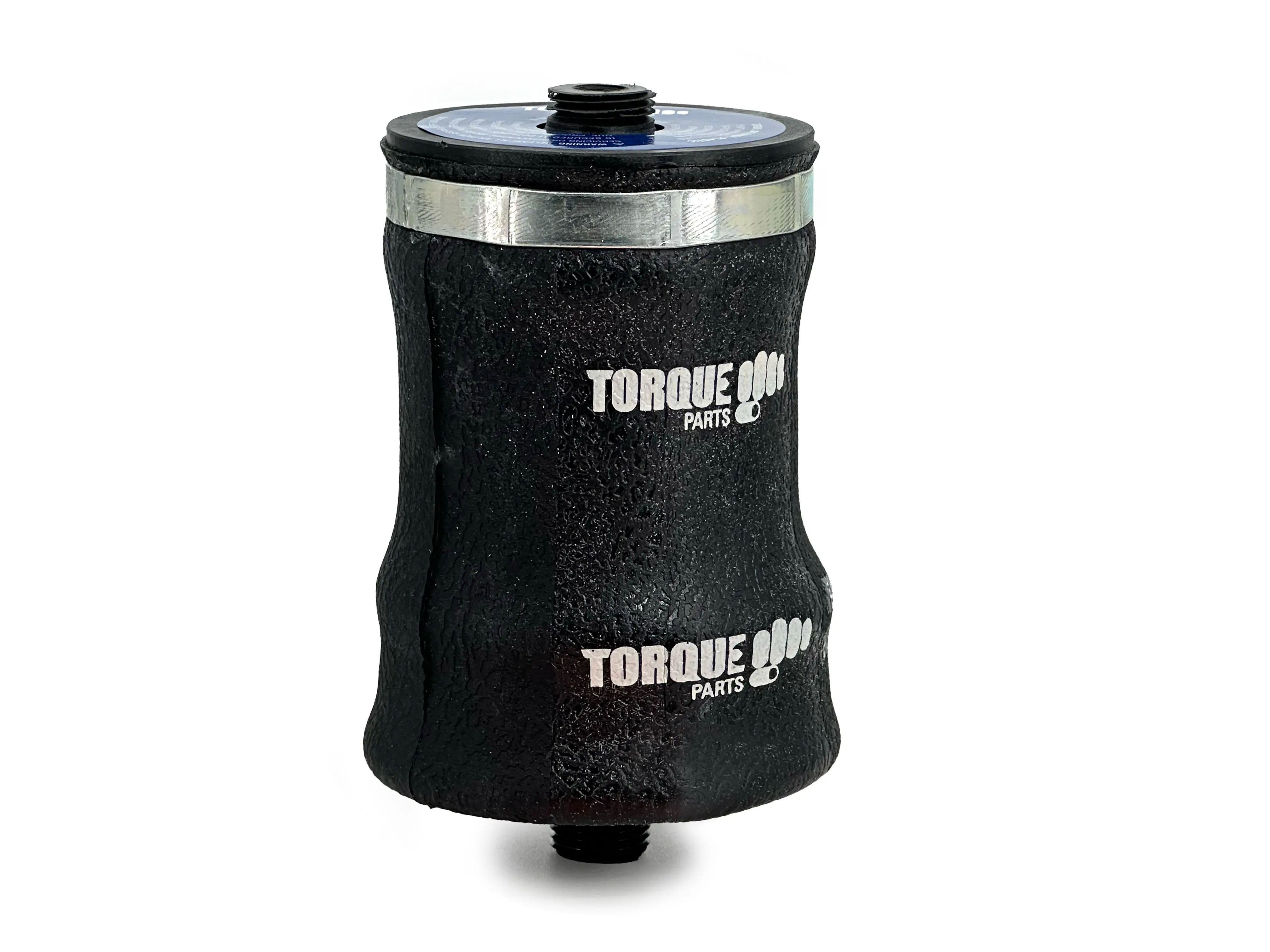

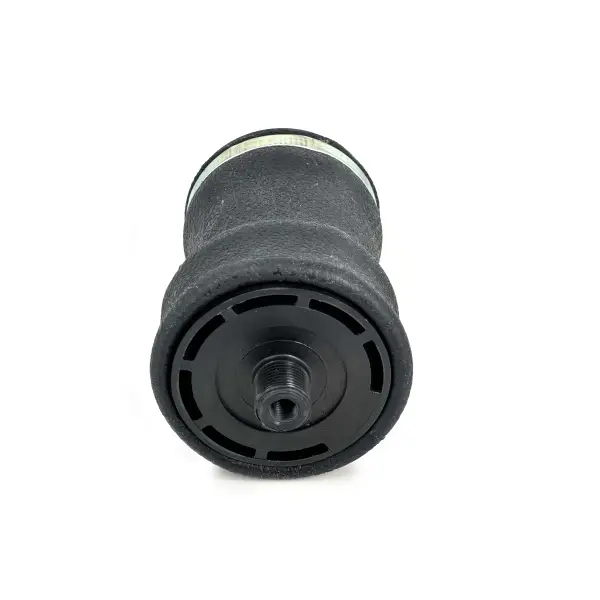

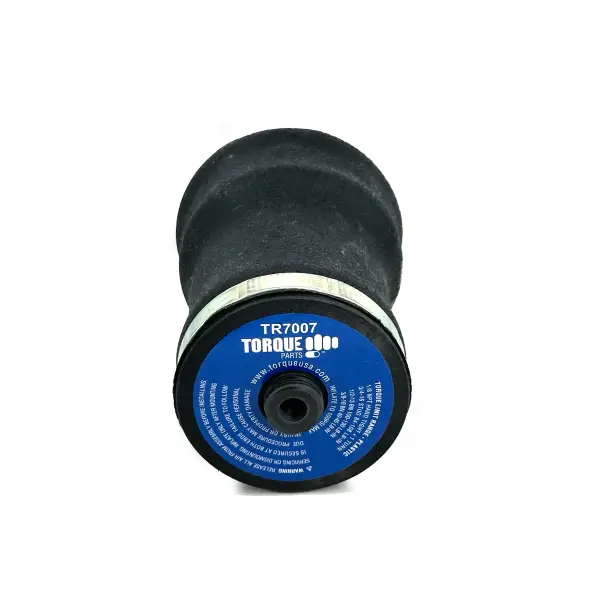

Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A

Description : Cabin Air Spring for Mack Trucks

Part Number : TR7007

Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A
Click to see price
Cabin Air Spring for Mack Trucks
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  ABSZ70‑7007
 Sampa  500.902‑01
 Firestone:   7007, NBD9930, W02‑358‑7007
 Goodyear:   1S4067, 1S4‑067, 1S6067, 1S6‑067
 Mack:   25166846, 227QS34B, 227QS34A, 227QS34

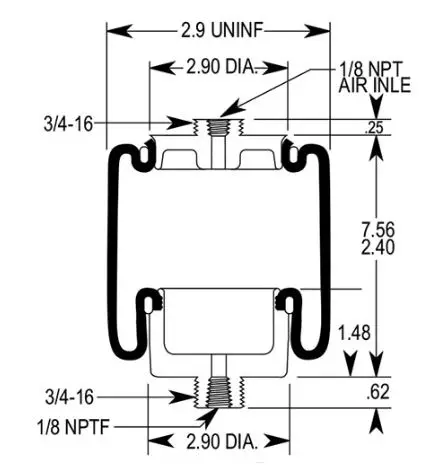

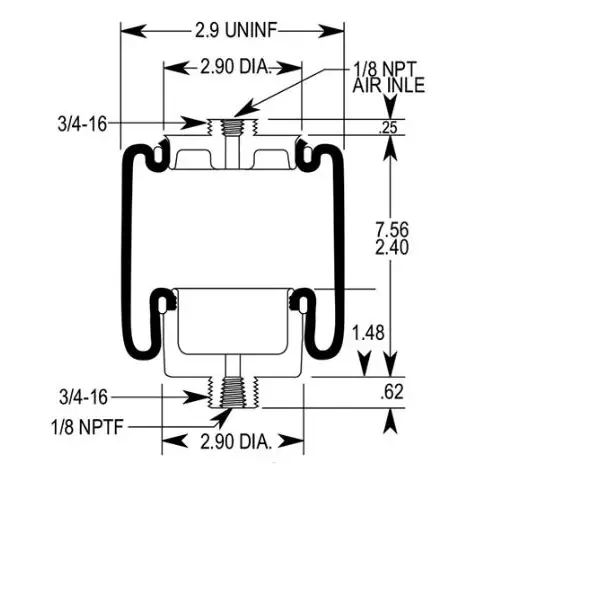

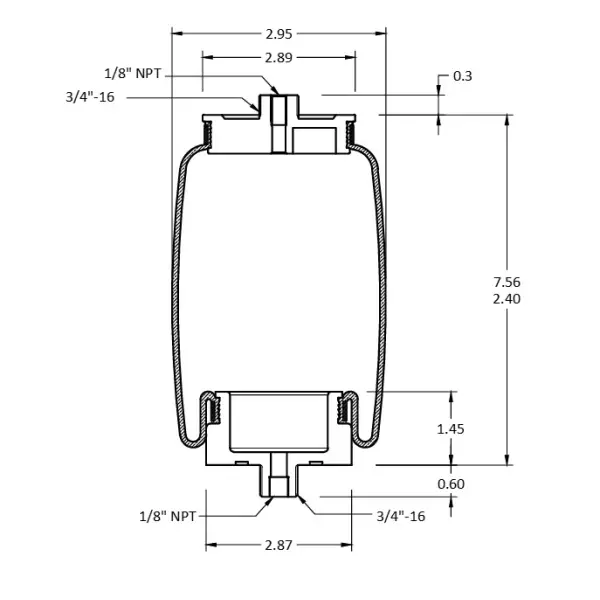

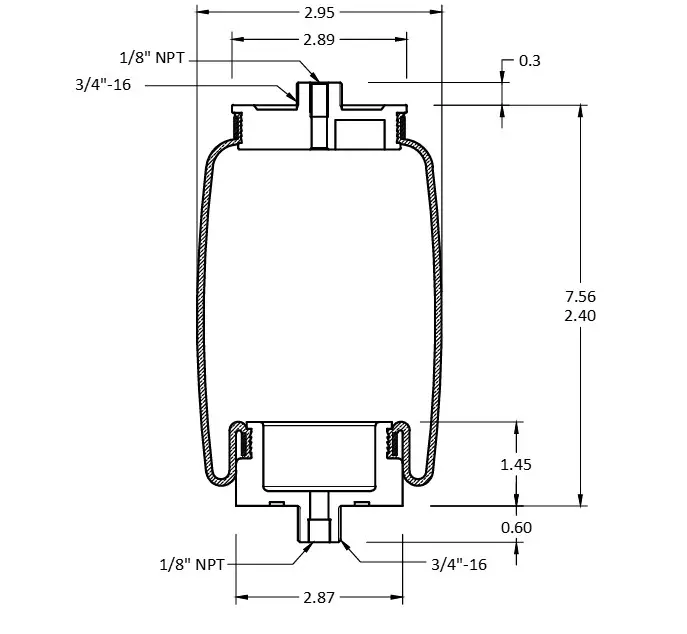

Property Value
 Locating Pin Diameter:   3/4"‑16
 Locating Pin Height:   0.30"
 Air Inlet:   1/8" NPT
 Design Height:   8.5‑10.2"
 Piston Diameter:   2.87"
 Extended Height:   7.56"
 Compressed Height:   2.40"
 Weight:   1.8 lbs
Longest Side44.09"
Median Side11.42"
Shortest Side44.09"
Weight0.90 lbs
