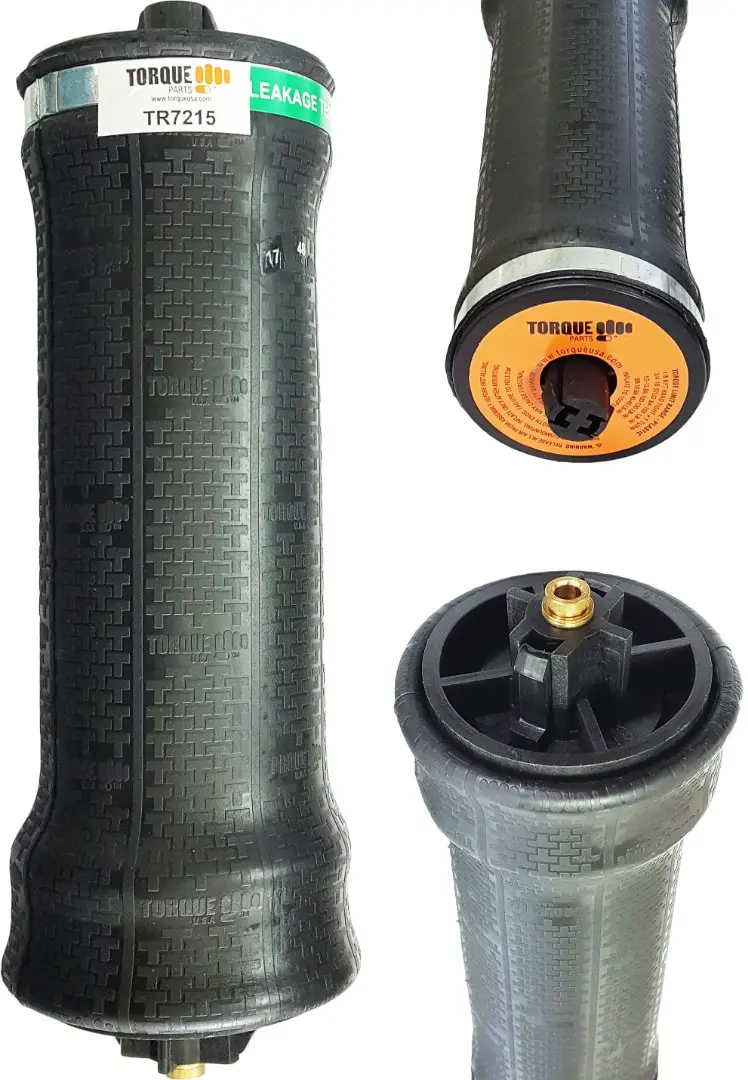

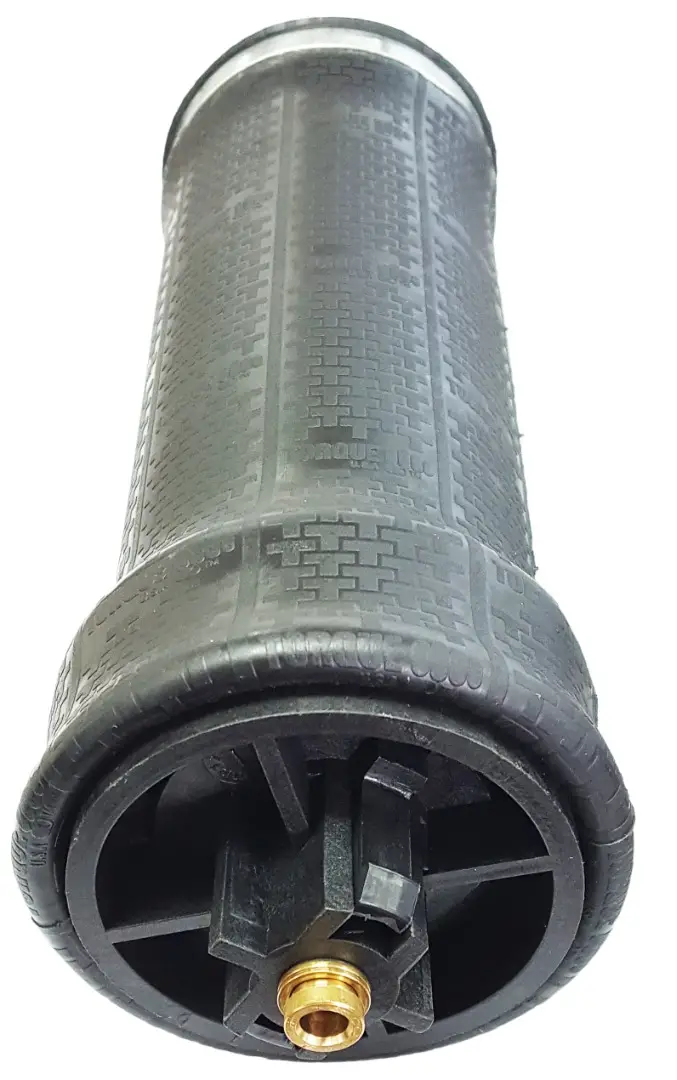

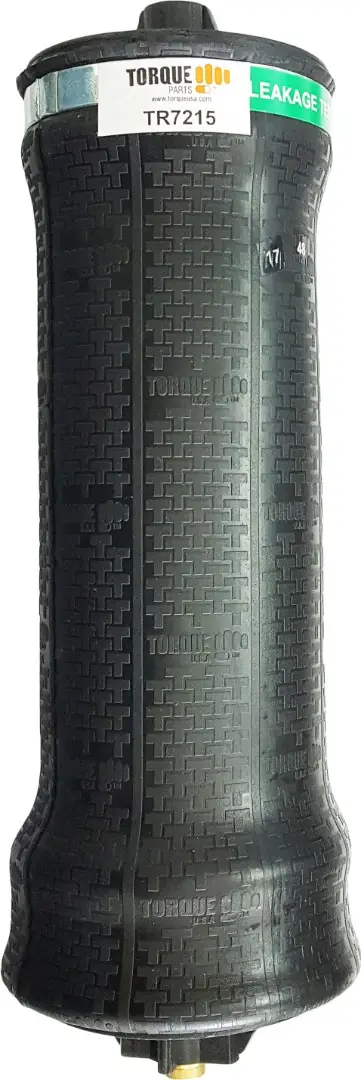

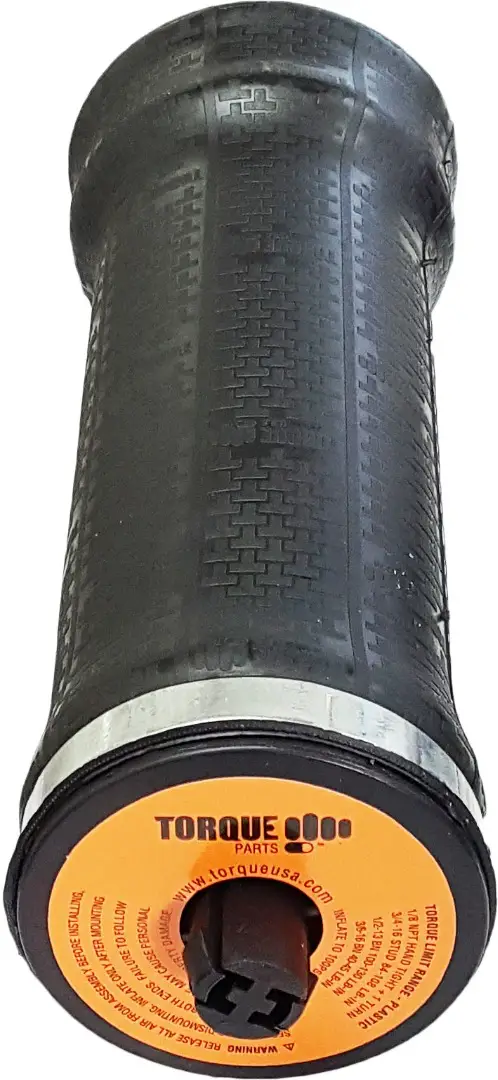

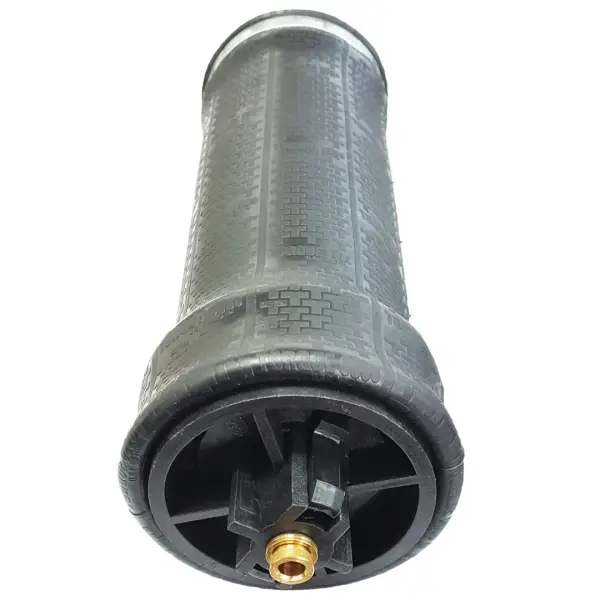

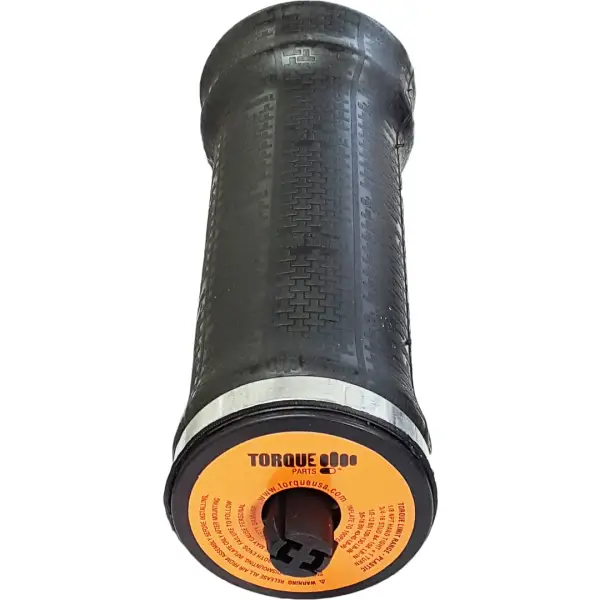

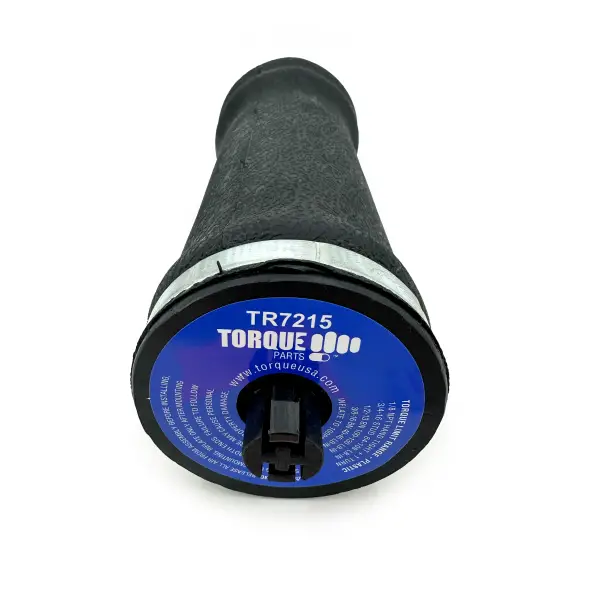

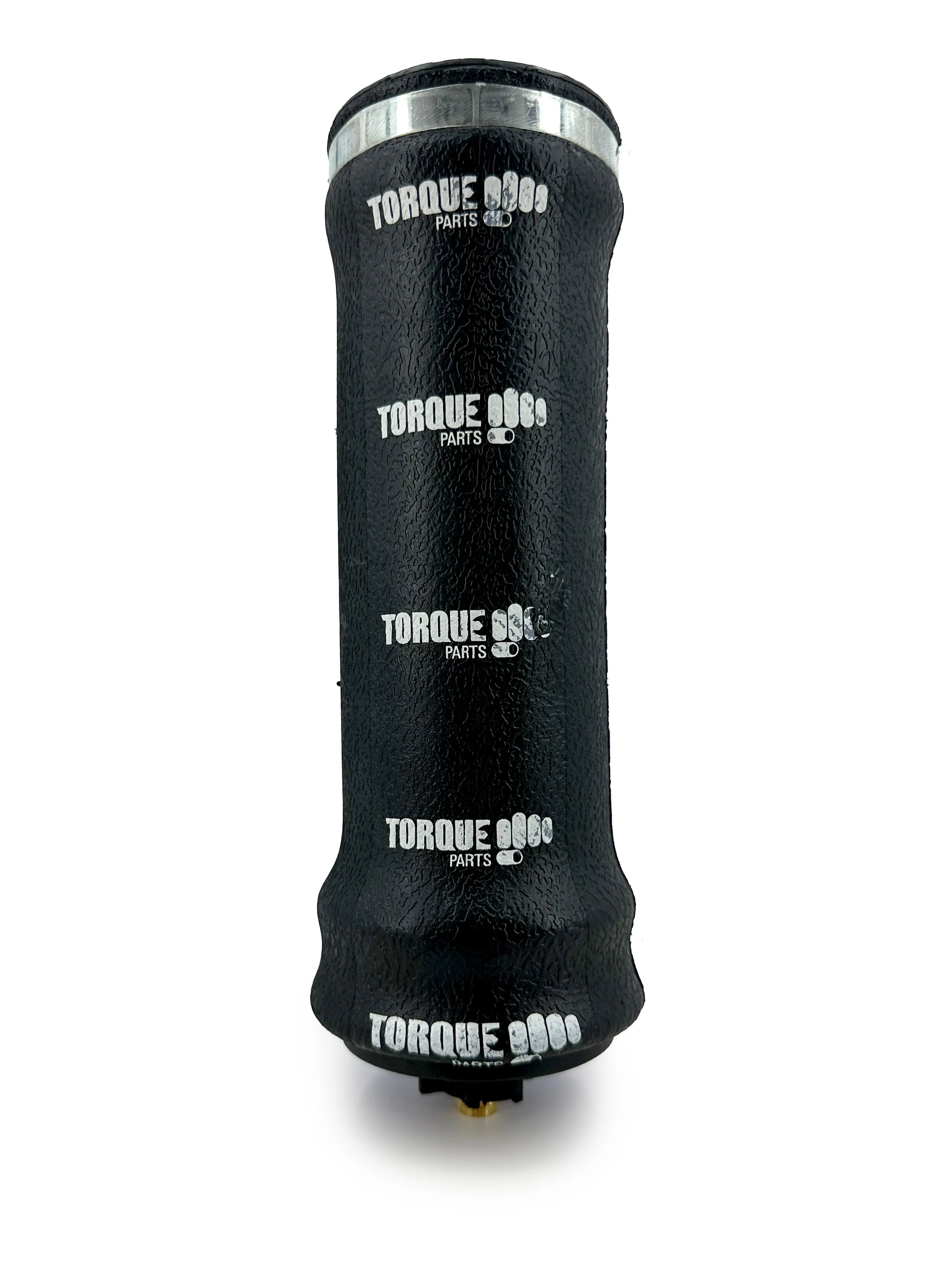

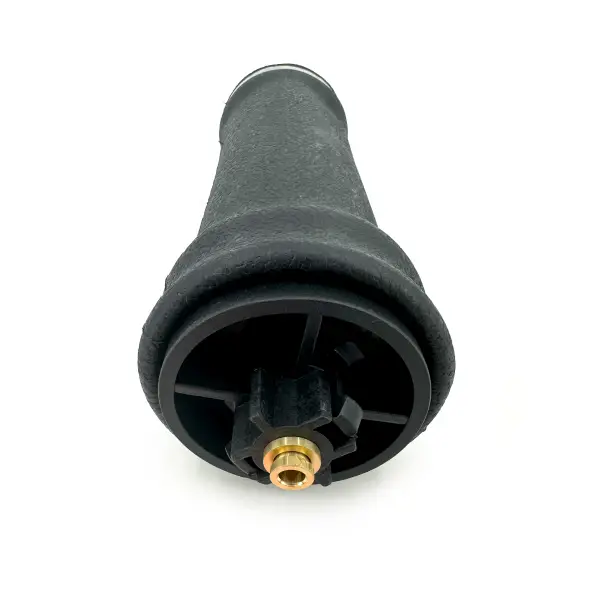

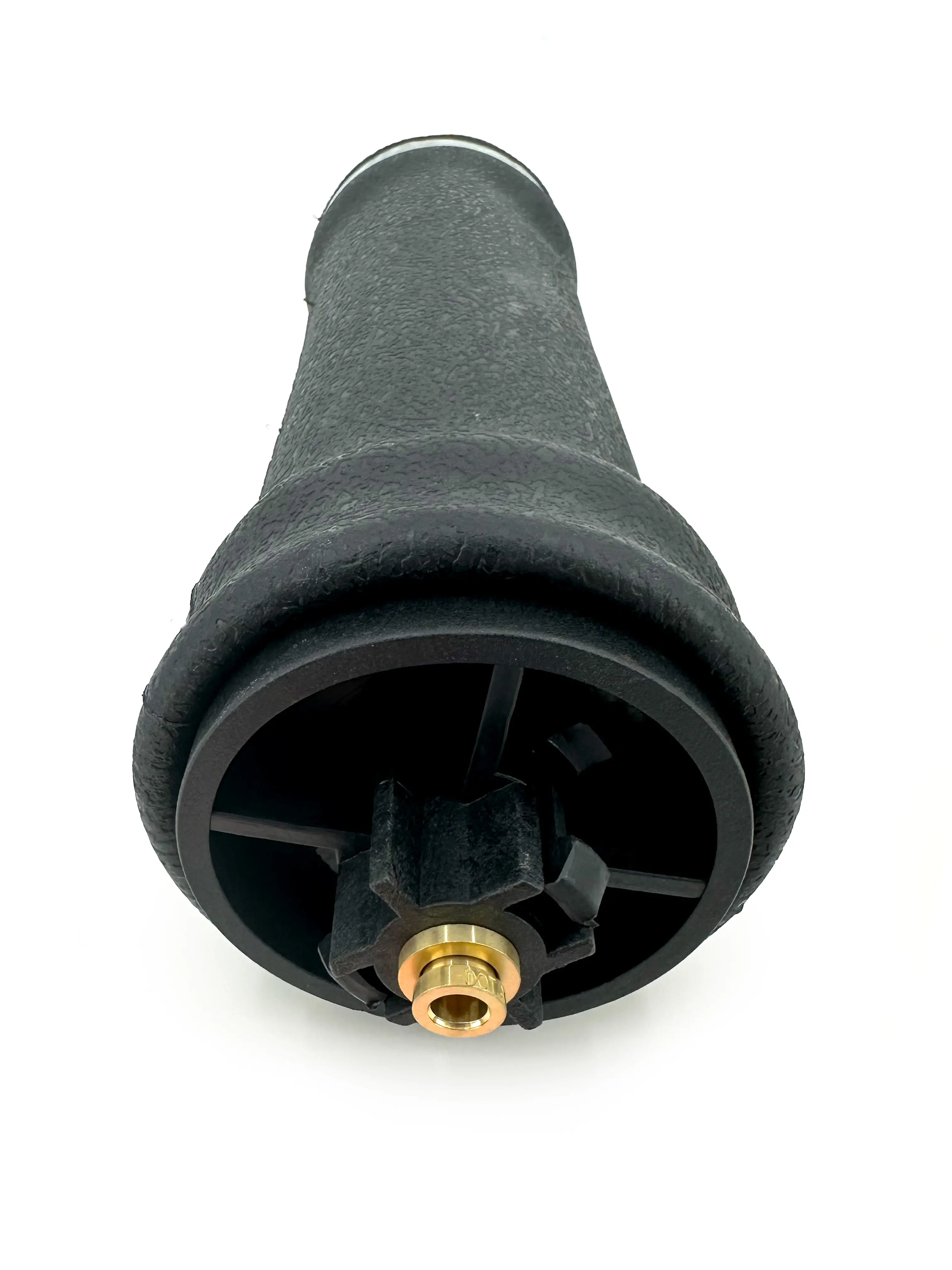

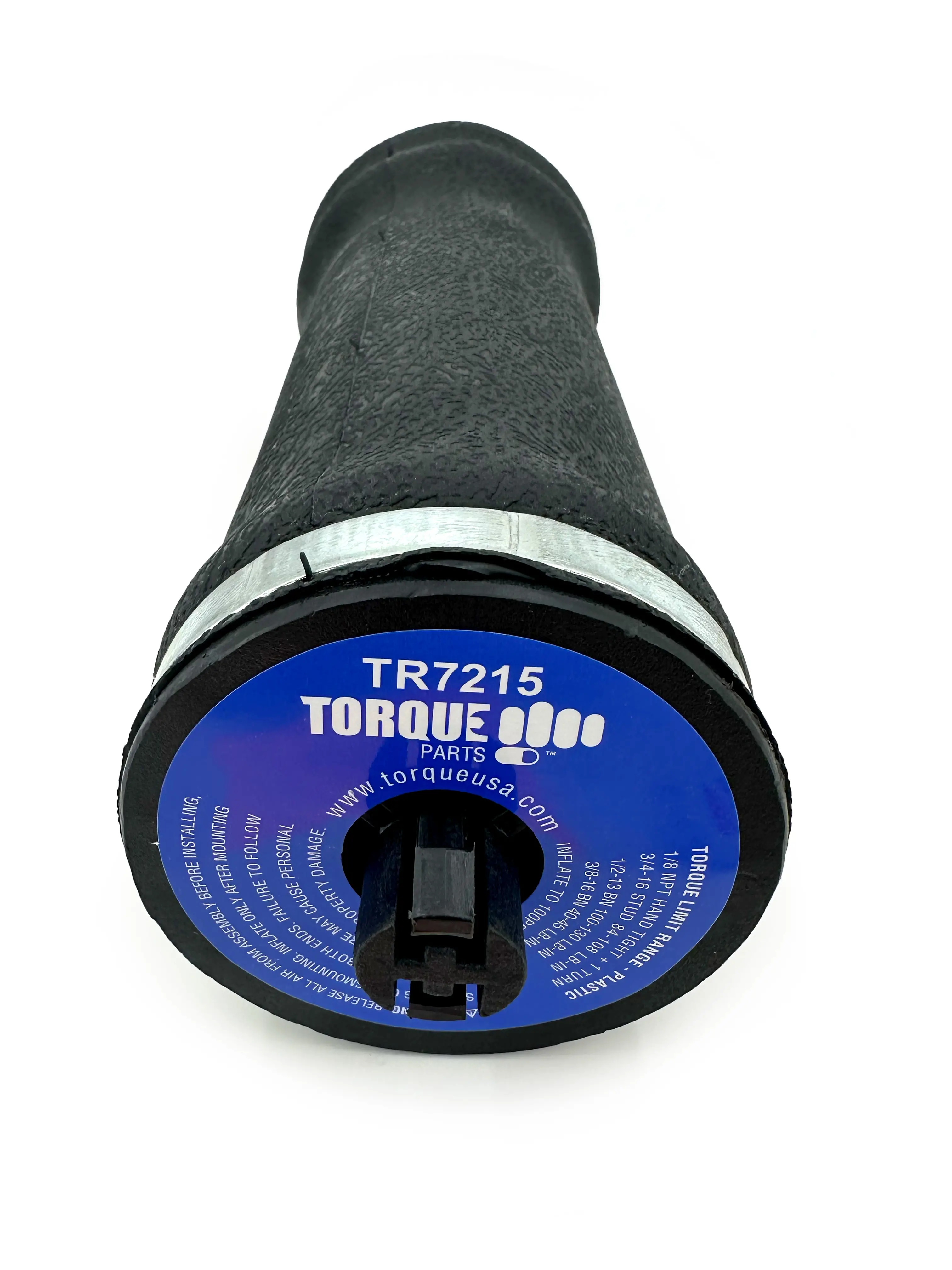

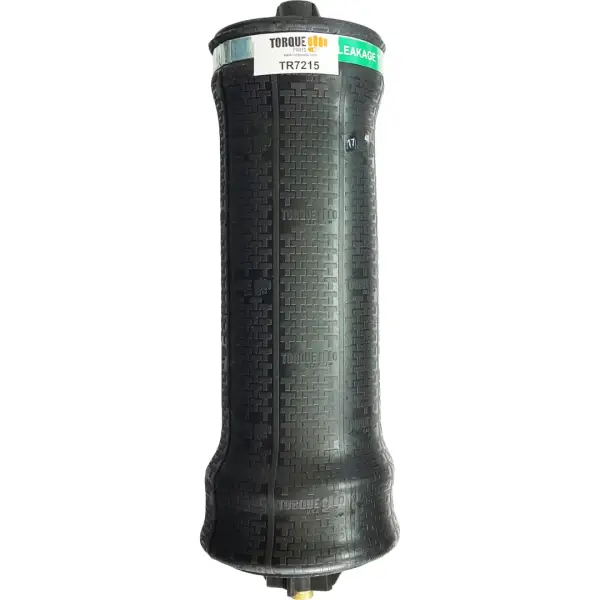

Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175

Description : Cabin Air Spring for Freightliner Trucks

Part Number : TR7215

Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175
Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175
Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175
Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175
360° view of Cabin Air Spring for Freightliner Replaces 18-52651-000, 1S5-175
Click to see price

Cabin Air Spring for Freightliner Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  ABSZ70‑7215
 Sampa  500.867‑01
 Alliance  ABP N32 027215
 Contitech  68161, SC31Y215, SC31‑Y215
 Firestone  7111, 7215, W023587207, W02‑358‑7207, W023587215, W02‑358‑7215, W023777215, W02‑377‑7215
 Freightliner  1840977000, 18‑40977‑000, 1852651000, 18‑52651‑000, 1852651001, 18‑52651‑001, 1866715000, 18‑66715‑000
 Goodyear  1S5175, 1S5‑175
 Triangle  AS‑5215

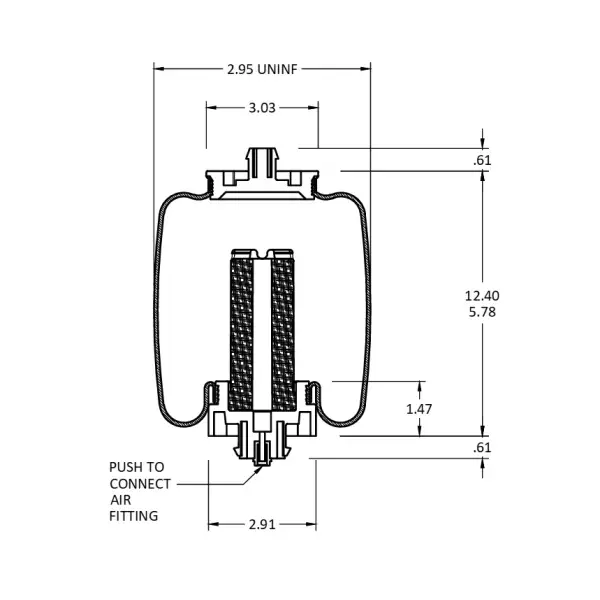

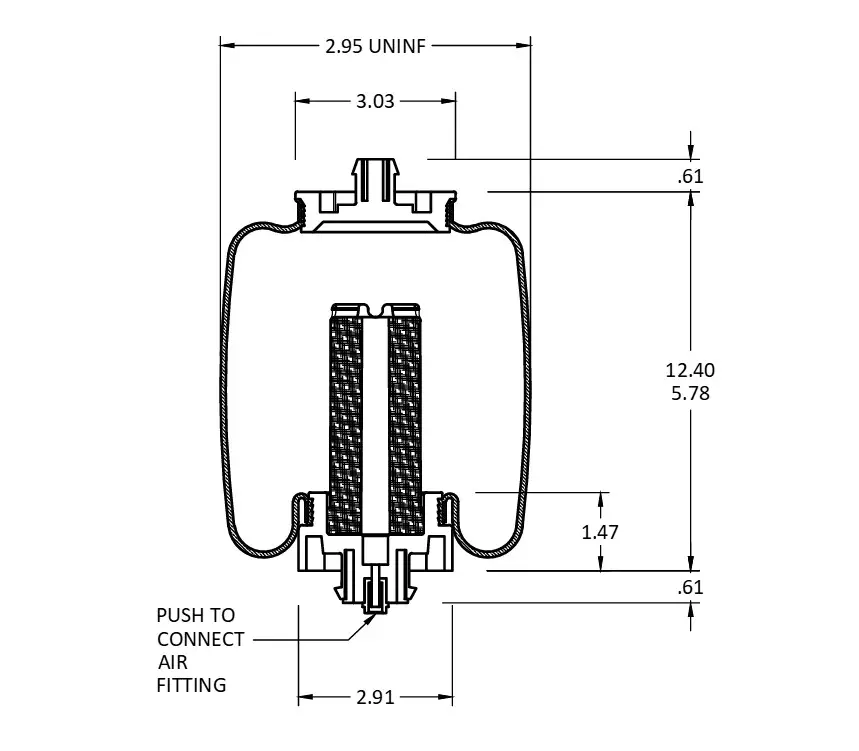

Property Value
 Locating Pin Height  0.61"
 Air Inlet  Push‑to‑connect air fitting
 Design Height  9.44"
 Piston Diameter  2.91"
 Minimum Jounce Height  5.78"
 Extended Height  12.40"
 Compressed Height  5.78"
 Weight  1.39 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
10.63" 3.54" 3.54" 1.41 lbs

No outer box information is available for this product.
