Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780

Description : Air Spring Bag for Freightliner Trucks Replaces Freightliner 16-13810-000, Firestone W01-358-9780

Part Number : TR9780

Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780
Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780
Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780
Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780
360° view of Air Spring for Freightliner Replaces 1R12-1072, W01-358-9780
Click to see price

The Ultimate Air Spring Bag for Freightliner Trucks and Heavy-Duty Suspension Systems!


Ensure optimal performance and durability for your Freightliner truck’s suspension with the TORQUE Air Spring Bag. Designed as a direct replacement for Freightliner 16-13810-000, 1613810000, Firestone 9780, 8537, W01-358-9780, Goodyear 1R12-189, 1R12-303, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with premium materials, including 4.5-5.00 mm thick rubber, 25% stronger 4140-grade steel studs, and stronger composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by an industry-leading 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.




Quality Assurance:




  • Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.

  • Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.

  • Easy Identification: Part number permanently engraved on the rubber for easy reference.

  • Leak-Free Performance: Highest leak test ratio after final assembly.




Product Specifications:




  • Extended Height: 23.00"

  • Compressed Height: 8.75"

  • Top Plate Width: 9.00"

  • Piston Width: 10.62"

  • Weight: 13.60 lbs




Compatibility:
This air spring bag is a direct replacement for the following part numbers:



  • Freightliner 16-13810-000, 16-13810-001, 16-13810-002, 681-320-0017, A16-14004-000, A16-14004-001

  • Firestone W01-358-9780, W01-377-8537

  • Goodyear 1R12-189, 1R12-303, 1R12-186

  • Triangle AS-8382P

  • Contitech 910S-16P382

  • Watson & Chalin AS01471G

  • Automann 566.ER9780

  • AS9780, HDV9780, HD9780

  • Sampa SP559780-KP




Warranty Information:
Thanks to our superior quality and customer service, we are proud to offer the industry’s first 3-year unlimited mile warranty on our rolling lobe/reversible sleeve air springs. When you receive your air spring, please register it through the Torque Parts website to activate your warranty.




Fitment Guide:
To ensure the correct fit for your Freightliner truck or trailer, please:

  1. Contact your dealer and obtain the part number.

  2. Verify that this air spring bag replaces your current part number.

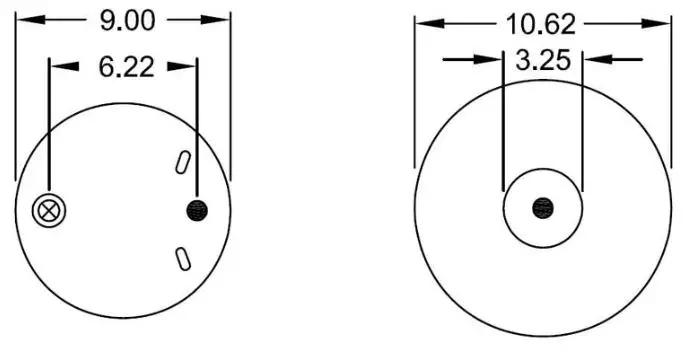

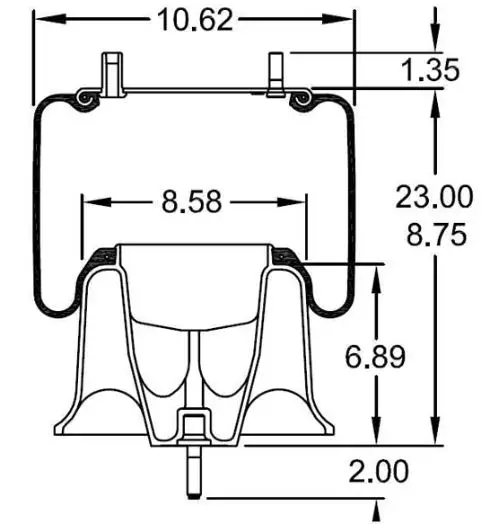

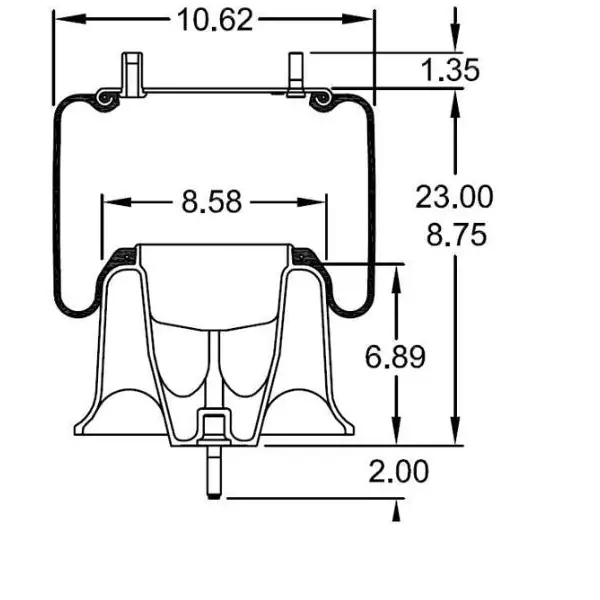

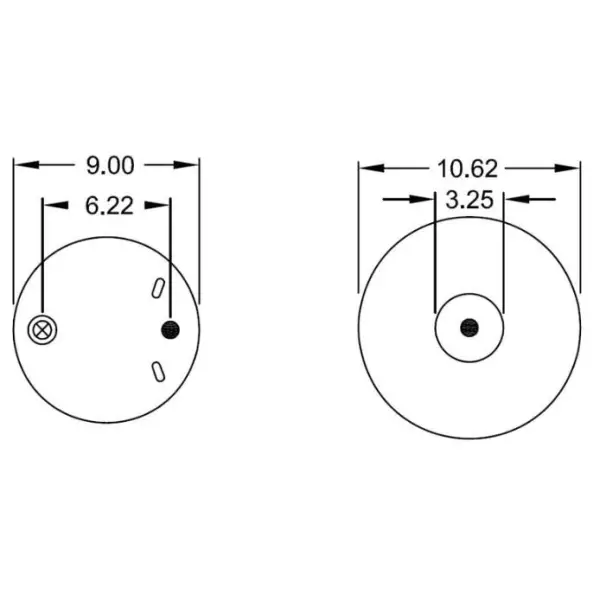

  3. Refer to the diagram picture and confirm that all specifications match your existing air bag.




Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.




Why Choose TORQUE?




  • Superior Quality: Exceeds OEM standards with premium materials and construction.

  • Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.

  • Extensive Compatibility: Replaces multiple part numbers for Freightliner trucks and other brands.

  • Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.

  • Expert Support: Contact us for any fitment or warranty queries.

Upgrade your Freightliner truck’s suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Alliance ABP N32 019781, ABP N32 019780, ABP N32 018537
Automann 1DF23‑9781, 566.ER9781, AB1DF23‑9781, 566.CT64266, 566.ER9780, AB1DF23‑9780, 566.CT67473
Contitech 67473, 9 10S‑16 P 382, 910S‑16A382, 64266, 910S16P382
Dayton 452‑9781, 452‑9780
Euclid FS9780, FS9781
Firestone 8537, 9758, 9780, 9784, 9786, VM19780, VM1‑9780, W013589780, W01‑358‑9780, W013778528, W01‑377‑8528, W013778530, W01‑377‑8530, W013778537, W01‑377‑8537, W013779758, W01‑377‑9758, W013779784, W01‑377‑9784, W013779785, W01‑377‑9785, W013779786, W01‑377‑9786, W013779787, W01‑377‑9787, W013779789, W01‑377‑9789, 5779, 9781, 9782, W01‑358‑9781, W01‑358‑9782, W01‑377‑8536, W013778527, W013779783
Fleetpride AS9781, AS9780
Fleetrite 1R12‑1064, 1R12‑1054
Freightliner 1613801000, 1613810000, 16‑13810‑000, 1613810001, 16‑13810‑001, 1613810002, 16‑13810‑002, 1614366000, 16‑14366‑000, 1614377000, 16‑14377‑000, 1615595000, 16‑15595‑000, 1616528000, 16‑16528‑000, 1616529000, 16‑16529‑000, 1616773000, 16‑16773‑000, 1616825000, 16‑16825‑000, 1619468000, 16‑19468‑000, 6813200017, 681‑320‑0017, A1613668001, A16‑13668‑001, A1615443000, A16‑15443000, A1620111000, A16‑20111‑000, A6803200017, A‑680‑320‑00‑17, A16‑14004‑000, A16‑17574‑001, A16‑17574‑002, 16‑13840‑000
Globetech GTK‑358‑9781, GTK‑358‑9780
Goodyear 1R121072, 1R12‑1072, 1R12186, 1R12‑186, 1R12303, 1R12‑303, 1R12‑603, 1R12‑1082, 1R12‑268, 1R12‑189
Loadguard SC2750
Meritor MAF9781, FS9781, MAF9780, FS9780
Neway G2299780200
SAF Holland Goldline G2299781400, G2299780200
Sterling AC455580CA, XC455580BA
Thomasbilt 61310437
Traction FIRW01‑358‑9782, FIRW01‑358‑9781
Triangle 8382, AS‑8382P
TRP AS9780A, AS9780P
Volvo 85101151
Volvo/White 3946472
Watson&Chalin AS01471G
Sampa SP559780‑KP, SP 559780‑KP, SP559780KP
Property Value
Extended Height  23.00"
Compressed Height  8.75"
Top Plate Width  9.00"
Piston Width  10.62"
Weight  13.60 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
14.96" 10.83" 6.89" 30.07 lbs
Outer Box
Quantity Longest Side Median Side Shortest Side Weight
52 44.09" 44.09" 45.28" 729.73 lbs
