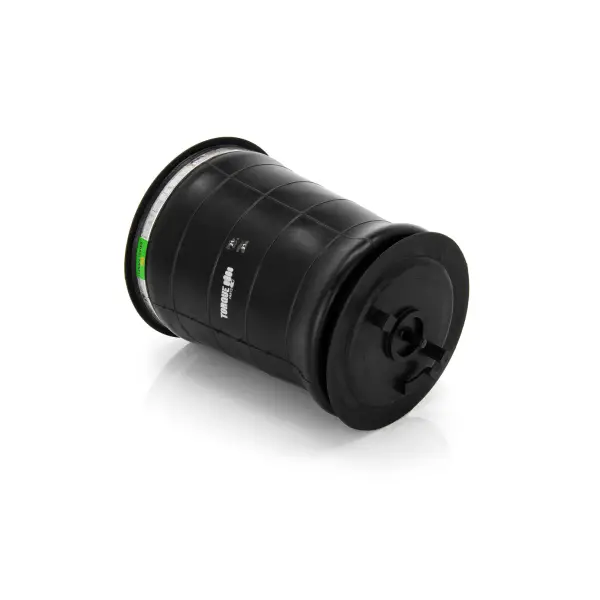

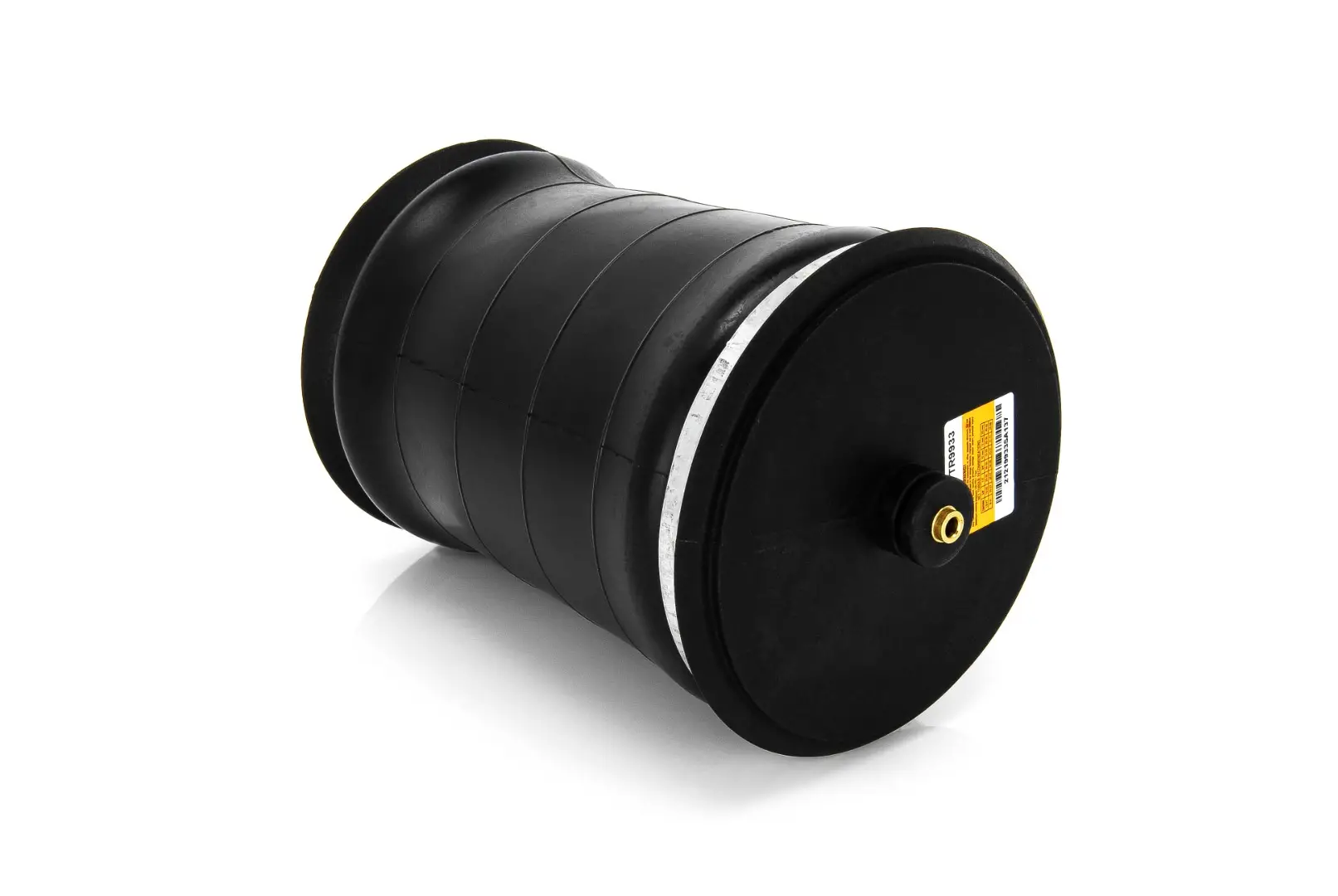

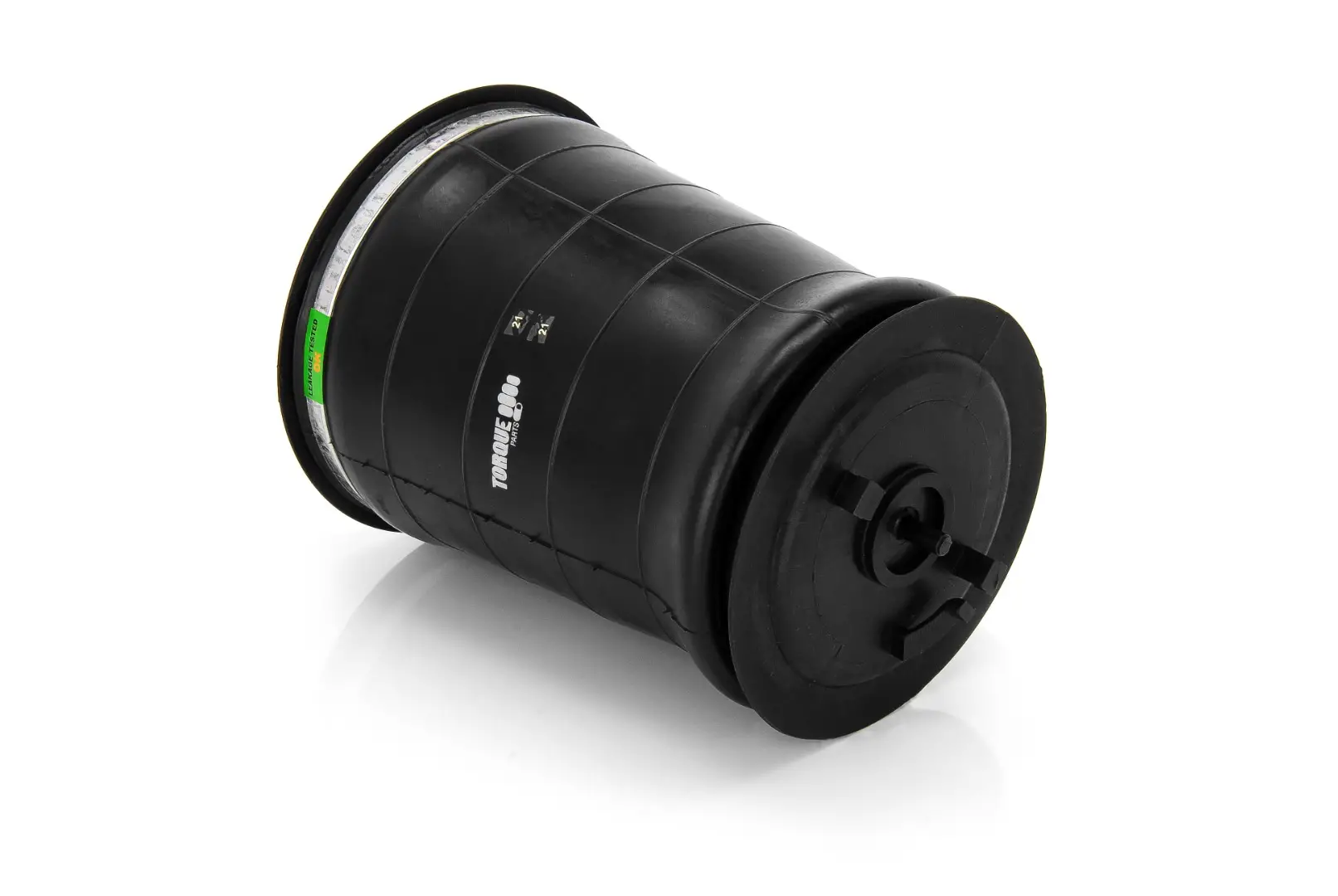

Front Axle Air Spring for PACCAR Replaces B81-6023, ABSK125-9933

Description : Front Axle Air Spring Bag for PACCAR Replace Firestone 9933

Part Number : TR9933

Front Axle Air Spring for PACCAR Replaces B81-6023, ABSK125-9933

Click to see price

- High-Quality Front Axle Air Spring for PACCAR

Replaces

PACCAR: B81-6023B
Firestone: W02-358-9933

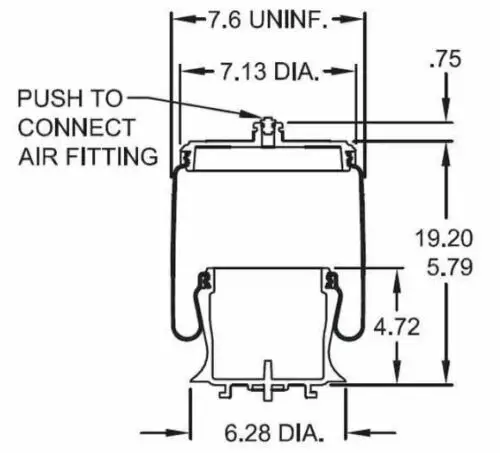

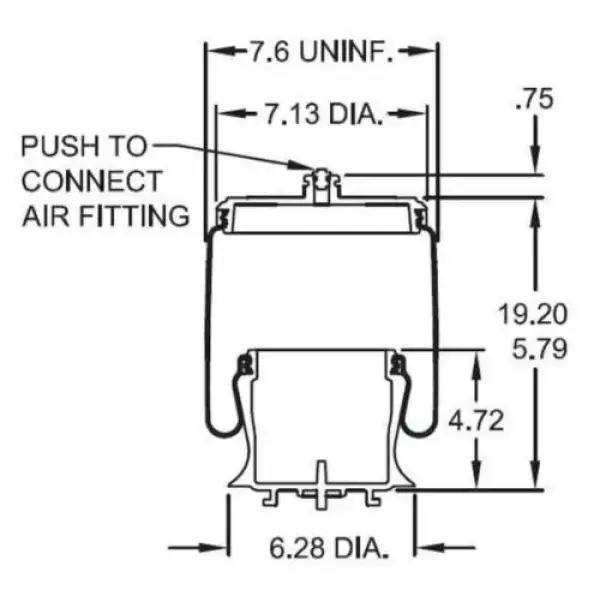

Specifications

Extended Height	: 19.20"
Compressed Height	: 5.79"

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSK125‑9933
Contitech	78360
Firestone	W26‑358‑9933, W263589933
Kenworth	B81‑6023, B816023

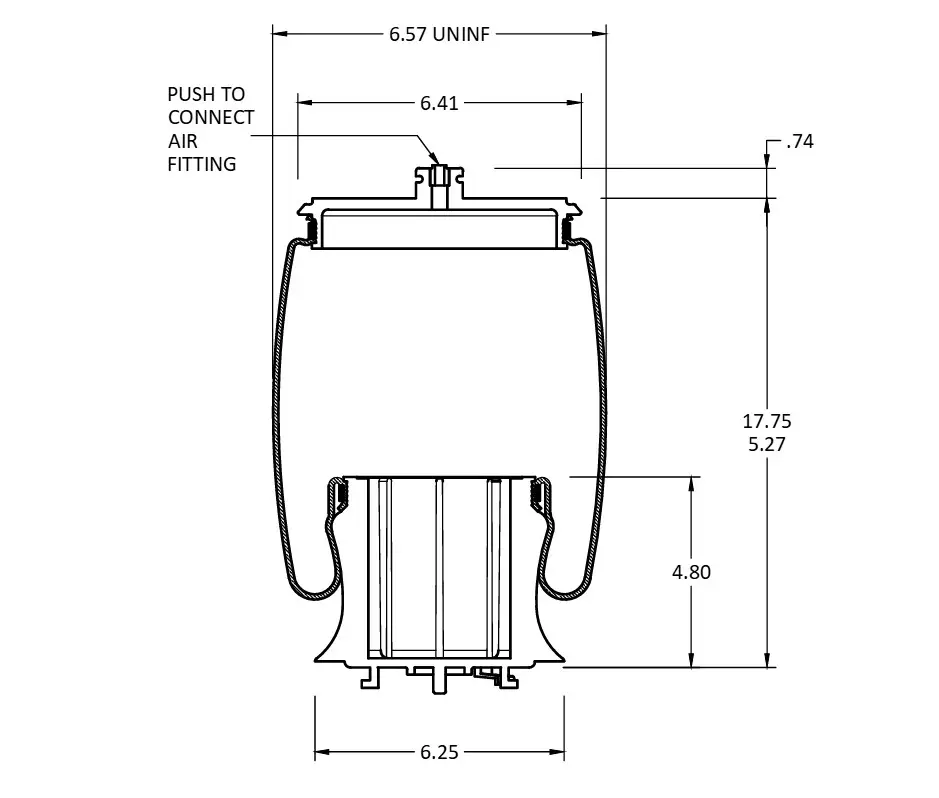

Property	Value
Air Inlet	Push‑to‑connect air fitting
Design Height	8.85"
Piston Diameter	6.25"
Minimum Jounce Height	5.27"
Extended Height	17.75"
Compressed Height	5.27"
Weight	4.64 lbs

Kenworth Front AG130 Air Suspension

Inner Box
Longest Side	Median Side	Shortest Side	Weight
10.04"	7.28"	7.28"	10.19 lbs

Outer Box
Quantity	Longest Side	Median Side	Shortest Side	Weight
6	21.65"	21.65"	10.63"	33.07 lbs
