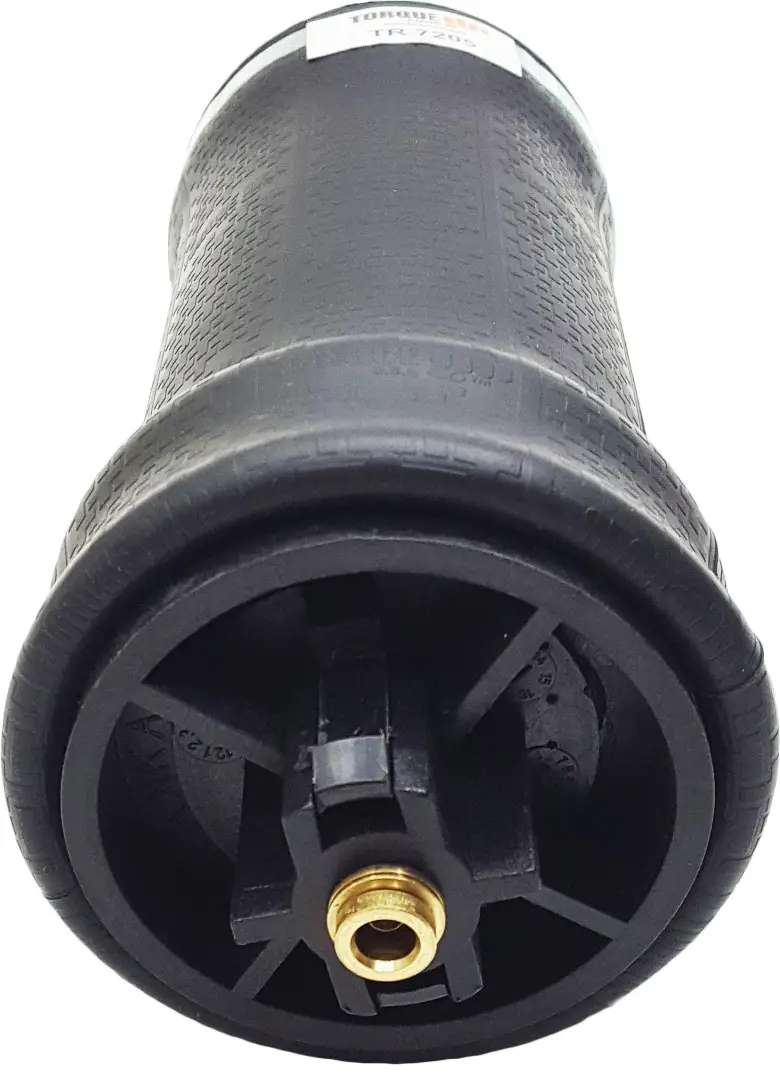

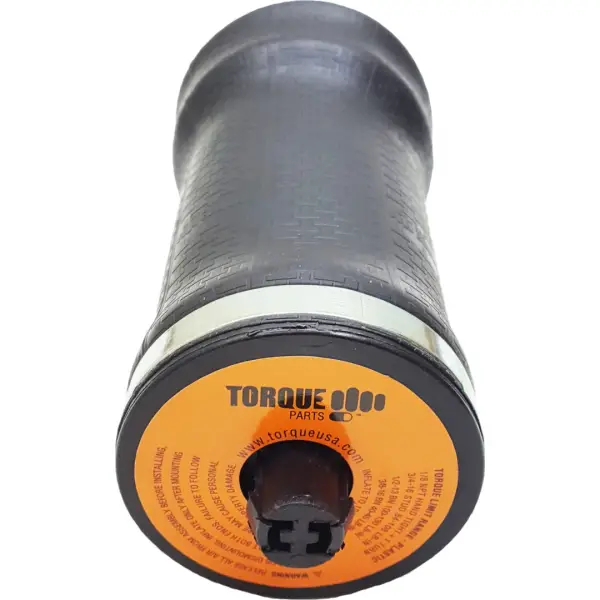

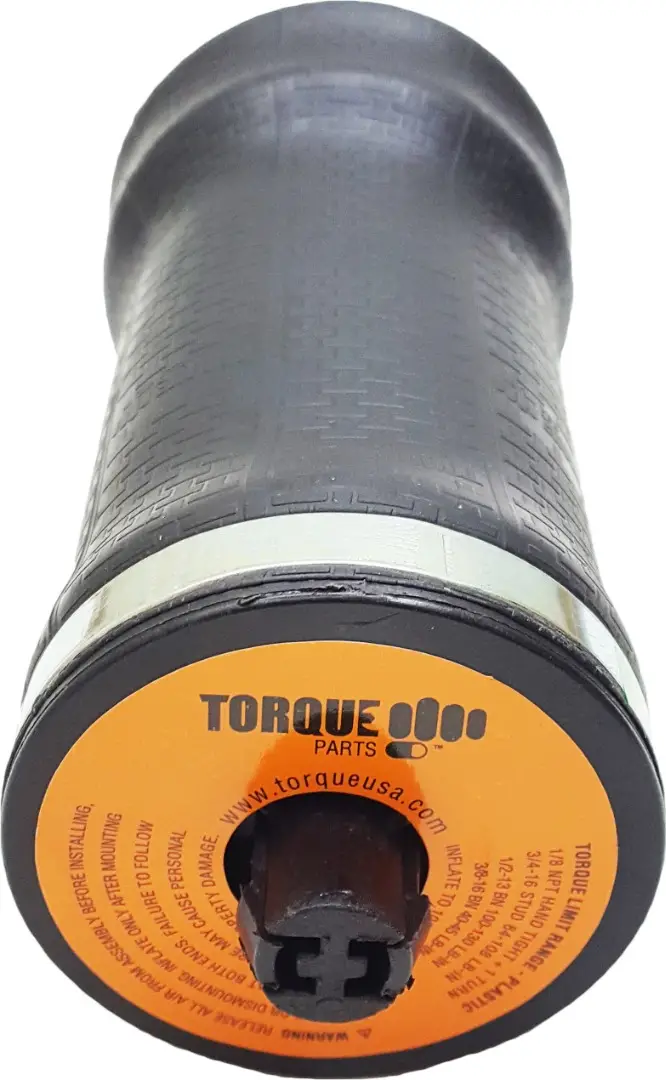

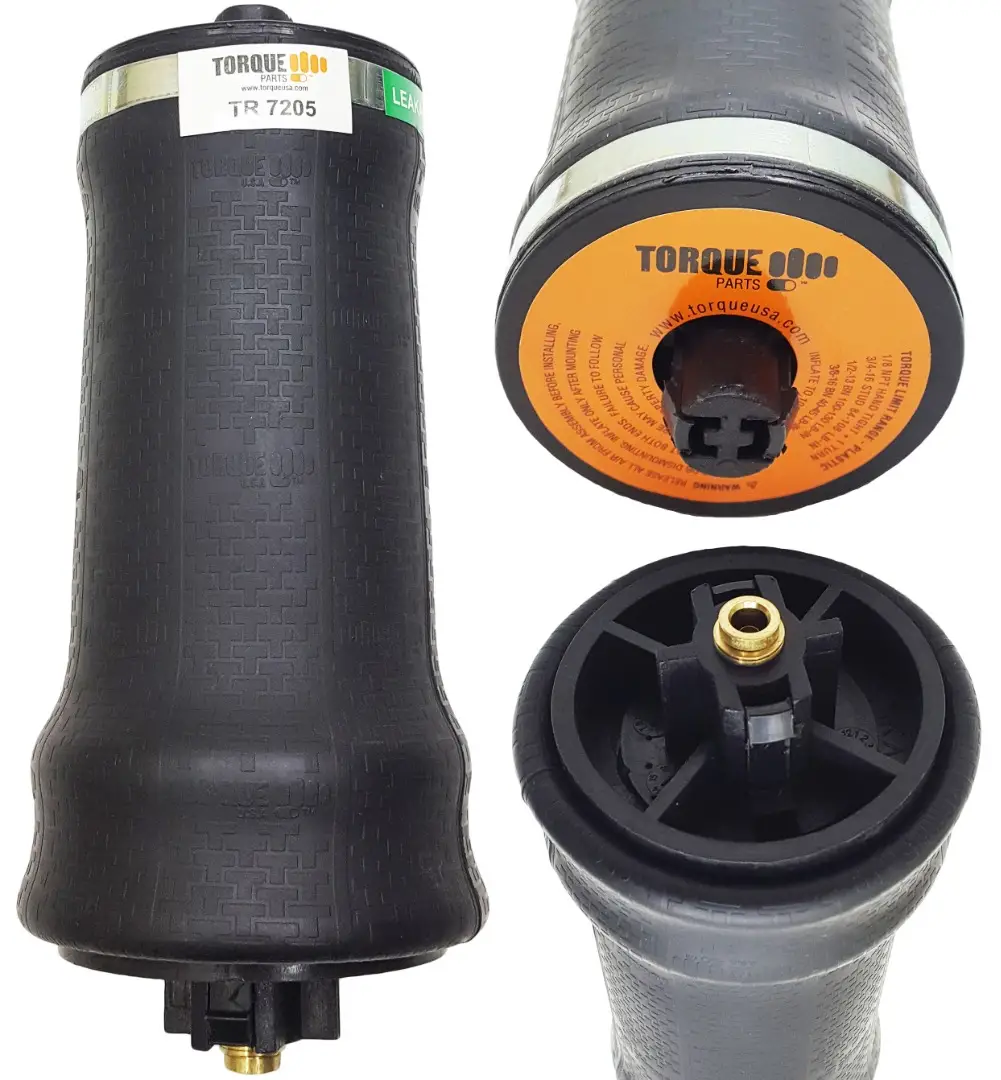

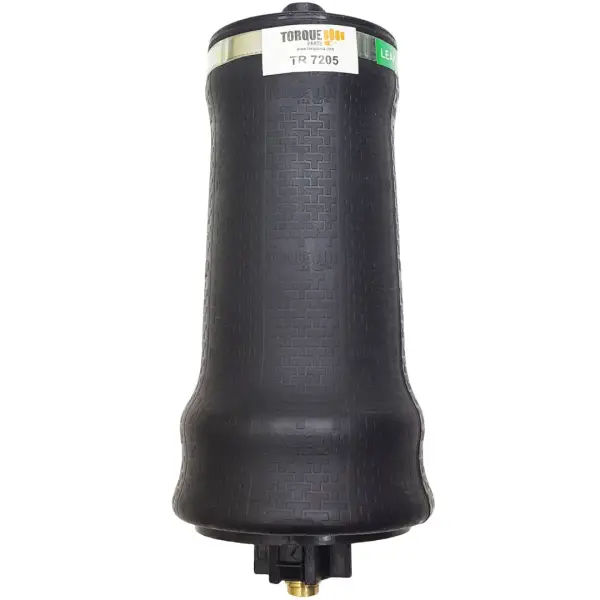

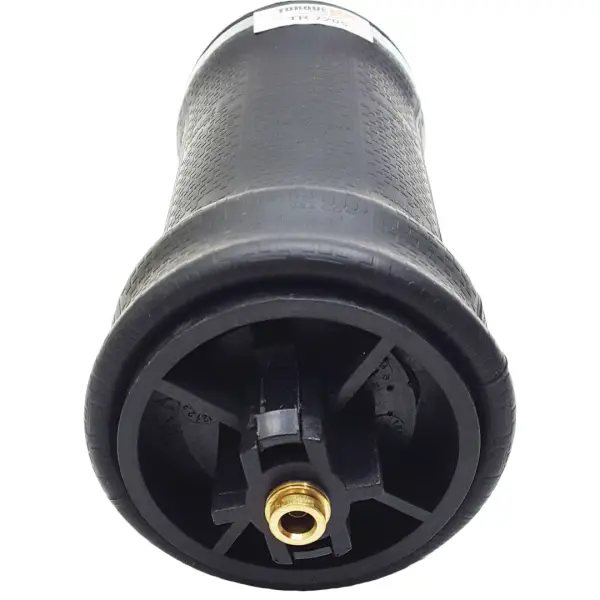

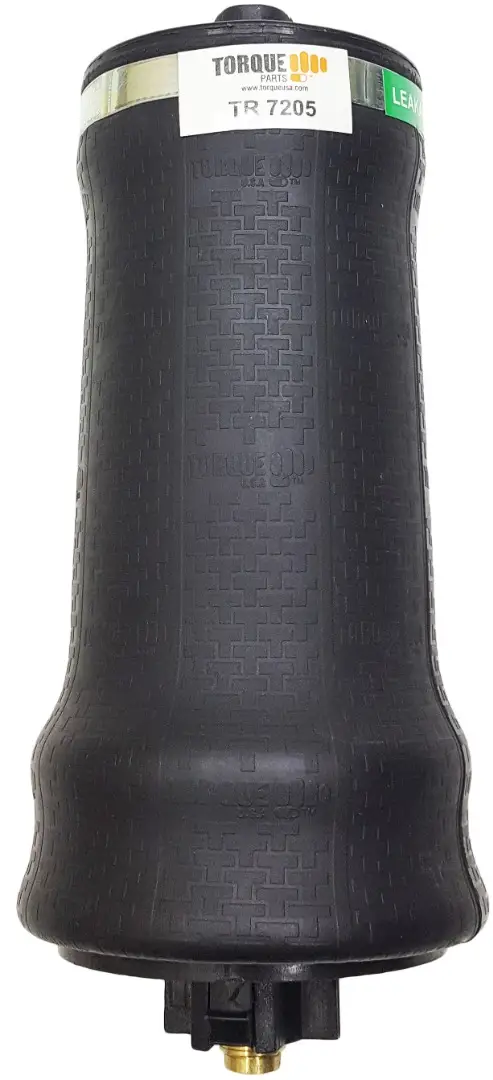

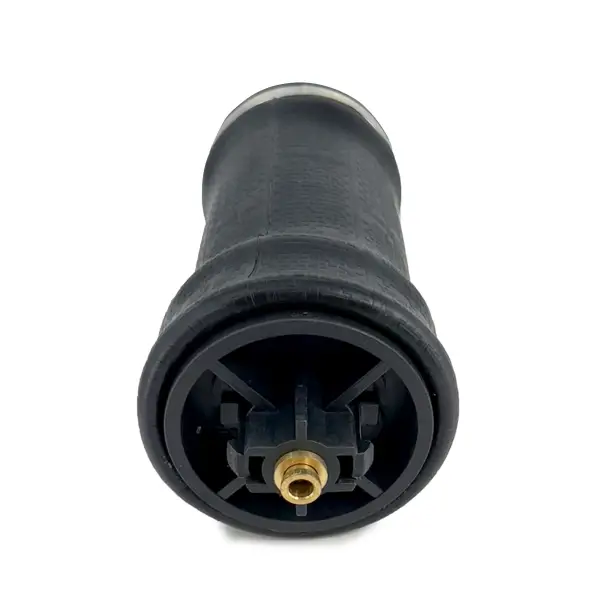

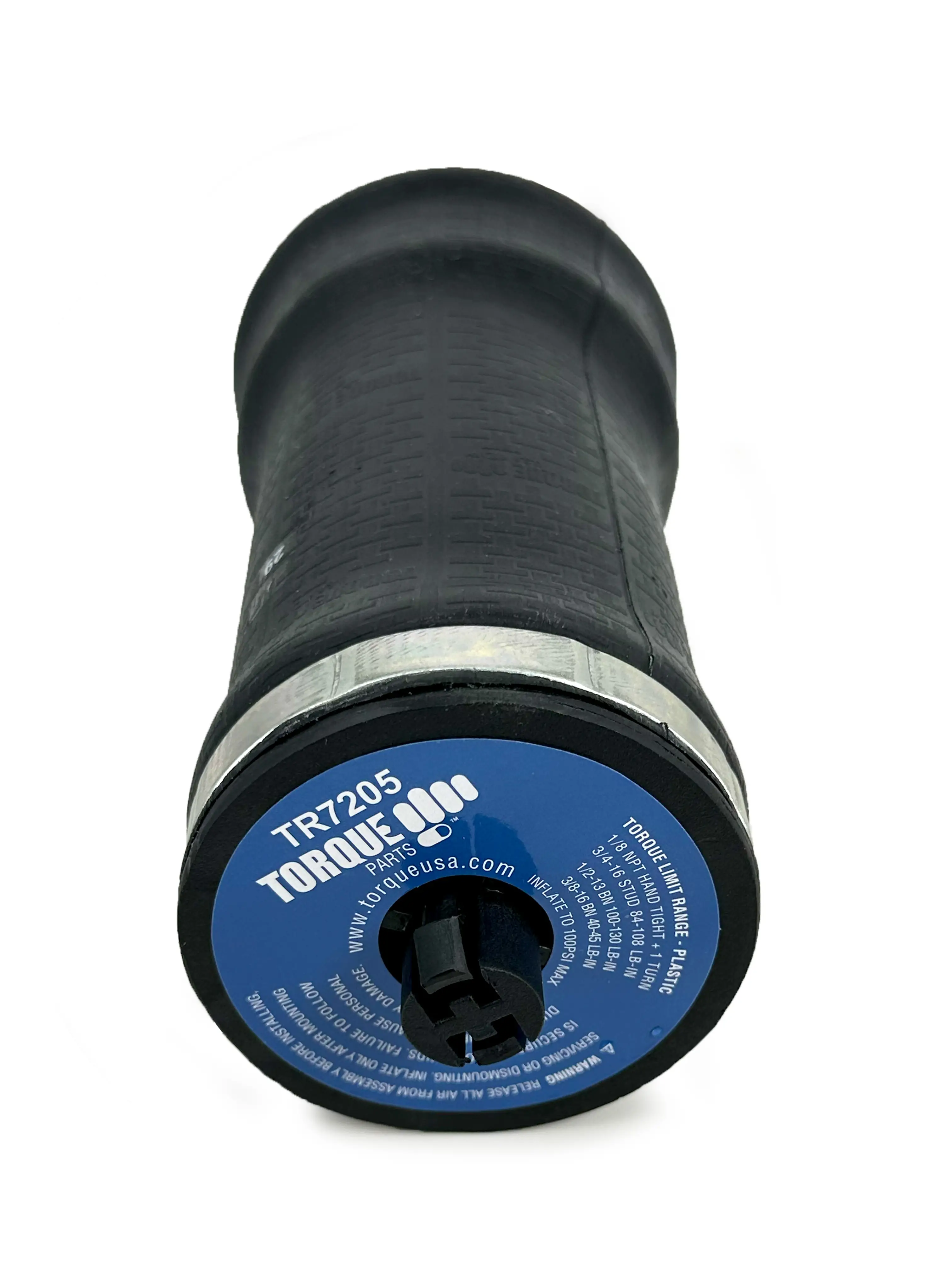

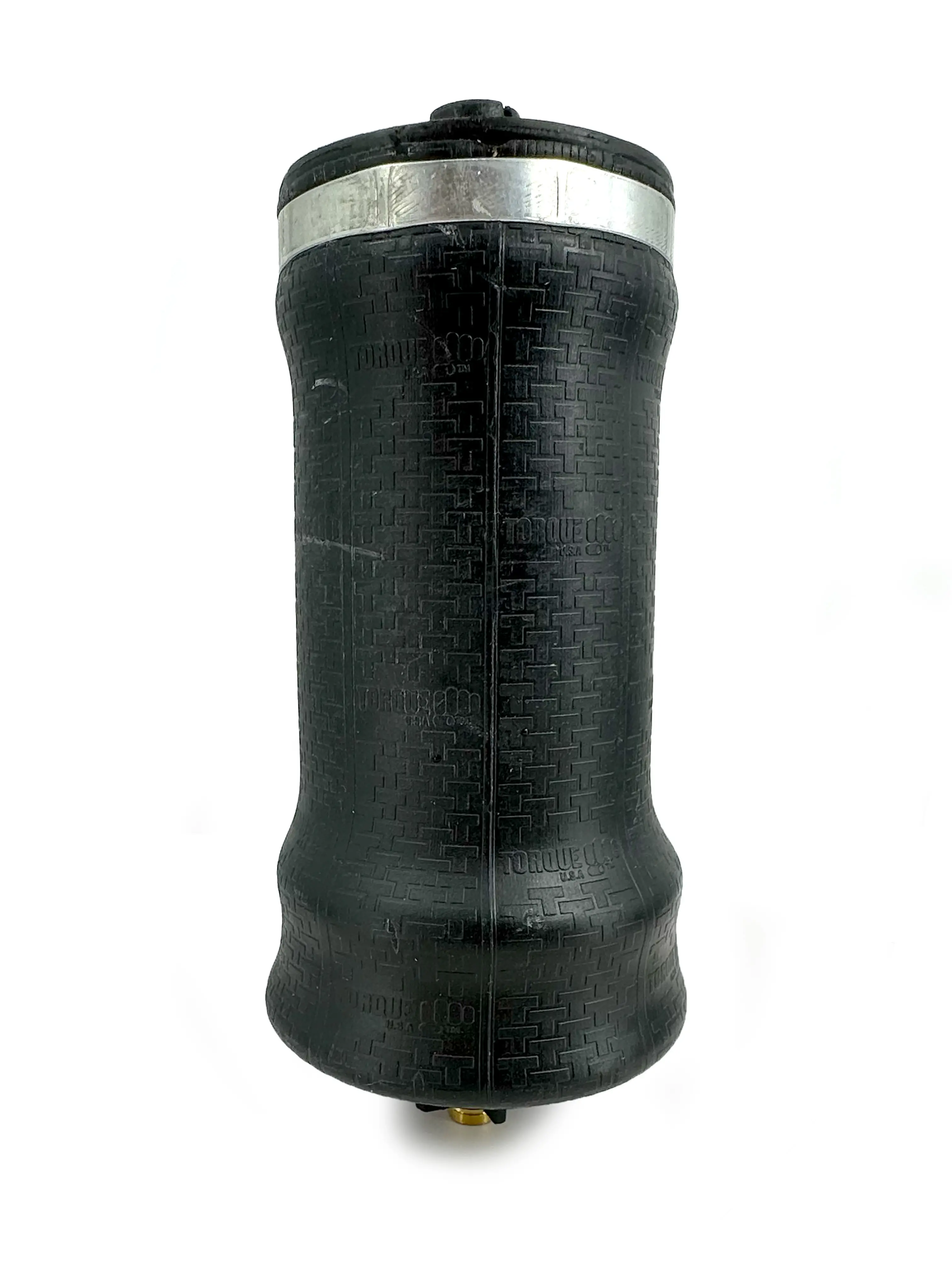

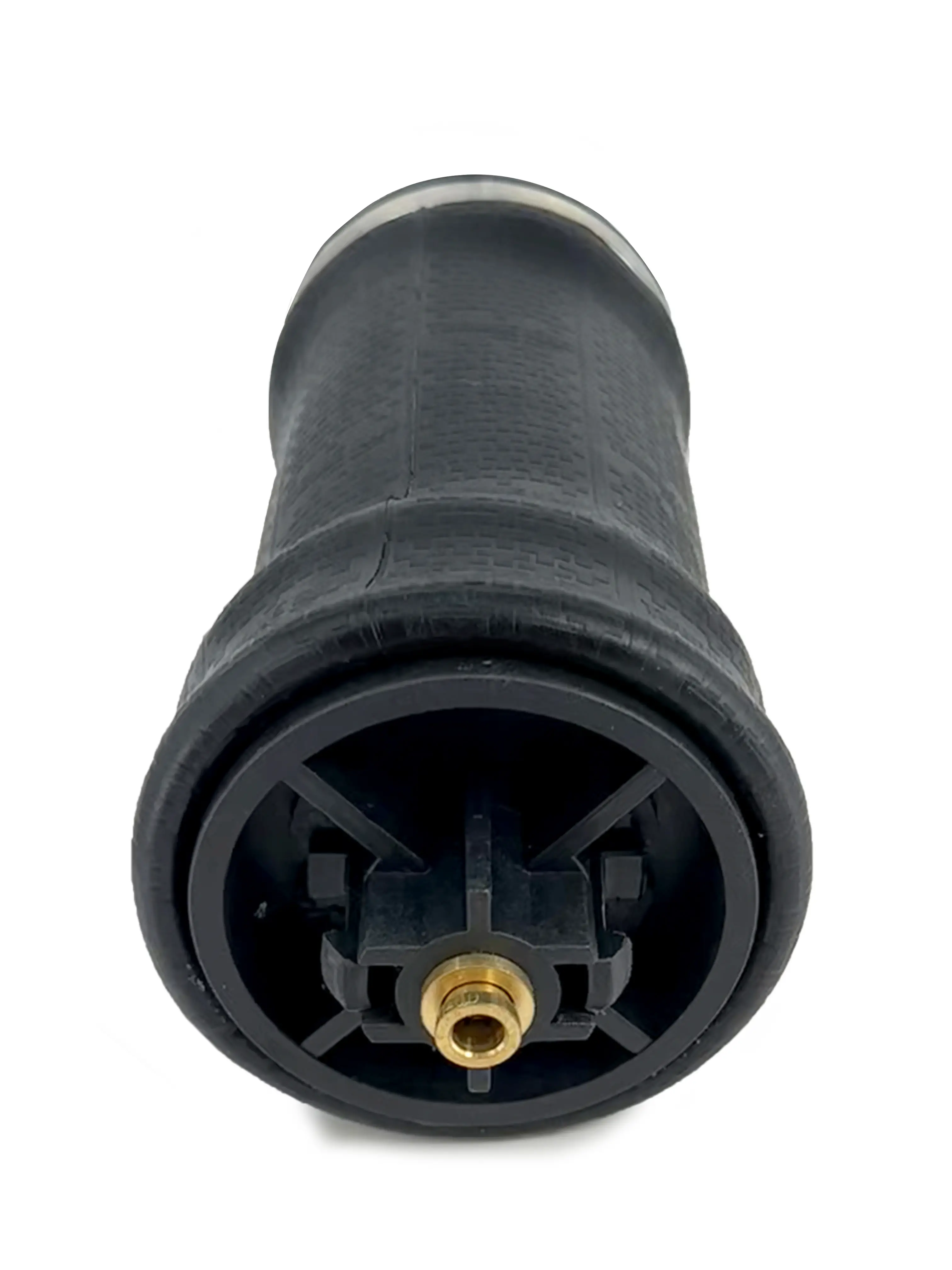

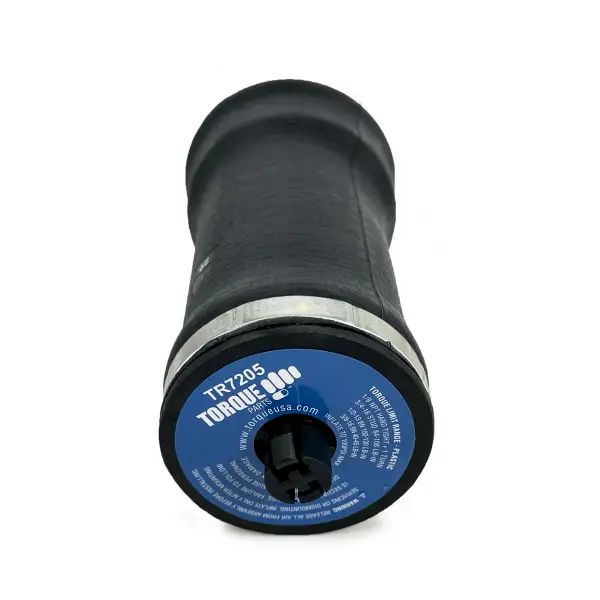

Cabin Air Spring for Freightliner Replaces 184-0977-000, 7205

Description : Cabin Air Spring for Freightliner Trucks

Part Number : TR7205

Cabin Air Spring for Freightliner Replaces 184-0977-000, 7205

Click to see price

Cabin Air Spring for Freightliner/Western Star Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70‑7205
Sampa	500.909‑01
Alliance	ABP N32 027205
Contitech	67638, SC31Y205, SC31‑Y205
Firestone	7203, 7205, W023587205, W02‑358‑7205, W023777205, W02‑377‑7205
Freightliner	1840977000, 1852651000, 1873178000, 18‑73178‑000, 660033406, 66003‑3406
Goodyear	1S5175, 1S5‑175
Volvo	660033406

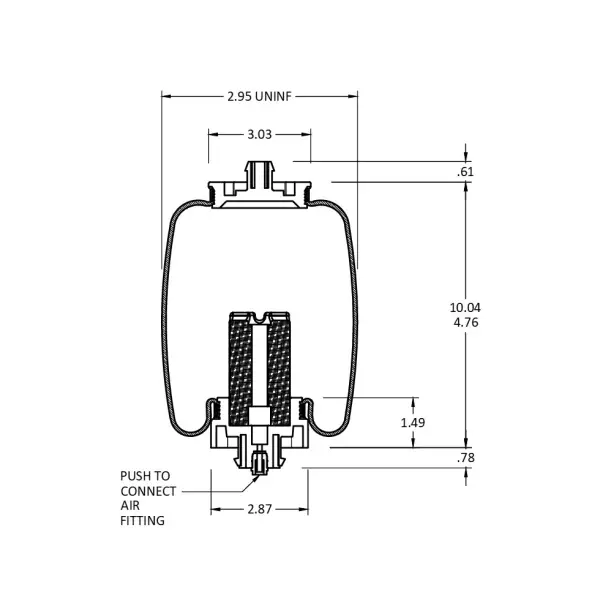

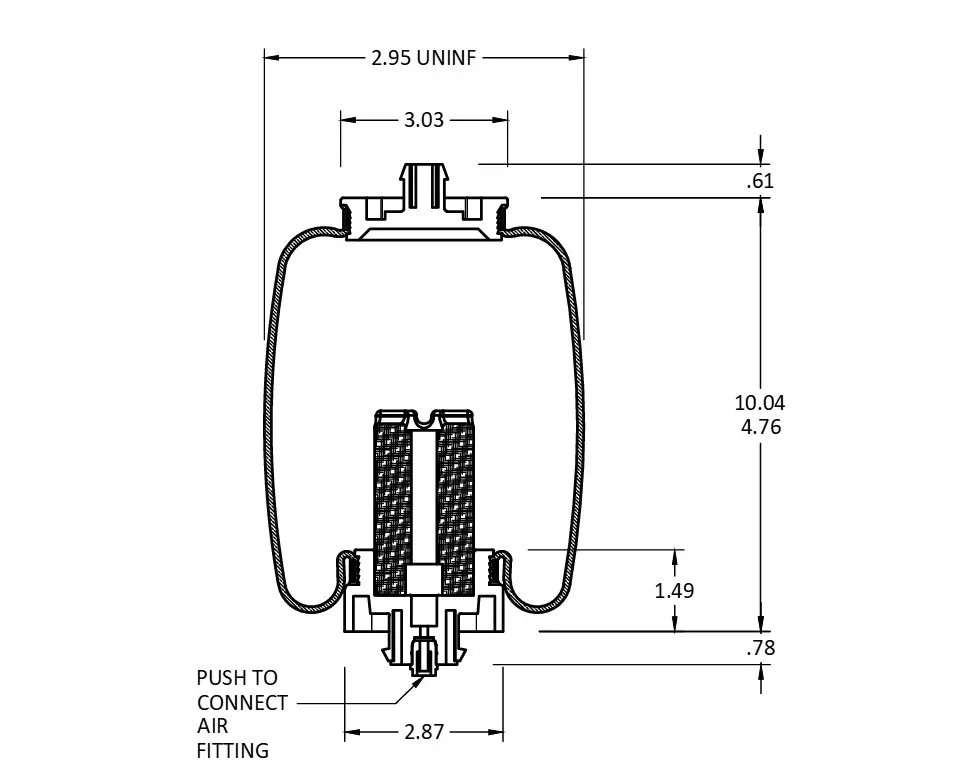

Property	Value
Locating Pin Height	0.61‑0.78"
Air Inlet	Push‑to‑connect air fitting
Design Height	8.5‑10.2"
Piston Diameter	2.87"
Minimum Jounce Height	4.76"
Extended Height	10.04"
Compressed Height	4.76"
Weight	1.23 lbs
