The Ultimate Air Spring Bag for Volvo Trucks!
Ensure optimal performance and durability for your Volvo truck’s suspension with the TORQUE Air Spring Bag. Designed as a direct replacement for Firestone 8829, W01-358-8829, Goodyear 1R12-405, Volvo 20505399, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with premium materials, including 4.5-5.00 mm thick rubber, 25% stronger 4140-grade steel studs, and stronger composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by an industry-leading 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Quality Assurance:
Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.
Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.
Easy Identification: Part number permanently engraved on the rubber for easy reference.
Leak-Free Performance: Highest leak test ratio after final assembly.
Product Specifications:
Extended Height: 20.00"
Compressed Height: 6.10"
Top Plate Width: 9.00"
Piston Width: 10.00"
Weight: 14.20 lbs
Compatibility:
This air spring bag is a direct replacement for the following part numbers:
Firestone W01-358-8829
Goodyear 1R12-405, 1R12-615, 1R12-647
Volvo 3934699, 8079902, 20733034, 20413888, 20505399
Contitech 9 10-16 P 449
AS8829, HDV8829, HD8829
Sampa SP558829-KP
Fitment Guide:
To ensure the correct fit for your Volvo truck, please:
Contact your dealer and obtain the part number.
Verify that this air spring bag replaces your current part number.

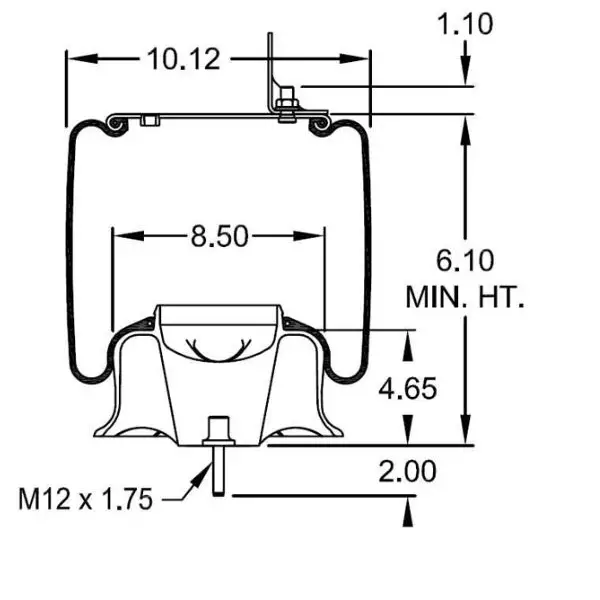

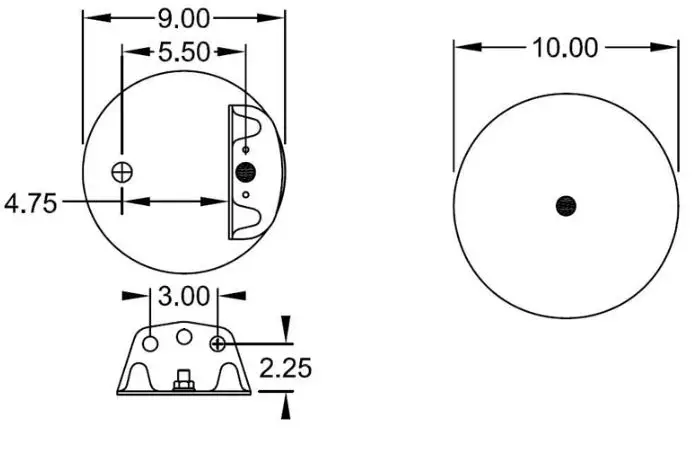

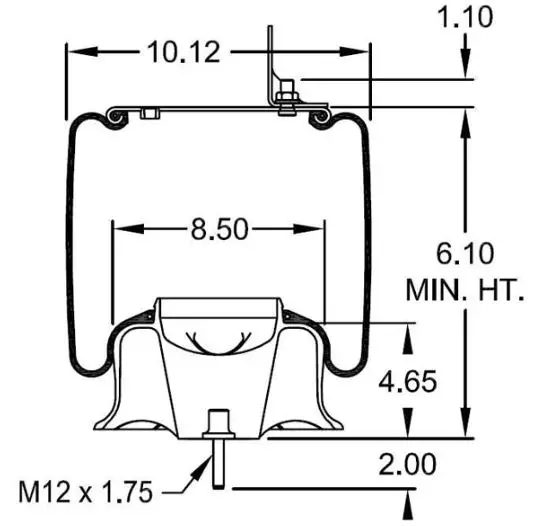

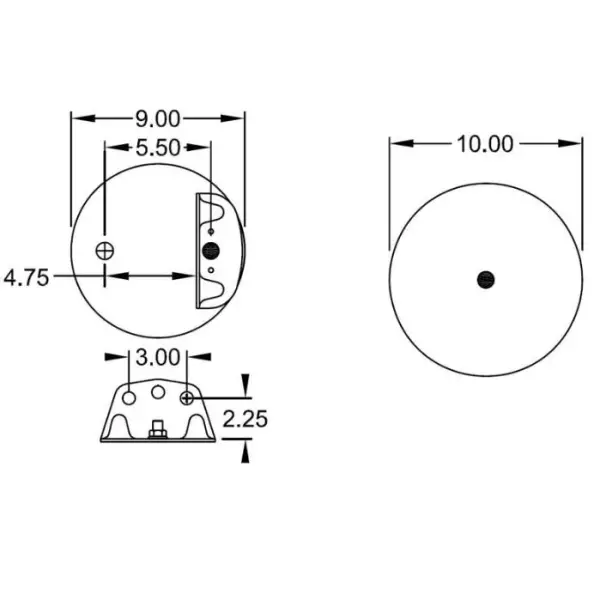

Refer to the diagram picture and confirm that all specifications match your existing air bag.
Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.
Why Choose TORQUE?
Superior Quality: Exceeds OEM standards with premium materials and construction.
Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.
Extensive Compatibility: Replaces multiple part numbers for various brands.
Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.
Expert Support: Contact us for any fitment or warranty queries.
Upgrade your Volvo truck’s suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
AB1DK23P‑8829
|
|
Contitech
|
9 10‑16 P 449
|
|
Firestone
|
W01‑358‑8829
|
|
Goodyear
|
1R12‑405, 1R12‑615, 1R12‑647
|
|
Volvo
|
3934699, 8079902, 20733034
|
|
Sampa
|
SP558829‑KP, SP 558829‑KP, SP558829KP,
|
| Property |
Value |
|
Extended Height
|
20.00"
|
|
Compressed Height
|
6.10"
|
|
Top Plate Width
|
9.00"
|
|
Piston Width
|
10.00"
|
|
Weight
|
14.32 lbs
|
Volvo / White Rear Corporate Air Ride, (Mack Maxlite 40 '04-'06), Single or Tandem
Volvo / White Rear VN & VT Rear Spring, (Mack Maxlite 40EZ '06 & Up)
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 17.32" |
10.43" |
10.43" |
14.53 lbs |
No outer box information is available for this product.
