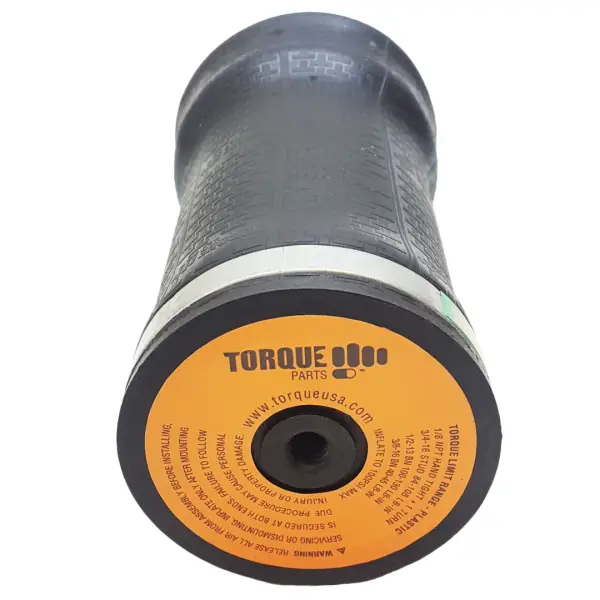

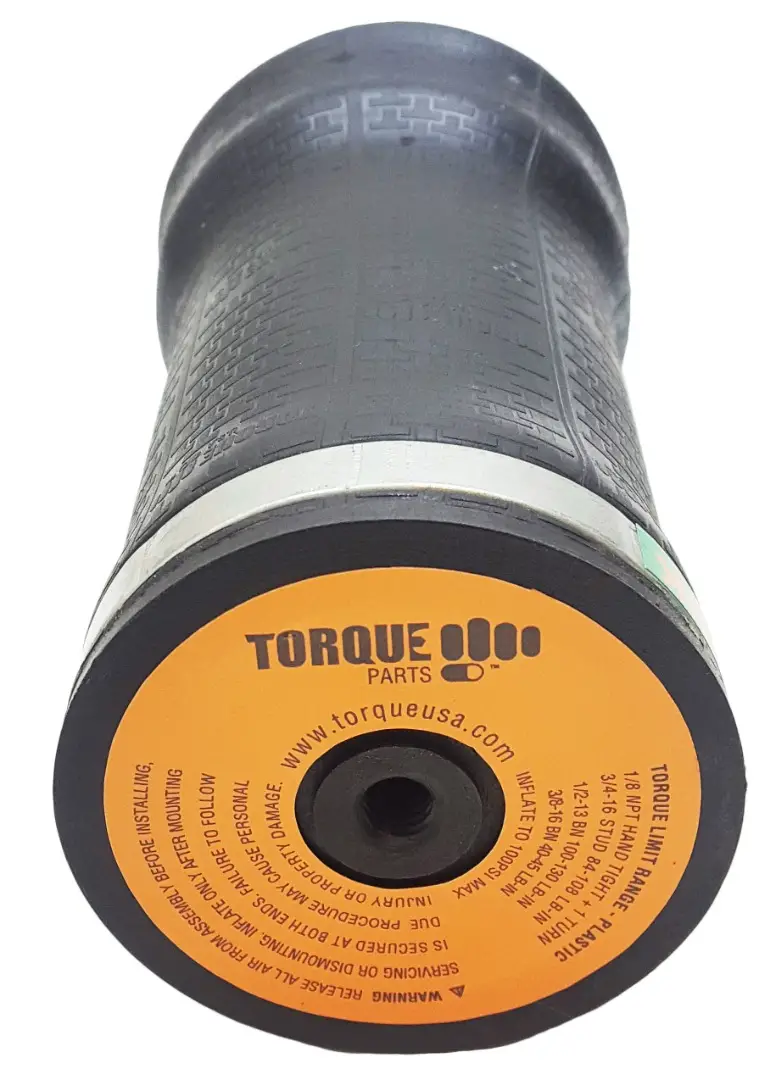

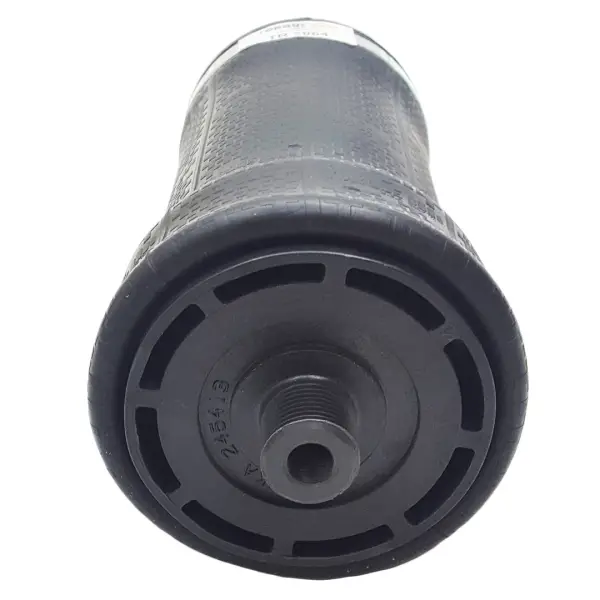

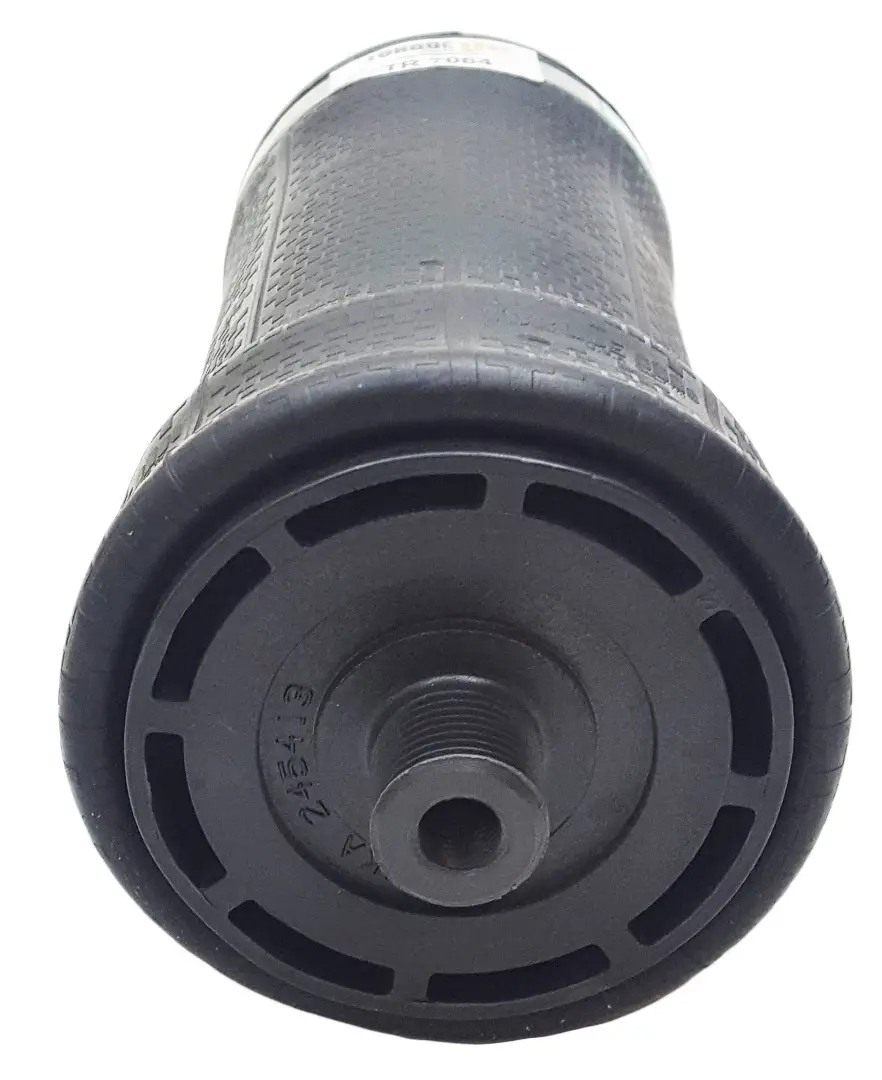

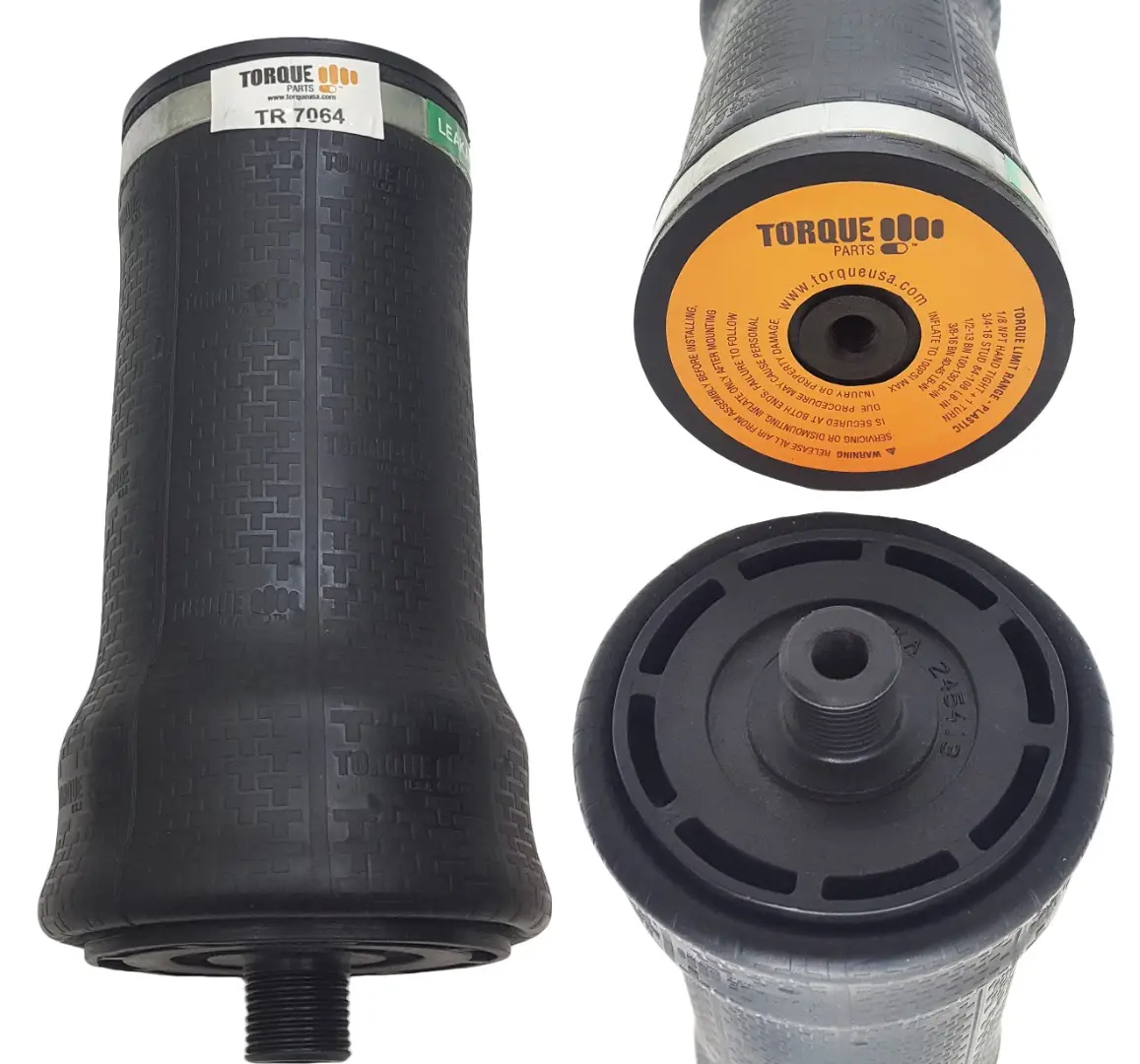

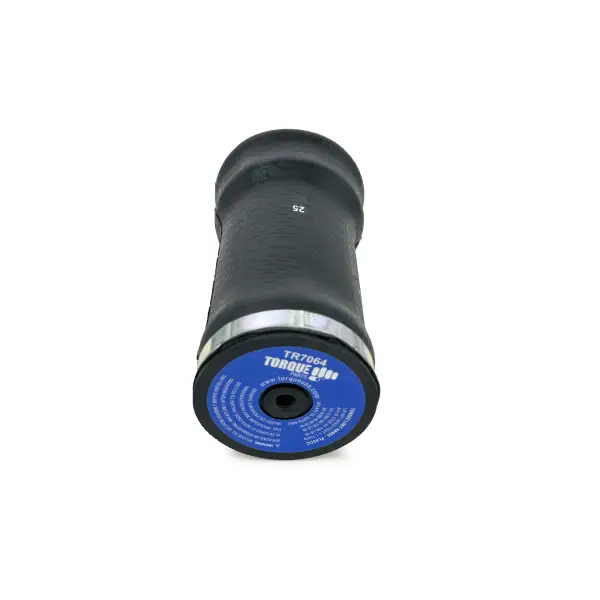

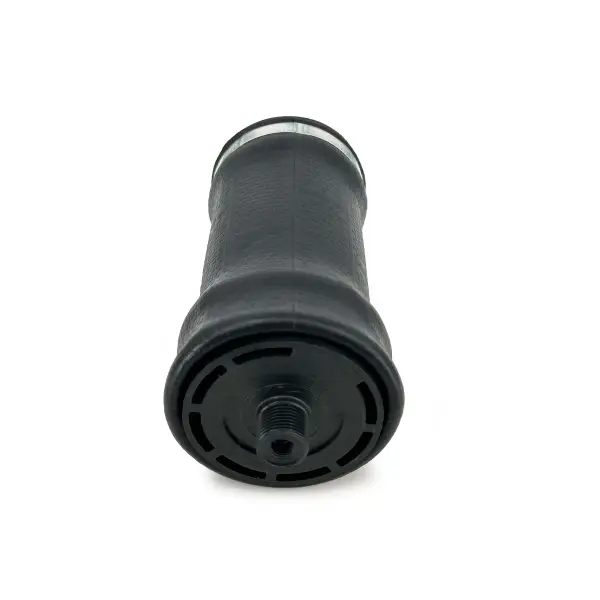

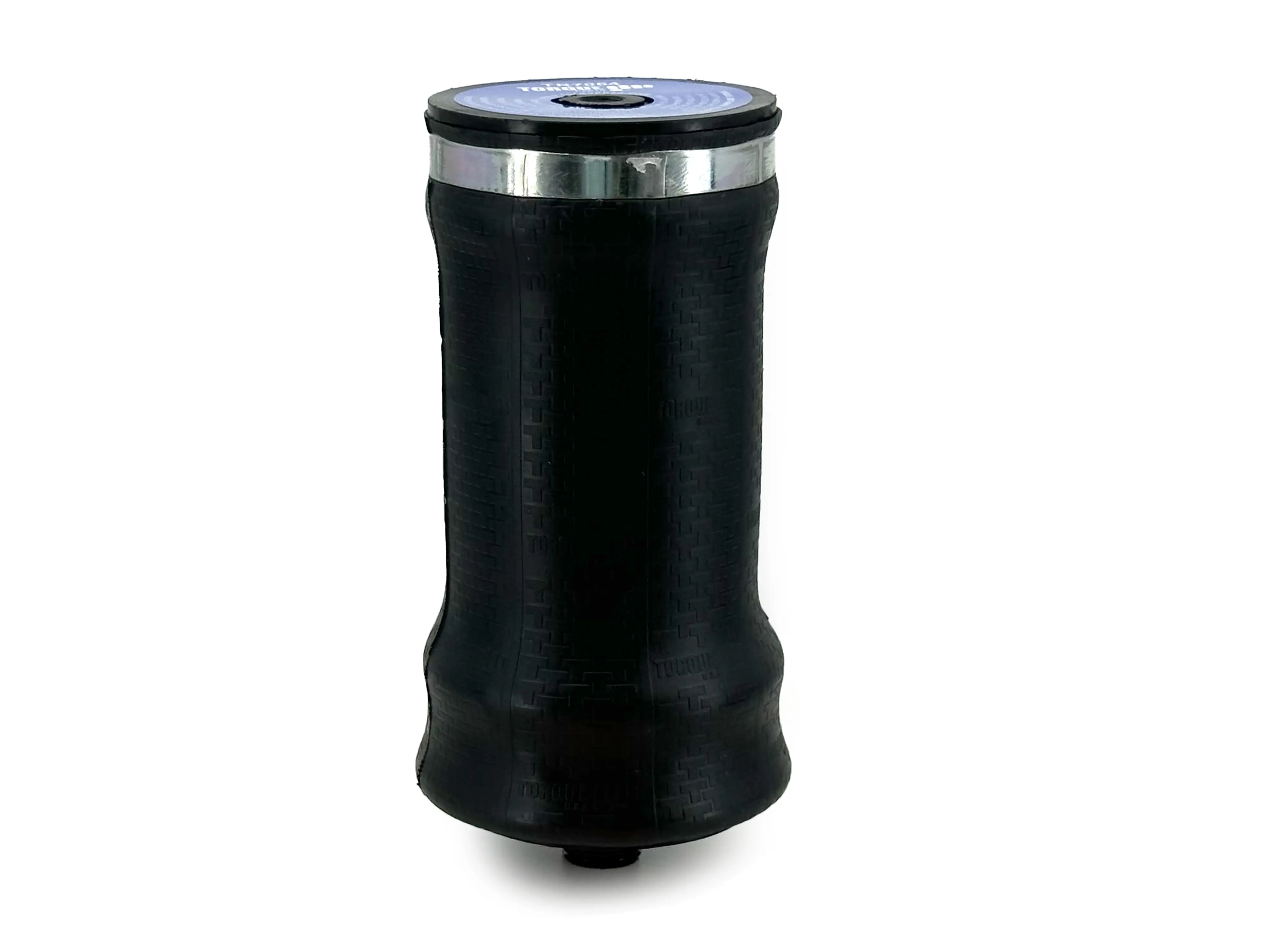

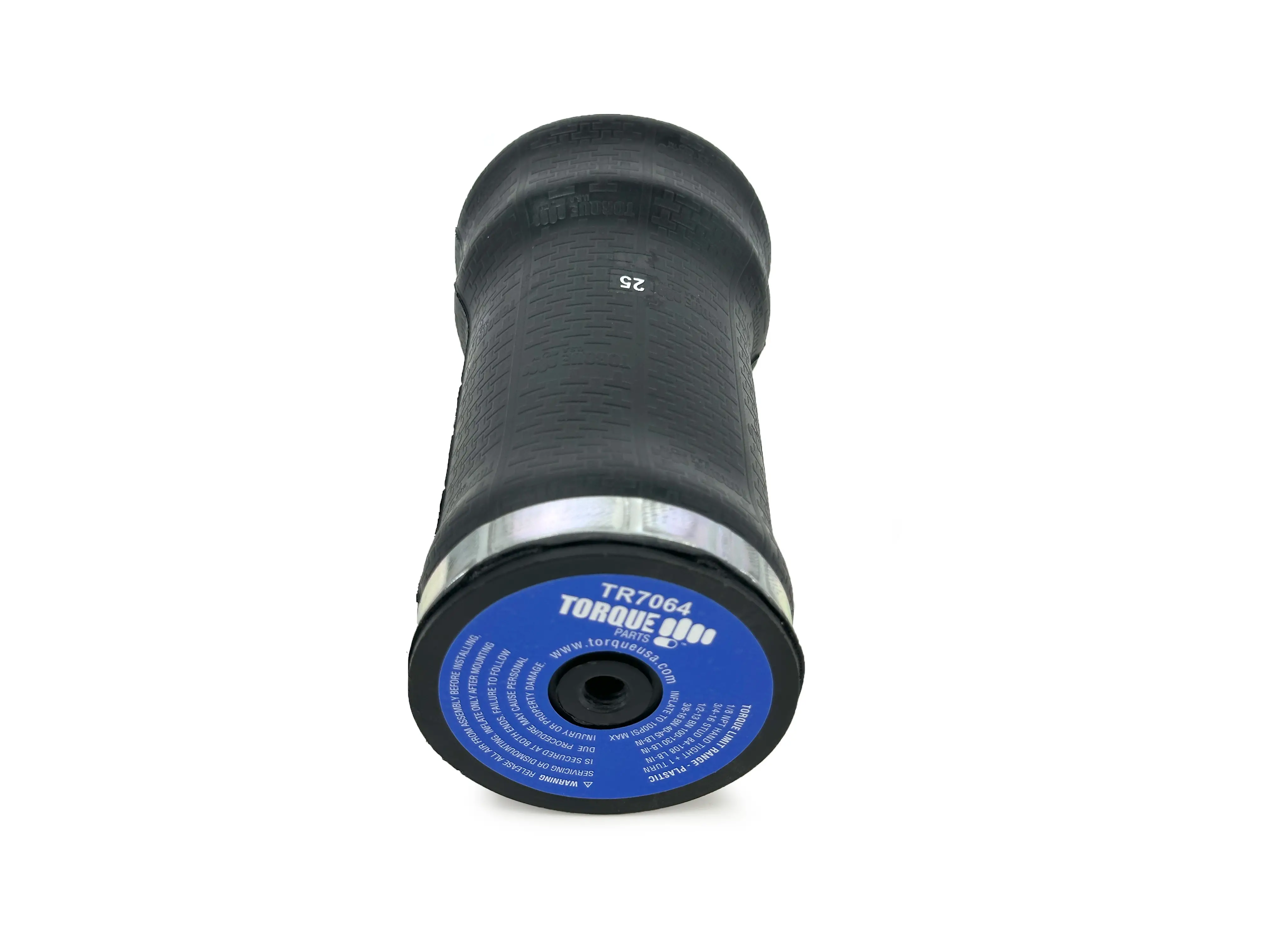

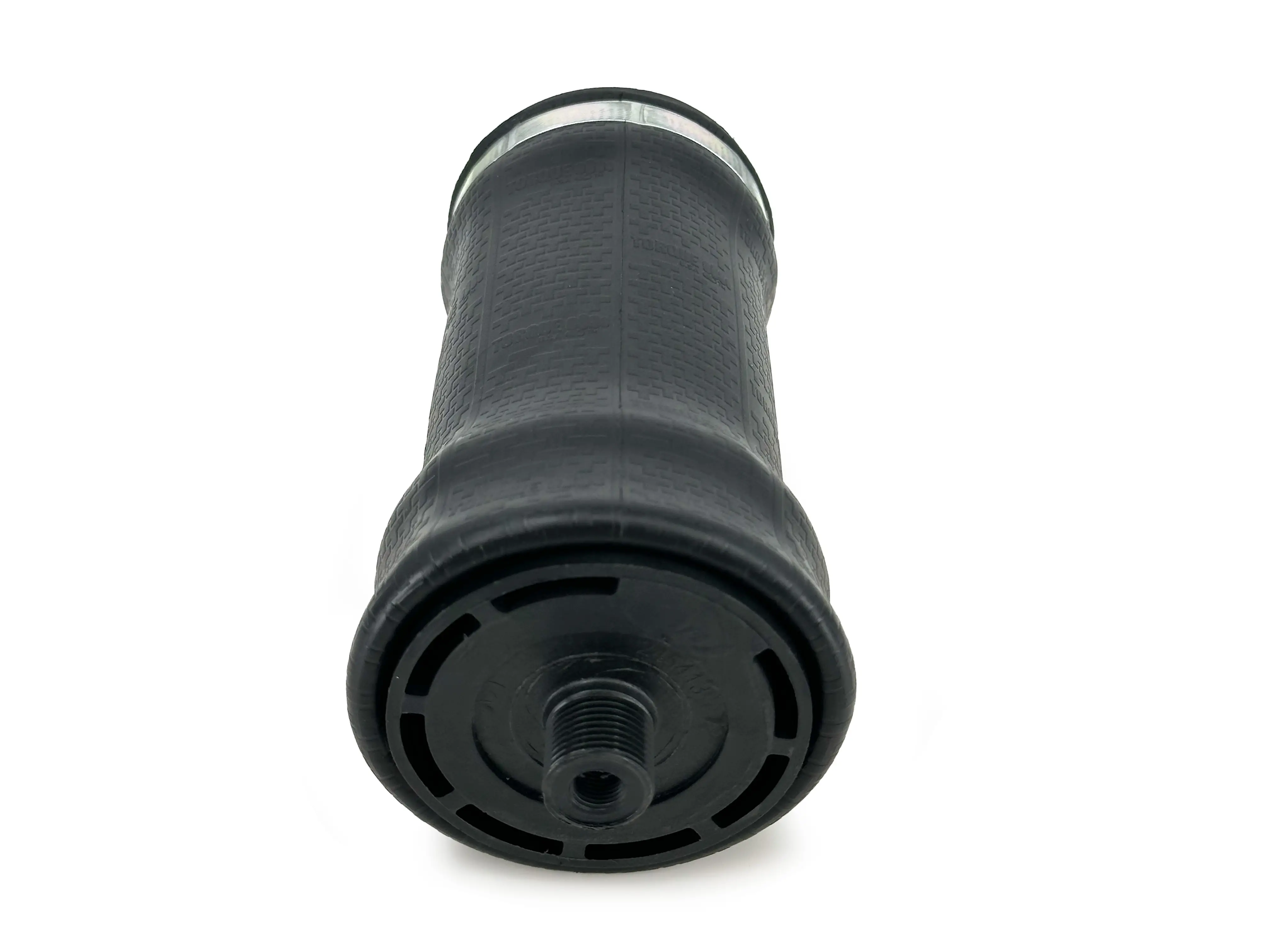

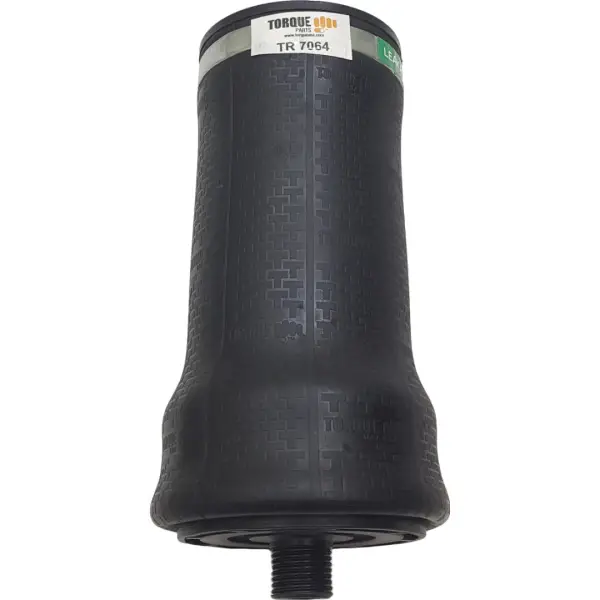

Cabin Air Spring for Kenworth Replaces 1102-0074, W02-358-7064

Description : Cabin Air Spring for Kenworth Trucks

Part Number : TR7064

Cabin Air Spring for Kenworth Replaces 1102-0074, W02-358-7064

Click to see price

Cabin Air Spring for Kenworth Aerocab Mid 1999 & Earlier Model Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70‑7064
Sampa	500.905‑01
Contitech	67768, SC29‑Y064, SZ70‑8077
Firestone	7064, W023587064, W02‑358‑7064, W026007064, W02‑600‑7064
Goodyear	1S5157, 1S5‑157
IHC	1699064C1
Link	11020074, 1102‑0074
SZ	708077
Volvo/White	20315552
Kenworth	1102‑0074

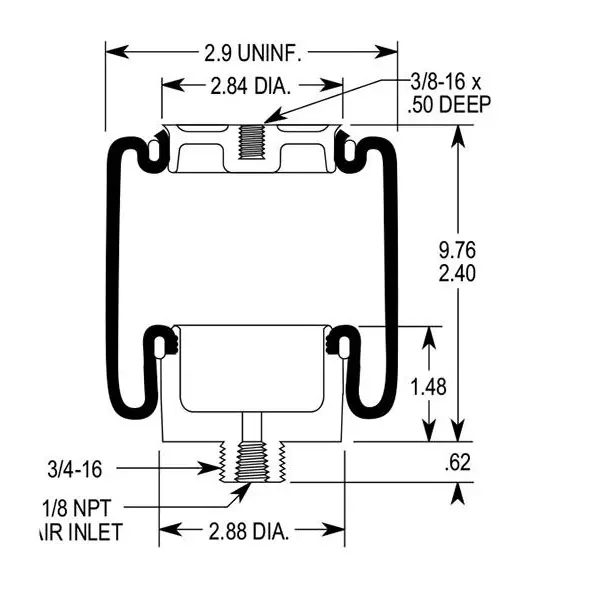

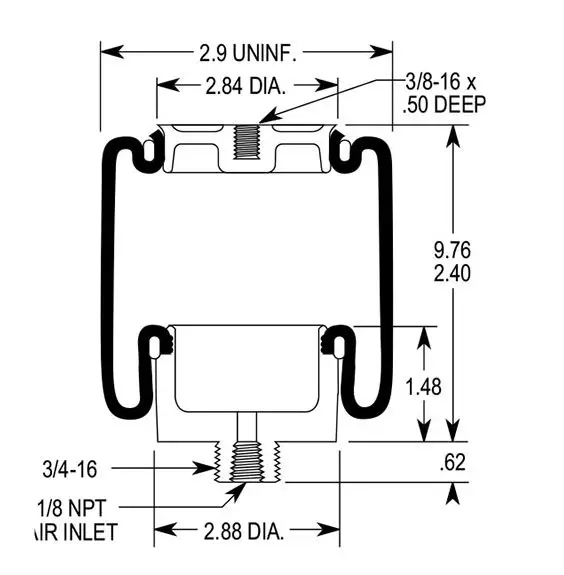

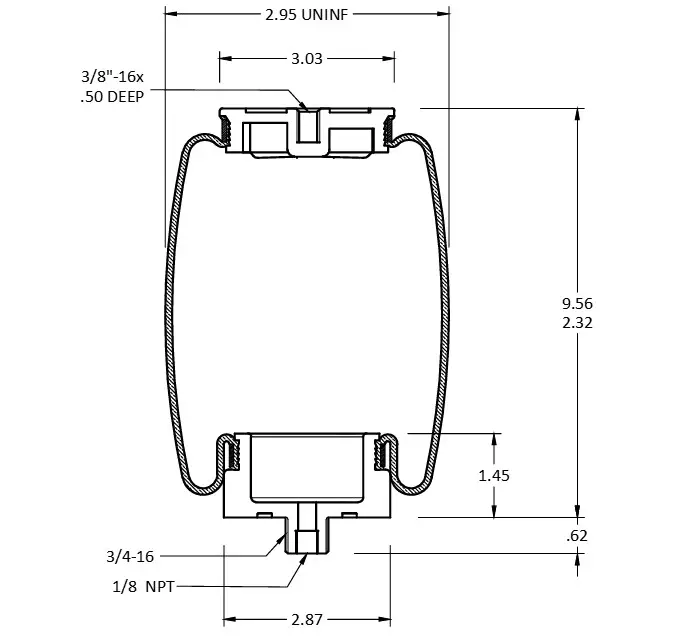

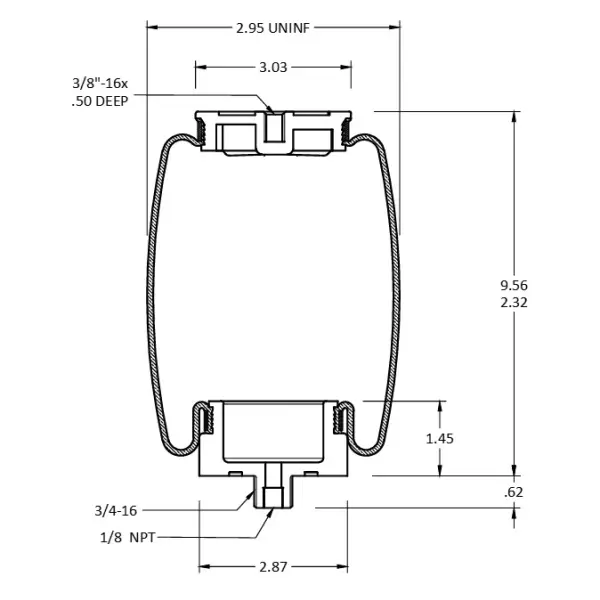

Property	Value
Locating Pin Diameter	3/8"‑16
Locating Pin Height	0.50" deep
Air Inlet	1/8" NPT
Design Height	8.66"
Piston Diameter	2.16"
Extended Height	9.56"
Compressed Height	2.32"
Weight	0.87 lbs
