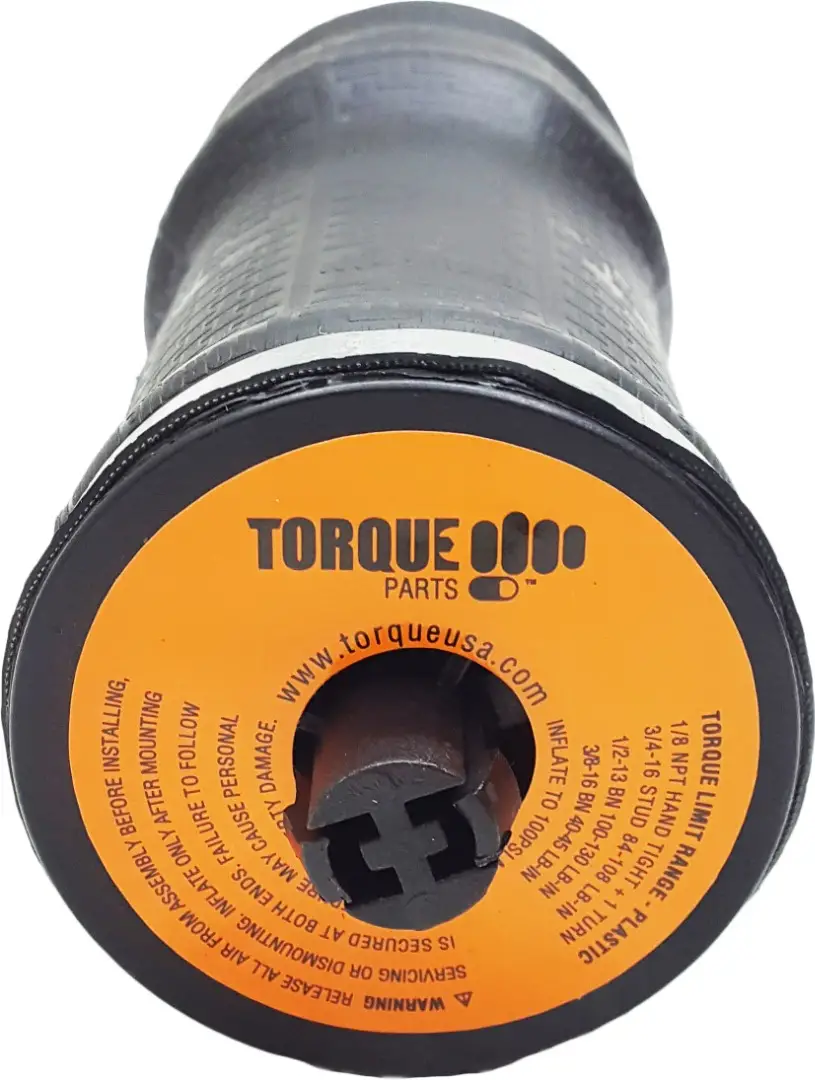

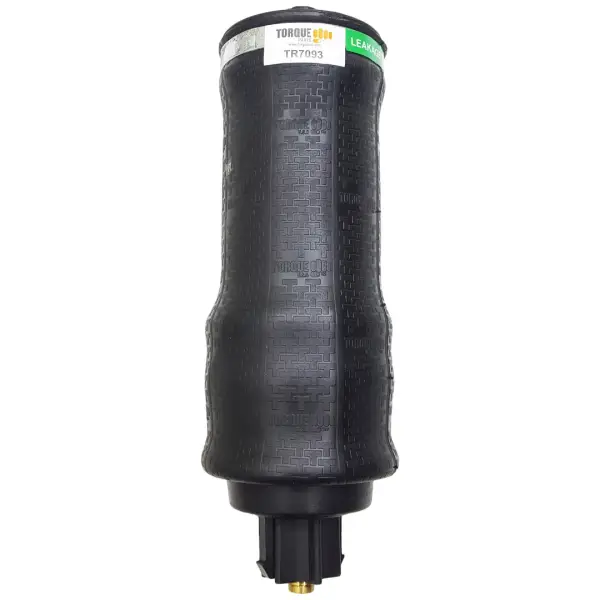

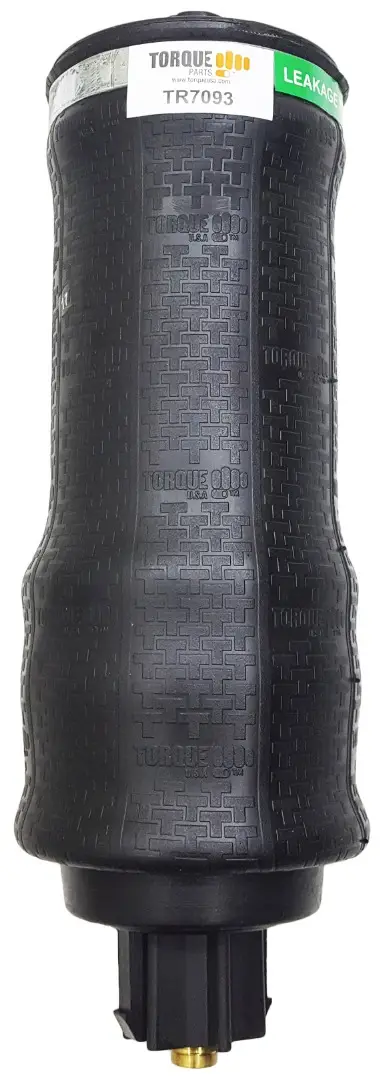

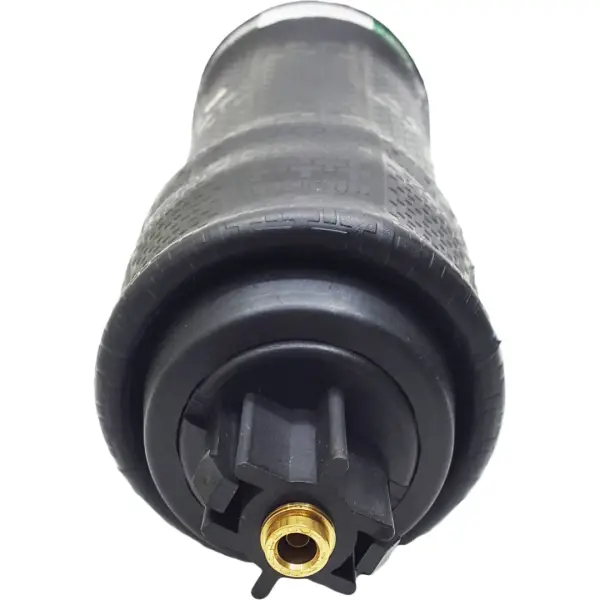

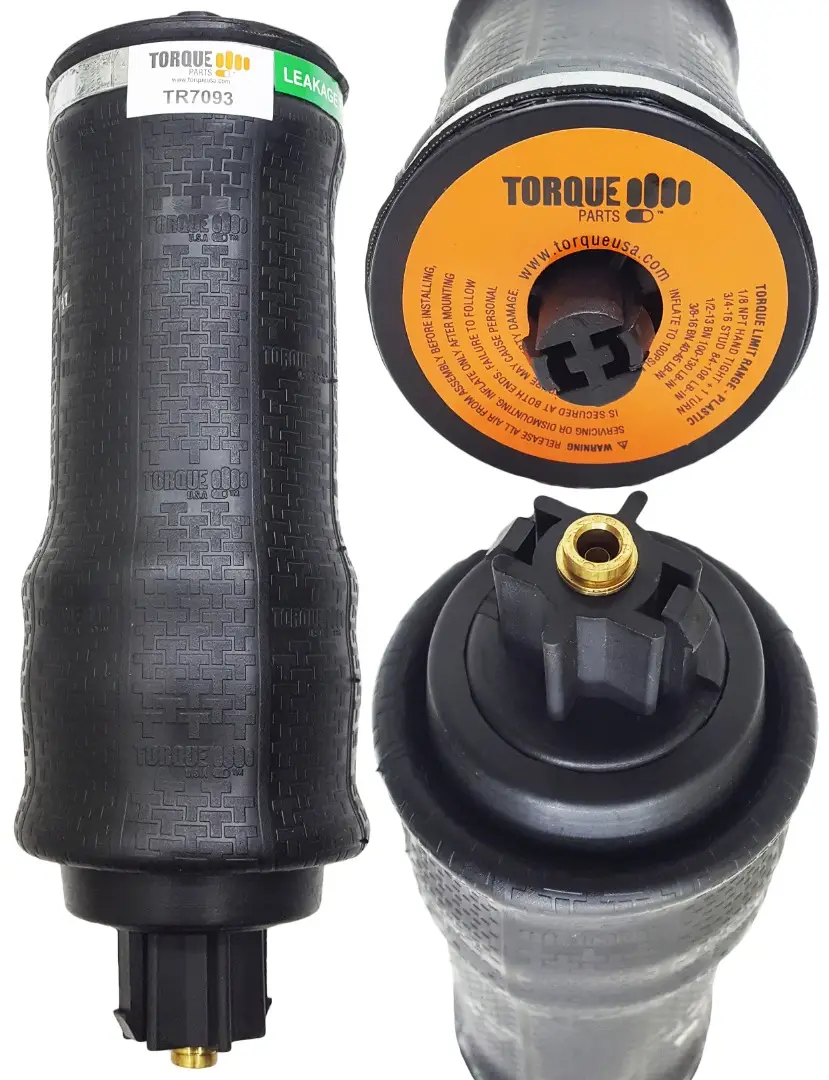

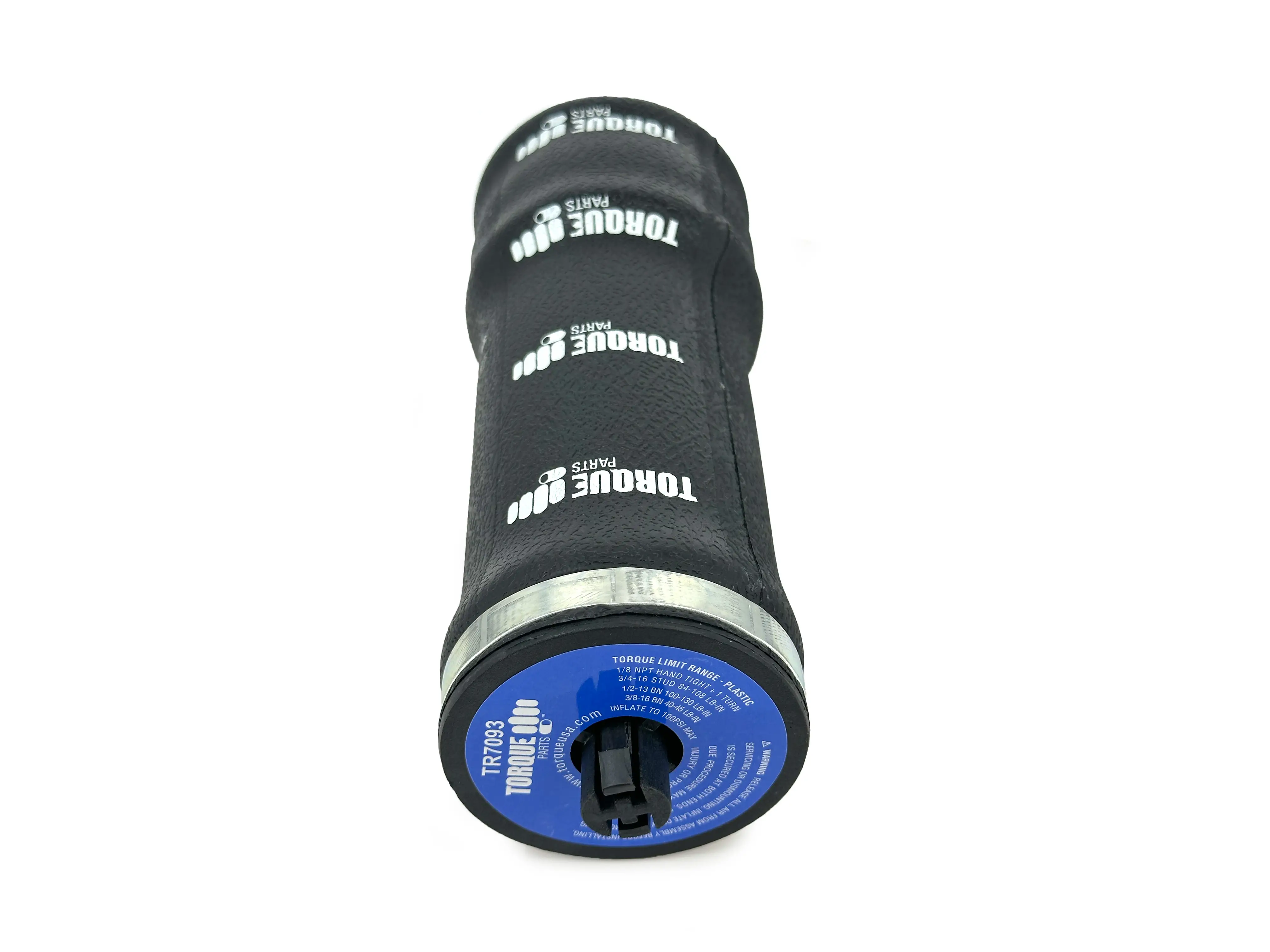

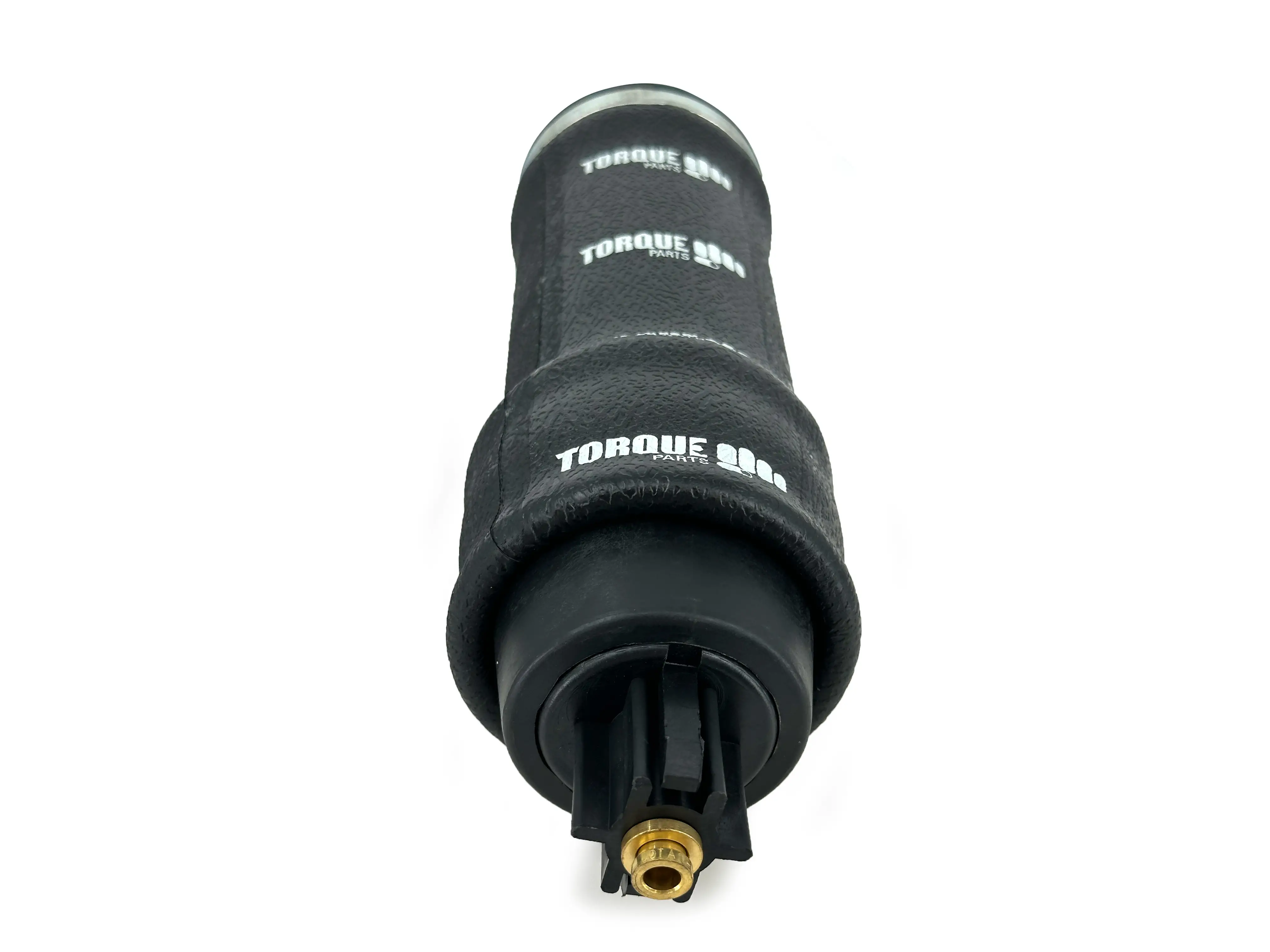

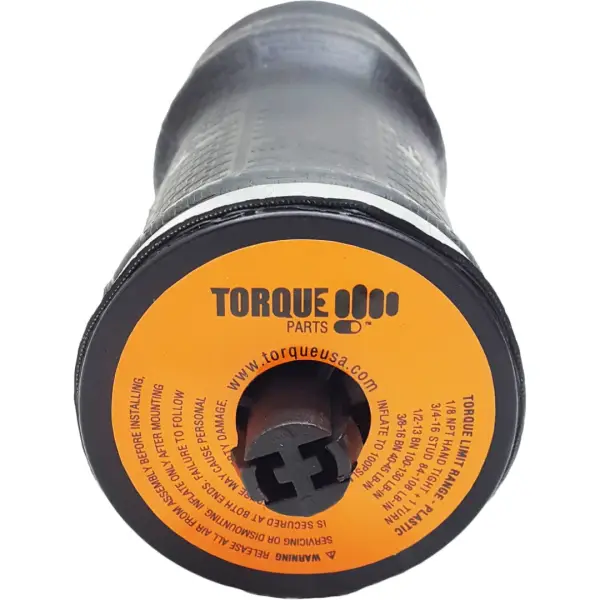

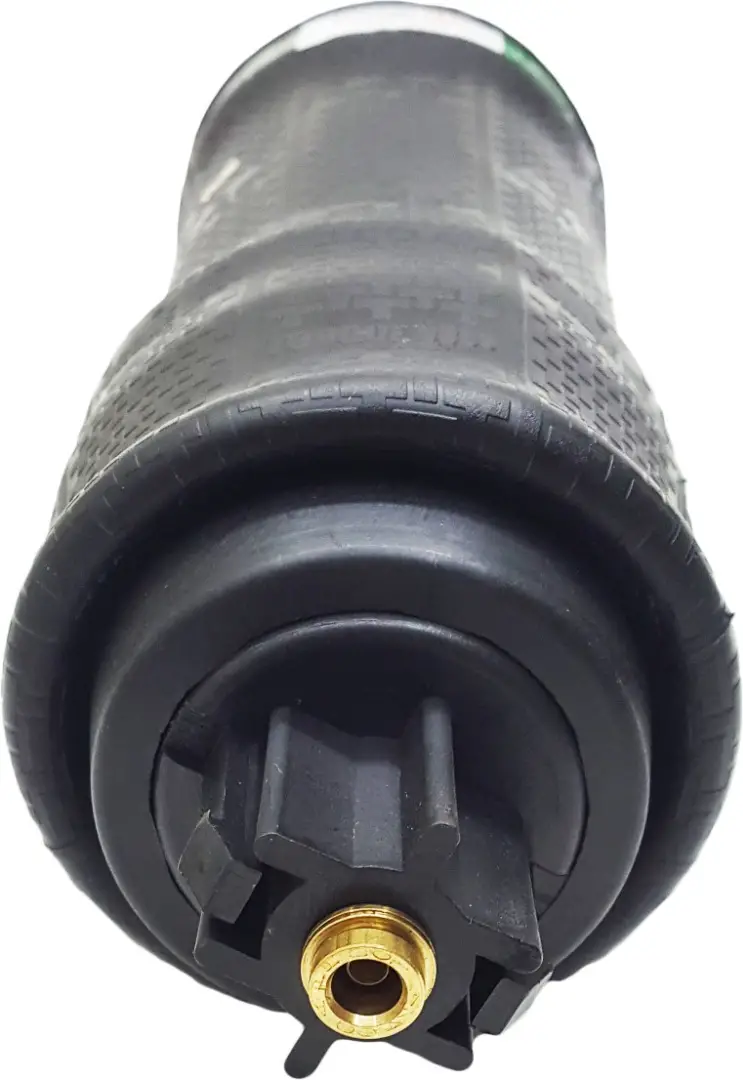

Cabin Air Spring for Peterbilt 387 (New in 1999) Trucks
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
Brand |
Reference Numbers |
Automann
|
ABSZ70‑7093
|
Contitech
|
75313, SC29B093, SC29‑B093, FS 530‑14 515
|
Firestone
|
7093, W023587093, W02‑358‑7093, W027037093, W02‑703‑7093, W027037112, W02‑703‑7112
|
Goodyear
|
1S5190, 1S5‑190
|
Peterbilt
|
1410108005, 2006016, 20‑06016, 2905900, 29‑05900, 2906016, 29‑06016
|
Sampa
|
SP557093, SP 557093
|

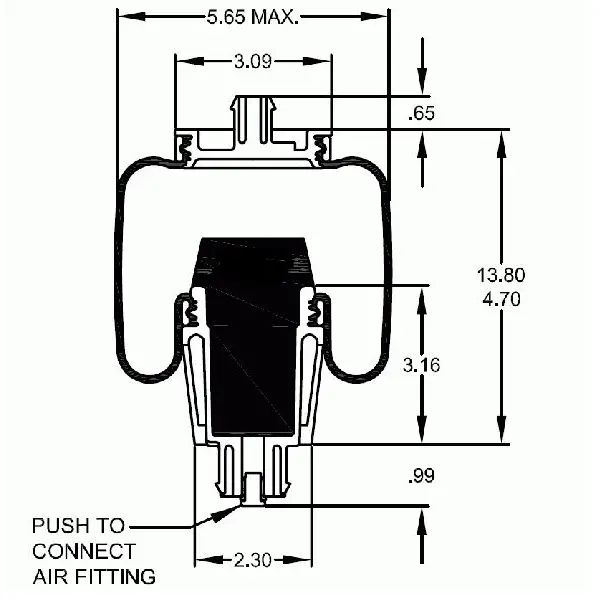

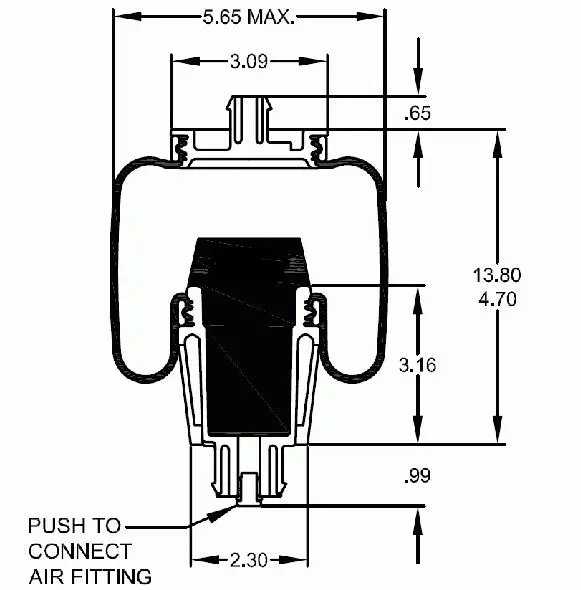

Property |
Value |
Locating Pin Diameter
|
Push‑to‑connect
|
Locating Pin Height
|
0.65 deep
|
Air Inlet
|
1/8 NPTF
|
Design Height
|
8.5‑10.2
|
Piston Diameter
|
2.30
|
Minimum Jounce Height
|
6.05
|
Extended Height
|
13.8
|
Compressed Height
|
4.70
|
Weight
|
1.8 lbs
|
