TYPE

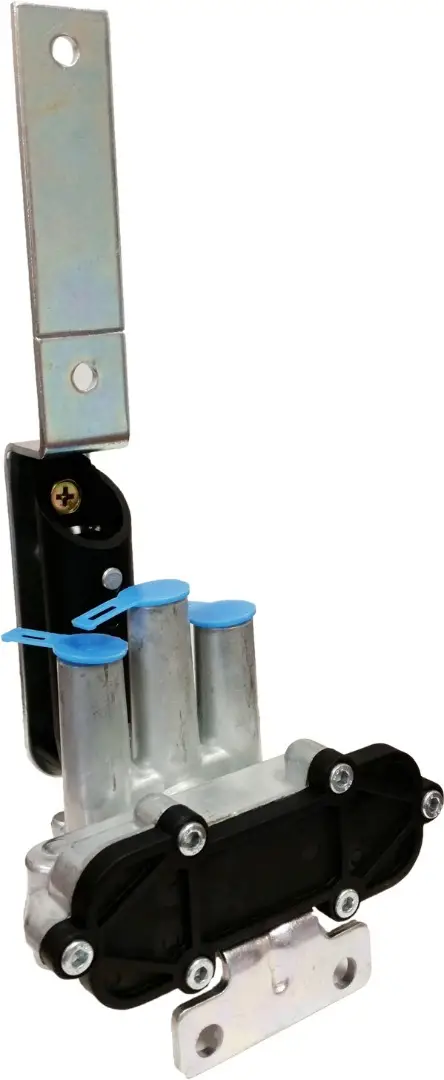

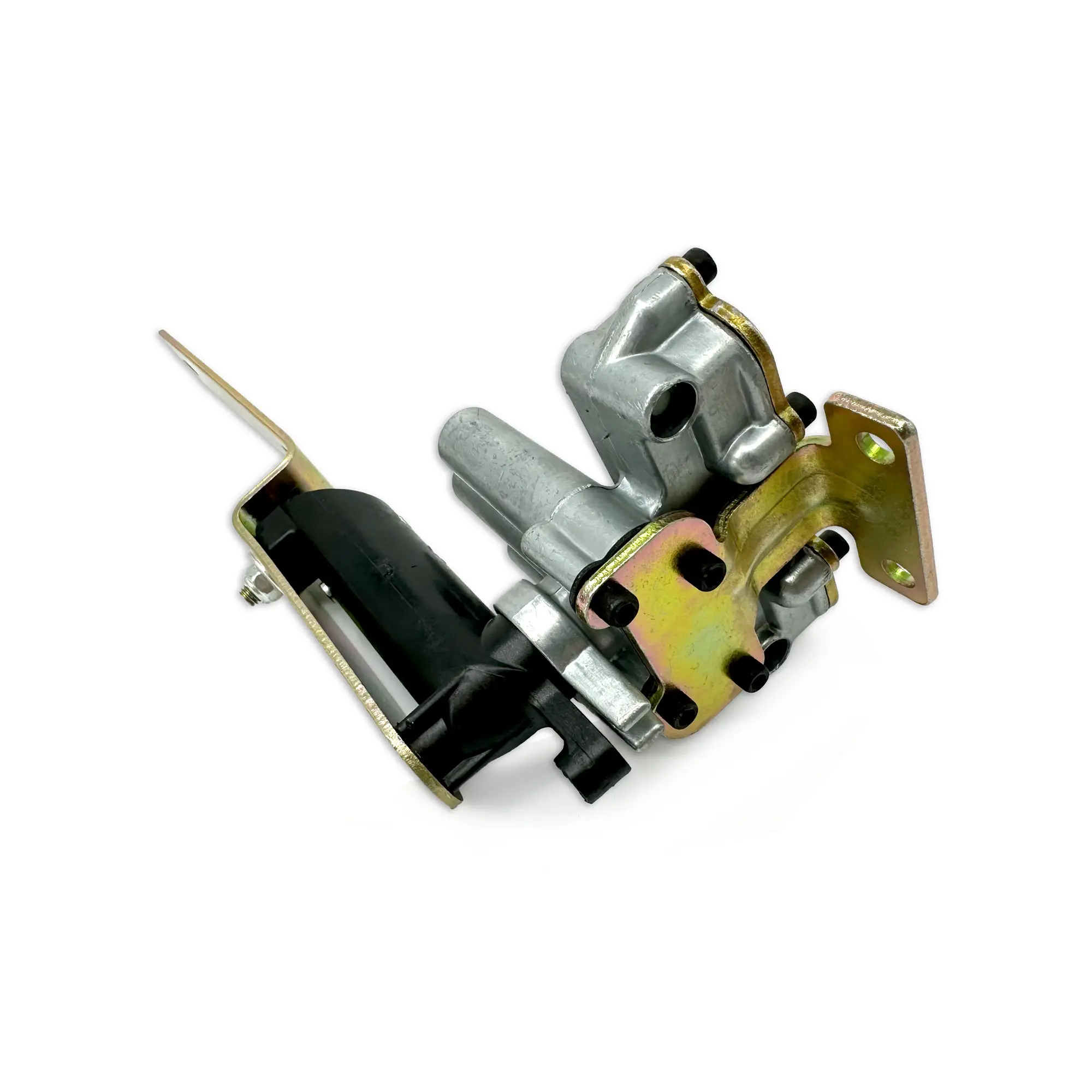

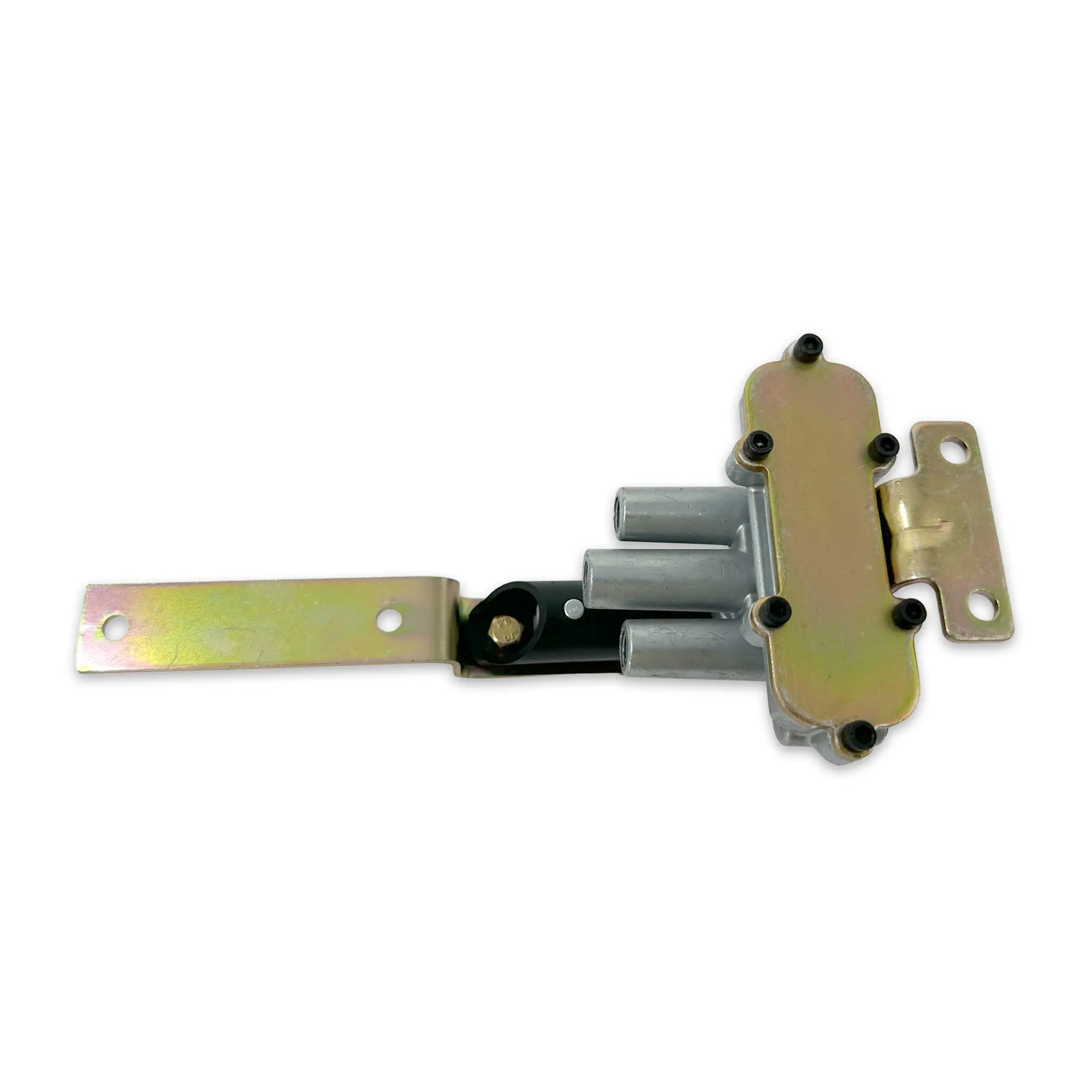

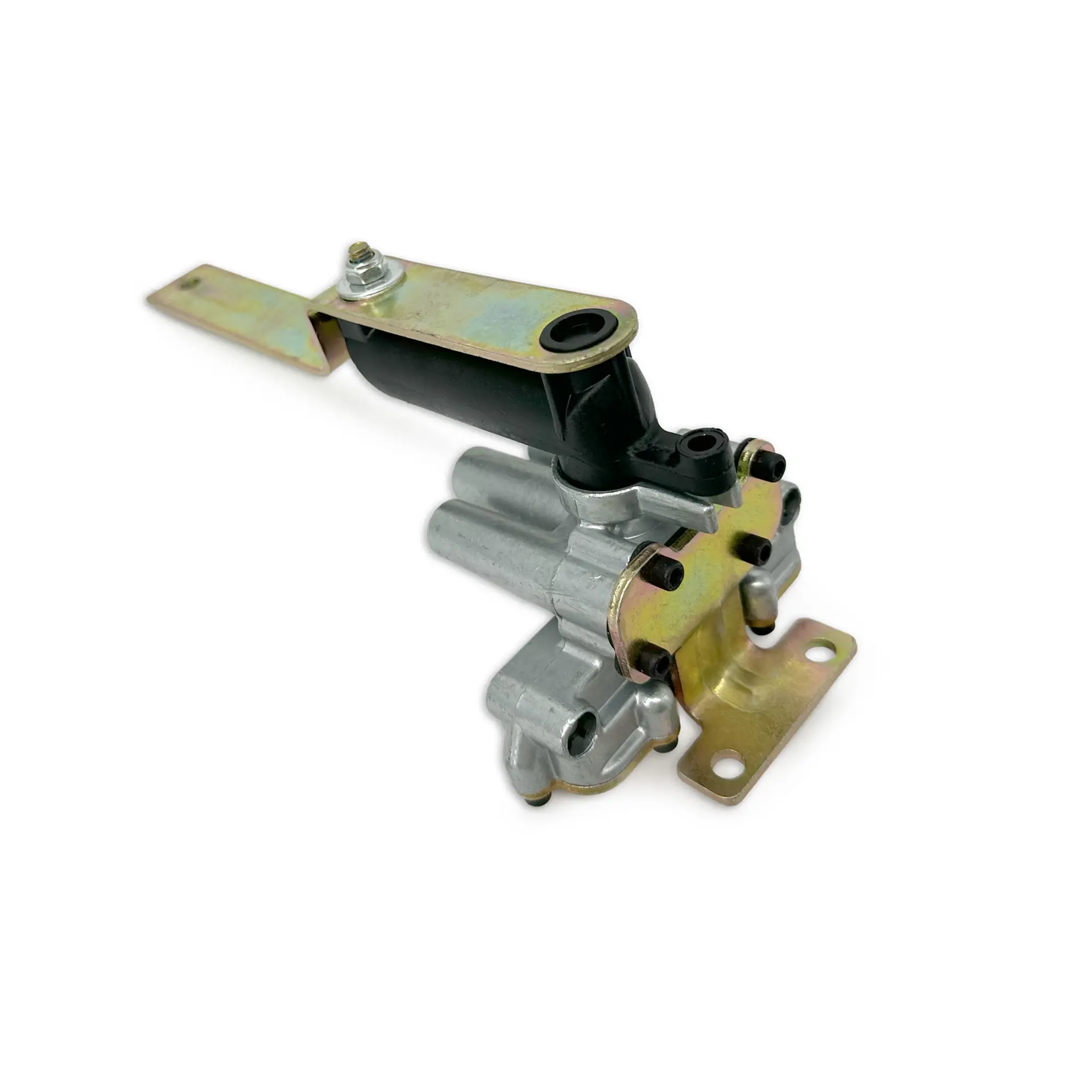

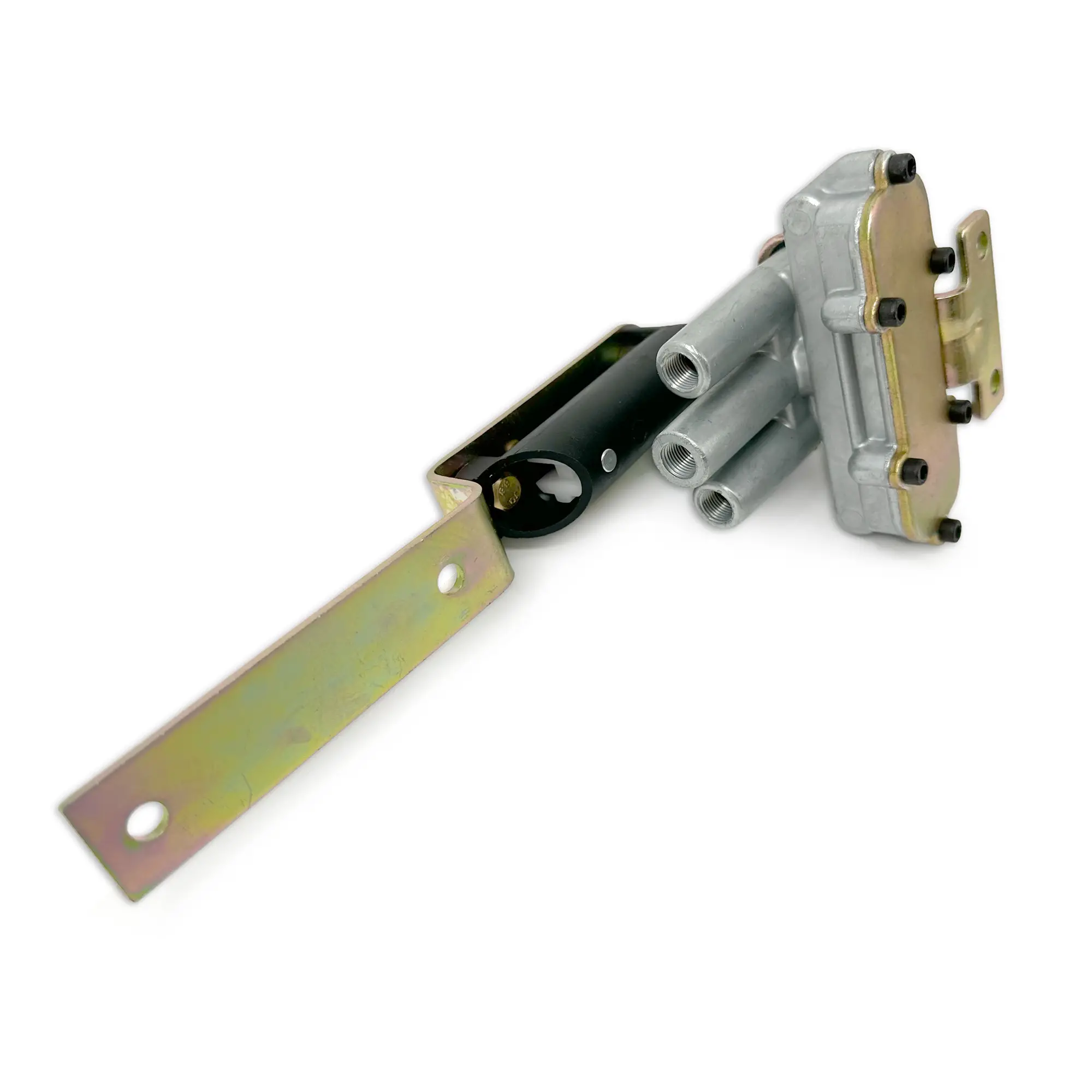

Controlled response height control valve designed to automatically maintain constant static design height in air suspension systems.
FUNCTION
Automatically adds air to or exhausts air from the air suspension to keep the vehicle at the correct ride height under varying load conditions.
REPLACEMENT
Replaces Firestone WC13583599; GMC 22040570 and 5549705; Haldex 90054007 and 90554928; Kenworth K2954171 and K295-4171; Meritor R304323; Neway 90054007; Oshkosh 121288B; and Watson & Chalin 10464.
FITMENT
Direct OEM replacement. Please contact your dealer to confirm the correct part number for your application before purchasing.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Chevrolet/GM
|
22040570, 5549705
|
|
Euclid
|
E4323
|
|
Firestone
|
WC13583599
|
|
Firestone Part
|
WC13583599
|
|
GMC
|
22040570, 5549705
|
|
Haldex
|
90554928, 90054007
|
|
Kenworth
|
K2954171, K295‑4171
|
|
Meritor
|
R304323
|
|
Neway
|
90054007
|
|
Oshkosh
|
121288B
|
|
Velvac
|
34065
|
|
Watson & Chalin
|
10464
|
|
Watson and Chalin
|
10464
|
|
Automann
|
171.LV100
|
| Property |
Value |
|
All Ports
|
1/8" NPT
|
|
Dump Valve Included
|
No
|
|
Fittings Provided
|
1/4"
|
|
Weight
|
3lbs
|
|
Attribute
|
Value
|
|
OEM Series
|
CR Series
|
|
Attached Arm Length
|
2.95"
|
|
Dump Valve (Y/N)
|
No
|
|
Bracket (Y/N)
|
No
|
|

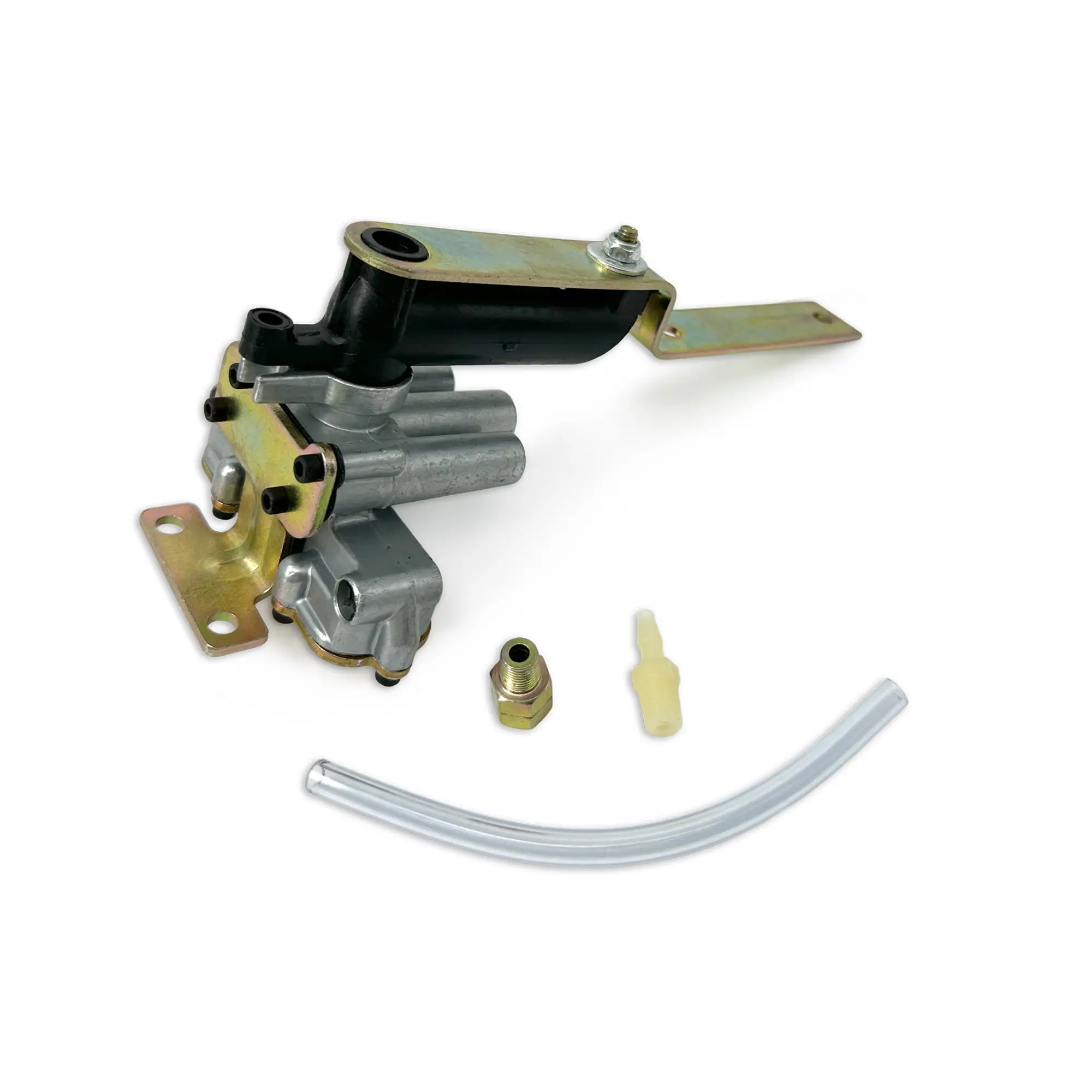

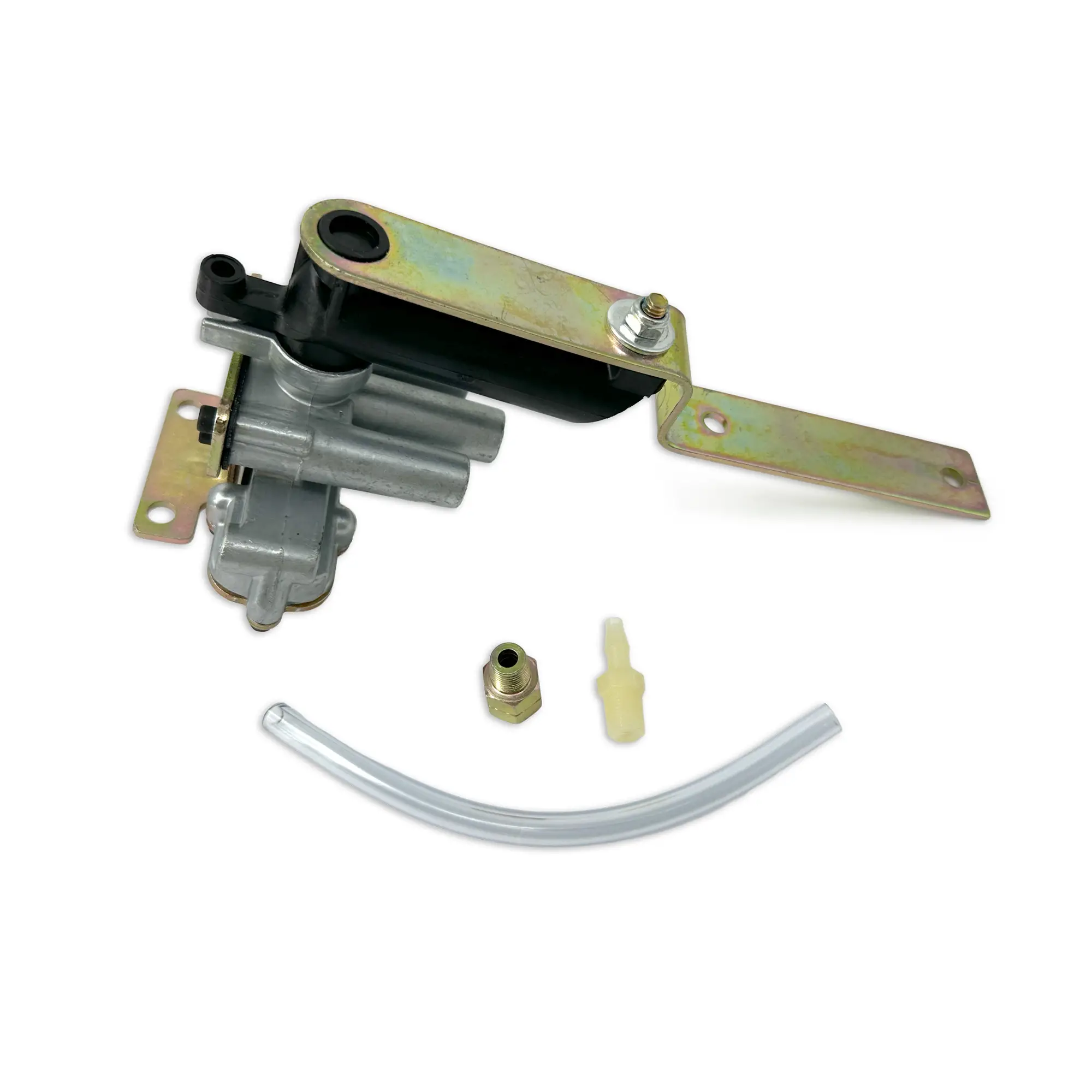

Comes with
|
Centering Pin, mounting hardware, air fittings, hose
|
|
Ports
|
1/8" NPT
|
|
Working Pressure
|
90 PSI
|
|
Dump Valve
|
No
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 10.63" |
4.53" |
4.53" |
2.07 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 10 |
17.72" |
11.81" |
14.57" |
22.49 lbs |
