TYPE

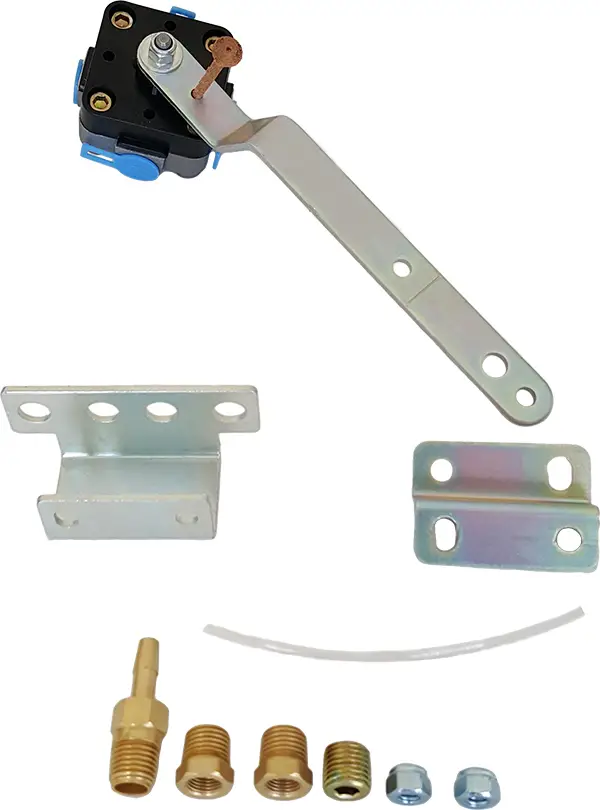

Height control valve designed for Hendrickson air suspension systems. Automatically adds air to or exhausts air from the suspension to maintain the correct static design ride height.
REPLACEMENT FOR
Euclid / Hendrickson: E11494, E11855, 22110-001
Haldex: 90054007
Hendrickson: 50433001, 50433002, 60826, 6082600, 60826000, S1329, VS227, 22110-001
SPECIFICATIONS
Maximum Operating Pressure: 130 psi (9 bar)
Operating Temperature: -40°F to +150°F (-40°C to +65°C)
Maximum Flow Rate: 350 L/min (12.4 cfm)
Delivery Ports: 1/4" NPT fittings
FITMENT
If you are unsure about compatibility, please contact your dealer to confirm the original part number and verify that this height control valve is the correct replacement.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Euclid Euclid Hendrickson
|
E11494 E11855 22110‑001
|
|
Haldex
|
90054007
|
|
Hendrickson
|
22110‑001, 50433001, 50433002, 60826, 6082600, 60826000, S1329, VS227
|
|
Hendrickson/Turner
|
A24642, A28651, S24508
|
|
Mack
|
20QE3345, 4000‑60826000
|
|
Meritor
|
R3011494
|
|
Midland
|
H15884BA
|
|
Neway
|
1237423D000
|
|
Newstar
|
S‑26985
|
|
Euclid
|
E11494, E11855
|
|
Automann
|
171.H184
|
| Property |
Value |
|
Operating pressure
|
130 PSI Max
|
|
Operating temperature
|
‑40°F to +150°F
|
|
Maximum flow rate
|
350 L/min (12.4 CFM)
|
|
Delivery ports
|
Dual 1/4" NPT
|
|
Maximum handle movement
|
±75°
|
|
Weight
|
2 lbs
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 10.24" |
3.54" |
2.76" |
1.41 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 20 |
23.23" |
13.39" |
8.27" |
29.32 lbs |
