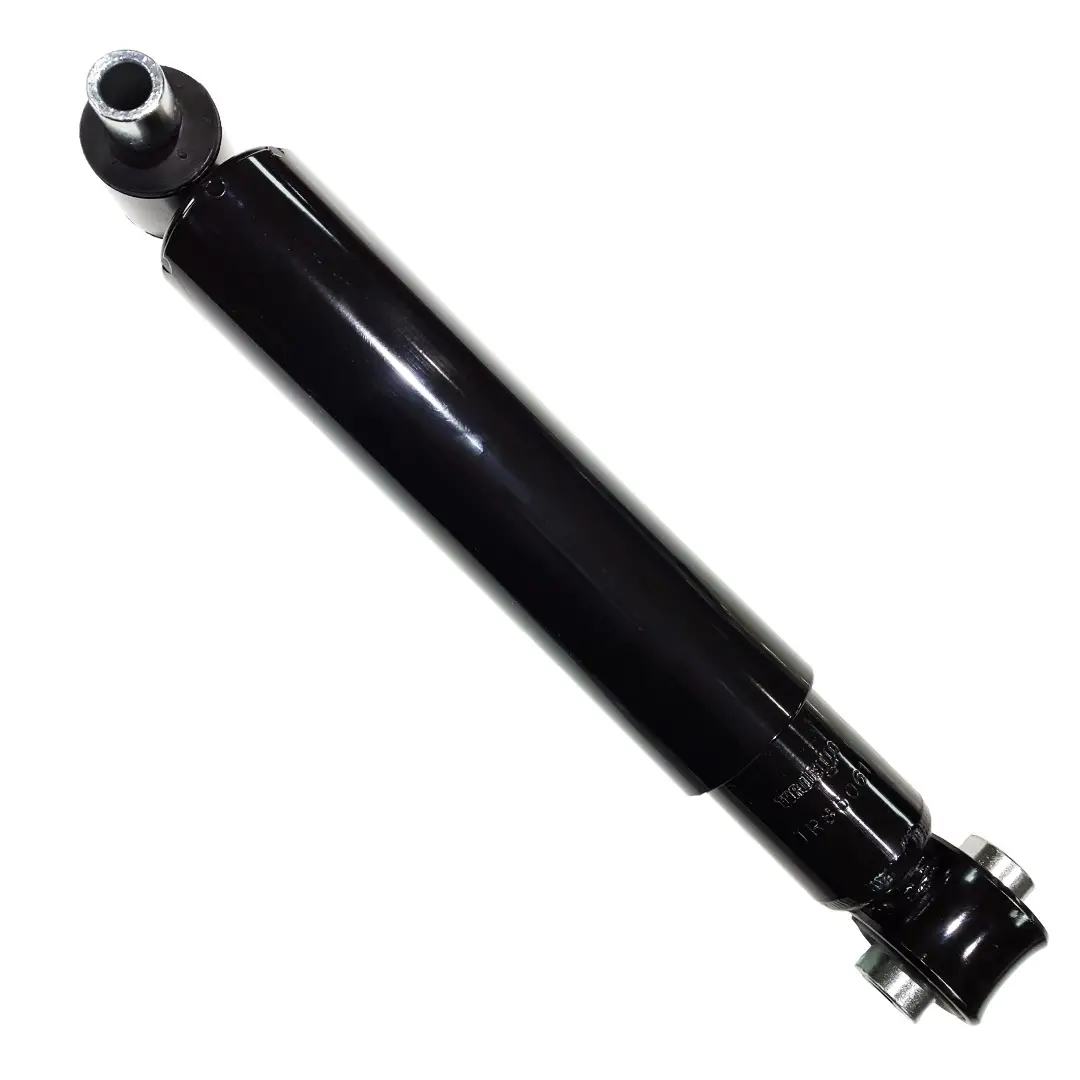

Heavy Duty Shock Absorber for Mack CHN, CHU, CX, CXN, CXP, CXU and Volvo VNL, VT Trucks
Where Used:
| Make |
Series |
Additional Information |
| MACK |
CHN - Series |
CHN-613 Models with 12,000 lb Front Axle |
| MACK |
CHU - Pinnacle Series |
CHU-613 Models with 40,000 lb Rear Air Suspensions |
| MACK |
CX Series - Vision |
CX Vision Models w/ Hendrickson Air Suspension |
| MACK |
CX Series - Vision |
CX Vision Models w/ Parabolic Spring |
| MACK |
CXN Series |
CXN-613 Models with 12,000 lb Front Axles |
| MACK |
CXN Series |
CXN-613 Models with 40,000 lb Rear Air Suspensions |
| MACK |
CXP Series |
CXP-613 Models with 12,000 lb Front Axles |
| MACK |
CXP Series |
CXP-613 Models with 40,000 lb Rear Air Suspensions |
| MACK |
CXU - Pinnacle Series |
CXU-613 Models with 12,000 lb Front Axles |
| MACK |
CXU - Pinnacle Series |
CXU-613 Models with 40,000 lb Rear Air Suspensions |
| POWERHOUSE COACH INC. |
|
Models with Volvo VNL780 Chassis with 12,500 - 14,600 lb Front Axle |
| RENEGADE RV |
|
Models with Volvo VNL630 Chassis with 12,500 - 14,600 lb Front Axle |
| VOLVO |
VNL Series |
300, 300U Models with 12,000 - 13,200 lb Front Axles |
| VOLVO |
VNL Series |
430 Models with 13,200 lb Front Axle |
| VOLVO |
VNL Series |
630 & 670 Models with 13,200 lb Front Axle |
| VOLVO |
VNL Series |
730 & 780 Models with 13,200 lb Front Axle |
| VOLVO |
VNL Series |
All Models with 12,000 - 13,200 lb Front Axles |
| VOLVO |
VT Series |
All Models with 12,000 - 13,200 lb Front Axles |
| Gabriel: |
85061 |
| Mack: |
14QK2136M, 14QK3107M, 14QK3114M, 14QK431M, 20513881, 20897198, 20973993, 23292027, 23292028, 471700002626, SDA14170000380, 14QK-3107M |
| Meritor: |
85061 |
| Monroe: |
65130, 65494 |
| Volvo: |
20513881, 20433424, 23288402, 23288403, 3092842, 3949241, 8078195 |
| Volvo/White: |
20433424, 20513881, 3092842 |
| Extended: |
24.75" |
| Collapsed: |
15.22" |
| Stroke: |
9.53" |
| Bore: |
1-5/8" |
| Dust Tube: |
Yes |
| Recoil Cutoff: |
Yes |
| Rebound: |
1216 lb. |
| Compression: |
195 lb. |
