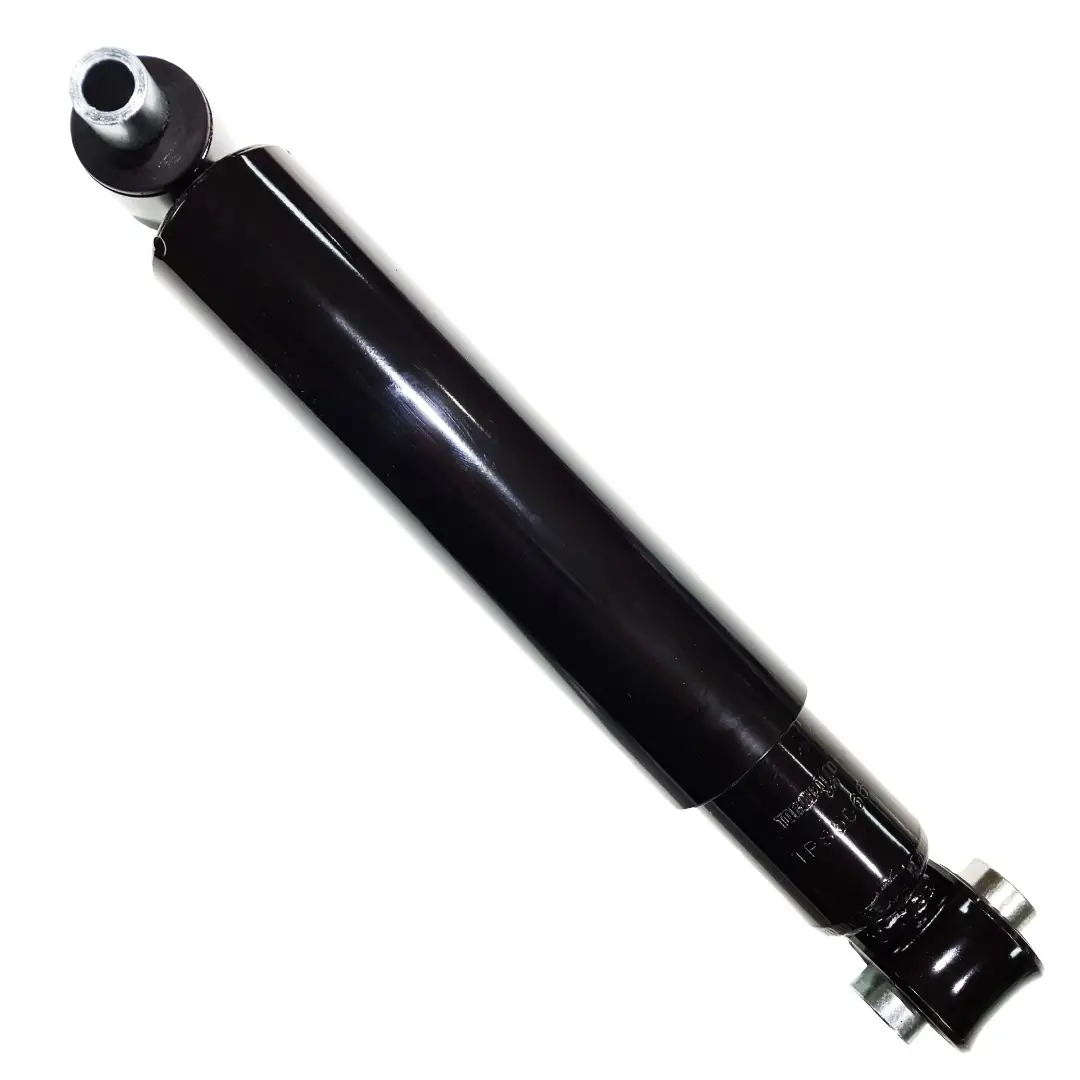

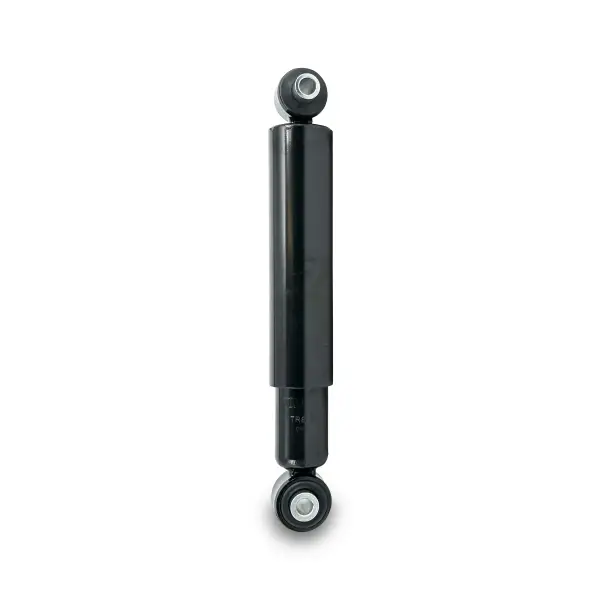

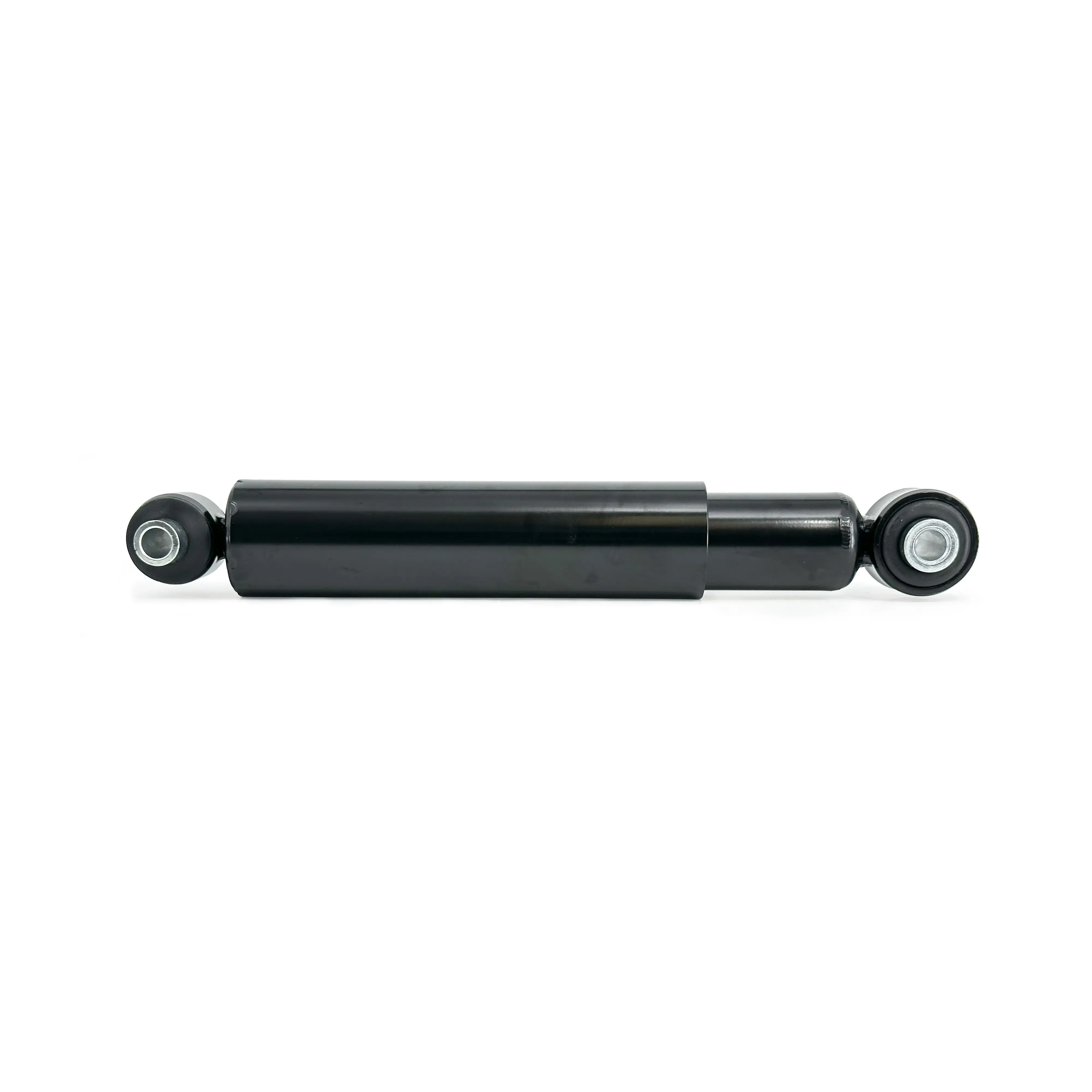

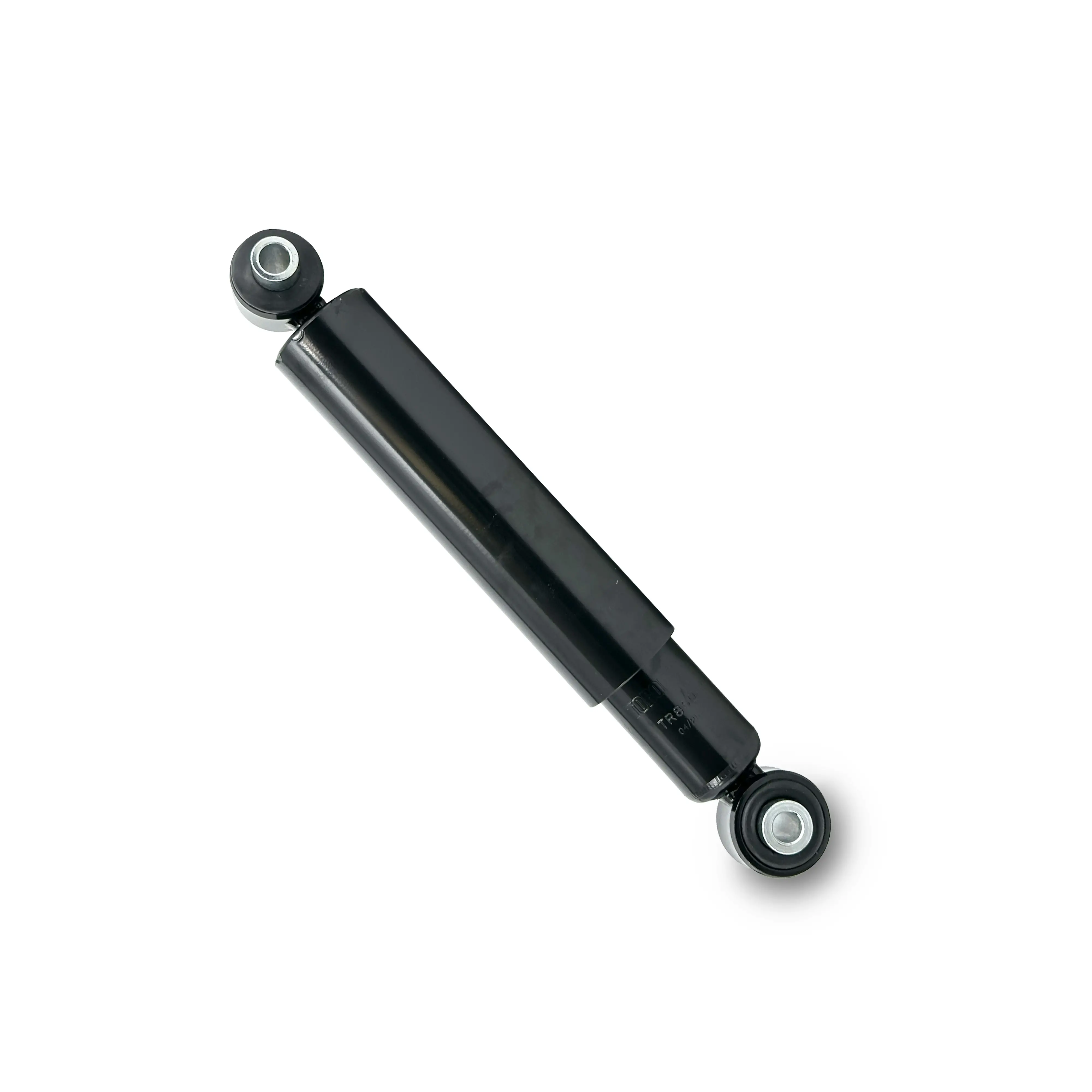

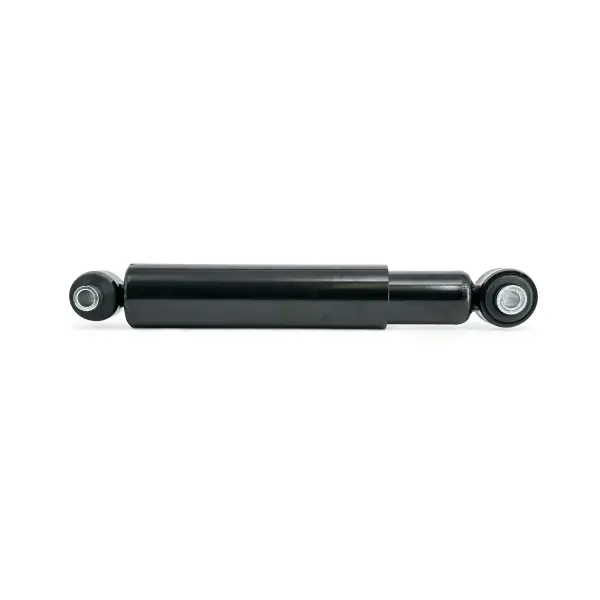

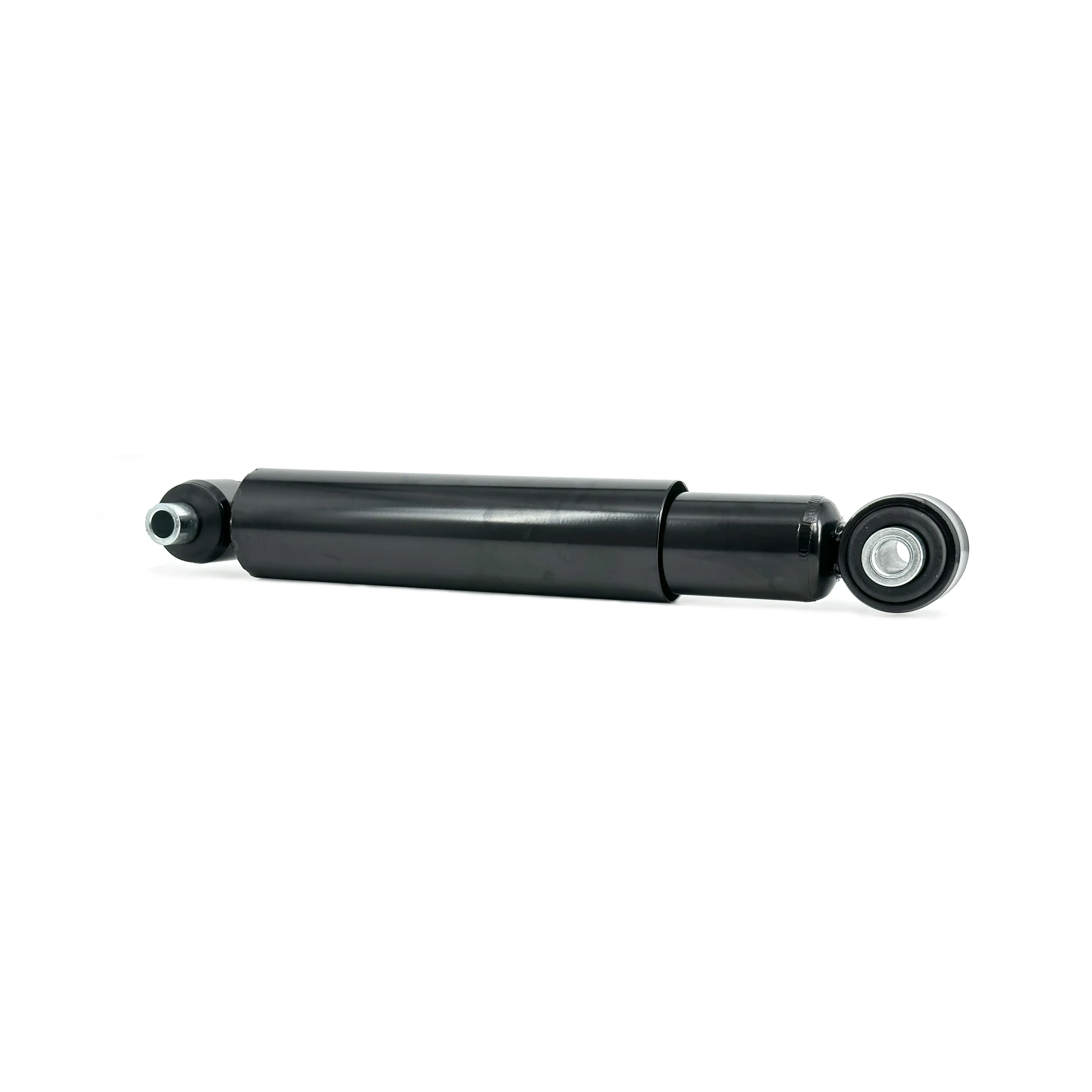

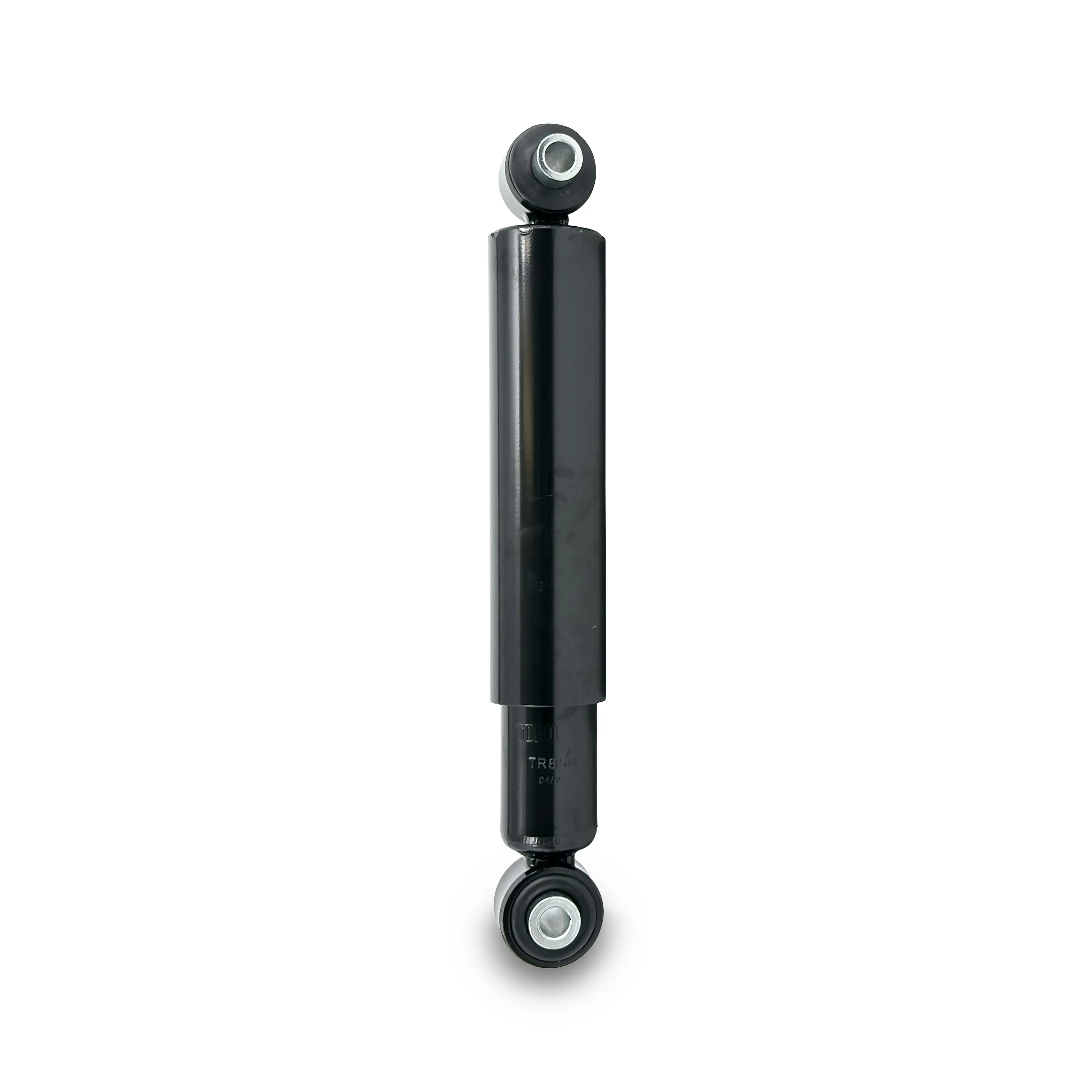

Heavy Duty Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT Trucks
Where Used:
| Make |
Series |
Additional Information |
| MACK |
CHN - Series |
CHN-613 Models w/ MACK Air Suspension |
| MACK |
CX Series - Vision |
CX Vison Models w/ MACK Air Suspension |
| MACK |
CXN Series |
CXN-613 Models w/ MACK Air Suspension |
| POWERHOUSE COACH INC. |
|
Models with Volvo VNL780 Chassis with 40,000 lb Rear Air Suspension |
| RENEGADE RV |
|
Models with Volvo VNL630 Chassis with 40,000 lb Rear Air Suspension |
| VOLVO |
VN Series - 2200 |
Models built after May 1999 |
| VOLVO |
VNL Series |
430 Models with 40,000 lb Rear Air Suspension |
| VOLVO |
VNL Series |
Models with 38,000 lb Rear Air Suspension built after May 1999 |
| VOLVO |
VNL Series |
300, 300U Models with 40,000 lb Rear Air Suspension |
| VOLVO |
VNL Series |
630 & 670 Models with 40,000 lb Rear Air Suspension |
| VOLVO |
VNL Series |
730 & 780 Models with 40,000 lb Rear Air Suspension |
| VOLVO |
VT Series |
64T-830 Models with 40,000 lb Rear Air Suspension |
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Gabriel
|
85066
|
|
Mack
|
14QK2136M, 14QK3101M, 20897198, 471700000431, 14QK‑3101M, SDA471700000431
|
|
Meritor
|
85066
|
|
Monroe
|
65486, 66431, 66486
|
|
Volvo
|
20433425, 471700000443, 8086651, 20551628
|
|
Volvo/White
|
20433425, 20551628, 8086651
|
|
Sampa:
|
502.756
|
|
Automann:
|
565.ER3021
|

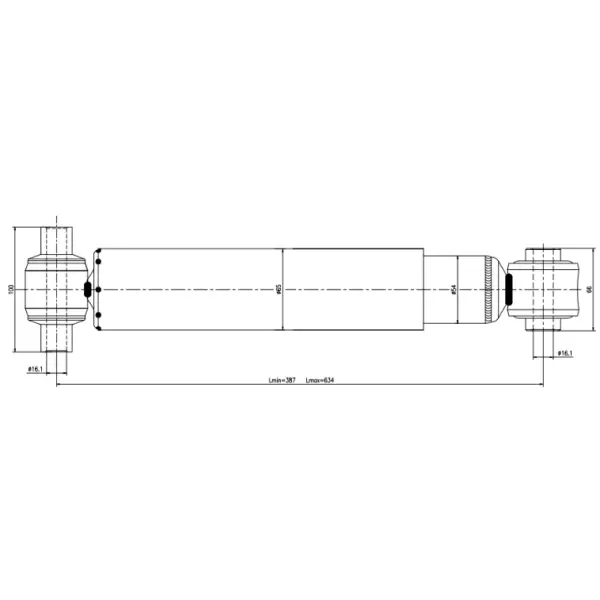

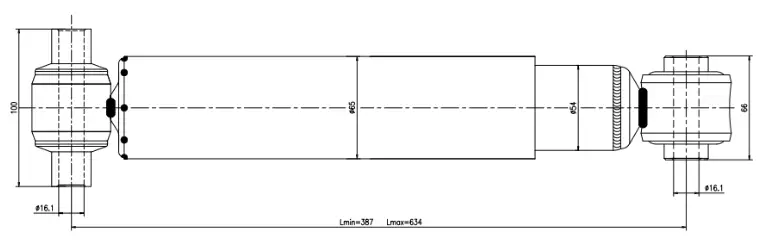

| Property |
Value |
|
Extended length
|
24.64"
|
|
Collapsed length
|
15.25"
|
|
Stroke
|
9.39"
|
|
Dust tube
|
Yes
|
|
Recoil Cutoff
|
Yes
|
|
Rebound force
|
812
|
|
Compression force
|
322
|
|
Upper Mounting
|
I.D. 0.63", sleeve length 3.95"
|
|
Lower Mounting
|
I.D. 0.63", sleeve length 2.60"
|
|
Bore
|
1‑5/8"
|
|
Weight
|
8.5lbs
|
| Longest Side | 45.28" |
| Median Side | 45.28" |
| Shortest Side | 43.31" |
| Weight | 8.12 lbs |
