Shock Absorbers Heavy Duty Shock Absorbers

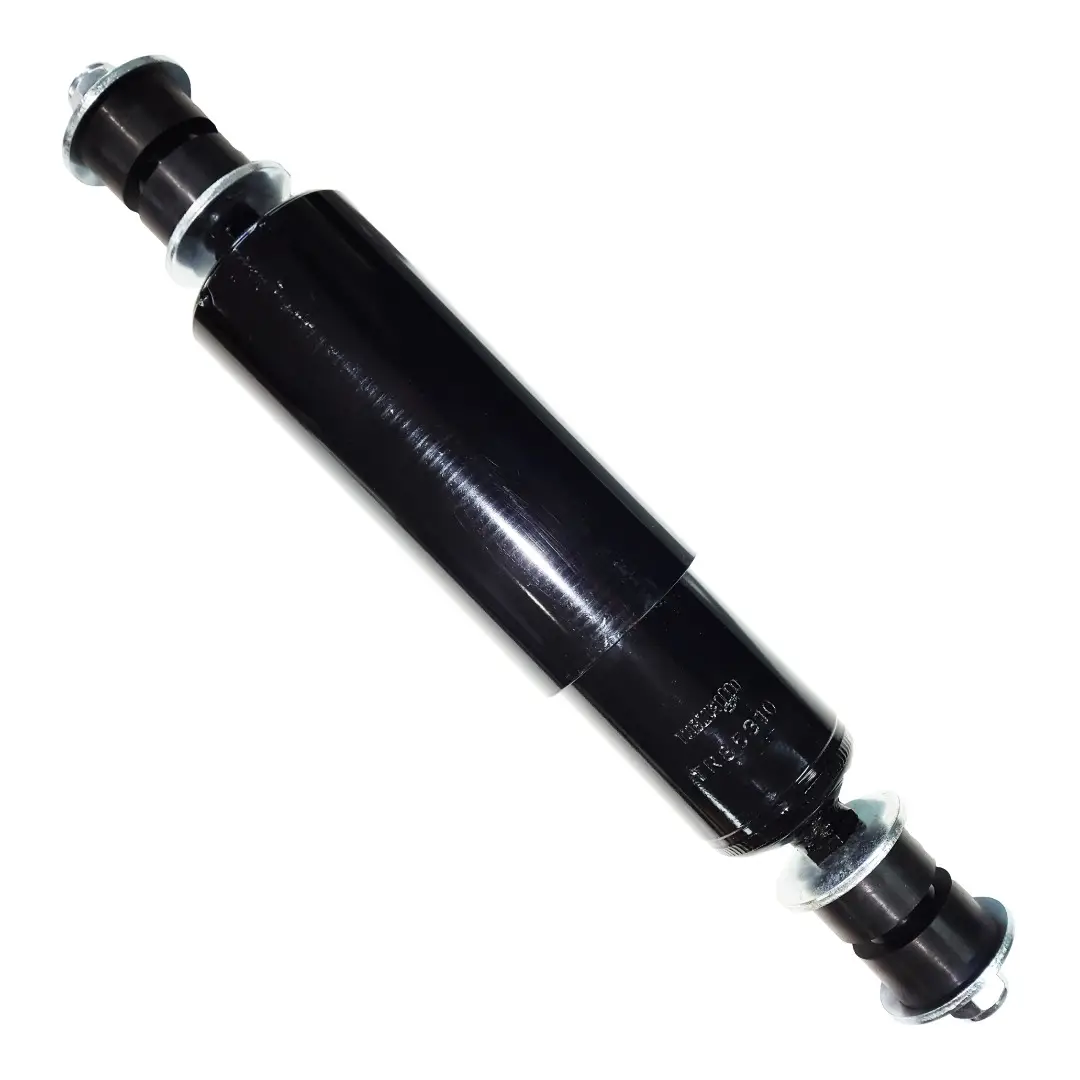

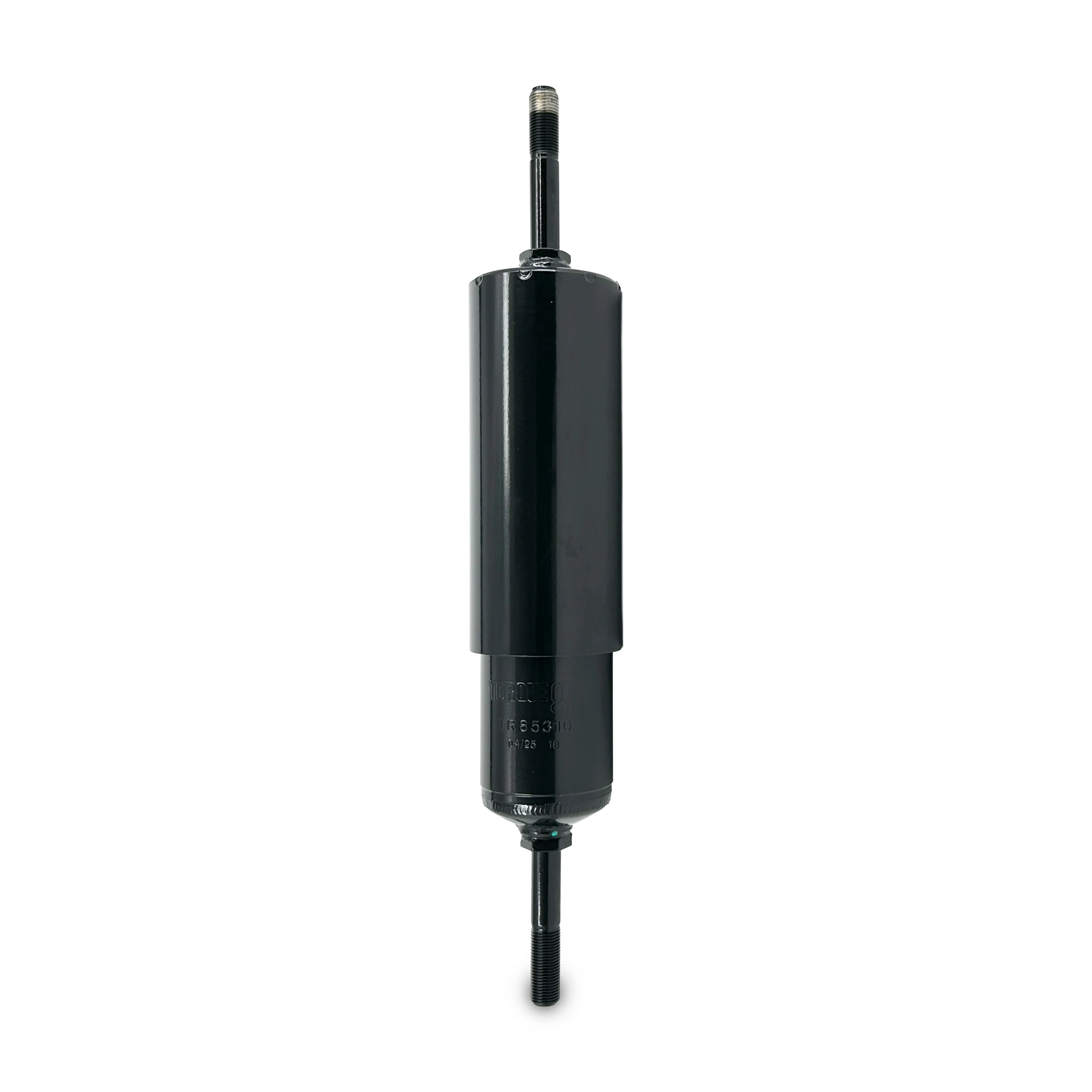

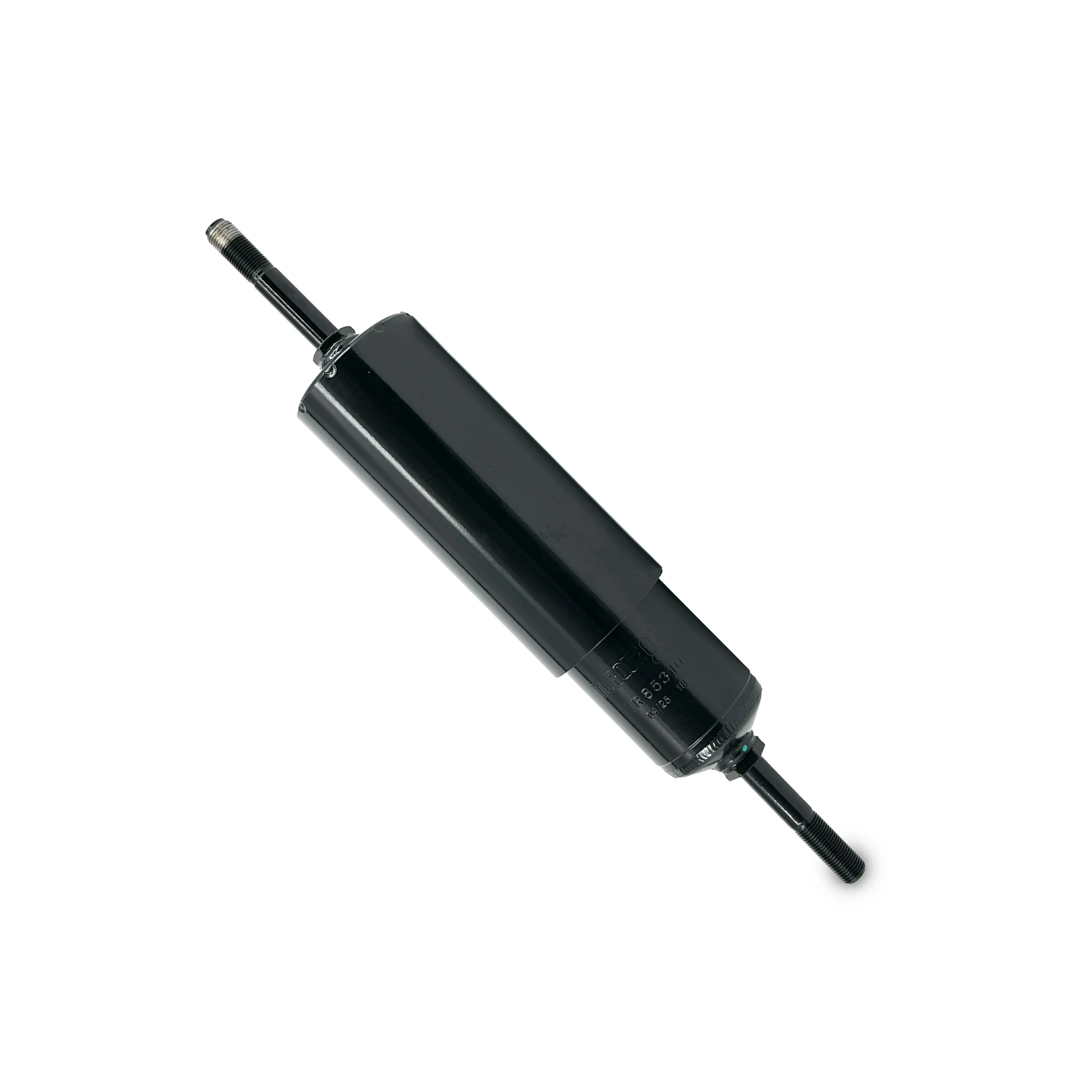

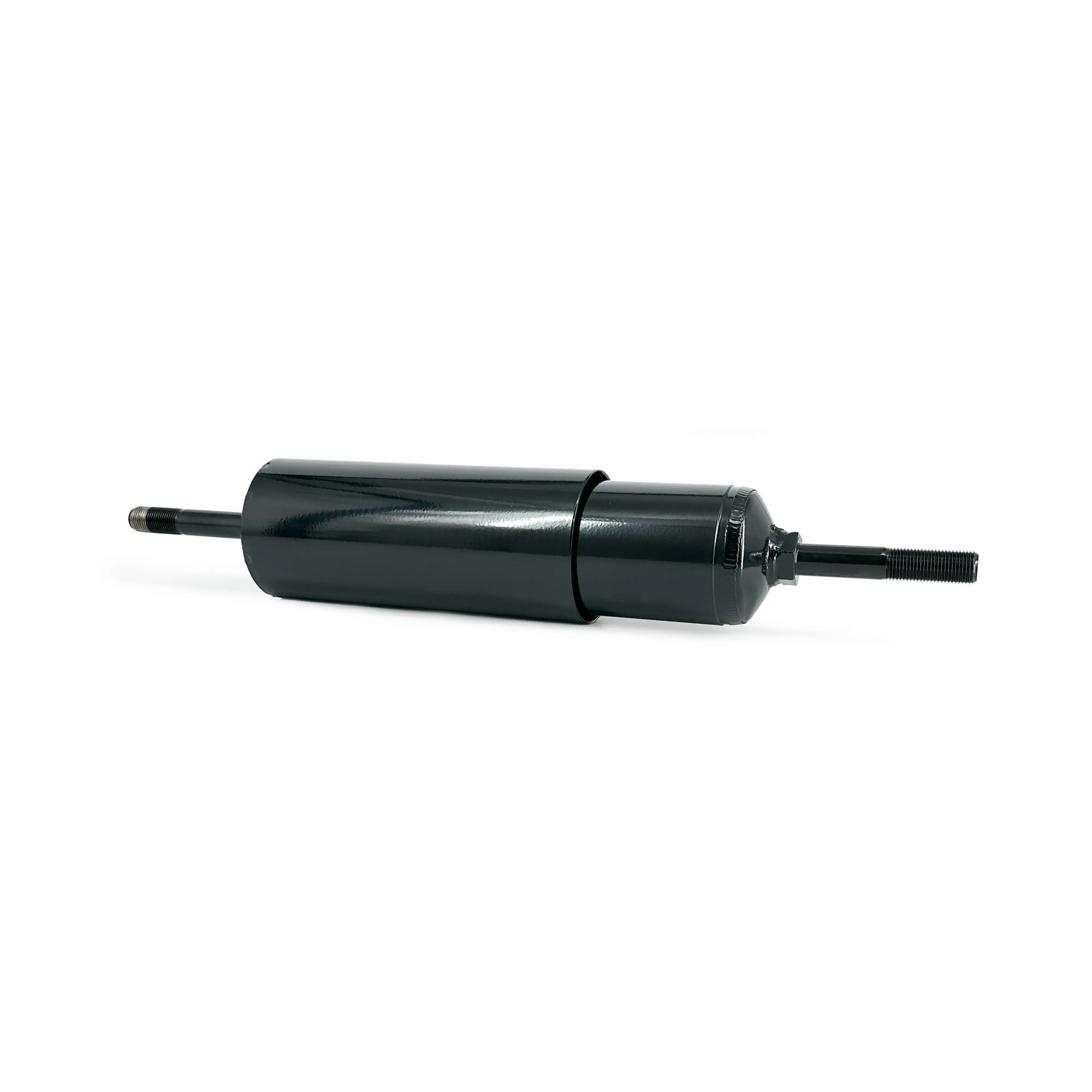

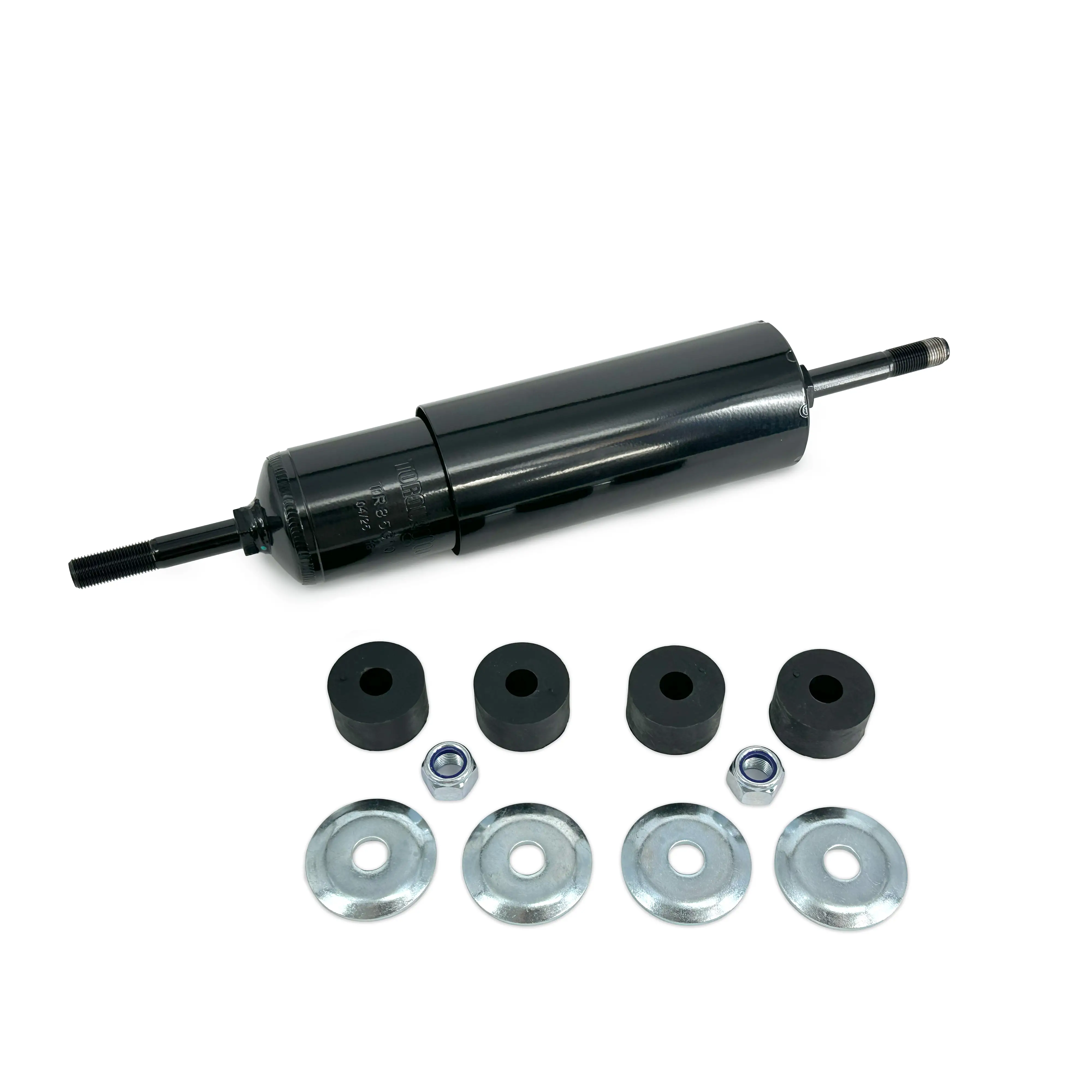

Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks

Description : Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks

Part Number : TR85310

Click to see price

Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks

Where Used:

Make	Series	Additional Information
ARVIN MERITOR		Models with Manufacturing Number
KENWORTH	Additional O.E.M. Interchanges	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	Additional O.E.M. Interchanges	OE PLUS Shock Stamping Number
KENWORTH	Additional O.E.M. Interchanges	TruckMaster Shock Stamping Number
KENWORTH	C500, C500B, C500K, C540 & C550	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	K100, K100E, K125	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	K300	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	T2000	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	T300	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	T400, T400B, T450B	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	T600, T600A, T600B, T602	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	T800, T800B, T800B(8x4), T800SH, T800H, T800W	All with Air Glide 100 Suspension with 8 air bags, 4 units required
KENWORTH	W900, W900B, W900L, W900S	All with Air Glide 100 Suspension with 8 air bags, 4 units required
PETERBILT	Additional Applications	OE PLUS Shock Stamping Number
PETERBILT	Additional Applications	TruckMaster Shock Stamping Number

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Gabriel	85310
Kenworth	680476, 680486, K37429, K37432, K3747, K3749, K374C7
Mack	650404
Meritor	85310
Monroe	65404, 66424, 74409
Ottawa	90013787
Volvo	1091379, 3199949
Volvo/White	1091379
Automann:	565.ER3037
Sampa:	502.827

Property	Value
Extended length	18.63
Collapsed length	11.71
Stroke	6.92
Dust tube	Yes
Recoil Cutoff	Yes
Rebound force	1379
Compression force	578
Upper Mounting	5/8‑18 thread size x 3.28
Lower Mounting	5/8‑18 thread size x 3.28
Bore	1‑5/8
Weight	10.5lbs
