QUALITY

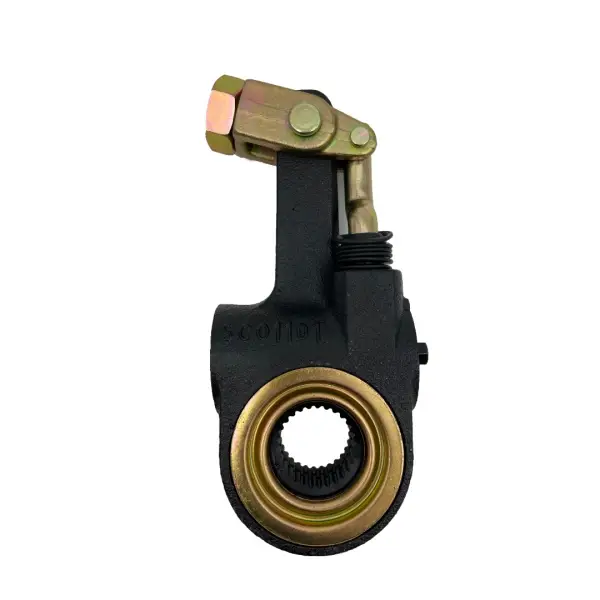

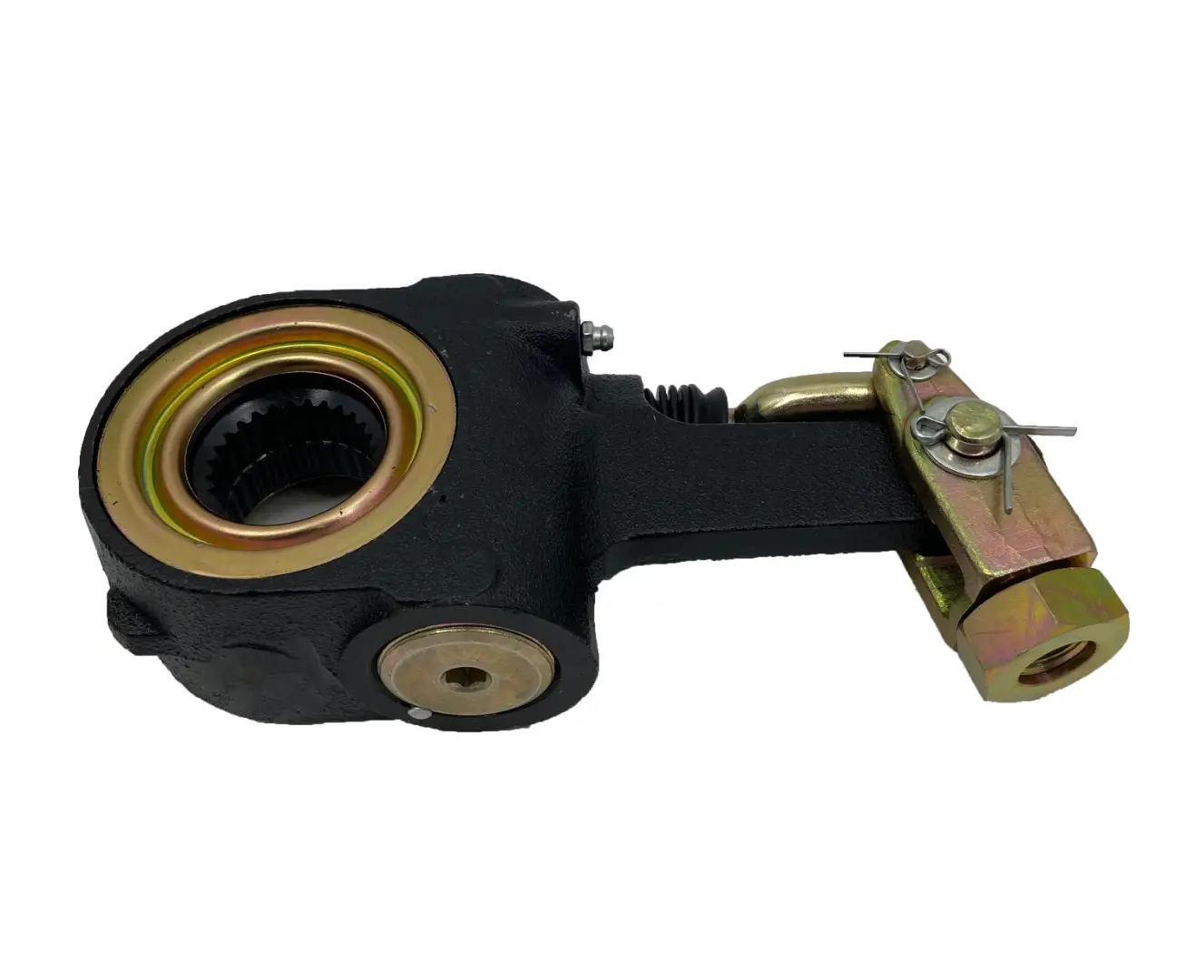

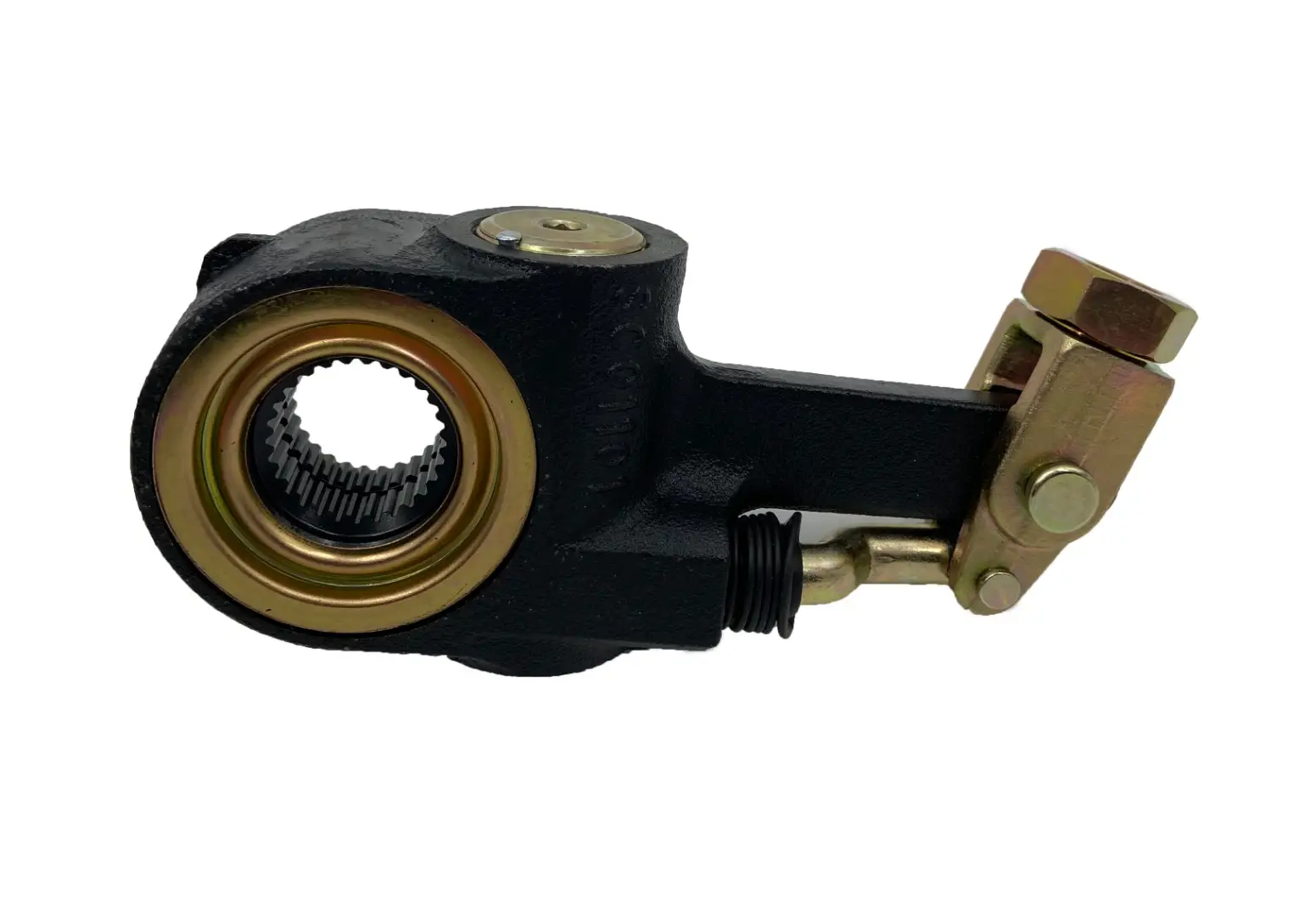

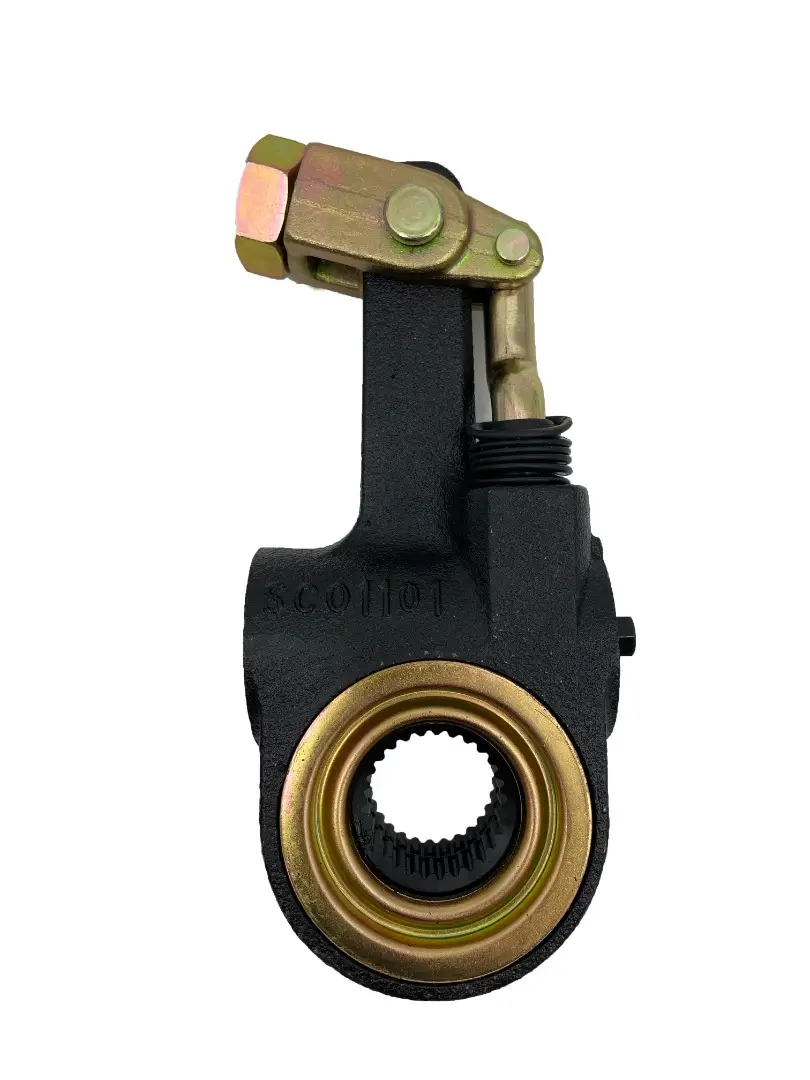

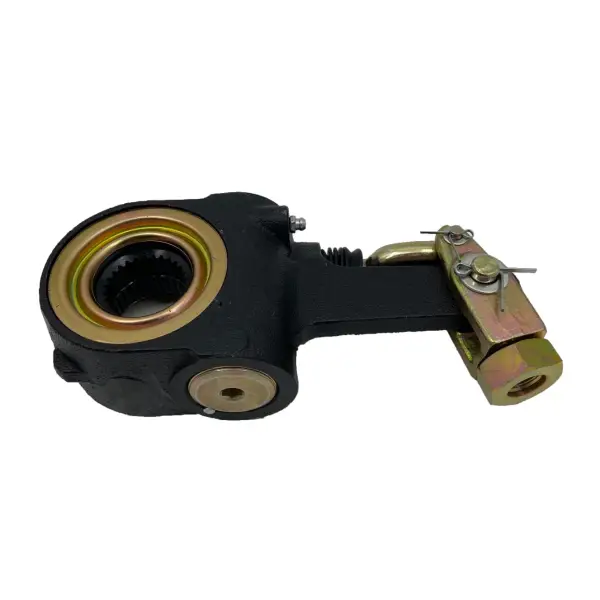

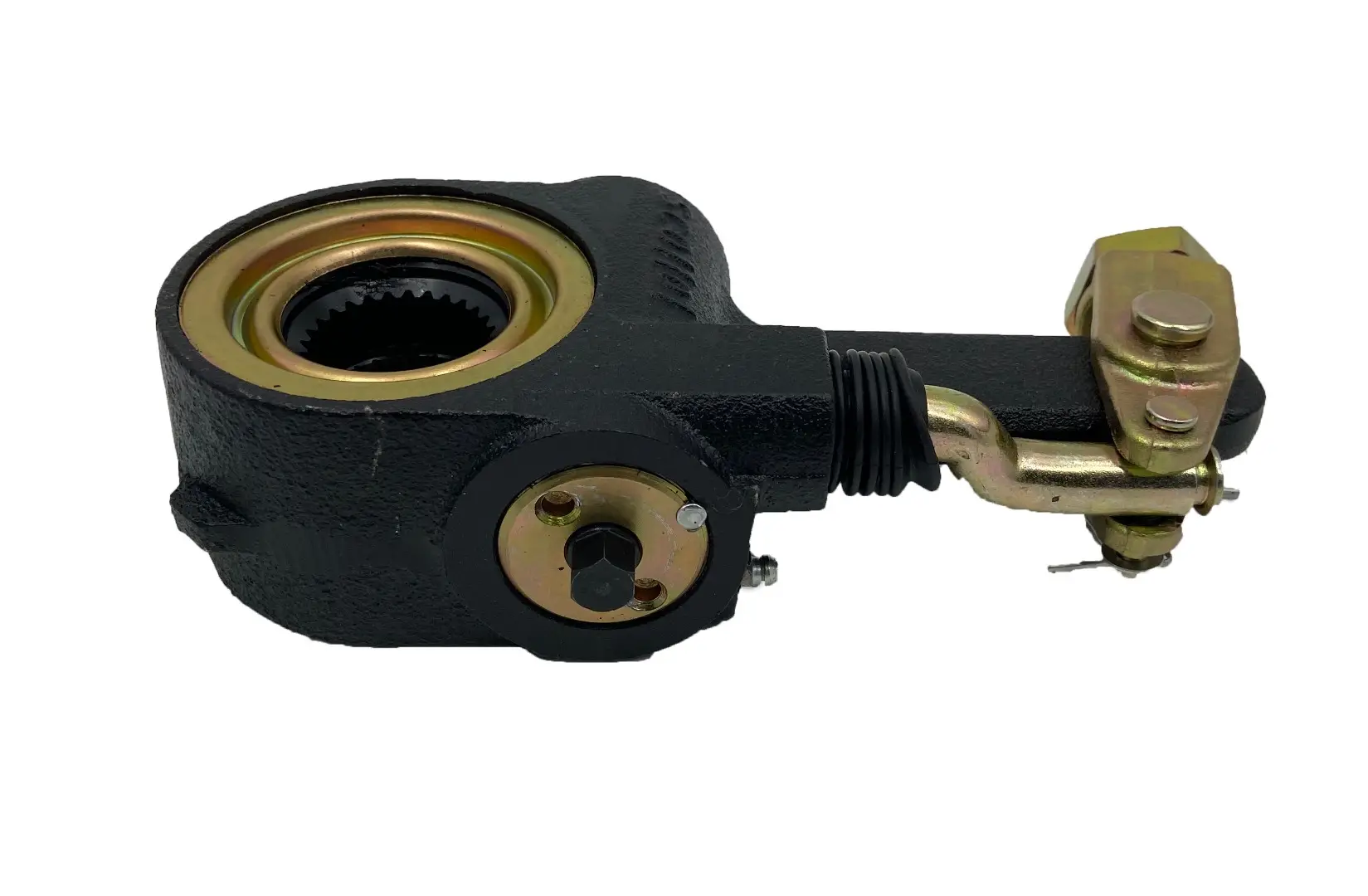

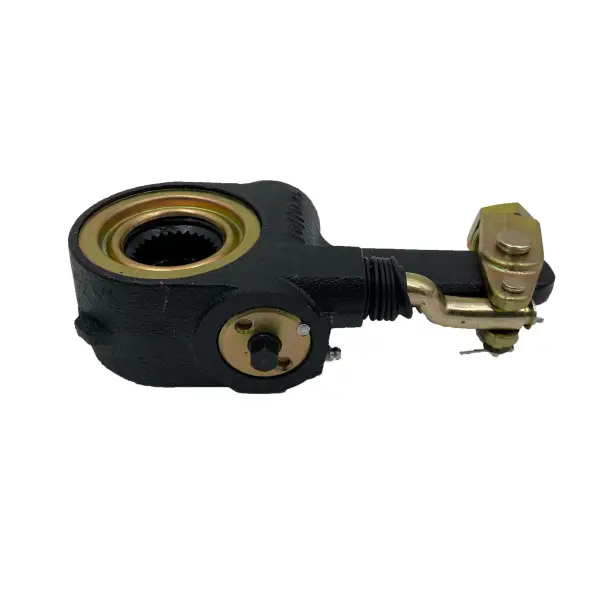

Direct OEM replacement automatic slack adjuster engineered to deliver consistent braking performance and long service life in heavy-duty semi truck applications.
SPECIFICATIONS
Lever Length: 6"
Spline Count: 28
Spline Diameter: 1.5"
Included Clevis: .625-18 collar lock clevis
REPLACEMENT FOR
ACCURIDE / Gunite: SA02201, SA02502, SA03602, SA04202, SA07003, SA07103, SA10203, SA10503, SA11303, SAS1169, SAS1171, SAS1172, M16WR1332, GUNSA10203
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Dorsey Trailer
|
1191037
|
|
Eagle
|
52529
|
|
Euclid
|
E11402, E11402A
|
|
Freightliner LLC
|
76401‑3509, F8HT 2314 BA, GUN AS1141
|
|
Fruehauf Corporation
|
ACF004205828
|
|
Great Dane Trailer
|
42521
|
|
Haldex Brake Systems
|
400‑10305, 400‑20220, 400‑20234
|
|
Mack Trucks Incorporated
|
25QD51P3, 3398‑AS1141
|
|
Meritor
|
A143275J1154S, R801074, R803112
|
|
Sloan
|
2011
|
|
Trailmobile Incorporated
|
4017A23665
|
|
Volvo Trucks North America
|
8060858, 8084132, 25024637, 76401‑0100
|
|
Wabash National Corporation
|
10600055
|
|
ACCURIDE
|
3820002201
|
|
Arvin Meritor
|
A‑3275‑X‑596, A10‑3275N716S, A11‑3275N716S, A15‑3275N716S, A16‑3275B600S, A16‑3275N716S, A16‑3275V594S, A17‑3275B600S, A17‑3275V594S, A19‑3275N716S, A2‑3275B600S, A2‑3275L792S, A2‑3275N716S, A2‑3275V594S, A2‑3275Y1091S, A2‑3275Z1092S, A20‑3275N716S, A22‑3275B600S, A22‑3275V594S, A25‑3275M1079, A3275X596, A5‑3275‑N‑716S
|
|
Automann
|
139.283
|
|
Bendix Corporation
|
65175, 65176, 106201, 106926, 107101, 107127, 107277, 107278, 107736, 107772, 107773, 107787, 107994, 108091, 108093, 108117, 108430, 109519, 289312, 289313, 289933, 289934
|
|
Crewson Industries
|
CB22103, CB22104, CB22183, CB22184, CB22953, CB42106, CB42186, CB72106, CI22103, CI221A3, CI42106, CI421A6, CI72106
|
|
Dana Corporation
|
809614, 815787, 815792
|
|
Dexter Axle
|
05‑040‑04
|
| Property |
Value |
|
Weight
|
4.25lbs
|
Meritor Drive Axle 16-1/2” x 7” FMSI 4515E (Double Anchor Pin)
Meritor Drive Axle 16-1/2” x 7” FMSI 4707 (Double Anchor Pin)
Hendrickson Trailer Axle Intraax 15” x 8-5/8” FMSI 4710 (HXS w/ 19.5” Wheels)
Hendrickson Trailer Axle Intraax 16-1/2” x 7” FMSI 4515E, 4707 (w/ Camshaft Tube)
Hendrickson Trailer Axle Intraax 16-1/2” x 7” FMSI 4515E, 4707 (With Exposed Camshaft)
Meritor Trailer Axle 16-1/2” x 7” FMSI 4707 (Double Anchor Pin)
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 9.45" |
5.31" |
2.76" |
7.17 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 6 |
11.22" |
9.84" |
8.86" |
46.30 lbs |
