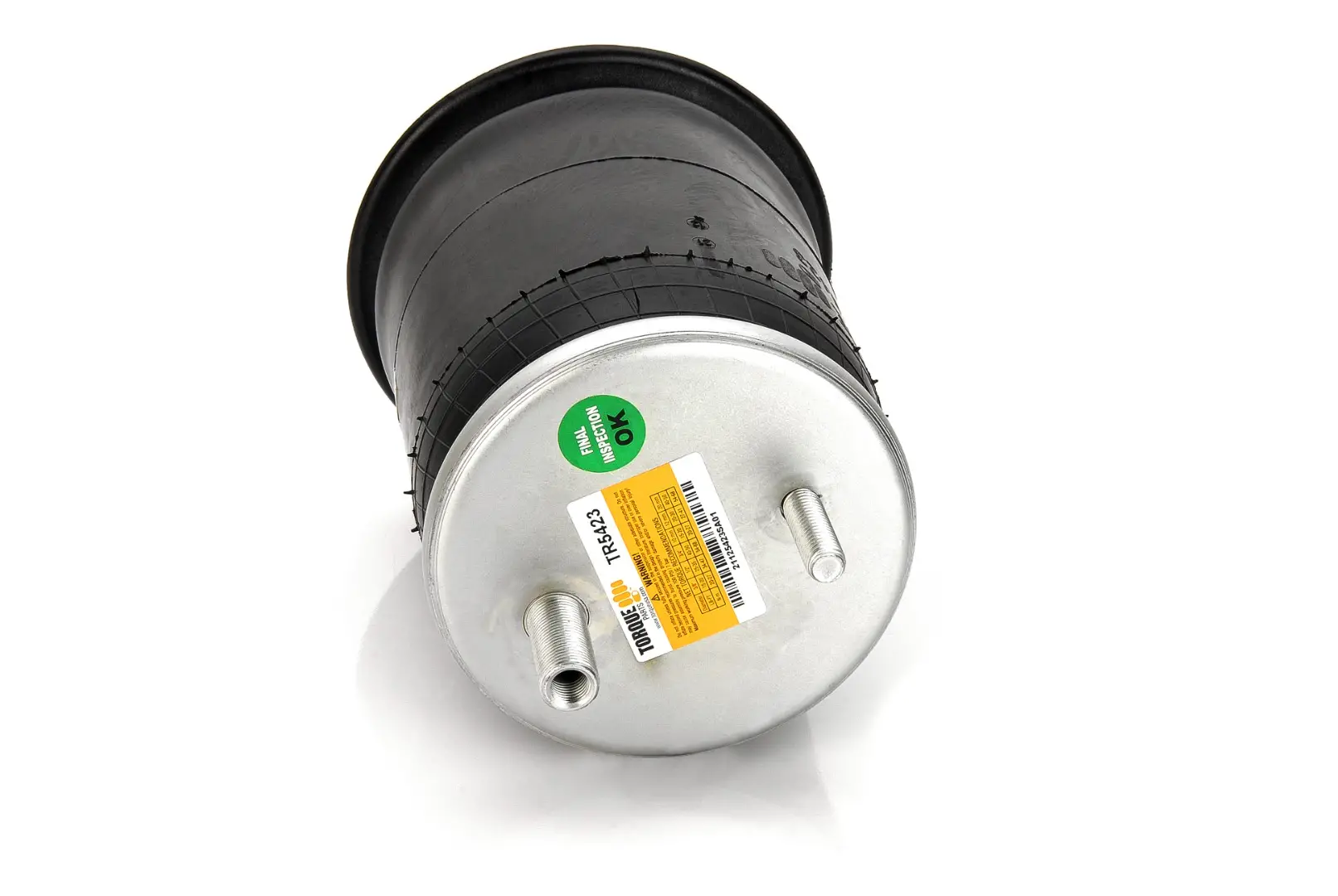

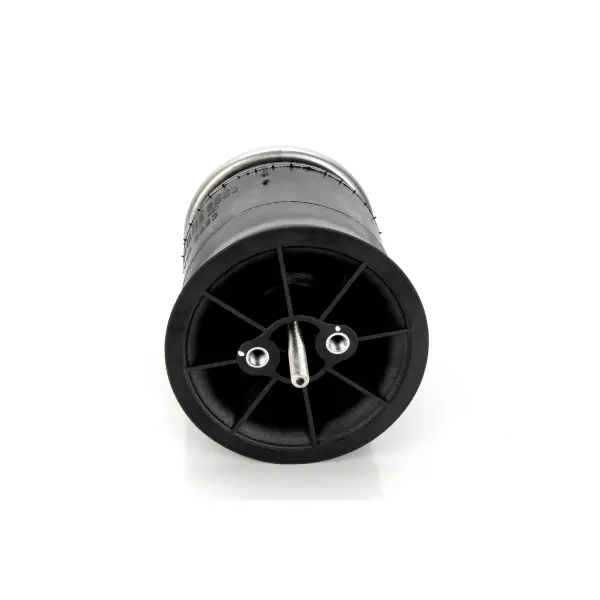

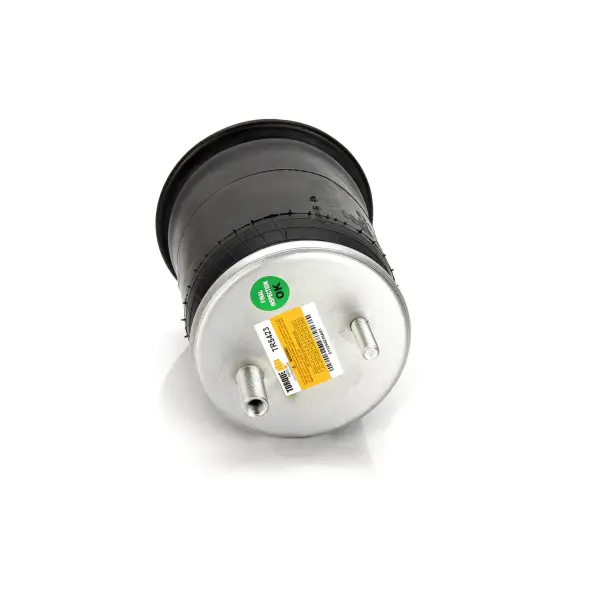

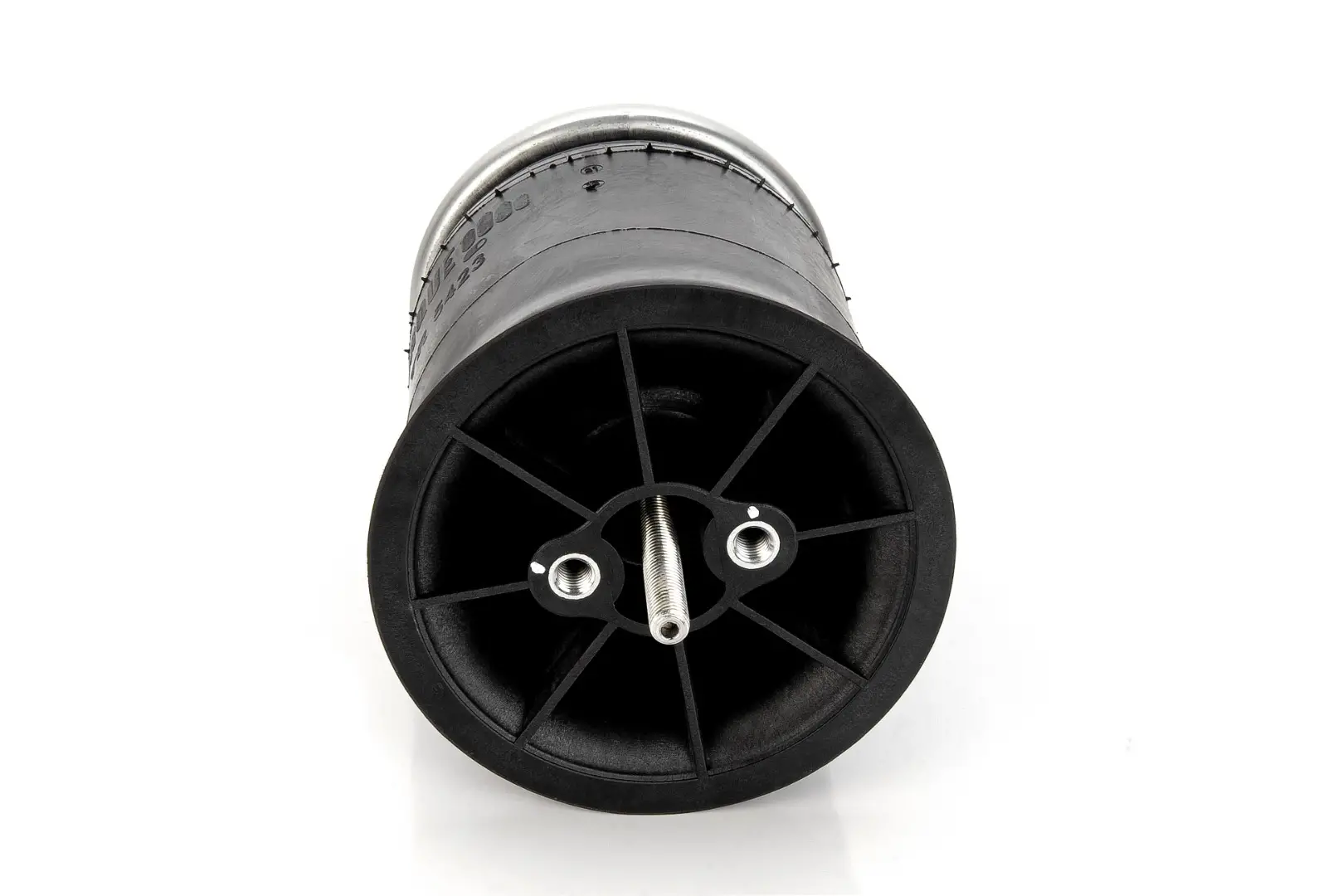

The Ultimate Trailer Air Spring Bag for Heavy-Duty Trailers!
Ensure optimal performance and durability for your trailer’s suspension system with the TORQUE Trailer Air Spring Bag. Designed as a direct replacement for Firestone 5423, W01-358-5423, Granning 5235, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with 4.5-5.00 mm thick rubber, 25% stronger 4140 grade steel studs, and reinforced composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by a 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Key Features:
Durable Construction: Made with 4.5-5.00 mm thick rubber, 4140 grade steel studs, and reinforced composite pistons for superior strength and longevity.
Direct Replacement: Replaces Firestone 5423, W01-358-5423, Granning 5235, Rowe Truck ASC1500, ASCS1500, ASCS2000, and other compatible models.
Leak-Free Performance: Rigorously tested to ensure the highest leak test ratio after final assembly.
3-Year Warranty: Backed by an industry-leading 3-year unlimited mile warranty for peace of mind.
Precise Fitment: Designed to match OEM specifications for heavy-duty trailers.
Why Choose TORQUE Trailer Air Spring Bag?
Superior Quality: Exceeds OEM requirements for durability and performance.
Reliable Performance: Built to withstand heavy loads and harsh conditions, ensuring long-lasting operation.
Cost-Effective: Reduces downtime and maintenance costs with its durable design.
Warranty Protection: Enjoy the confidence of a 3-year unlimited mile warranty.
Specifications:
Product Name: TORQUE Trailer Air Spring Bag
Model Number: TR5423

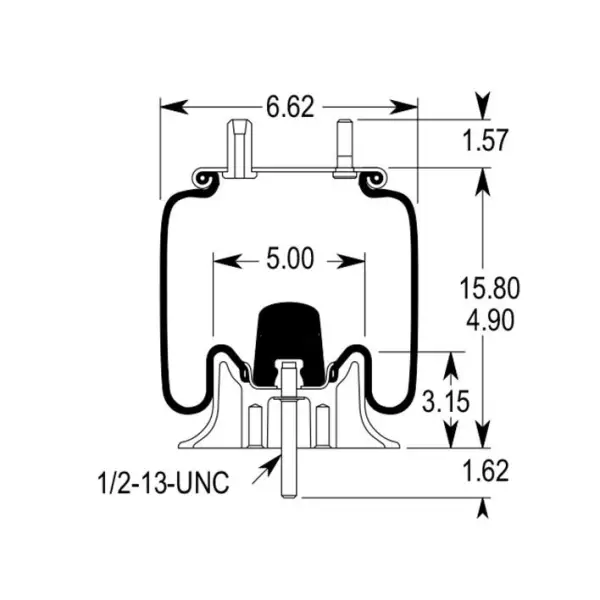

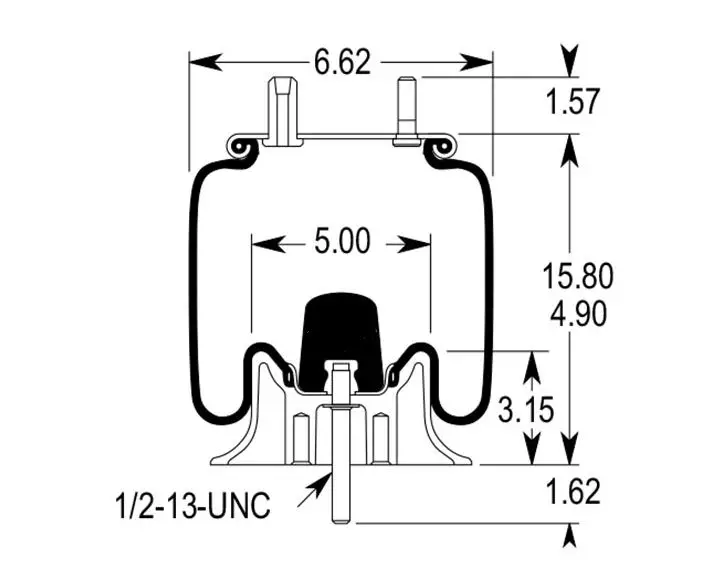

Extended Height: 15.80”
Compressed Height: 4.90”

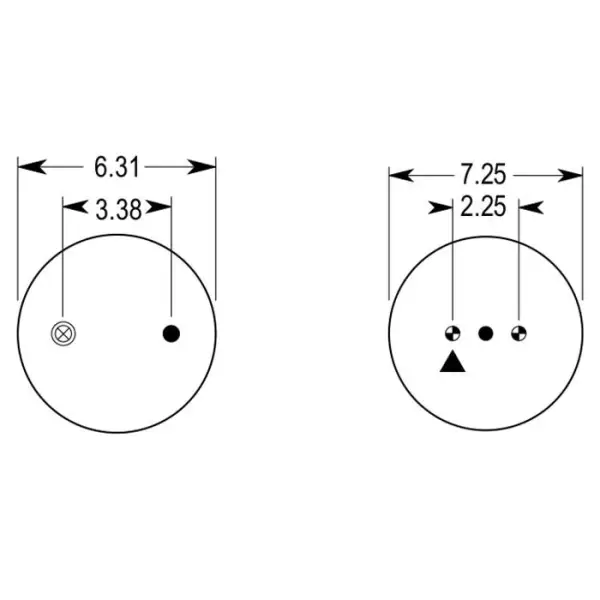

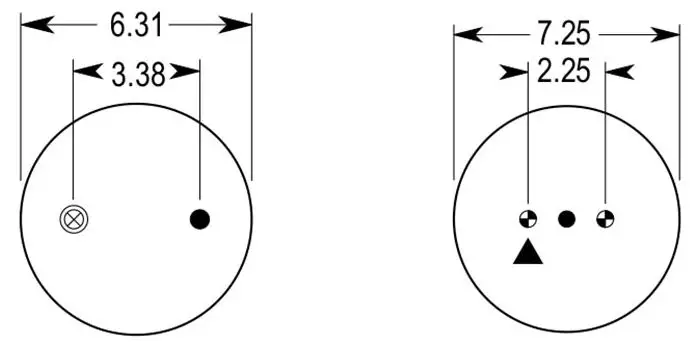

Top Plate Width: 6.31”
Piston Width: 7.25”
Weight: 19.05 lbs
Replaces: Firestone 5423, W01-358-5423, Granning 5235, Rowe Truck ASC1500, ASCS1500, ASCS2000, Lift Rowe Trailer ASCR1500, ASCST1500, ASCST2000, Triangle AS-8559, AS5423, HDV5423, HD5423, Sampa SP555423-KA
Perfect For:
Trailer owners seeking reliable suspension system replacements.
Fleet operators looking to reduce downtime and maintenance costs.
Anyone needing a durable, high-performance air spring bag for heavy-duty trailers.
Upgrade your trailer’s suspension system with the TORQUE Trailer Air Spring Bag – the ultimate combination of durability, performance, and warranty protection!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
665‑13S559, 68127
|
|
Firestone
|
5423, W013585423, W01‑358‑5423
|
|
Granning
|
5235, 5307, 5235 & 5307 (no stud)
|
|
Lift Rowe Trailer
|
ASCR1500, ASCST1500, ASCST2000
|
|
Rowe Truck
|
ASC1500, ASCS1500, ASCS2000
|
|
Triangle
|
AS‑8559
|
|
Sampa
|
SP555423‑KA, SP 555423‑KA
|
| Property |
Value |
|
Extended Height
|
15.80"
|
|
Compressed Height
|
4.90"
|
|
Top Plate Width
|
6.31"
|
|
Piston Width
|
7.25"
|
|
Weight
|
19.05 lbs
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 11.02" |
7.48" |
7.48" |
6.31 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 155 |
44.09" |
44.09" |
45.28" |
370.38 lbs |
