PRODUCT OVERVIEW

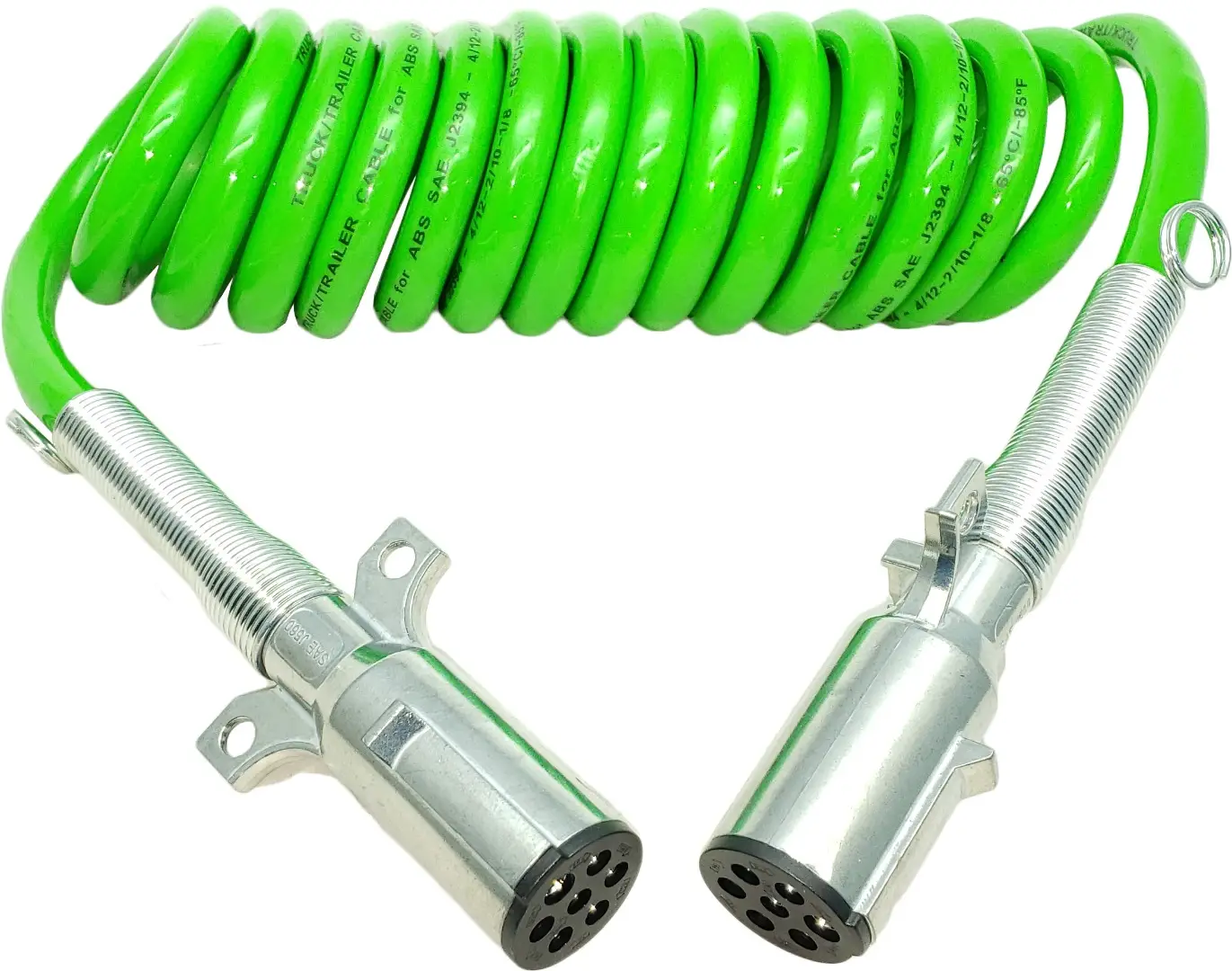

Heavy-duty TORQUE 7-way coiled trailer cord designed to deliver reliable electrical connections between tractors, trailers, and dollies. The 15 ft green ABS power coil provides dependable signal transmission for braking, lighting, and ABS systems in demanding commercial trucking environments.
7-WAY ELECTRICAL CONNECTION
Features a 7-pin conductor configuration designed to transmit essential trailer signals including brake lights, turn signals, tail lights, and auxiliary power.
HEAVY-DUTY ABS POWER CABLE
Constructed with heavy gauge wiring commonly used to power trailer and dolly ABS systems, ensuring reliable electrical performance and stable signal transmission.
DURABLE GREEN COILED JACKET
High-visibility green outer jacket resists abrasion, maintains excellent coil retention, and allows quick identification of ABS electrical lines.
PREMIUM PLUG CONSTRUCTION
Equipped with heavy-duty zinc die-cast plugs and integrated spring guards to provide secure connections and extended service life under harsh road conditions.
REPLACES
Velvac: 590161
PDC: EL27715, 27715A
Tectran: 7ATG522MG
Tramec: 4D015
Philips: 30-4621, 30-9621
Midland-Grau: BE27071
Grote: 87101
PAI: MEC-5404-015
Sloan: 421130
Sureflex: SFA155CE
Truck-Lite: 97258
SPECIFICATIONS
Gauge: 1/8, 2/10, 4/12
Working Length: 15 ft
Conductor: 7-Way
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
GROTE
|
87101
|
|
MIDLAND‑GRAU
|
BE27071
|
|
PAI
|
MEC‑5404‑015
|
|
PDC
|
EL27715
|
|
PHILATRON
|
2415CM
|
|
PHILLIPS
|
30‑4621, 30‑9621
|
|
SLOAN
|
421130
|
|
SUREFLEX
|
SFA155CE
|
|
TECTRAN
|
7ATG522MG
|
|
TRAMEC
|
4D015
|
|
TRUCK‑LITE
|
97258
|
|
VELVAC
|
590161
|
|
Automann
|
179.3011.15
|
| Property |
Value |
|
Gauge
|
1/8, 2/10, 4/12
|
|
Working Length
|
15 ft
|
|
Conductor
|
7‑Way
|
|
Weight
|
6 lbs
|
|
Applications
|
Universal
|
|
Type 1
|
Coiled Electrical Assemblies
|
|
Type
|
ABS Cable SAE J2394
|
|
Assembly Length
|
15 ft
|
|
Length of Leads
|
12"
|
|
Air Line Color
|
Green
|
|
Plugs
|
7‑Way Metal w/Spring
|
|
Lead Length
|
12"
|
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 17.52" |
6.69" |
3.15" |
4.70 lbs |
No outer box information is available for this product.
