Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517

Description : Convoluted Air Spring

Part Number : TR6897

Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Convoluted Air Spring Replaces W01-358-6897, 2B9-229, 64517
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  566.ER6897
 Contitech  FD 200 19 505, 64517, FD200‑19505
 Firestone  W013586897, W01‑358‑6897
 Goodyear  2B9229, 2B9‑229
 IHC  2601750C1, 2B9‑490
 Neway  G2296897500
 Oshkosh  6HD689
 Reyco  70178401
 Ridewell  1003586897C
 Terex  18127
 Triangle  4505, AS‑4505
 Volvo/White  3098608
 Watson & Chalin  AS‑0058
 Watson&Chalin  AS0058, AS0058F
 Sampa:   SP556897, SP 556897
Property Value

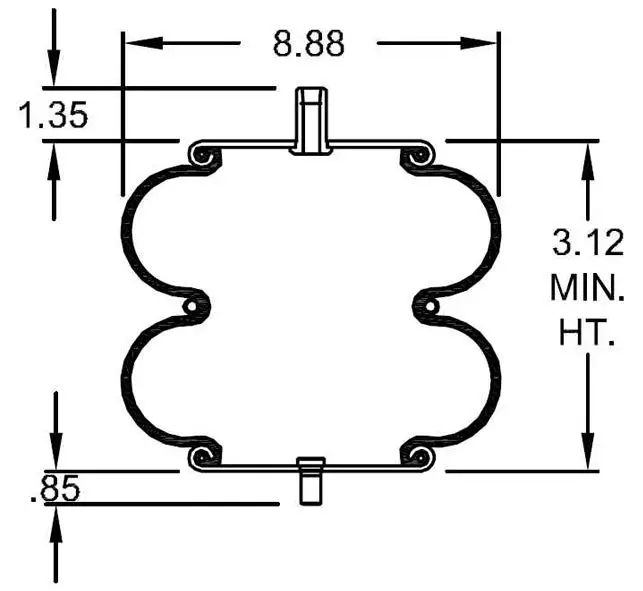

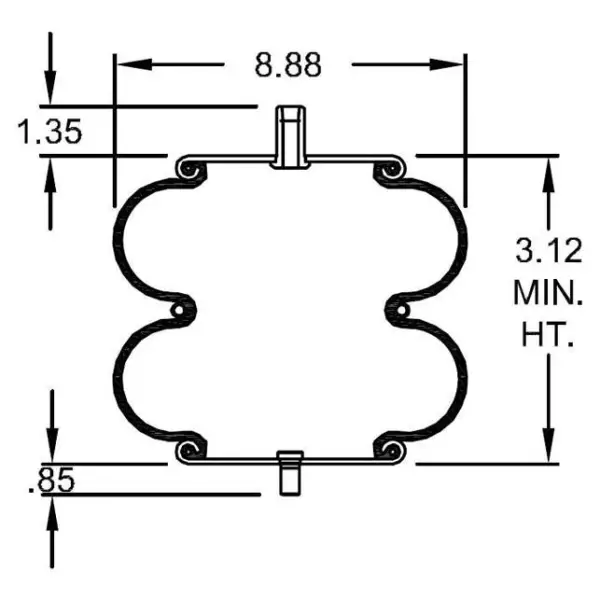

 Compressed Height  3.12"

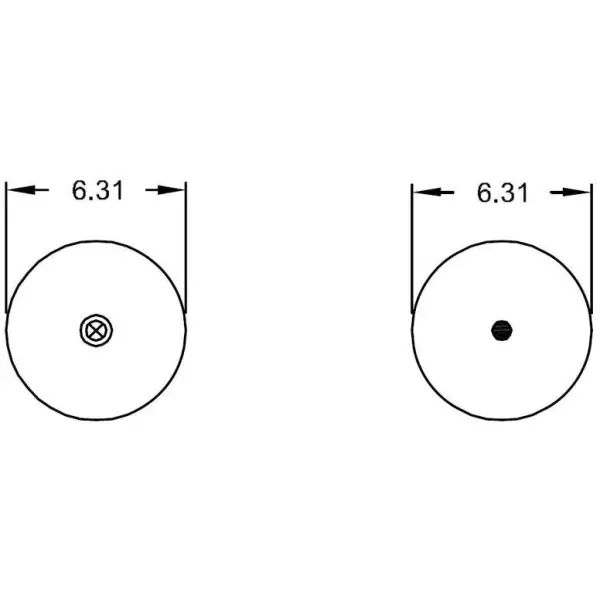

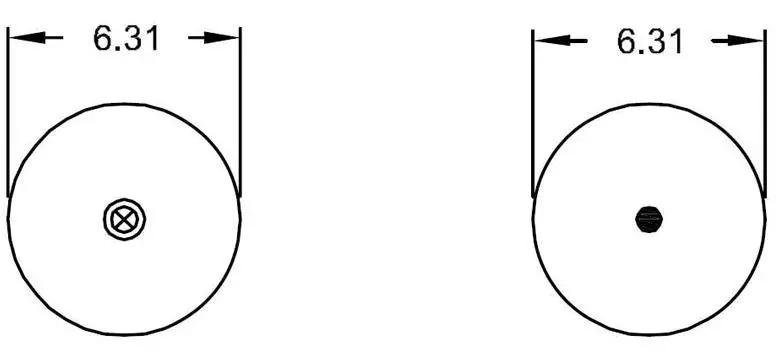

 Top Plate Width  6.31"
 Piston Width  6.31"
 Weight  6.40 lbs
Longest Side44.09"
Median Side44.09"
Shortest Side44.09"
Weight6.75 lbs
