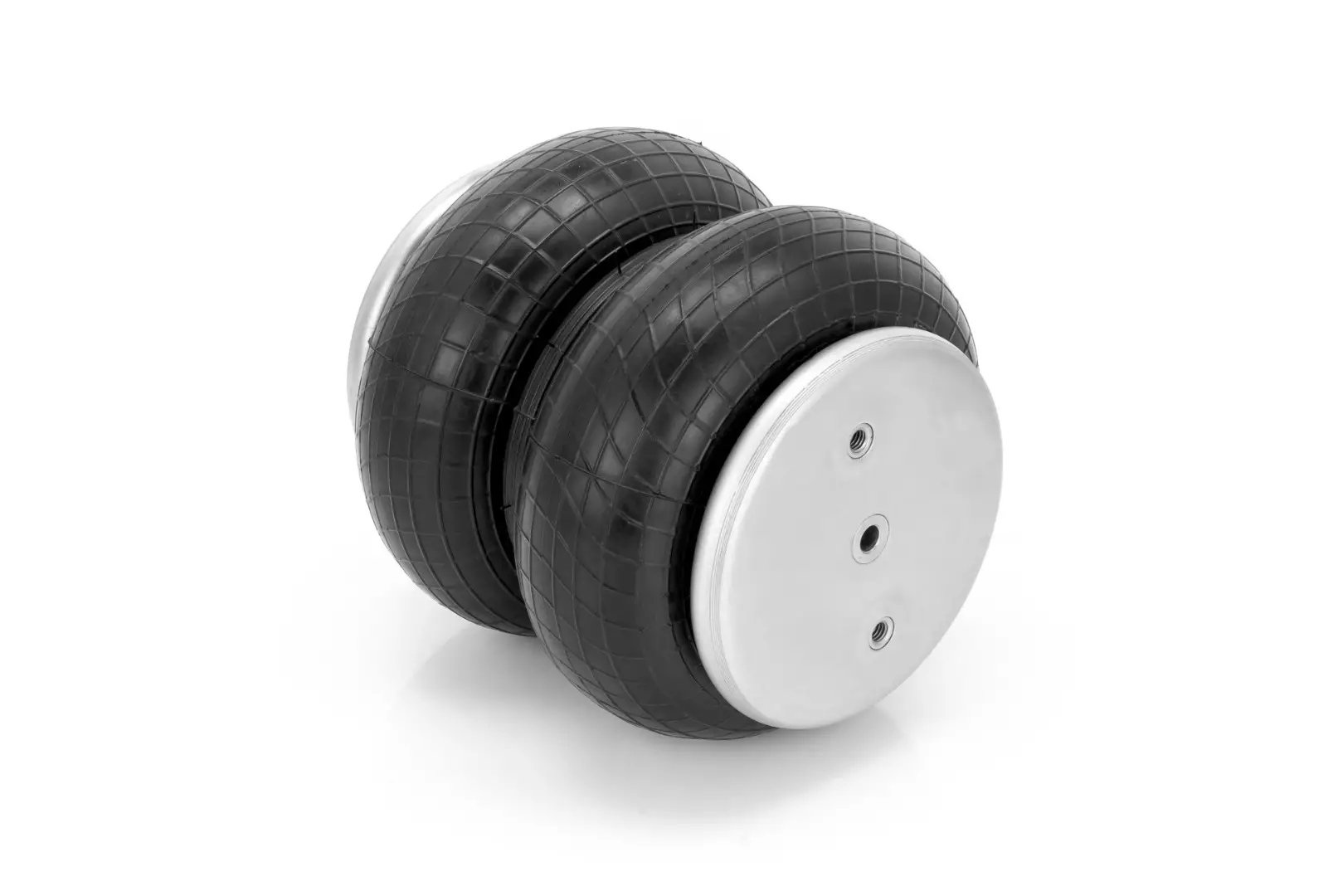

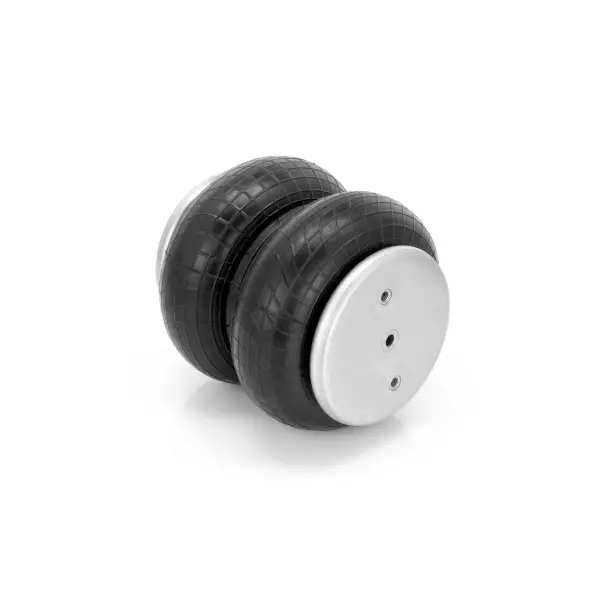

Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201

Description : Convoluted Air Spring

Part Number : TR6902

Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
360° view of Convoluted Air Spring Replaces W01-358-6947, S-2630, 2B9-201
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  566.ER6902
 Contitech  FD200‑19310, FD 200‑19 310, 64509
 Firestone  W01‑358‑6902 , W01‑358‑6947
 Goodyear  2B9201, 2B9‑201, 2B9239, 2B9‑239
 Hendrickson  S2630, S‑2630, B‑2630
 IHC  554784C1
 Neway  57006902, G2296902500
 Ridewell  1003586902C
 Triangle  4310, AS‑4310
 Watson & Chalin  AS‑0002
 Watson&Chalin  AS0002
 Sampa  SP556902, SP 556902
Property Value

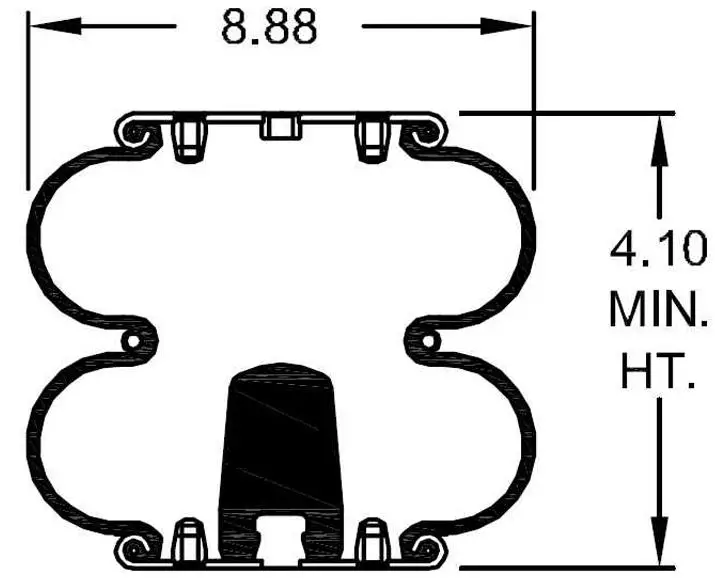

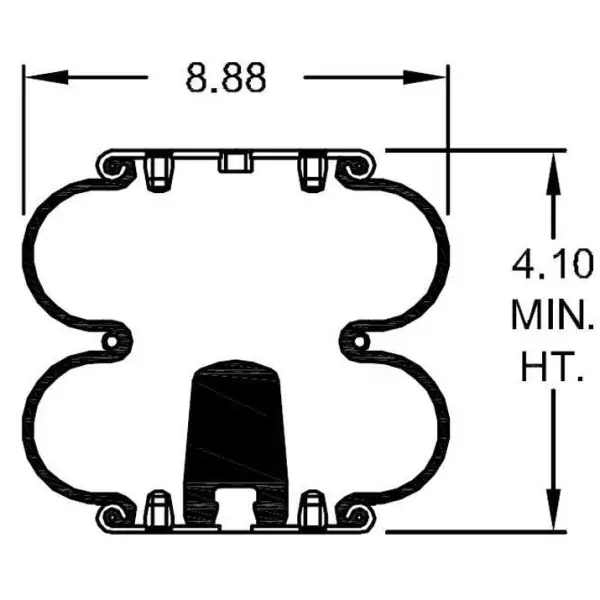

 Compressed Height  4.10"

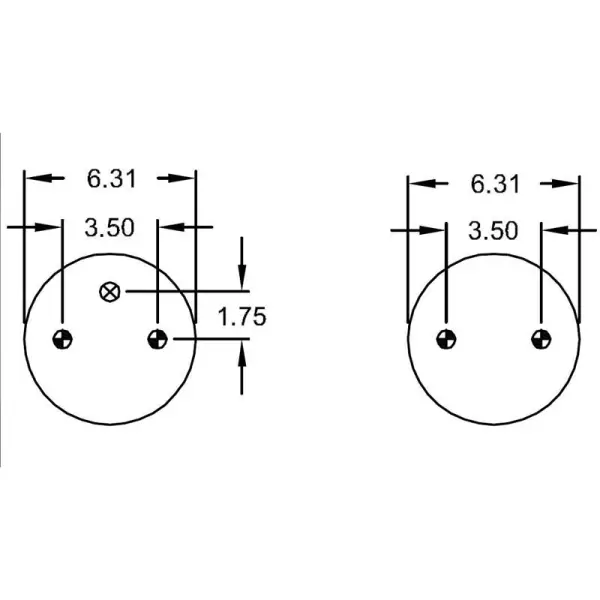

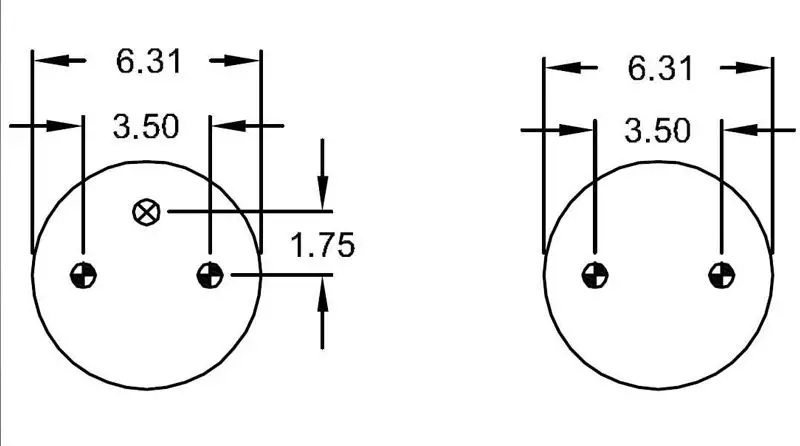

 Top Plate Width 6.31"
 Piston Width  6.31"
 Weight  7.00 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
5.71" 9.06" 9.06" 15.76 lbs
Outer Box
Quantity Longest Side Median Side Shortest Side Weight
50 44.09" 44.09" 10.63" 368.17 lbs

Related Products

Dominator 2600 lbs Air Spring Replaces 58616
Dominator 2600 lbs Air Spring Replaces 58616

TR5861

Dominator 2600 lbs Air Spring Replaces 58616

Product Details login for price
Convoluted Air Spring Replaces 2B9-206, S-5270, S-3518, 6905
Convoluted Air Spring Replaces 2B9-206, S-5270, S-3518, 6905

TR6905

Convoluted Air Spring Replaces 2B9-206, S-5270, S-3518, 6905

Product Details login for price

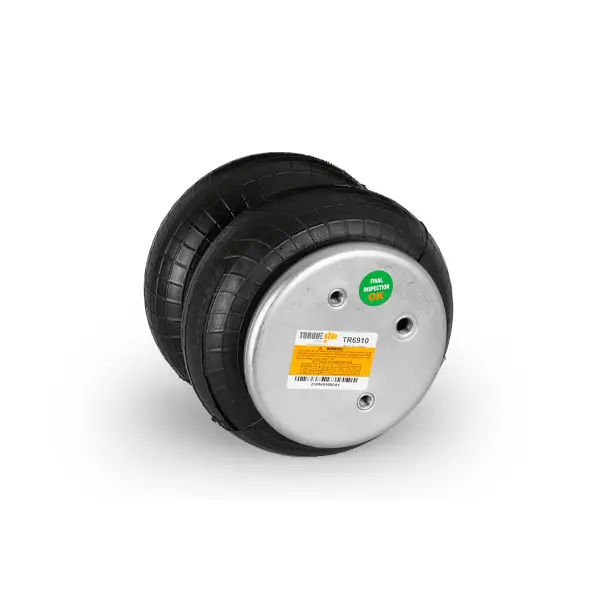

Convoluted Air Spring Replaces W01-358-6910, S-8768, 2B9-200
