Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795

Description : Convoluted Air Spring

Part Number : TR7795

Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Convoluted Air Spring Replaces S-14486, 3317, 2B10-226, 7795
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Contitech  67705, FD 200‑19 713
 Firestone  7795, W01‑358‑7795, W01‑358‑7897
 Goodyear  2B10226, 2B10‑226
 Hendrickson  S‑14486, 3317
 Hendrickson/Turner  3317, B14486, S14486
 Triangle  4524, AS‑4713
 Sampa  SP557795, SP 557795
Property Value

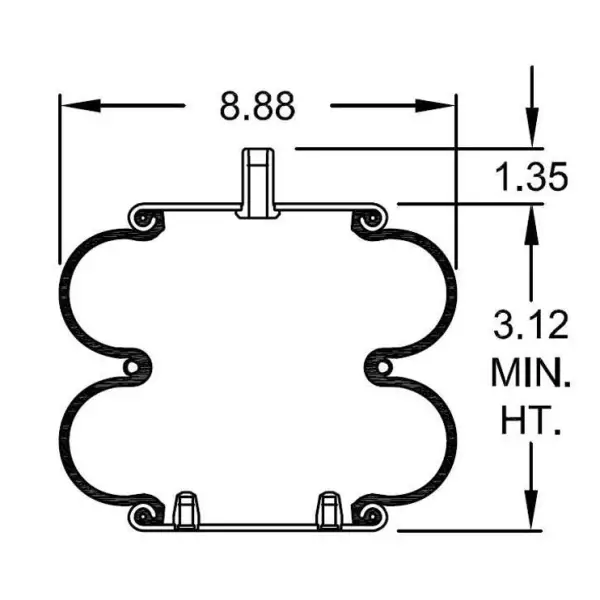

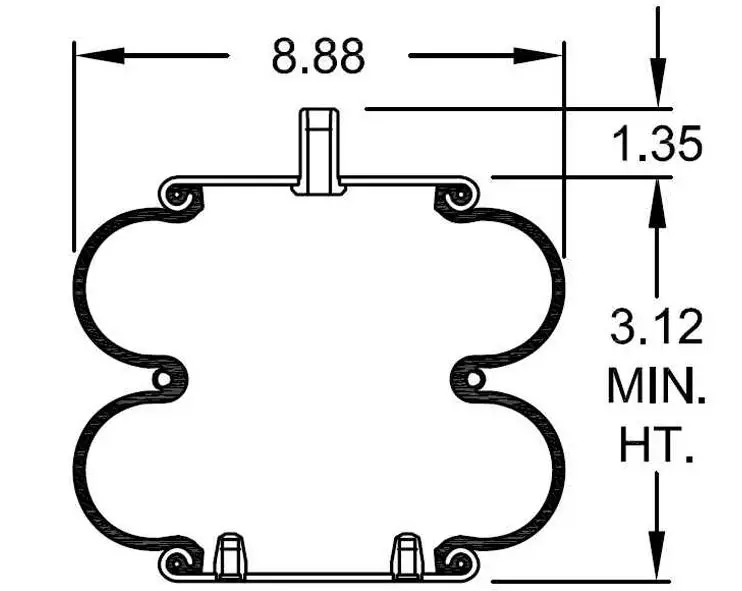

Compressed Height  3.12"

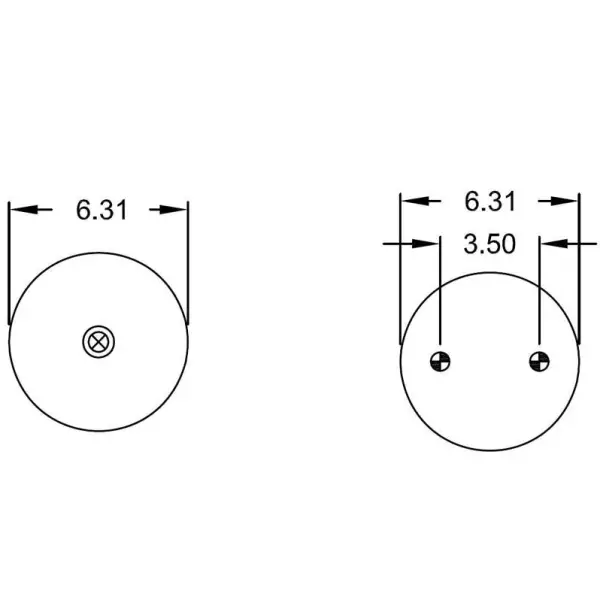

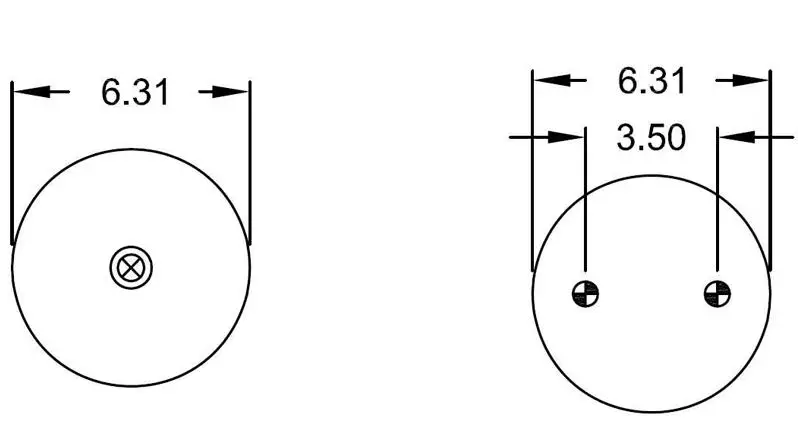

Top Plate Width  6.31"
Piston Width  6.31"
Weight  6.4 lbs
Longest Side44.09"
Median Side44.09"
Shortest Side44.09"
Weight6.61 lbs
