Convoluted Air Spring Replaces W01-358-6944, 2B9-252, 6944, 4454

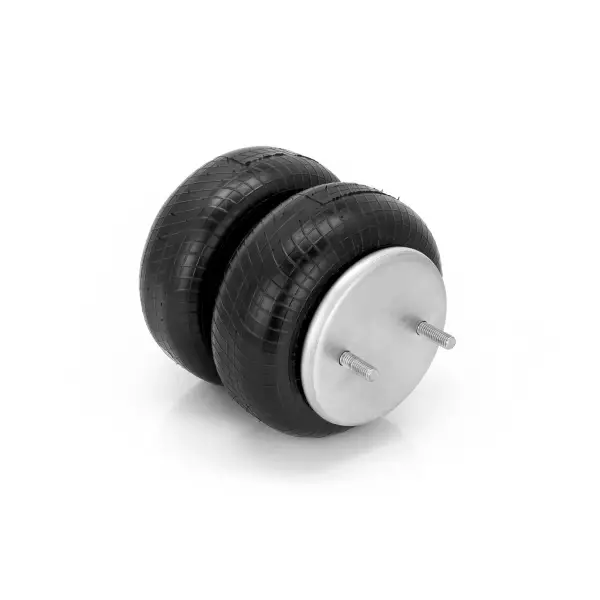

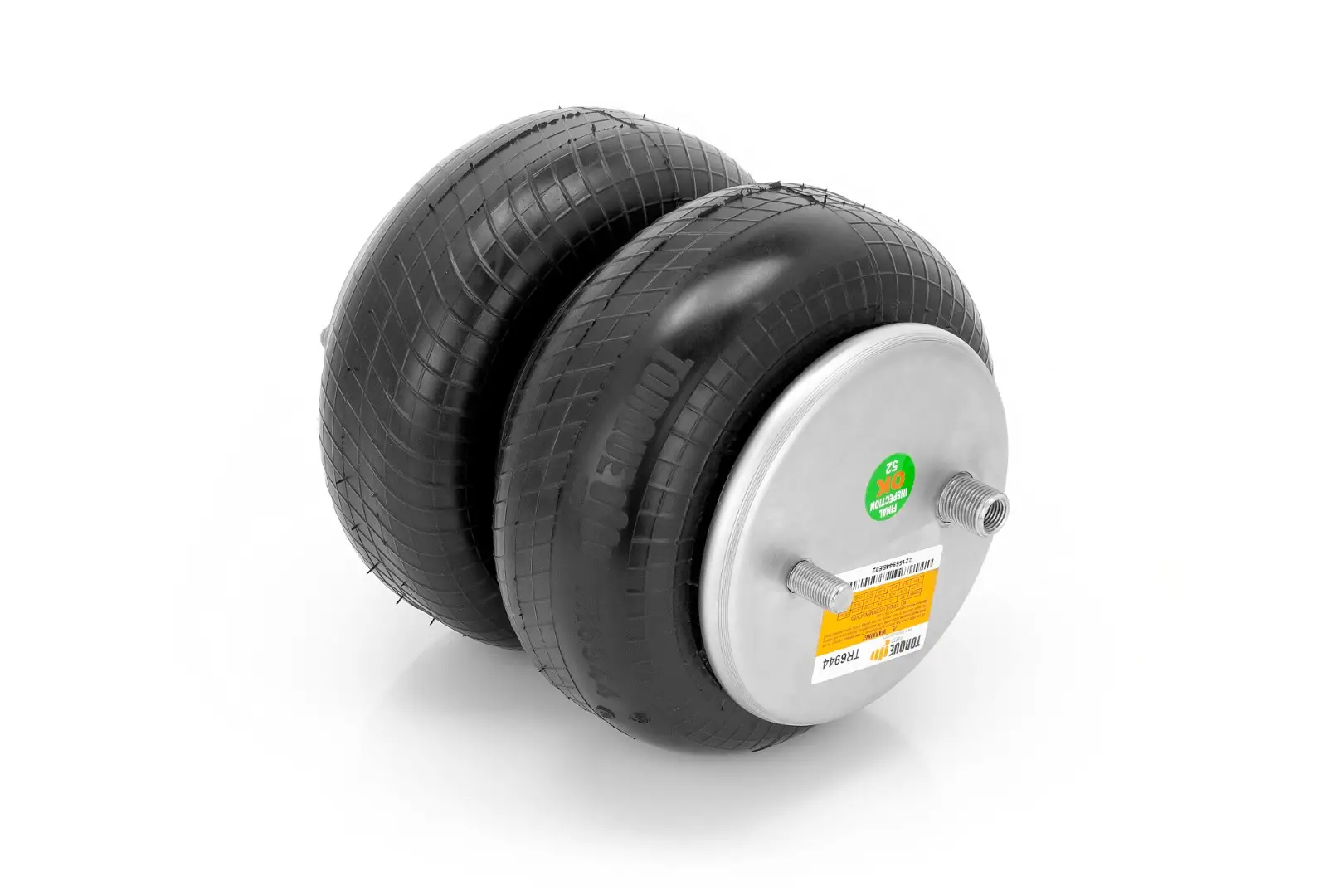

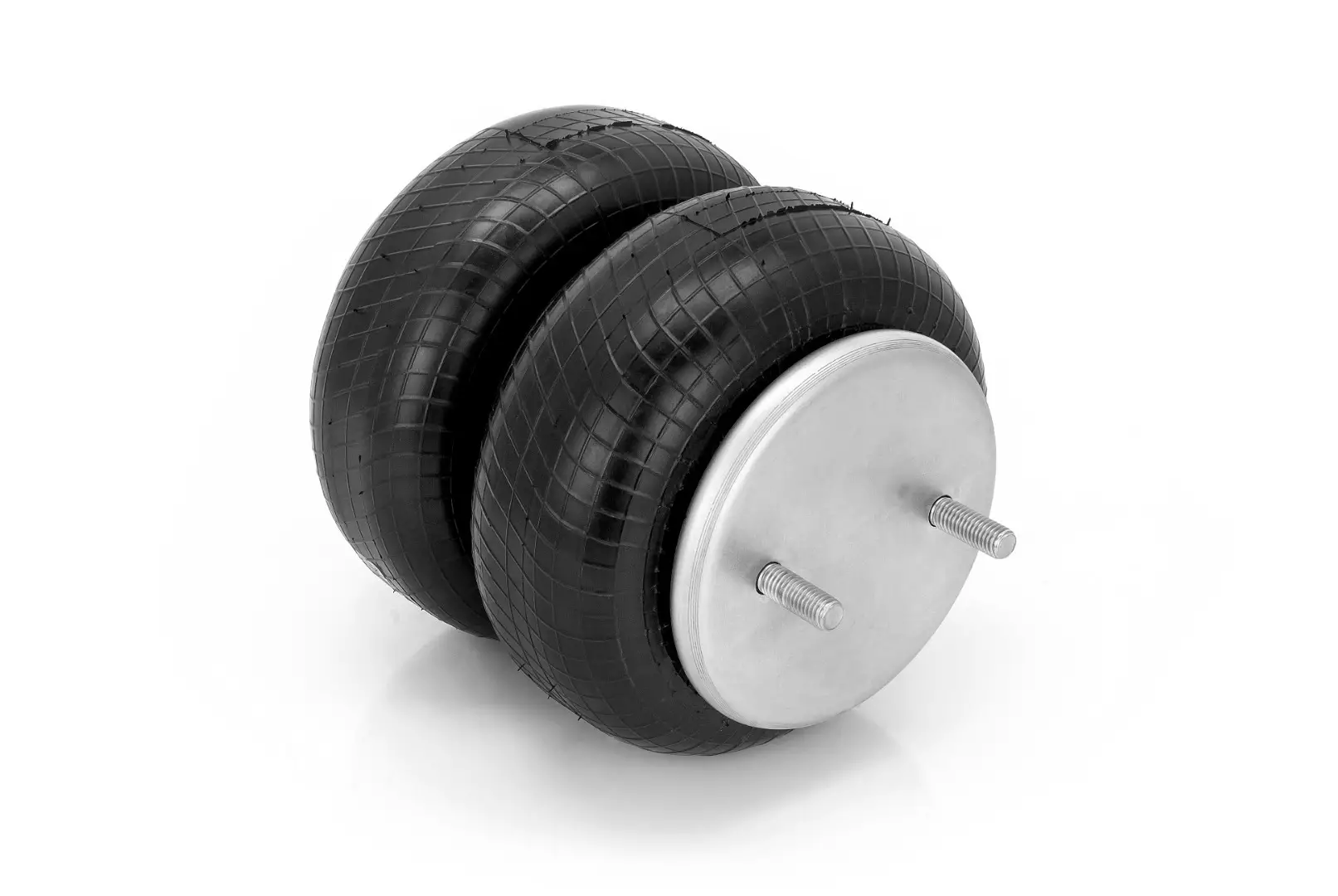

Description : Convoluted Air Spring

Part Number : TR6944

Convoluted Air Spring Replaces W01-358-6944, 2B9-252, 6944, 4454

Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Contitech	FD 200‑25 454
Firestone	W01‑358‑6944
Goodyear	2B9‑252
Histeer Industries /Link	10307
Triangle	4454, AS‑4454
Watson & Chalin	AS‑0115G
Sampa	SP556944, SP 556944

Property	Value

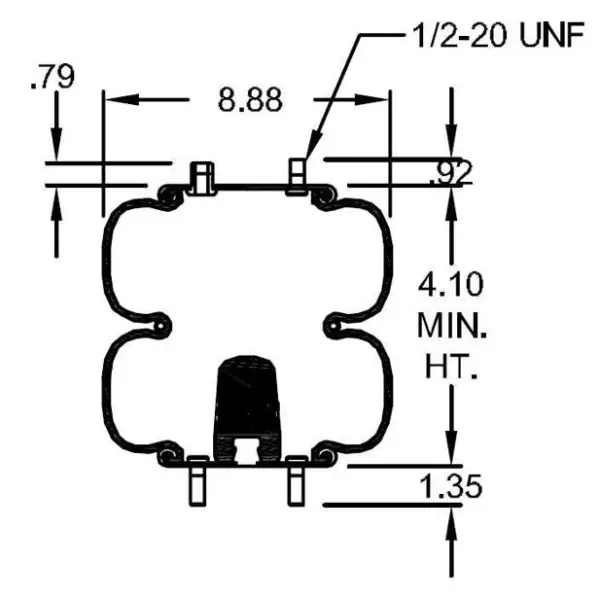

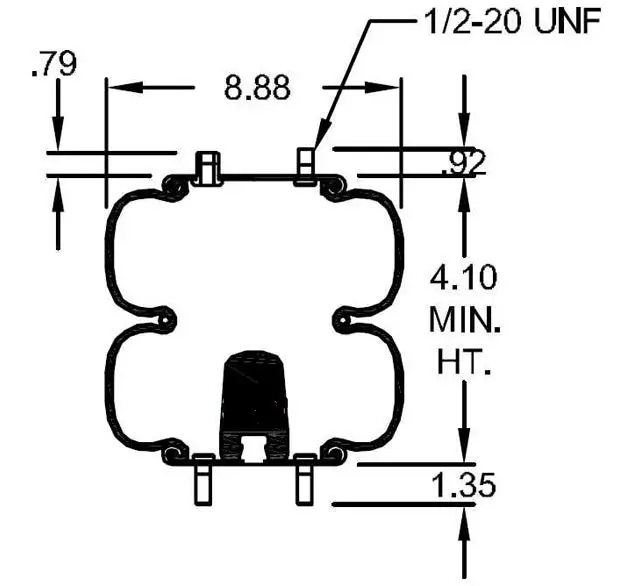

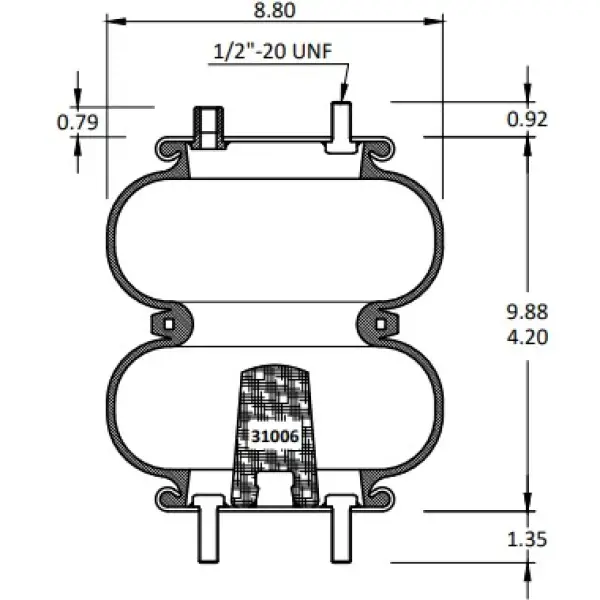

Compressed Height	4.10"

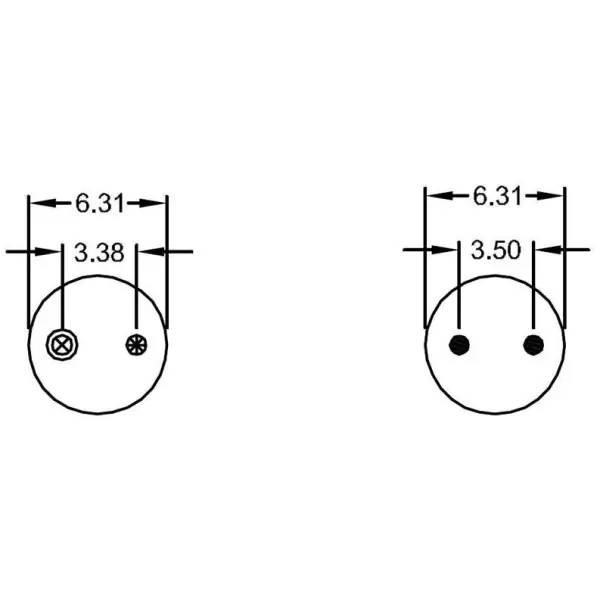

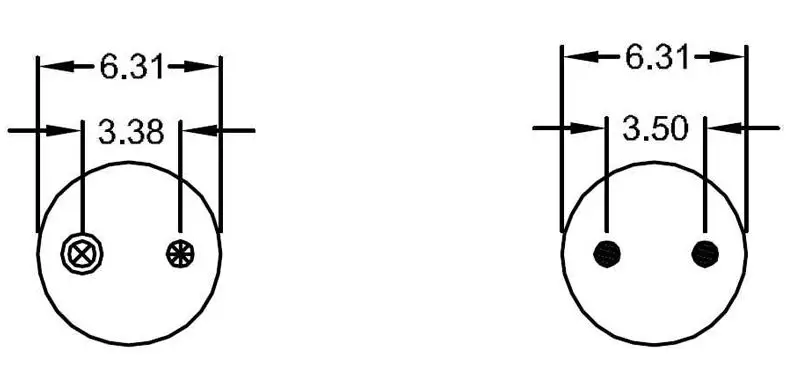

Top Plate Width	6.31"
Piston Width	6.31"
Weight	8.6 lbs

Inner Box
Longest Side	Median Side	Shortest Side	Weight
7.48"	8.86"	8.86"	7.91 lbs

Outer Box
Quantity	Longest Side	Median Side	Shortest Side	Weight
36	44.09"	44.09"	10.63"	295.42 lbs
