Air Spring Double Convoluted Replaces Firestone W01-358-7184

Description : Convoluted:TR7184

Part Number : TR7184

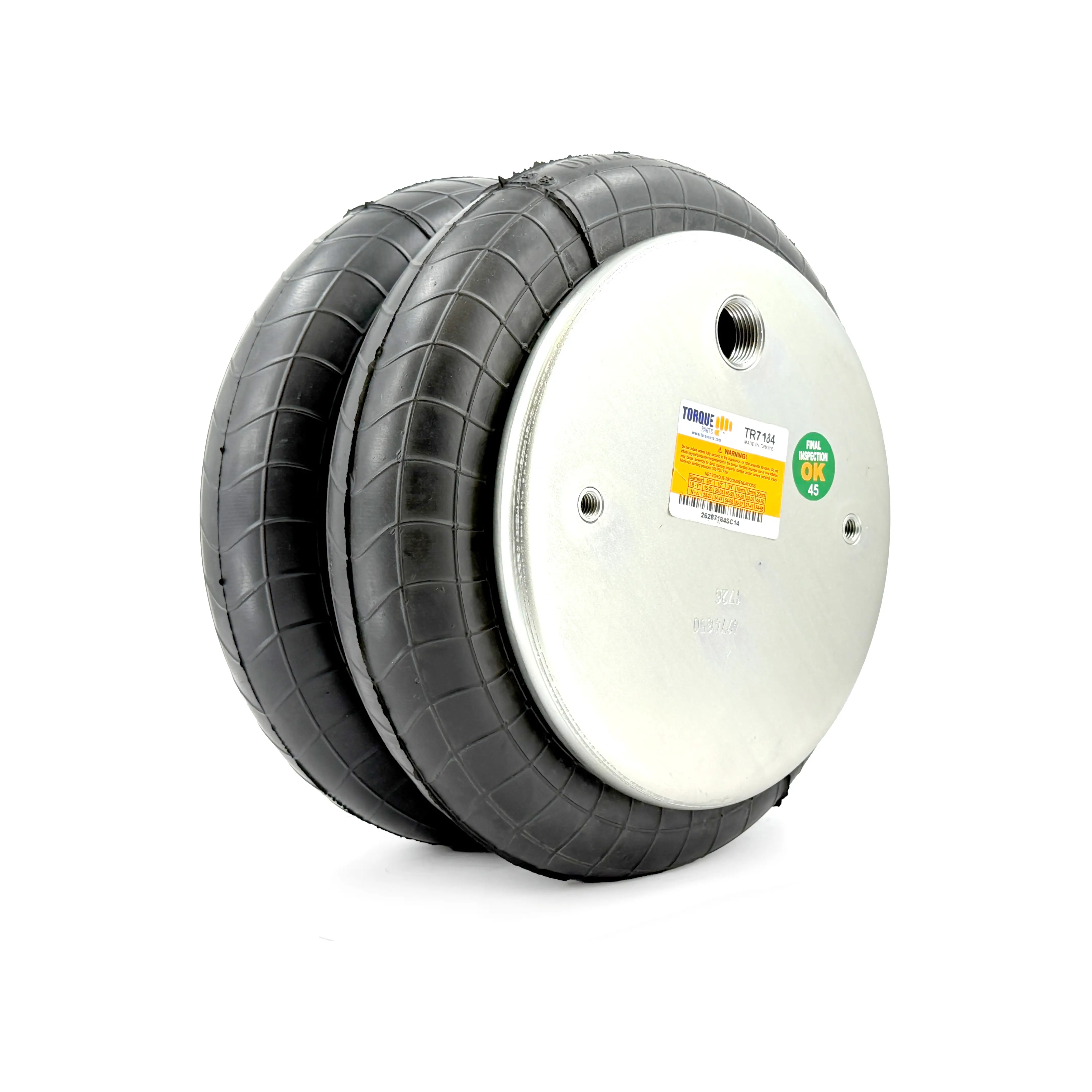

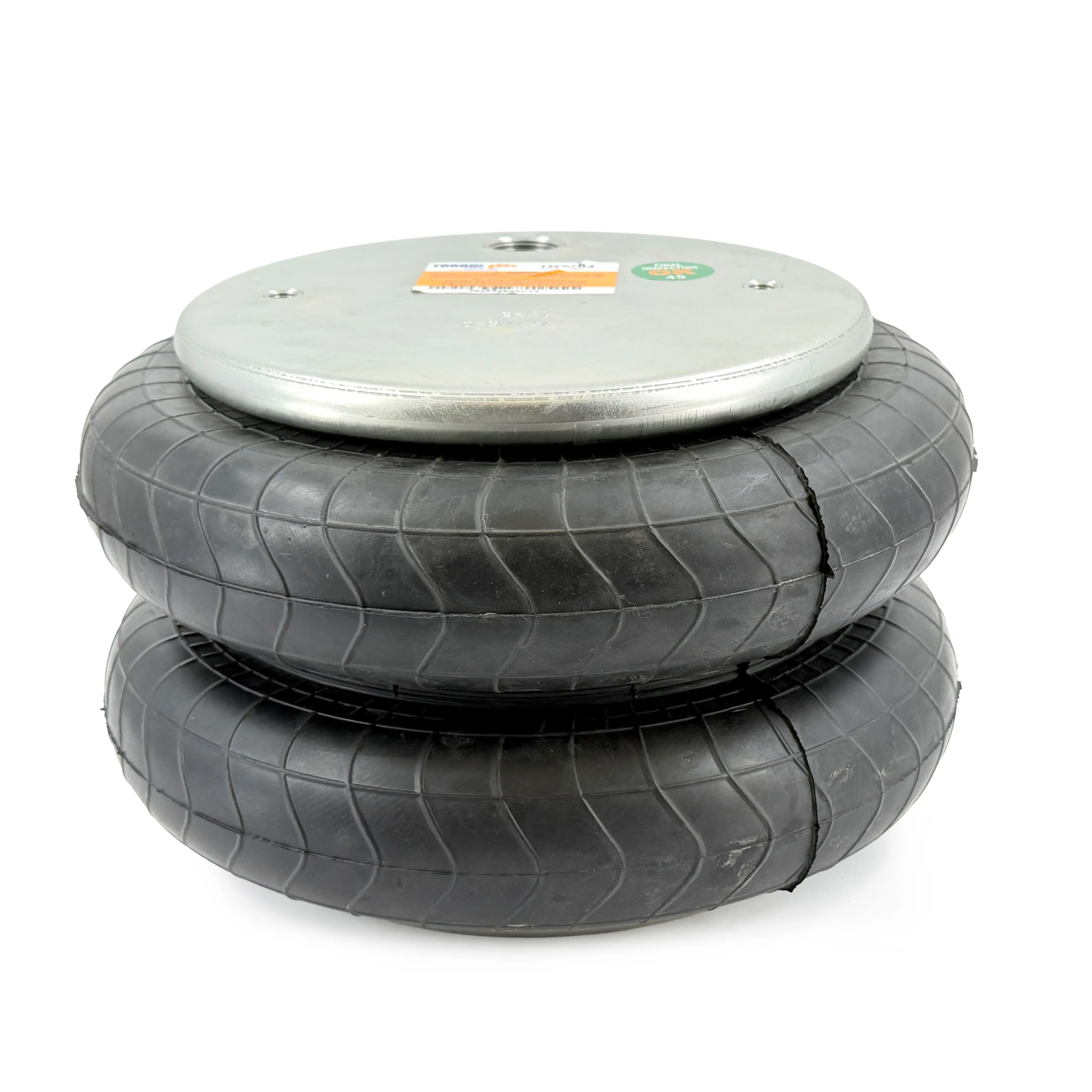

Air Spring Double Convoluted Replaces Firestone W01-358-7184
Air Spring Double Convoluted Replaces Firestone W01-358-7184
360° view of Air Spring Double Convoluted Replaces Firestone W01-358-7184
Click to see price
TR7184 - Air Spring Double Convoluted
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Firestone W01‑358‑7184
CONTITECH FD 330‑22 780
GOODYEAR 2B12‑429
Automann ABSP2B22R‑7184
Property Value
max. stroke: 8.8 in / 224 mm
max. load: 9,020 psi / 40.78 kN
max. diameter: 12.9 in / 329 mm
max. height: 12 in / 305 mm
min. height: 3.2 in / 81 mm
max. recommended operational height: 10.1 in / 260 mm
diameter plate: 9 in / 229 mm
mounting thread: 2x3/8‑16
air inlet: 3/4 NPT
eccentric: 2.88 in / 73 mm
material bellow: NR
temperature range: ‑ 40°C / +70°C
style: 22
TR7184 - Air Spring Double Convoluted

No inner box information is available for this product.

No outer box information is available for this product.
