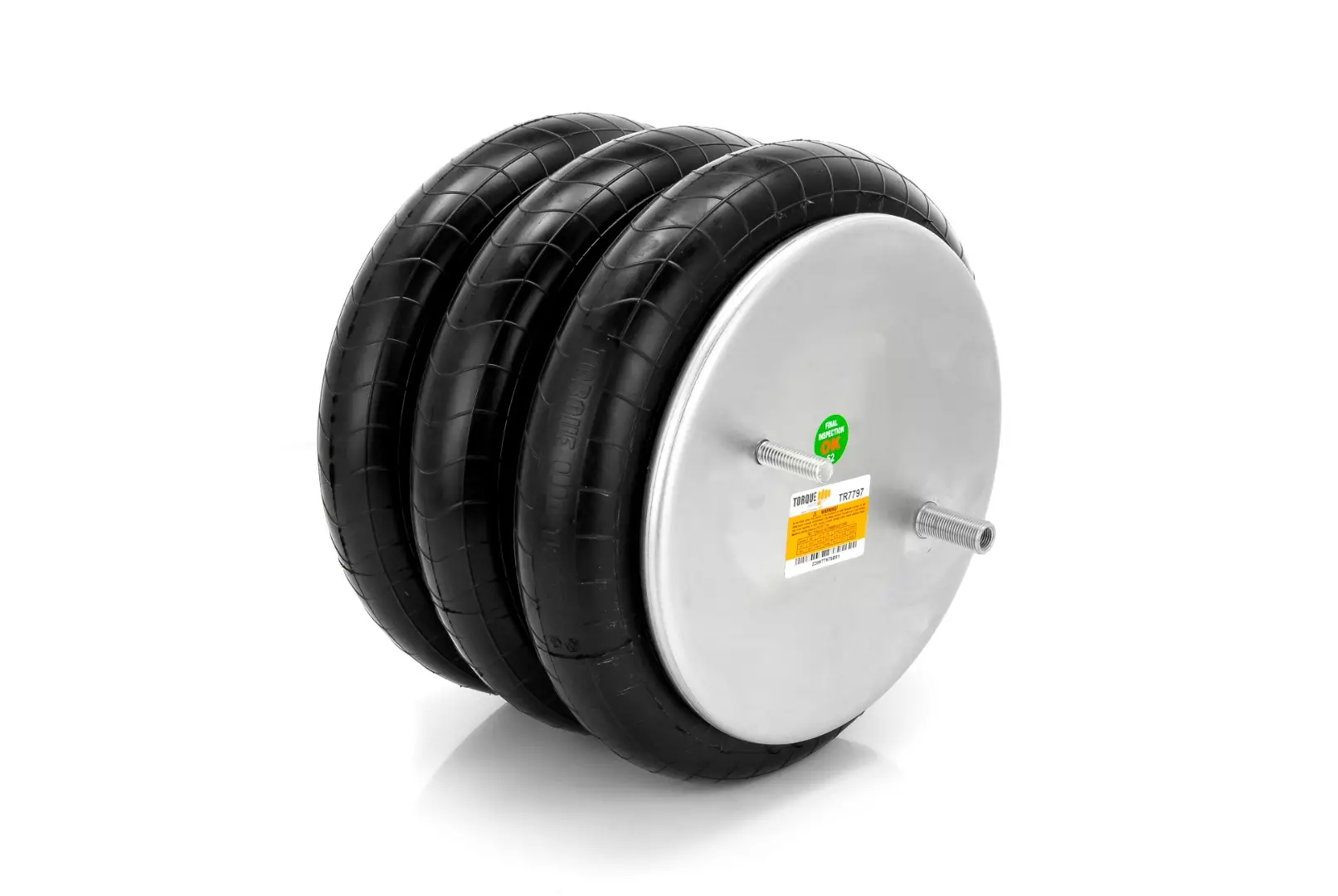

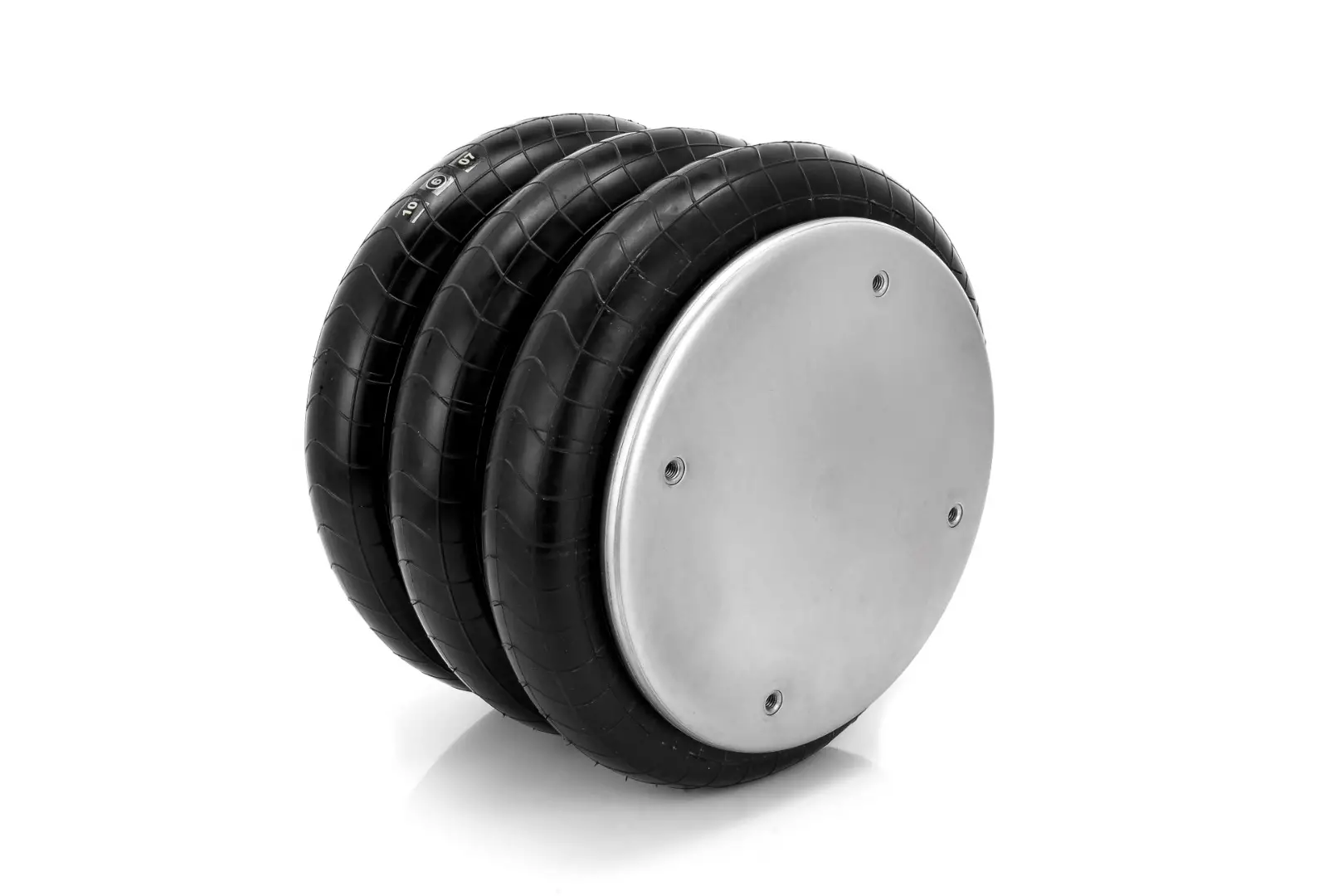

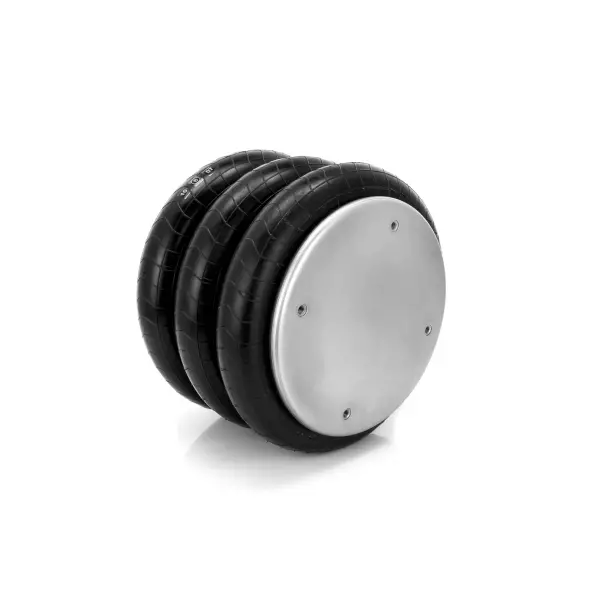

Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535

Description : Convoluted Air Spring

Part Number : TR7797

Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
360° view of Convoluted Air Spring Replaces W01-358-7797, 64507, FT 530-32 535
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Contitech  64507, FT 530‑32 535
 Firestone  W01‑358‑7797
 Freightliner  1617575000, 1615762001
 Hendrickson  1346
 Link  11030057
 Triangle  AS‑4535
 Sampa  SP557797, SP 557797

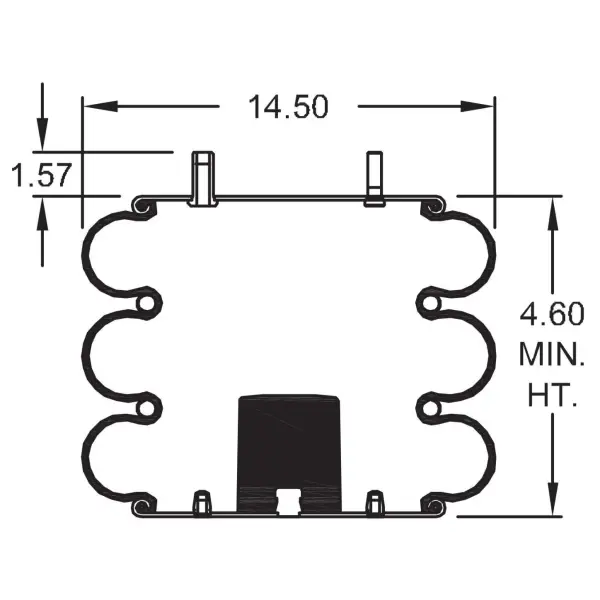

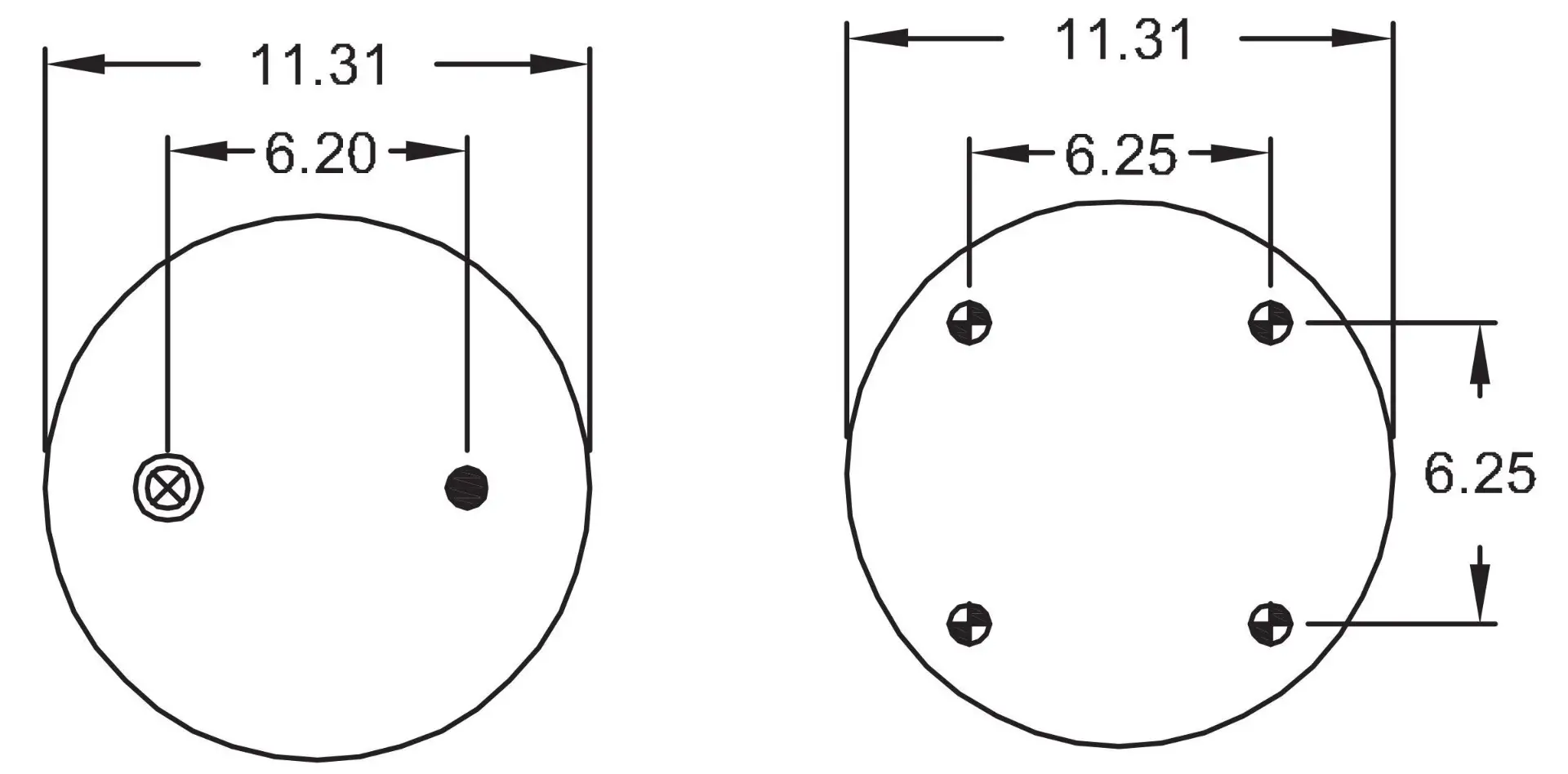

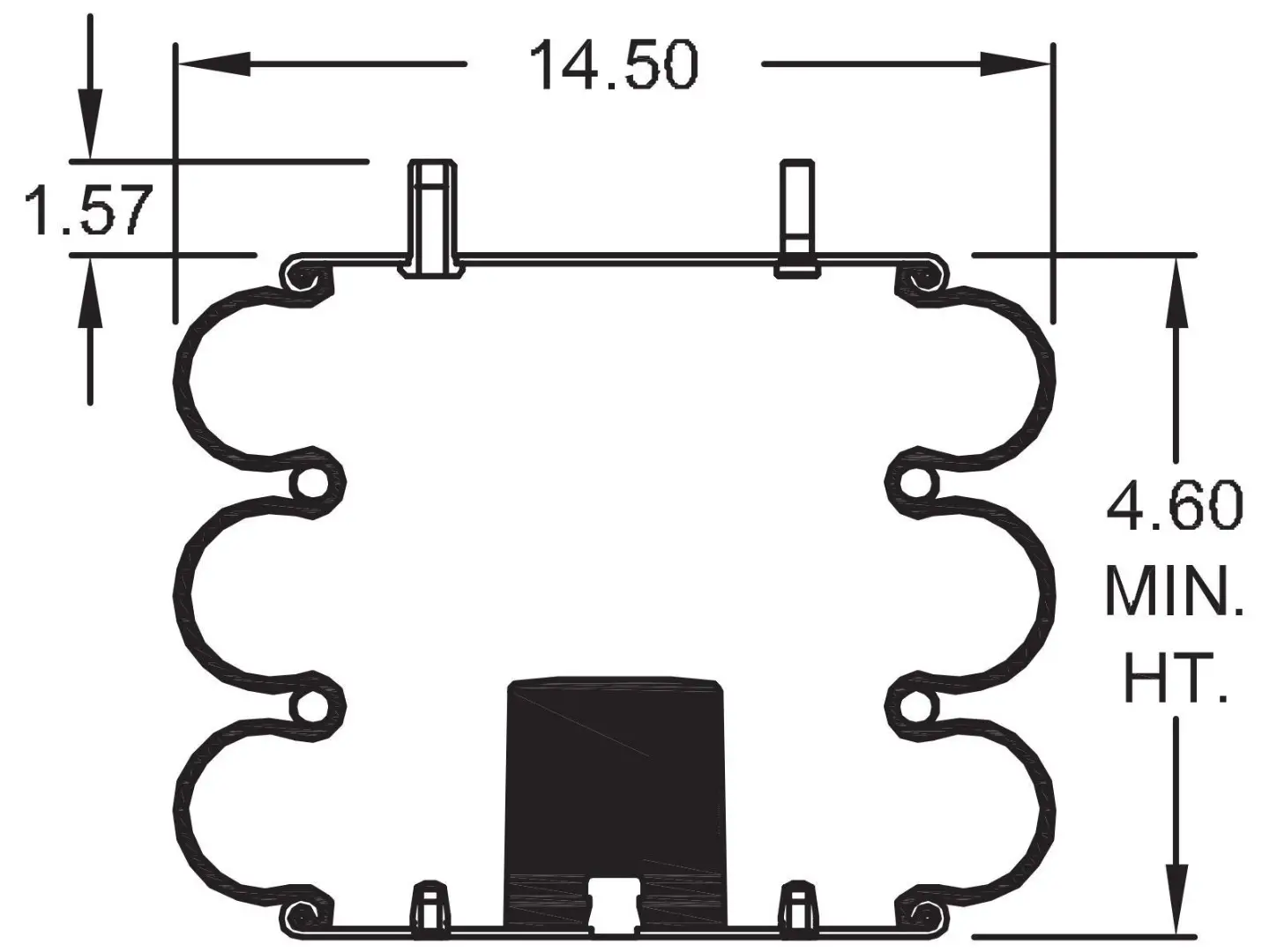

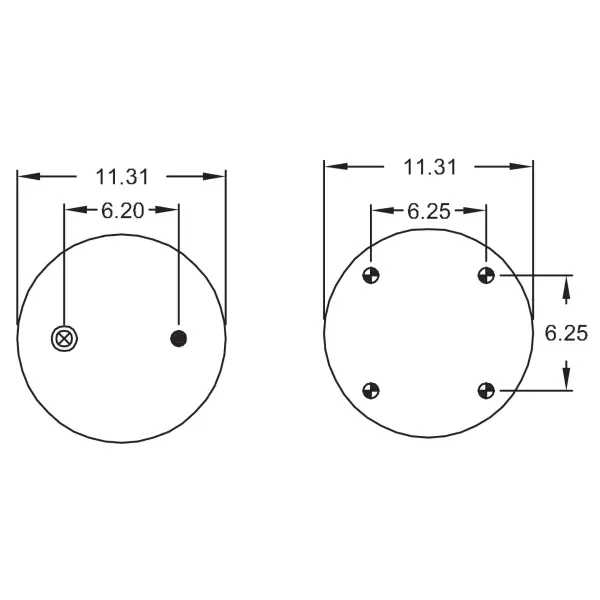

Property Value
Compressed Height  4.60"
Top Plate Width  11.31"
Piston Width  11.31"
Weight  21 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
14.17" 14.17" 7.09" 20.41 lbs
Outer Box
Quantity Longest Side Median Side Shortest Side Weight
60 44.09" 44.09" 45.28" 1,307.34 lbs
